Mazda Miata Door Pull (NA)
Print Profile(1)
Bill of Materials
- 7/8"washer x 2:
- 36"colorwebbing x 1:
Description
Mazda Miata Soor Pull (NA)

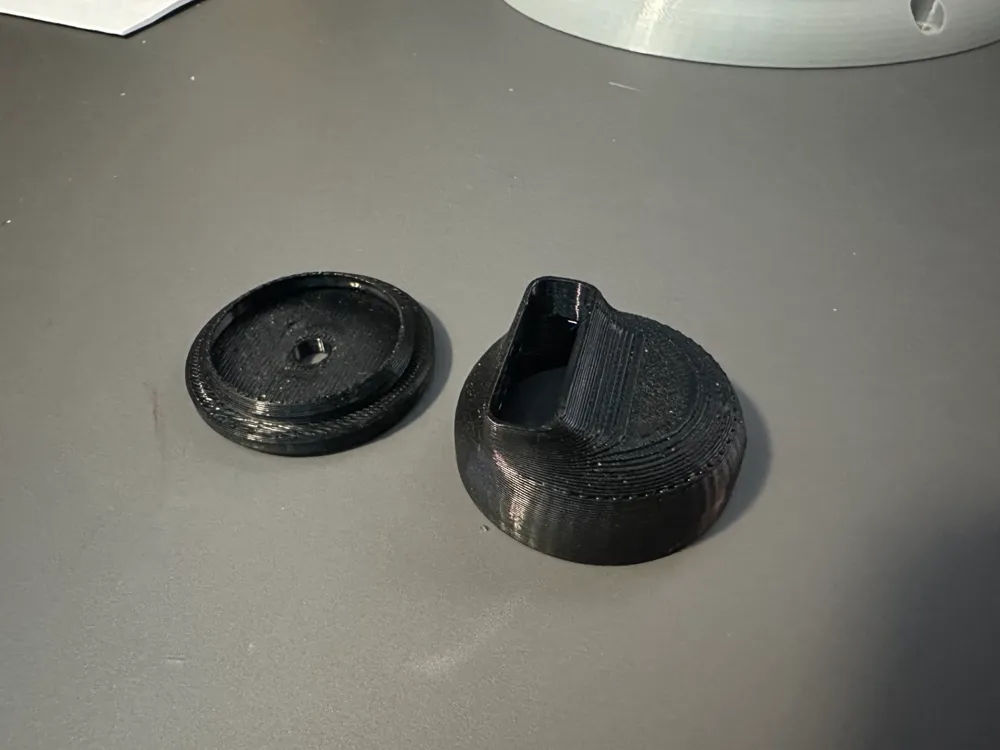

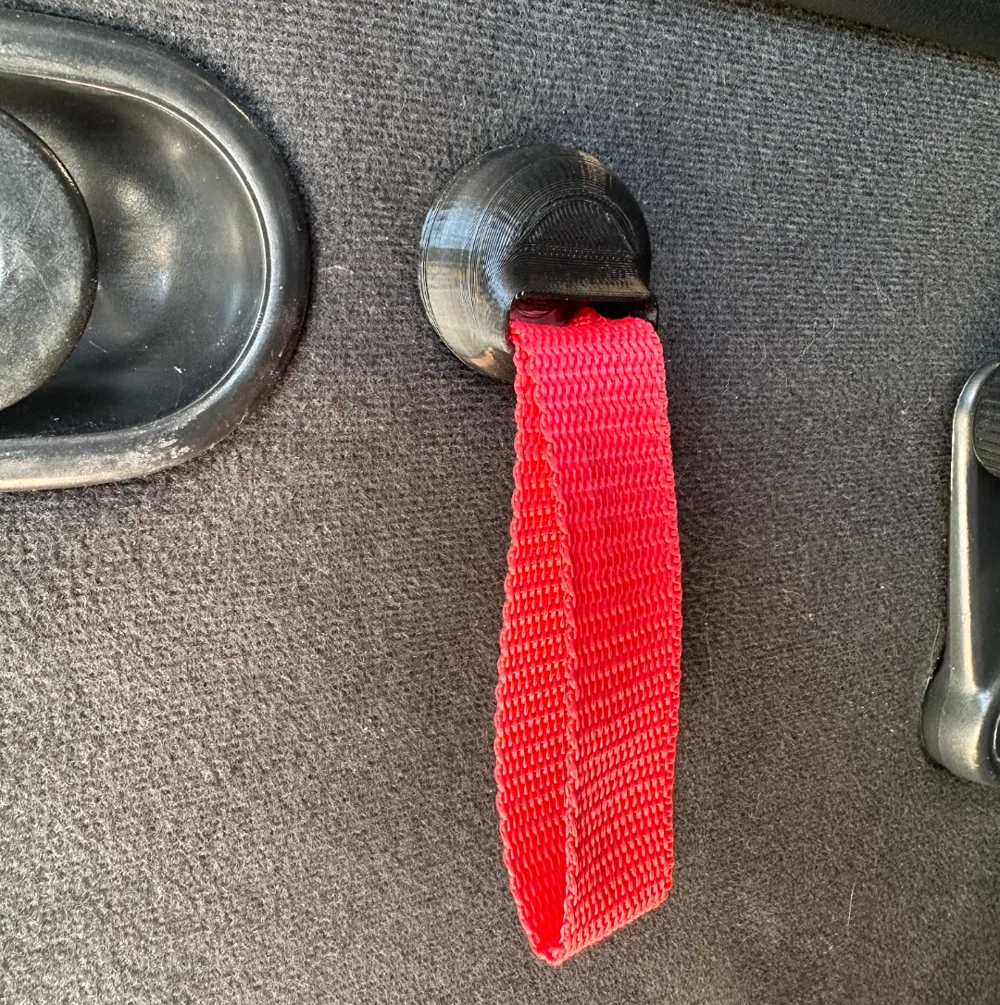

Porsche-style door pulls for your NA Miata This is a snap-style cap and base that does not require any hardware to hold the cap.
Additional Resources needed:

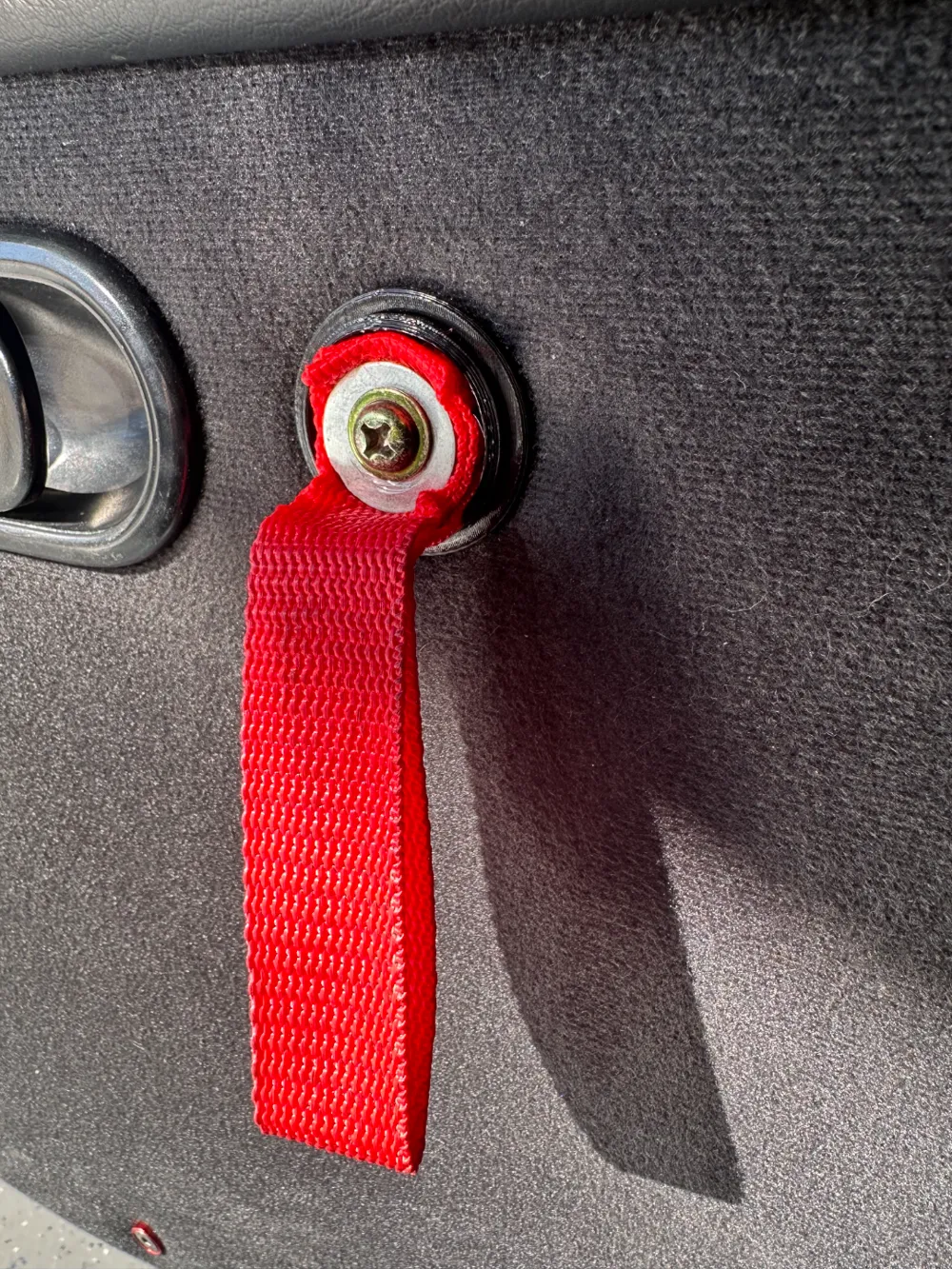

Adding your color webbing strip for color personalization, the shortest length suggested is 14" as you want enough material to create a loop of 6" and an additional 2" for 1" overlaps for the eye loop to create a little webbing sandwich. Use a 7/8" washer to help keep everything tight.
Use a hot knife or similar tool to create the holes needed in webbing. This will seal the webbing and prevent fraying.
2 ea 7/8" flat washers
36" of color webbing can be bought at most local craft stores
Print settings:
Use PETG or ABS or ASA or stronger material with better heat resistance.
Layer Height: 0.20mm base with variable layer height
Perimeters: 3
Infill: 15% Gyroid
Support: Required
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
