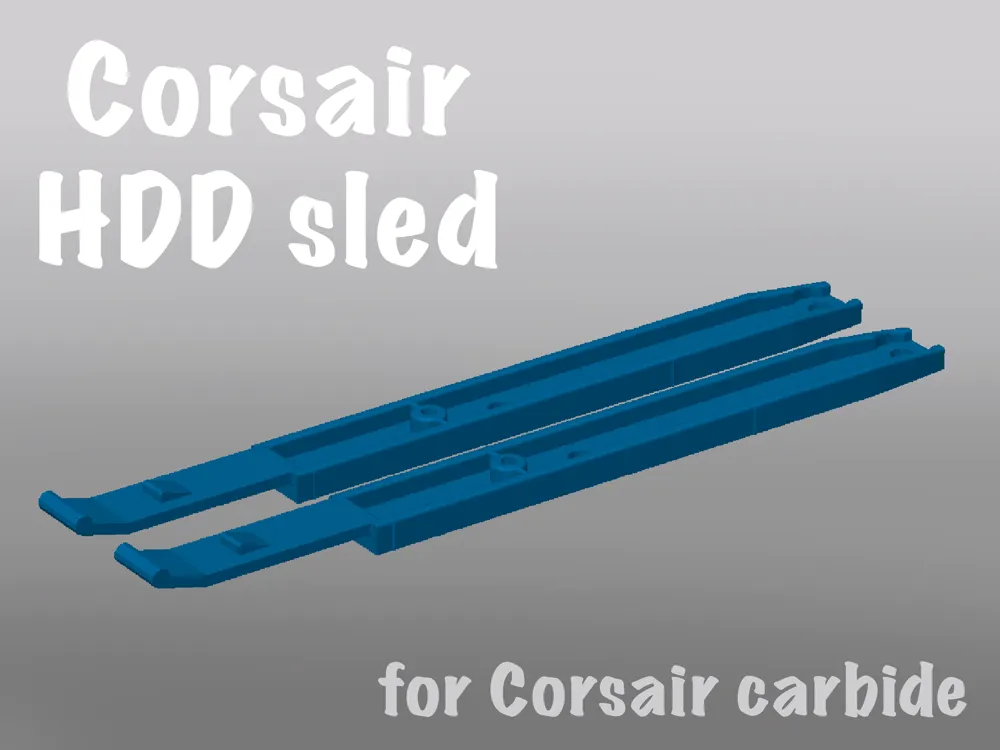

Hard drive mount for Corsair case

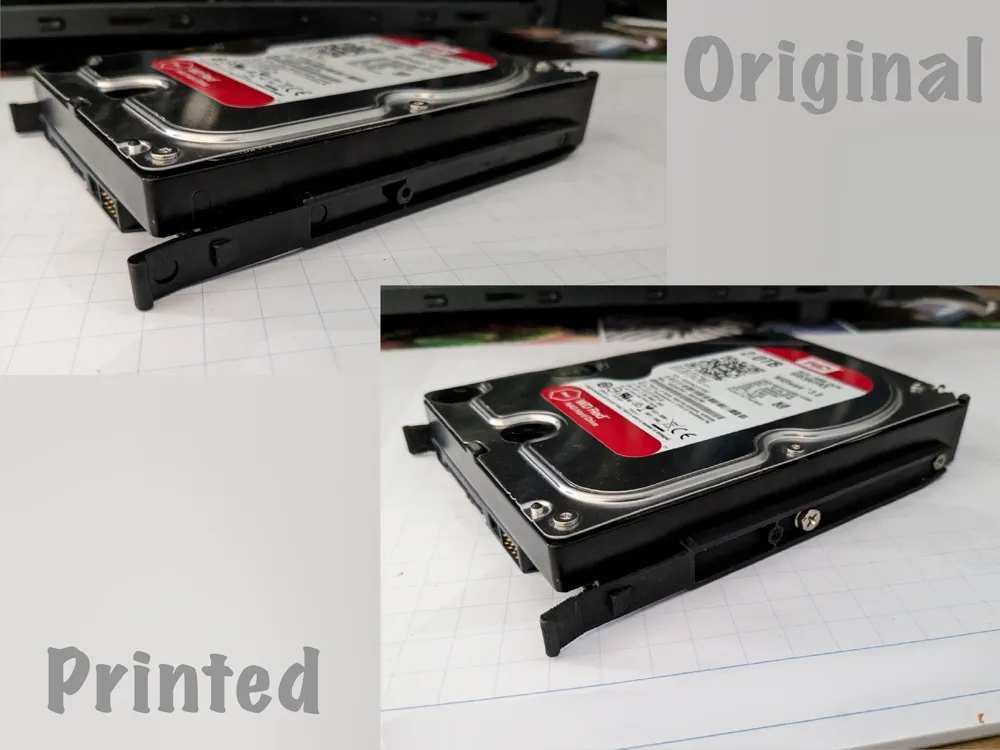

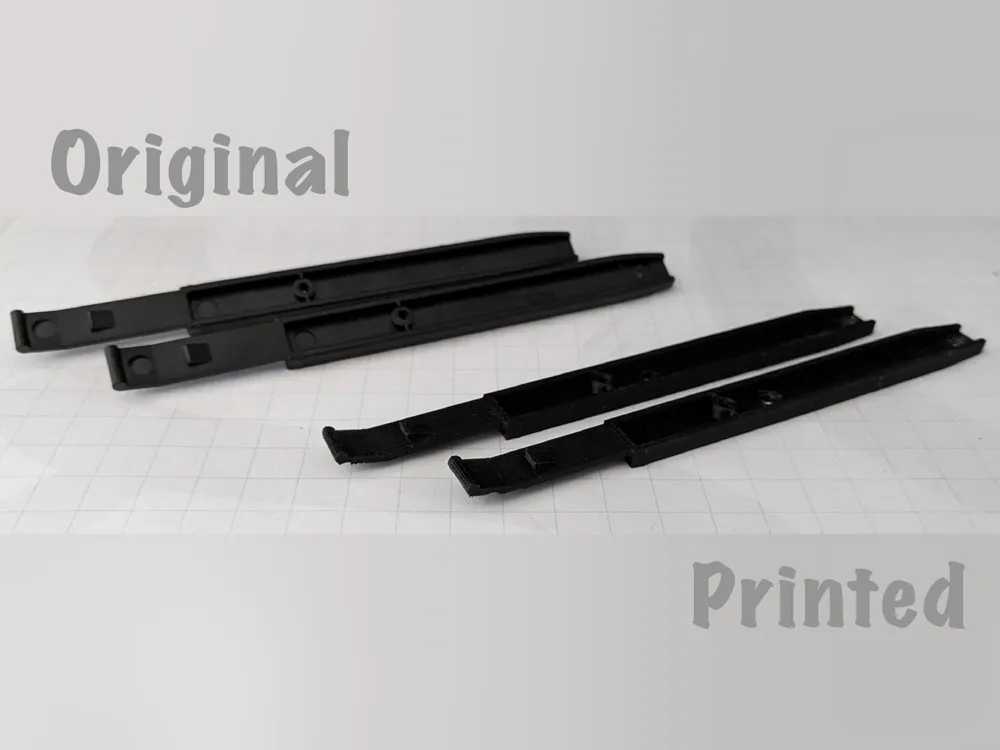

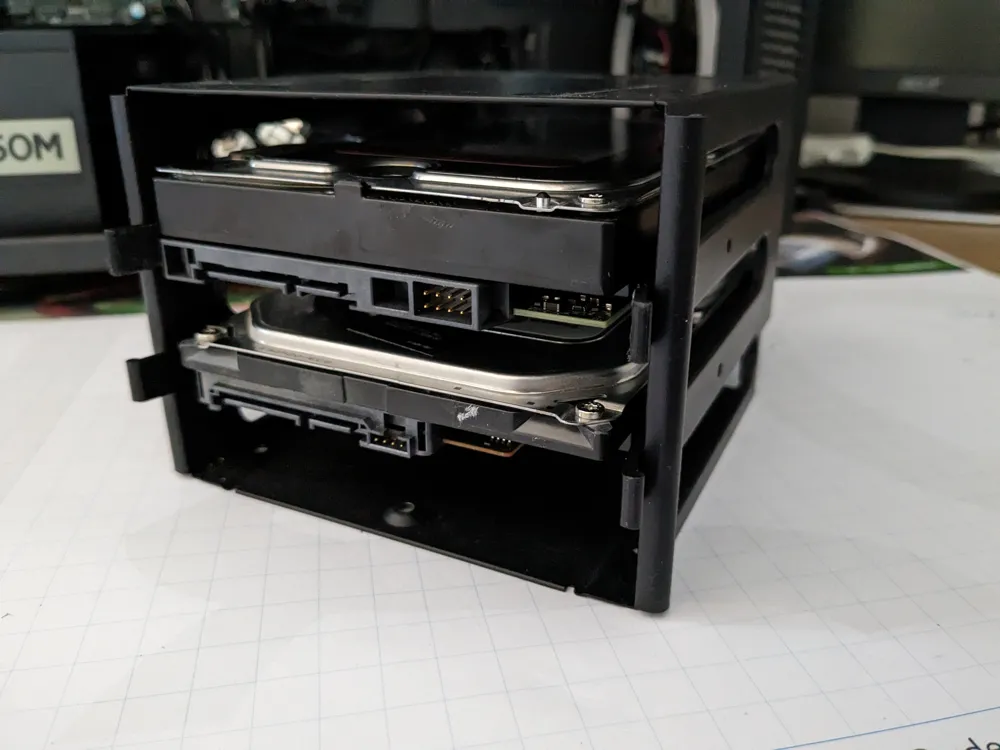

These brackets are made to add a second 3.5 inch drive to the Corsair carbide case. They can also replace the original. For easier printing, I swapped the screwless mounting pins for screw mounts using standard HDD screws (#6-32 UNC). The sled still clicks in the case just like the original.

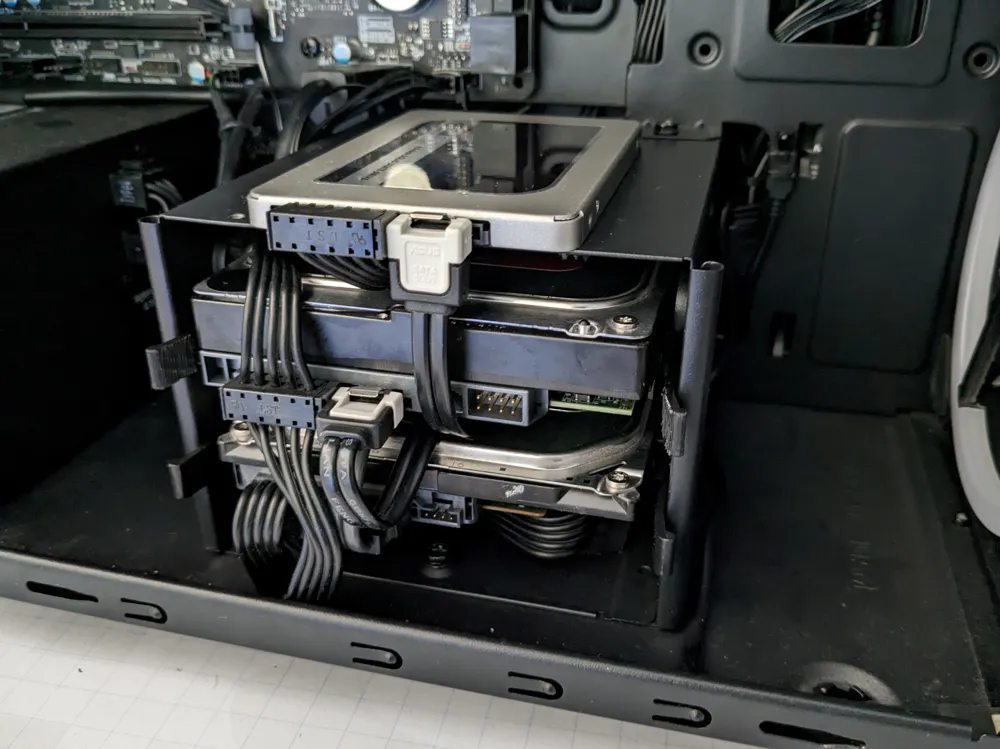

They are designed for my Corsair carbide 88R case but are probably compatible with multiple Corsair cases. If you use these on a different model, feel free to leave a comment and let others know whether or not it fits your model.

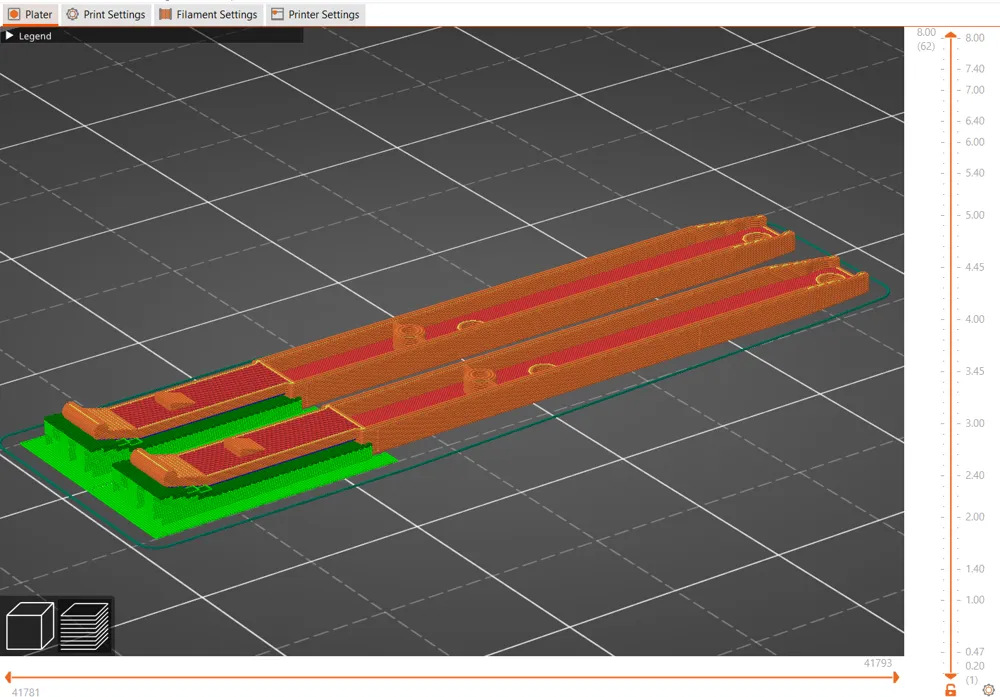

When printing, support is needed underneath the lever.
