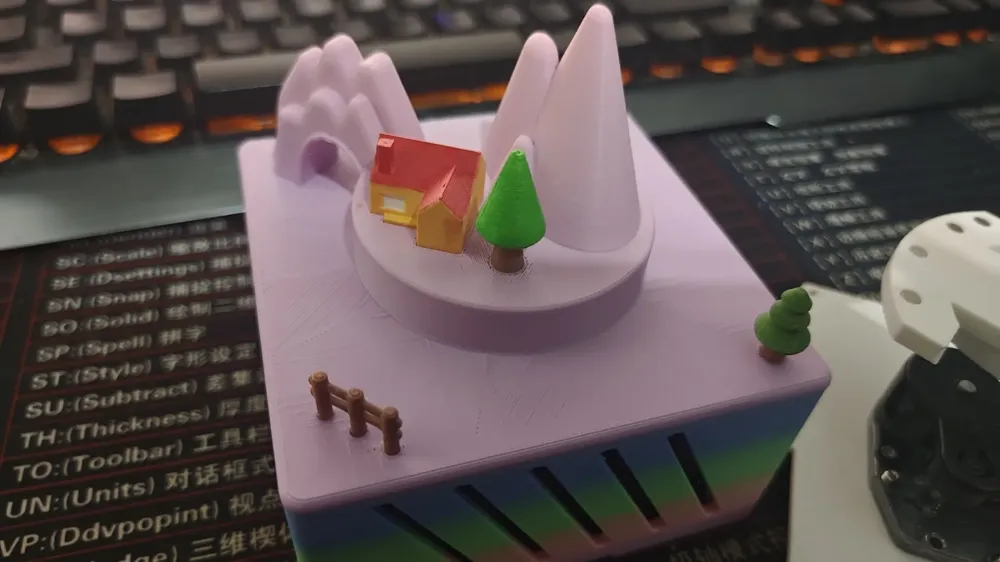

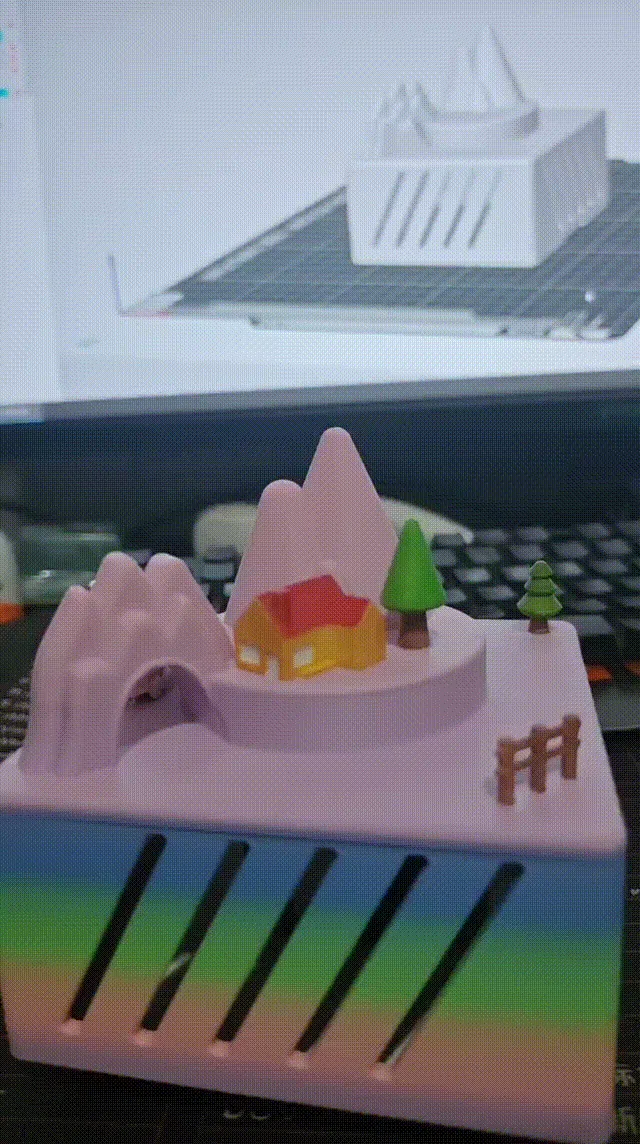

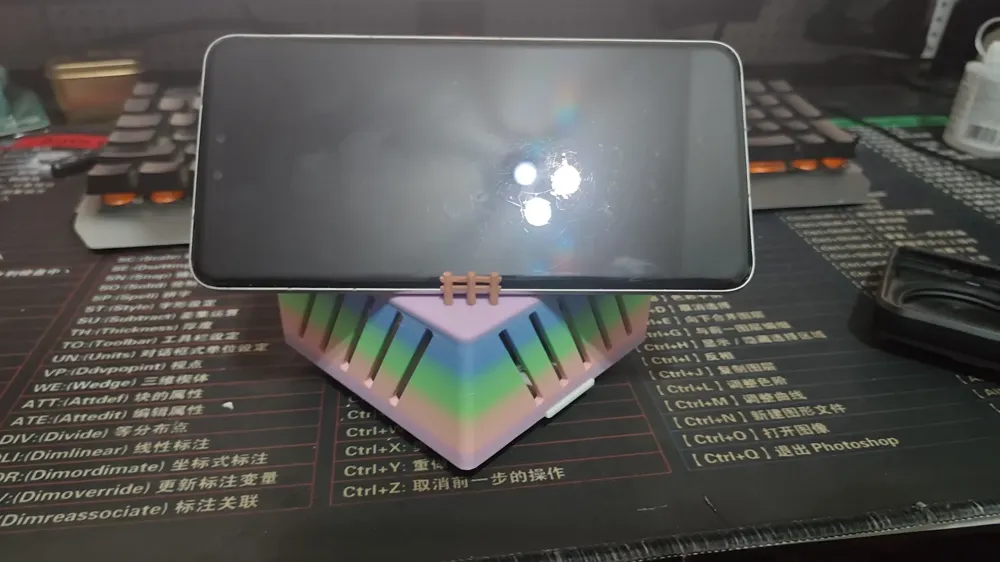

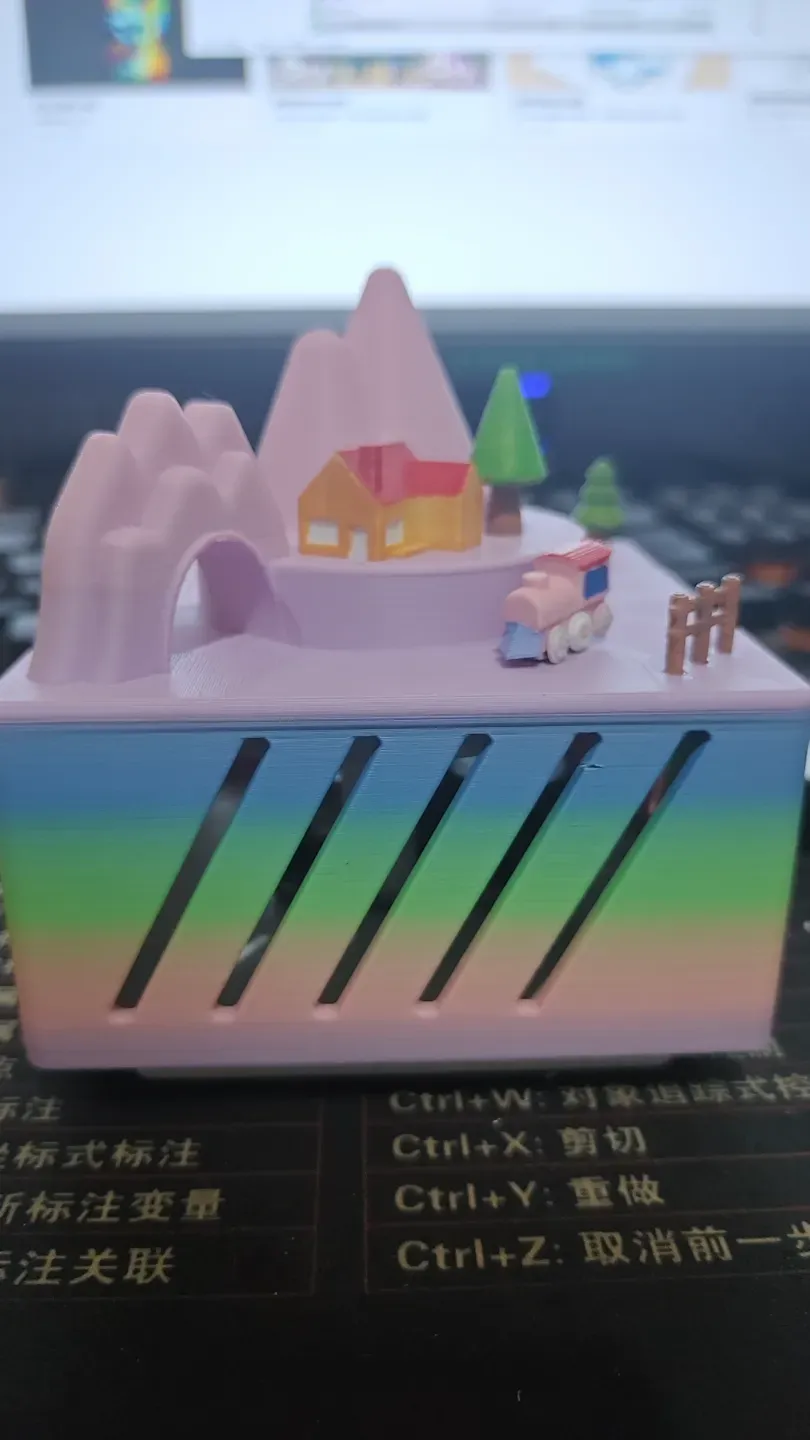

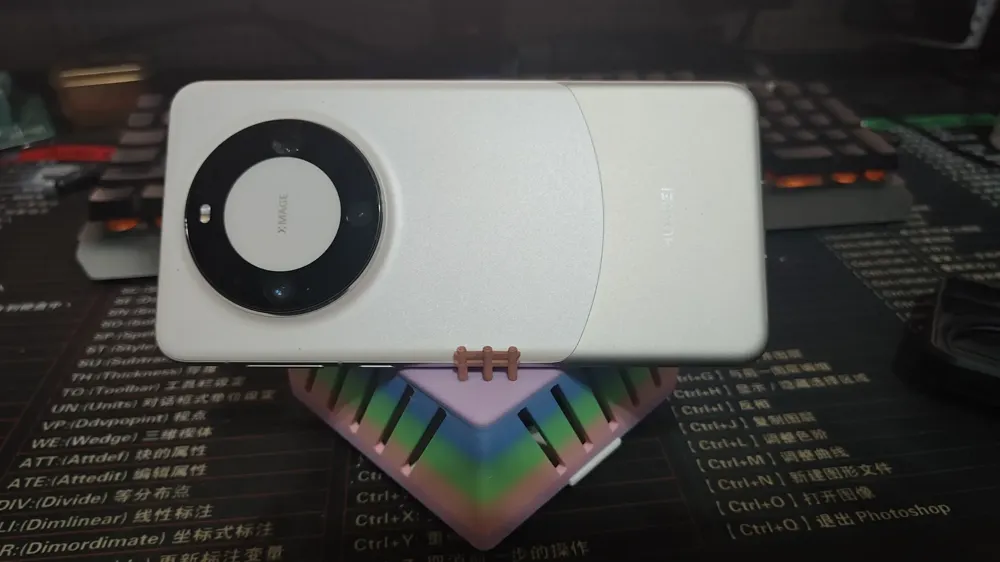

3D Printed Magnetic Train Music Box Phone Stand Version 4.0
October 30th, modified and optimized the model body, significantly reducing printing time by 30%, reducing the use of printing consumables, thanks to group members @RIshi for the suggestion.
October 29th, Detected an abnormality in boosting, was forced to be taken off the shelves, so subsequent boosting for those who boosted me will not be available for timely boosting, please understand.
October 26th, Uploaded version 3.0, added magnetic adsorption position for train storage and optimized printing parameters.
October 25th, Uploaded an optimized version of the model.
September 28th, Started modeling and brainstorming the structure, created the 1.0 version of the Train Music Box.
Creation is not easy, your liking is the driving force of my creation.
——————————————————————————————————————————————————————————————
Version 4.0 adds a slot design to the previous version. After printing, just install it in the slots at the four corners.
If it is loose, you can apply 502 glue.
It is recommended to use PLA consumables to print to ensure accuracy.
The following is a list of materials required.
| Material name | Size | Quantity | Notes |

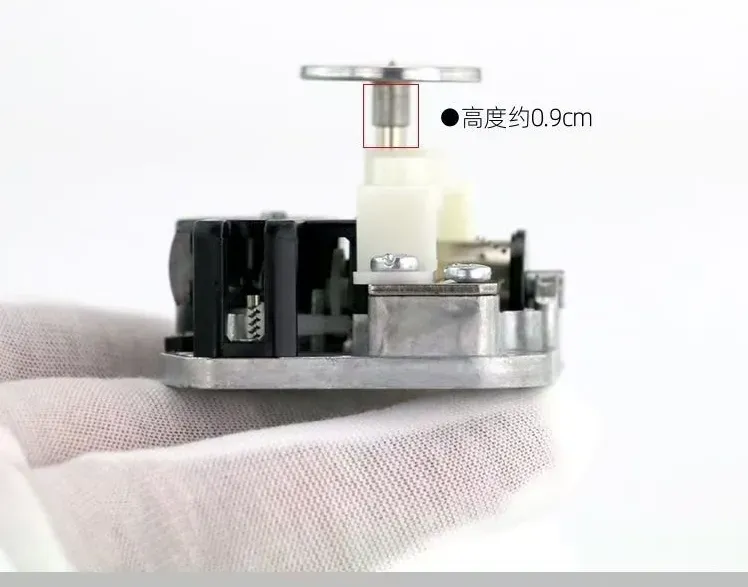

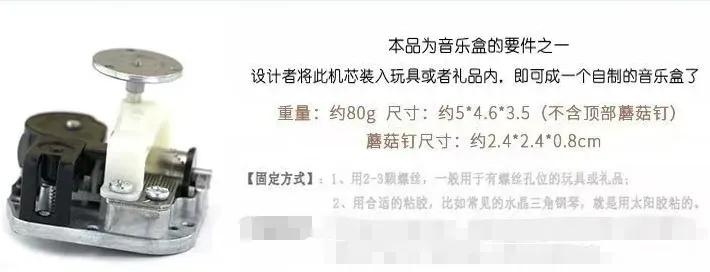

| Music Box Movement | 5*4.6*3.5 (excluding the top mushroom nail) 2.4*2.4*0.8 (mushroom nail) | 1 | You can buy the same product on PDD or TB with the same size as this product. Refer to Figure 1 and Figure 2 below. |
| M2 Countersunk Screw | M2*8 | 4 | (Length should not exceed 10 and not less than 5) |
| M3 Round Head Screw | 3 | Comes with the purchase of a music box movement, no need to purchase | |
| Rubidium Magnet | 4*2 round magnet | 10 | Because the magnetic properties of each magnet are different, if you find that the train runs intermittently, you can add one more magnet. |
Installation instructions, please download the assembly tutorial.
