Modular Filament Storage - With Benchy Snap on
Print Profile(43)
Description

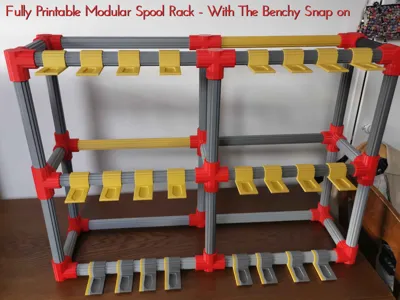

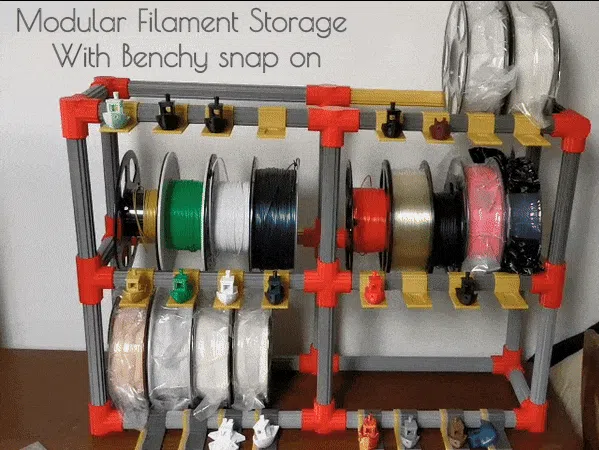

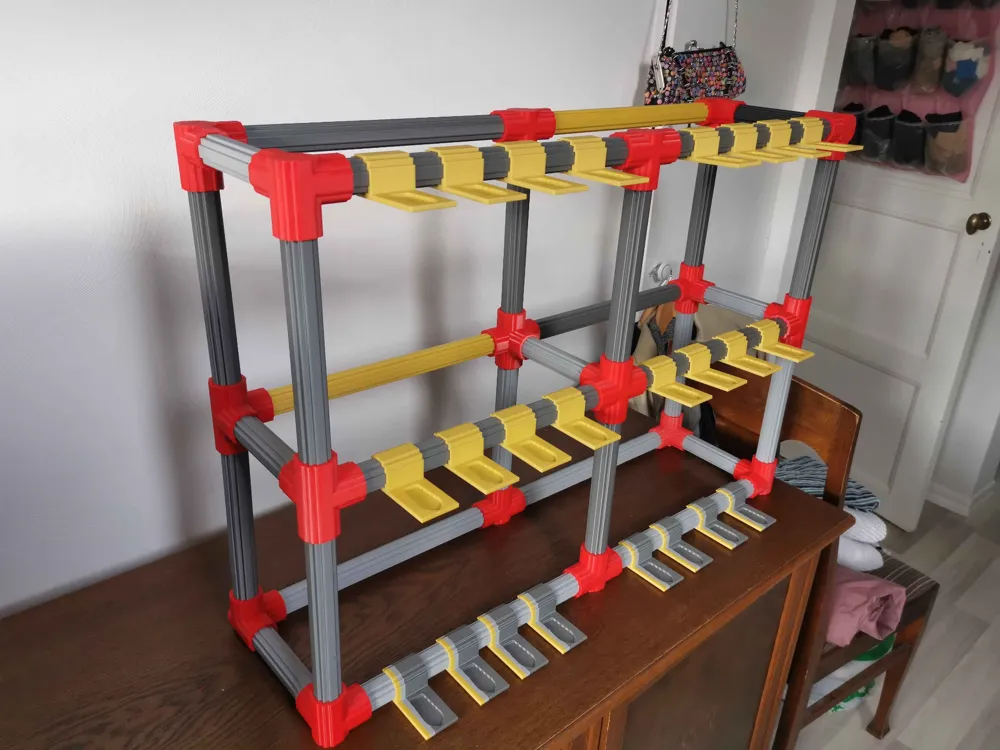

The Ultimate Modular Filament Storage - With a Benchy Snap on, Fully Printable!
Make your own filament storage how you want it!
The Different Parts are:

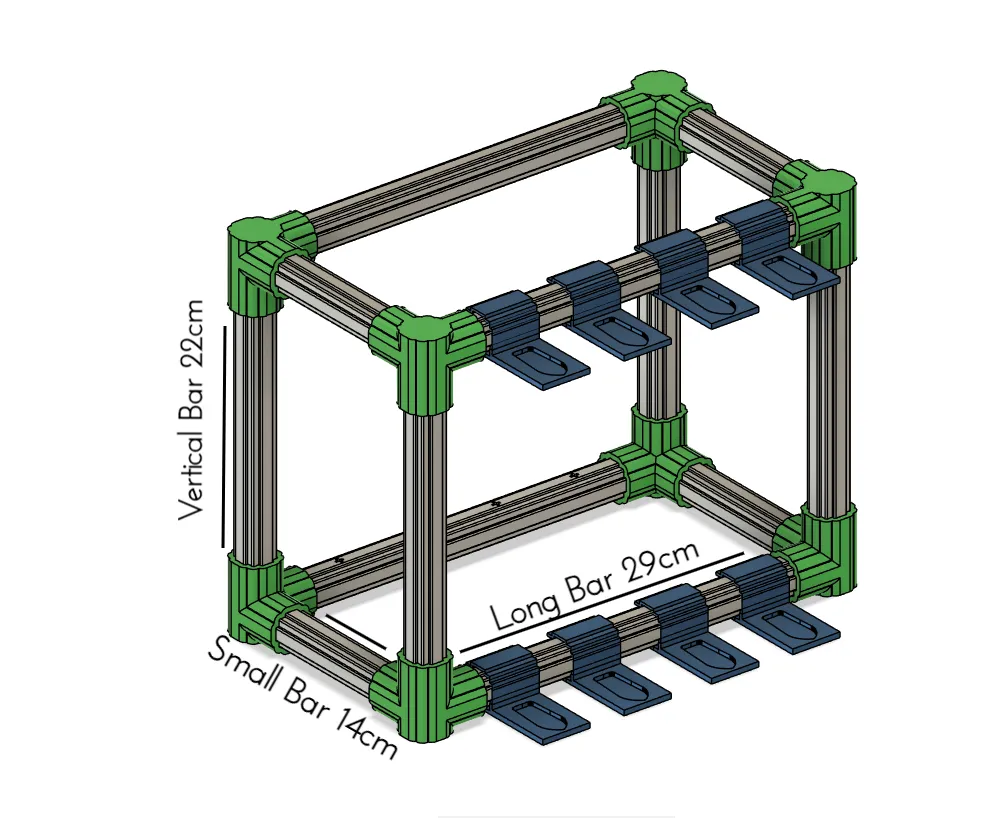

Rods:
- Small Bar 14cm
- Vertical Bar 22cm

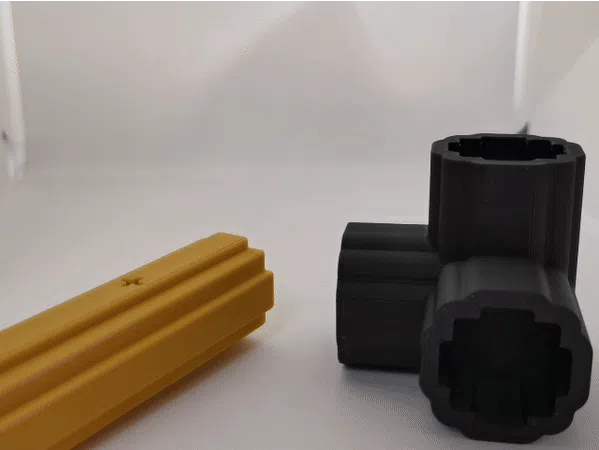

- Long Bar 29cm with X marks (For the benchy snap on)
- A 25cm Long Bar. An smaller alternative to the 29cm Bar.
- A 32.5cm Long Bar. Also an alternative to the 29cm Bar.

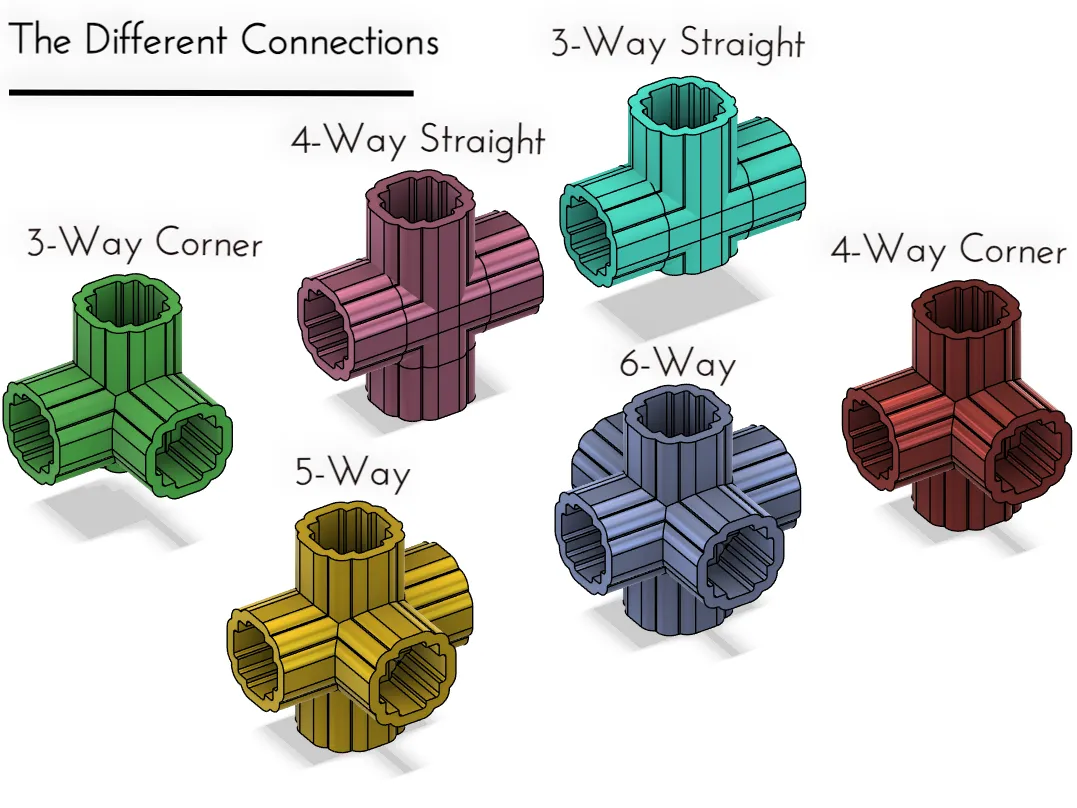

Connections:
- 3-Way Corner Connection
- 3-Way Straight Connection
- 4-Way Corner Connection
- 4-Way Straight Connection
- 5-Way Connection
- 6-Way Connection

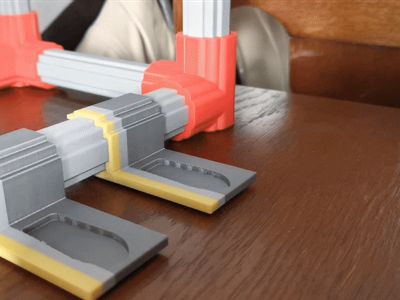

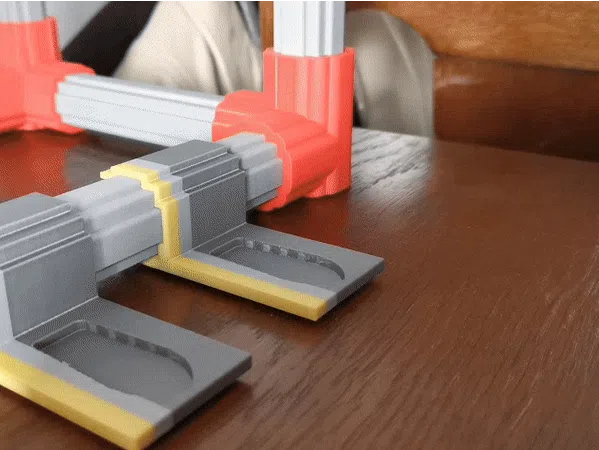

- And of course the Benchy snap-on.
The Rods are 25mm in diameter.
This set up costs you about 85 Grams of filament per spool which is a very reasonable price for a fully printable spool rack in my opinion!

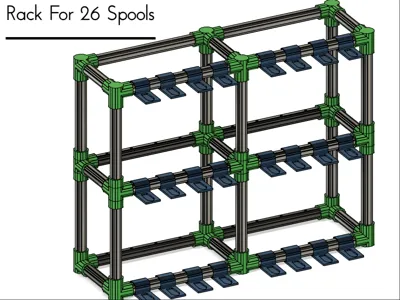

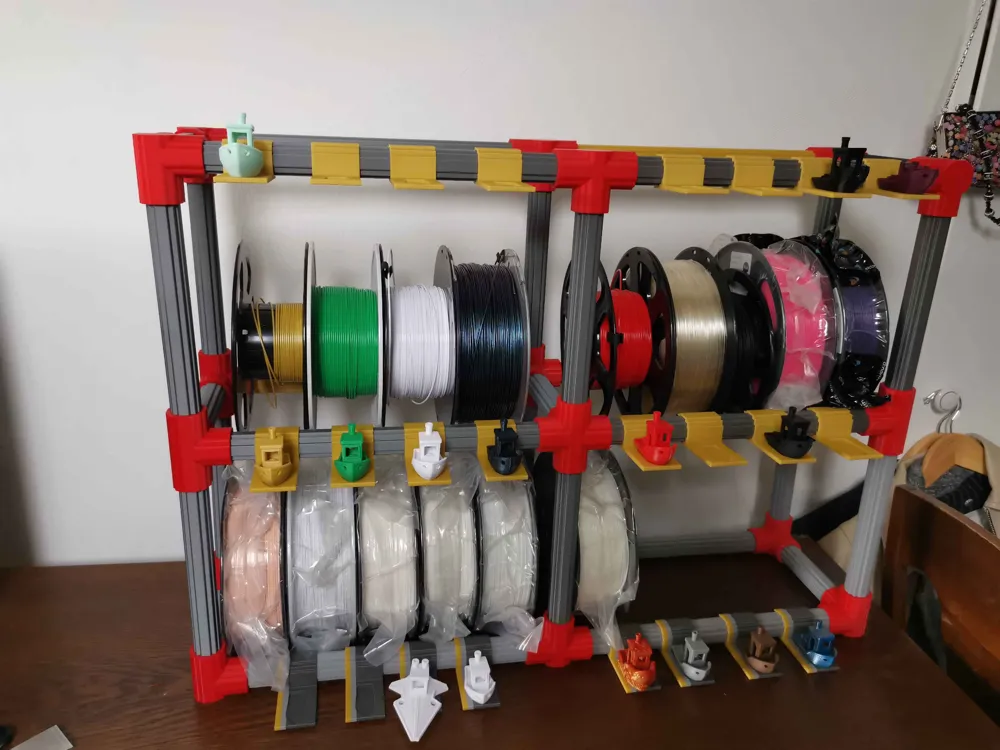

26 spools rack is 2.25kg.
Size: 54cm in height, 75cm in width and 21cm in depth(Spools on top not counted).
About 85g per spool

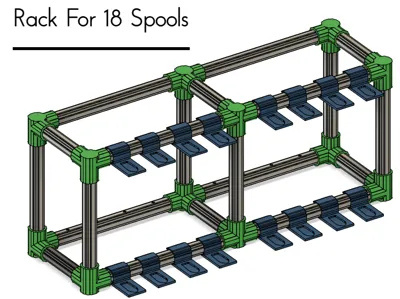

18 Spools rack is 1.2Kg.
About 66g per spool

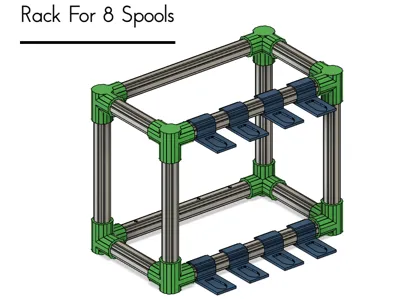

8 Spools rack is 750g.
About 93g per spool
If you encounter difficulties printing the connections, I’ve included some easier-to-print profiles at the end of the print profile list.
