AMS spool holder.png







0.2mm layer, 2 walls, 15% infill 72mm pitch between AMS ribs


0.2mm 层高, 2 层墙, 15% 填充 - PTFE管线导向

0.2mm layer, 2 walls, 15% infill 85mm pitch between AMS ribs


Dale (Printworks)

extra onderdeel 3.jpeg

extra onderdeel 6.jpeg

extra onderdeel 1.jpeg

extra onderdeel 2.jpeg

extra onderdeel 5.jpeg

extra onderdeel 4.jpeg

This is a better version for the AMS part of this spool holder.&nbsp;Advantages of this version:It is easier to get it under the ams, you won&#39;t get white spots in the plastic of the ams (I got those with the normal version), It&#39;s easier to hang the rest of the holder in this version and its thinner so the plastic of the ams unit won&#39;t bend.&nbsp;What i changed:I made the whole part thinner so it is easier to get it under the ams, the part where you hang the rest of the holder is now a tiny bit larger so it&#39;s a lot easier to use it, the lines in the print where the lines of the ams come together are now a lot bigger so that you can move it a bit when you need to and its easier to install it on the ams.&nbsp;Biggest change:This new version wil work on ALL ams units! (With that i mean all the normal ams units, not the ams lite! I dont know for sure if the ams 2 pro will fit.) Tis is because the part where the lines of the ams meet the holder are now larger! Some ams has them closer that the others, and the normal version will not fit every ams! (Mine doesn&#39;t fit too)

Better option for AMS part (PLA)

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

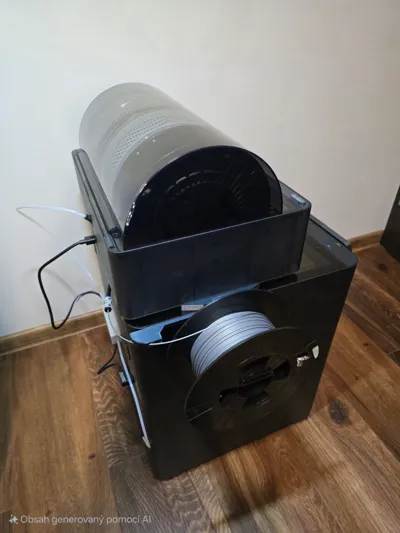

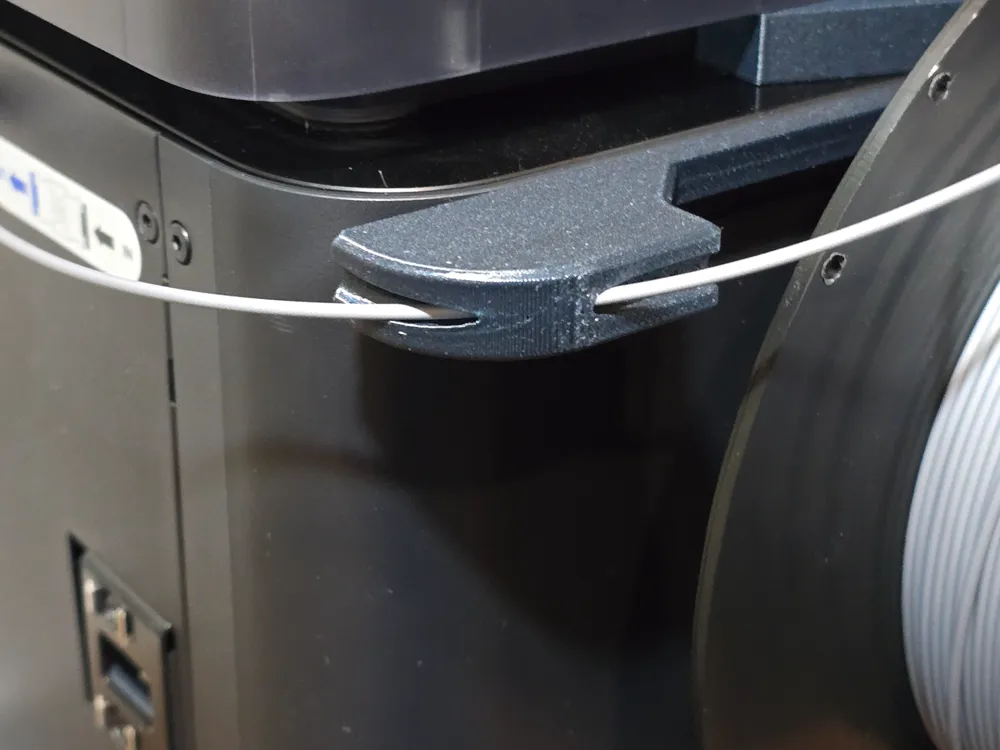

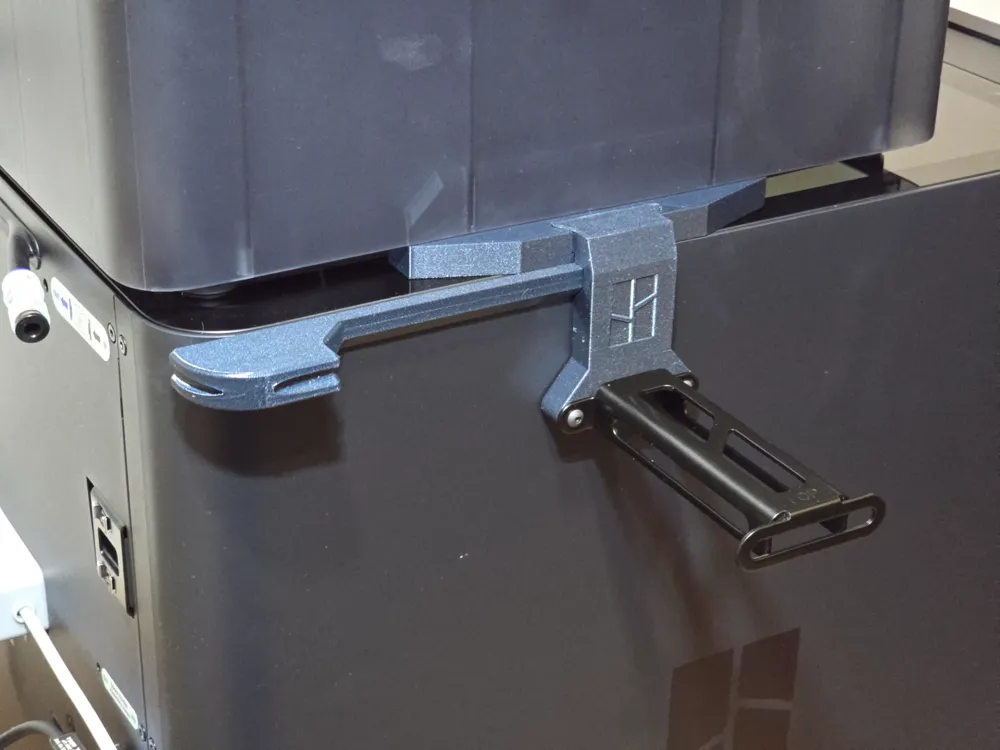

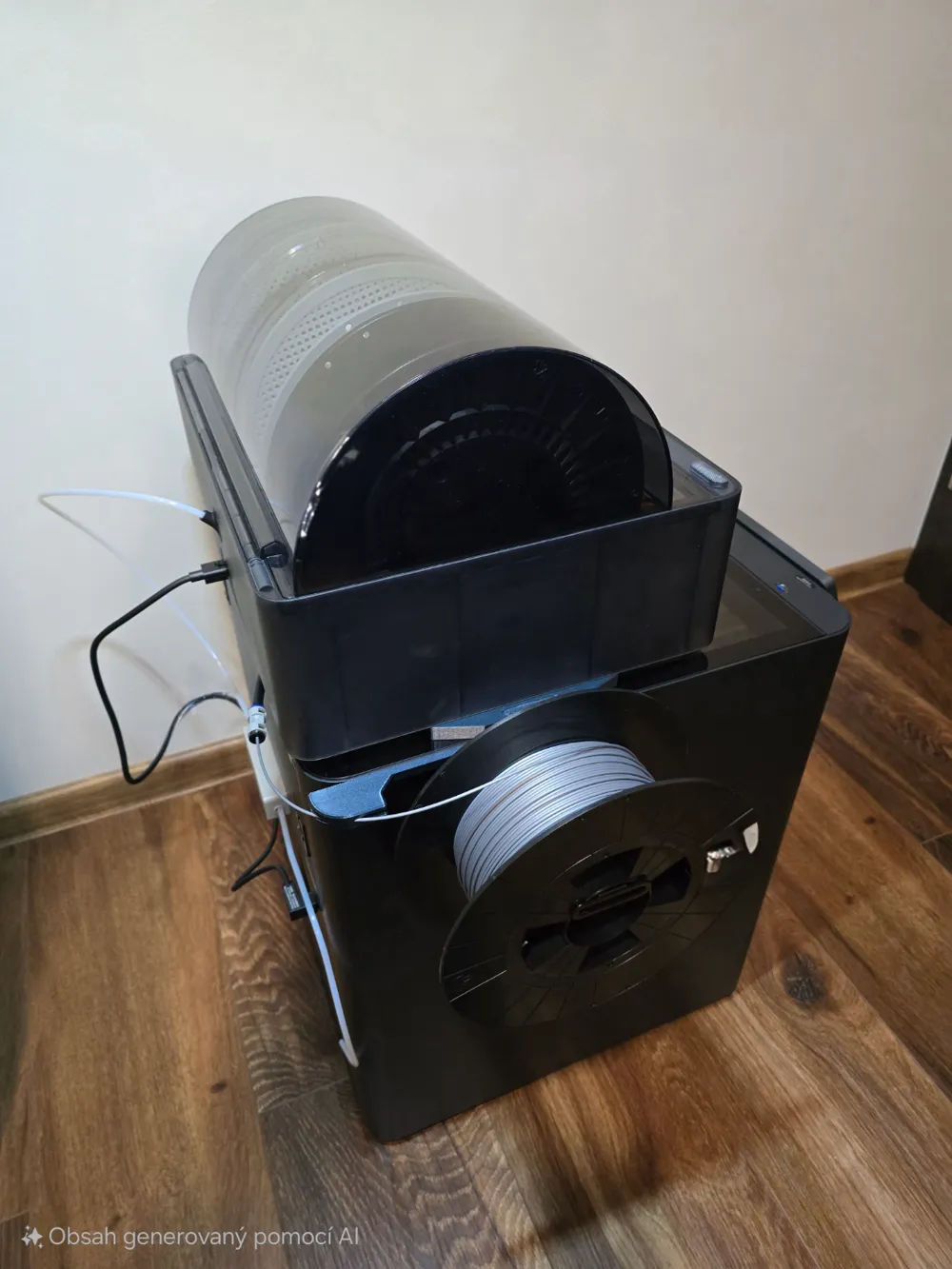

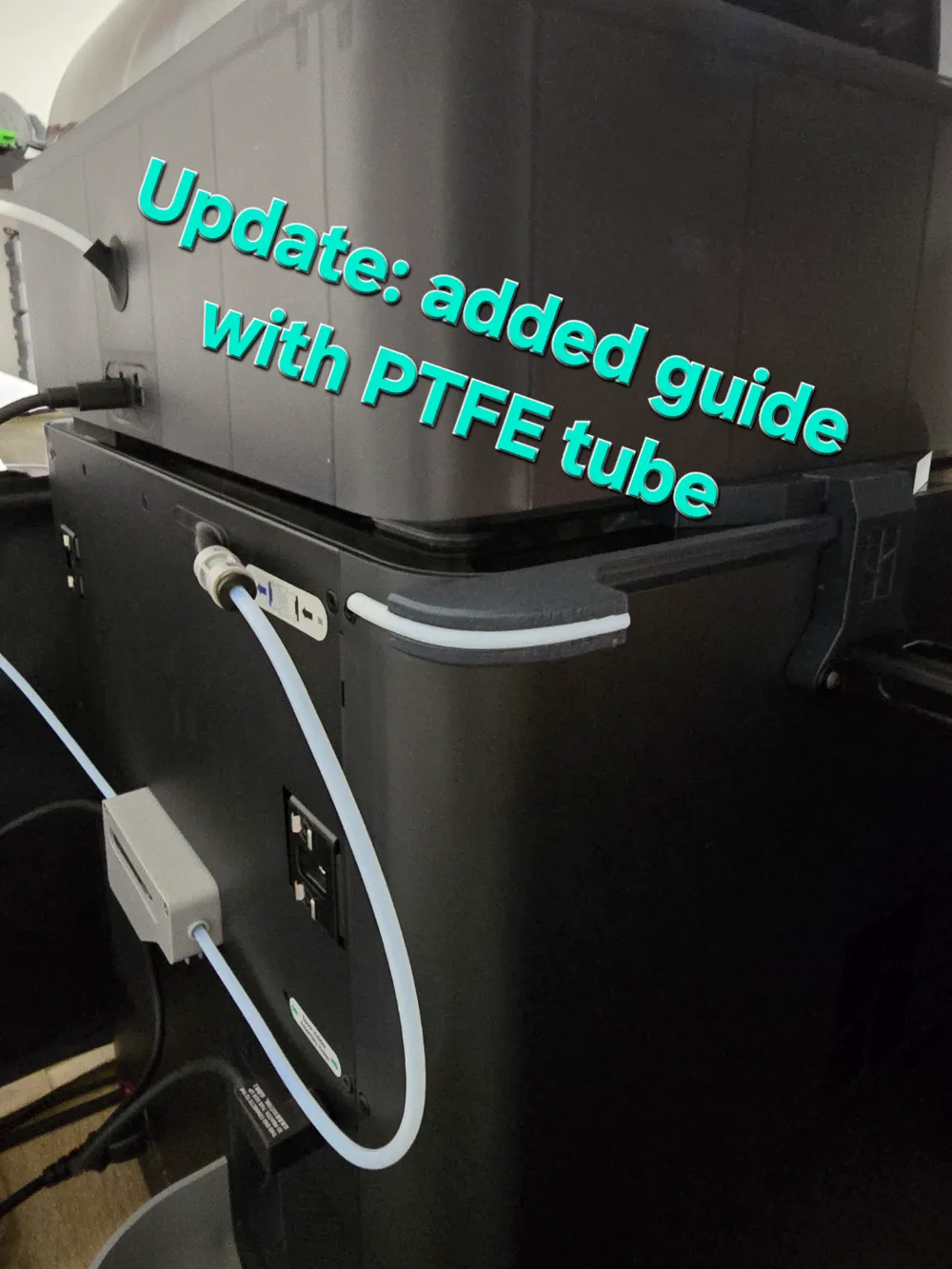

UPDATE: added guide with PTFE tube, added spool holder without Bambu logo, added AMS part for 72mm AMS ribs.AMS spool holder with filament guide straight to printer input.For AMS with 85mm and 72mm pitch between ribs.Assembly:1- print all 3 parts2- mount original Bambu steel holder to “spool holder” with 2x M3 screws (possible use from printer accesories) recommended 2x M3x103- put “filament guide” into “spool Holder” by 2 round pins4- push “AMS part” to left side of AMS (straight to middle between 2 ribs)5- mount assembled “spool holder” to “AMS part”6- enjoy print from external spool

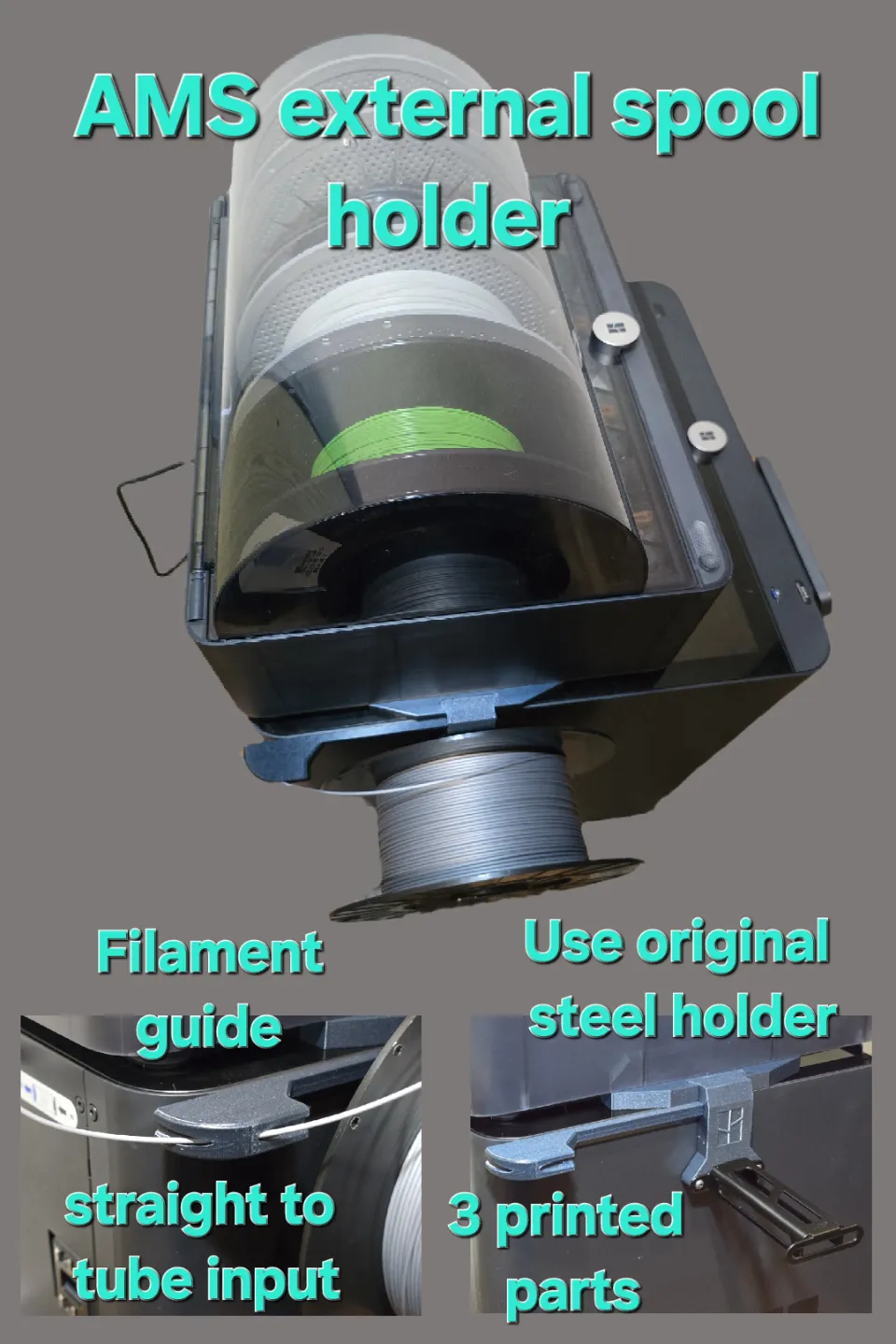

AMS external spool holder
