Hanging PET bottle storage - screwed version to fit any furniture (18cm, fits on small printers)

A hanging PET bottle organizer/dispenser that can be screwed on the bottom of any shelf or cabinet.
Perfect to organize your pantry.

Adapted from the Ikea Kallax version (that doesn't require any screws):

https://makerworld.com/en/models/74462

Two choices for printing:

• Print both the “start” and “end” parts and connect them together. The parts have a cut to assist with alignment.
• Print only the "single part" version that already included the front and the back part in a single piece.

If you need the part to be longer, it can be stretched a bit on the slicer without really affecting usage or installation.

If you need it much longer, I recommend cutting a stretch of the part in the center (between the screw holes) and stretching that part. Then reconnect the stretched center with the other two parts before printing, so the screw holes won't be affected by stretching.

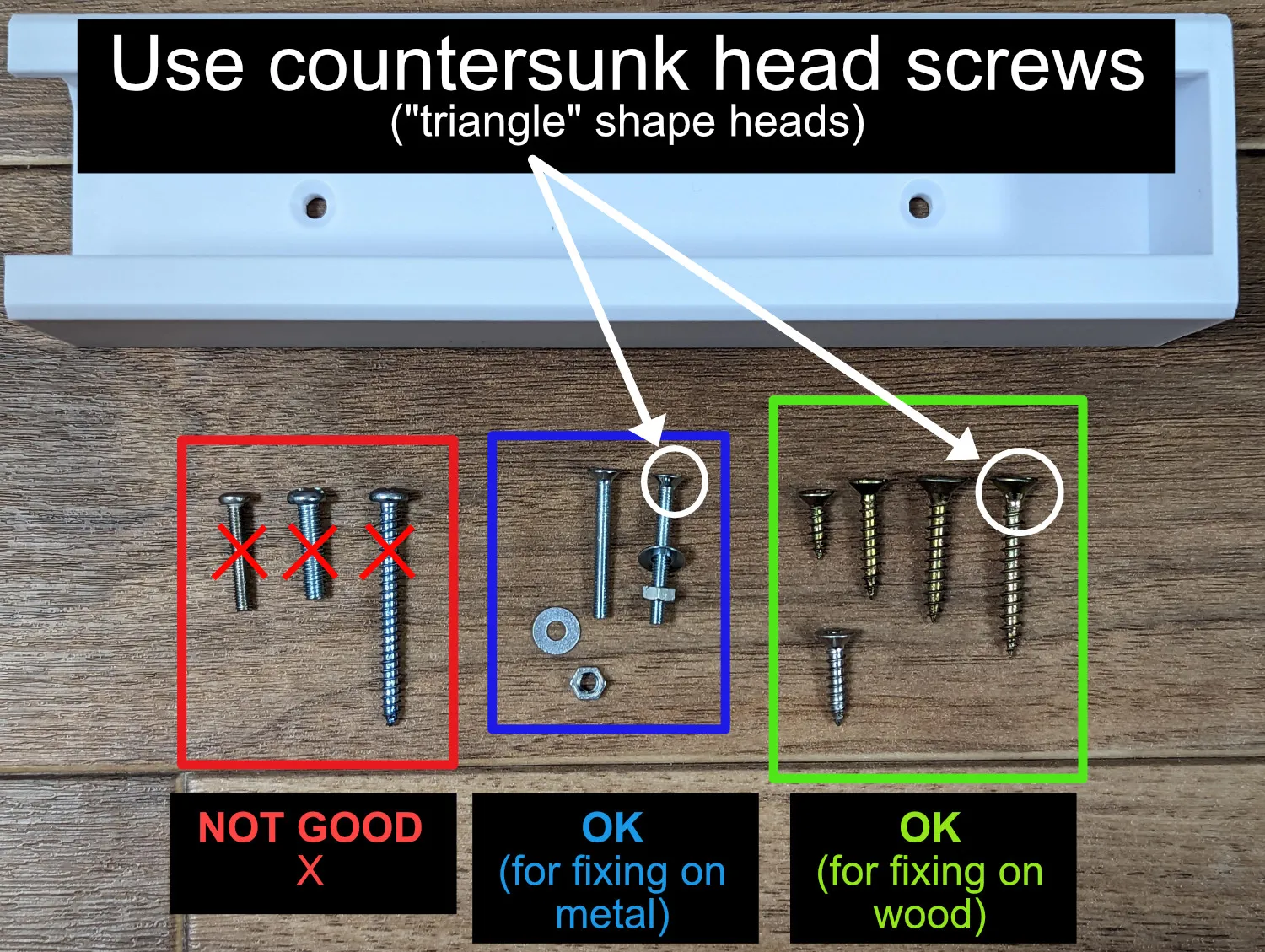

Screws:

Use countersunk screws with a root diameter smaller than 4mm (head smaller than 8mm) to fix the part to a shelf/cabinet.
