Description
Summary

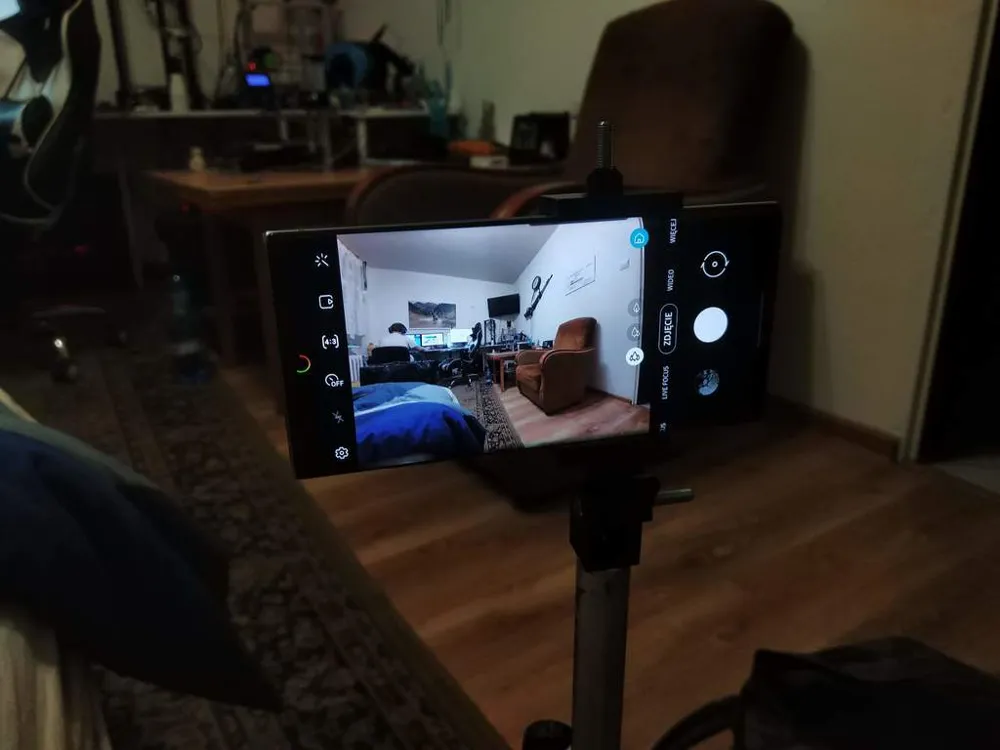

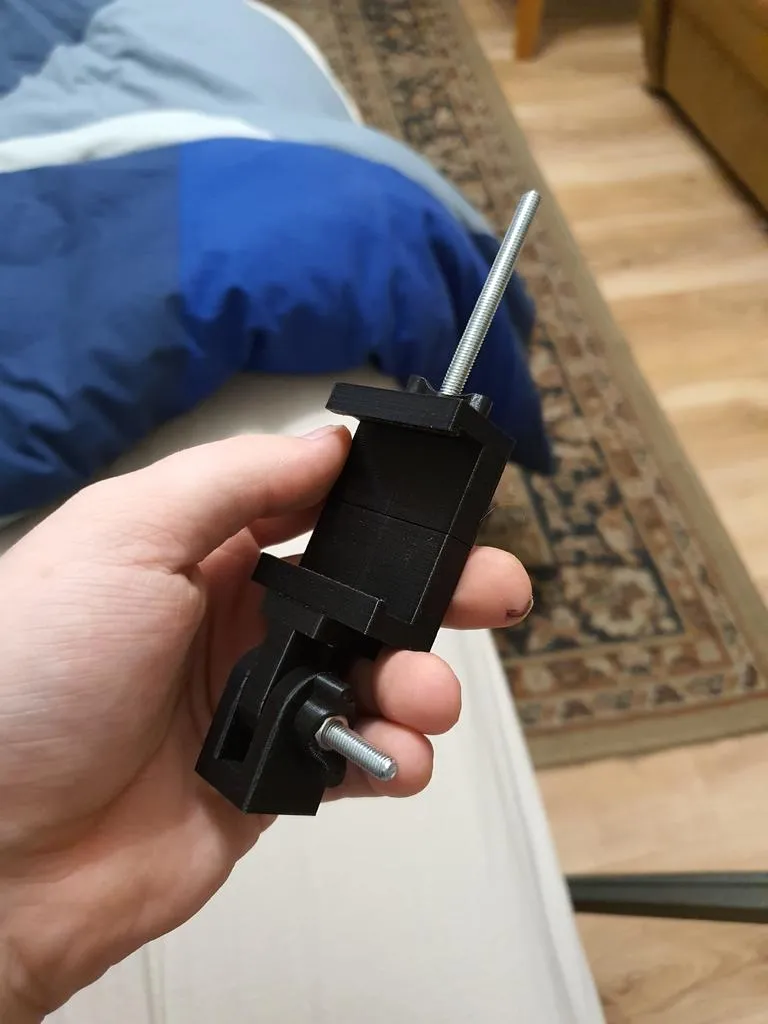

A phone holder for 3/8 inch tripod.
It was made for my Samsung Galaxy Note 10+ but should fit other phones too.
I've printed mine with PLA at 0,2 layer height.
The most problematic part is thread because it has to be printed pretty precise.
BOM:
2x M2,5x8 bolt + nut
1x M5x30 bolt
1x M5 threaded rod (110mm)
2x M5 nut
1x M5 thin nut (or normal nut, sanded down to around 2,5mm thickness)
You need to print 1 piece of every STL file besides "Mocowanie 3" which needs to be printed twice.
Made with SOLIDWORKS
Print Settings
Printer:
EZT T1 Delta
Rafts:
No
Supports:
No
Resolution:
0,2
Infill:
20%
Filament: Generic PLALicense
This user content is licensed under a
Creative Commons Attribution
