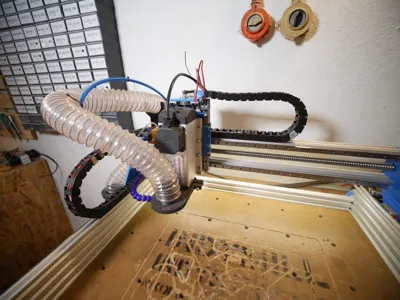

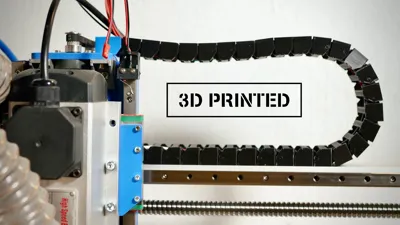

Simple parametric cable chain designed for IndyMill CNC machine. There are two versions, 20mm that can be used with 2020, 2040, 2080 and so on aluminium profiles and 40mm version that can be used with 2040, 4040 and so on profiles.
You can also find .F3D file so that you can modify and improve the design. It should be easy to print but you may need to modify some tolerances to get it working with your printer.
I designed it with an "open top" that can be closed with clips, because of that it is easy to put in place all the cables and add or remove them in the future. Check out my video to learn more:
https://youtu.be/dMEKEeV_7Ls

My CNC machine: https://indystry.cc/indymill/
