Xiaomi Fish Tank Outlet Rain Shower Device (Optimized Version)

Grateful to the original author for sharing. There are many Xiaomi fish tank rain showers on Makerworld, but many of them are prone to problems such as difficult to remove, hollow supports, and cannot be disassembled. I have printed quite a few, and they all have some problems. So I changed the position to solve this problem.

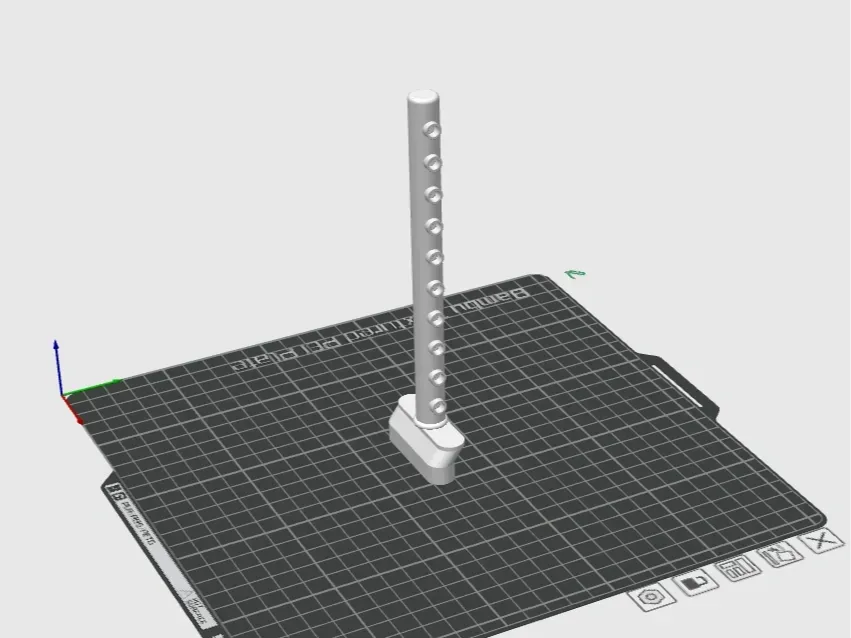

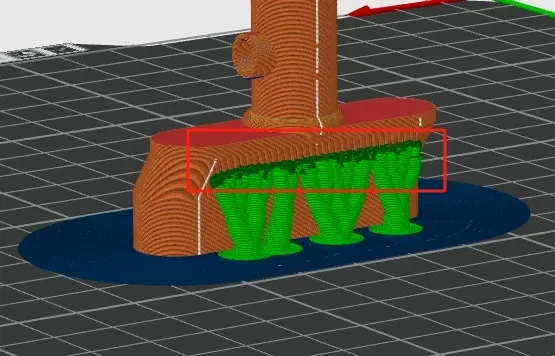

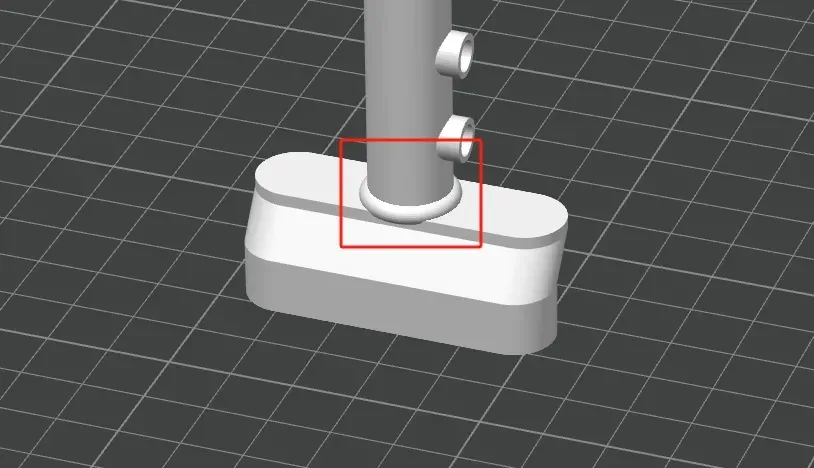

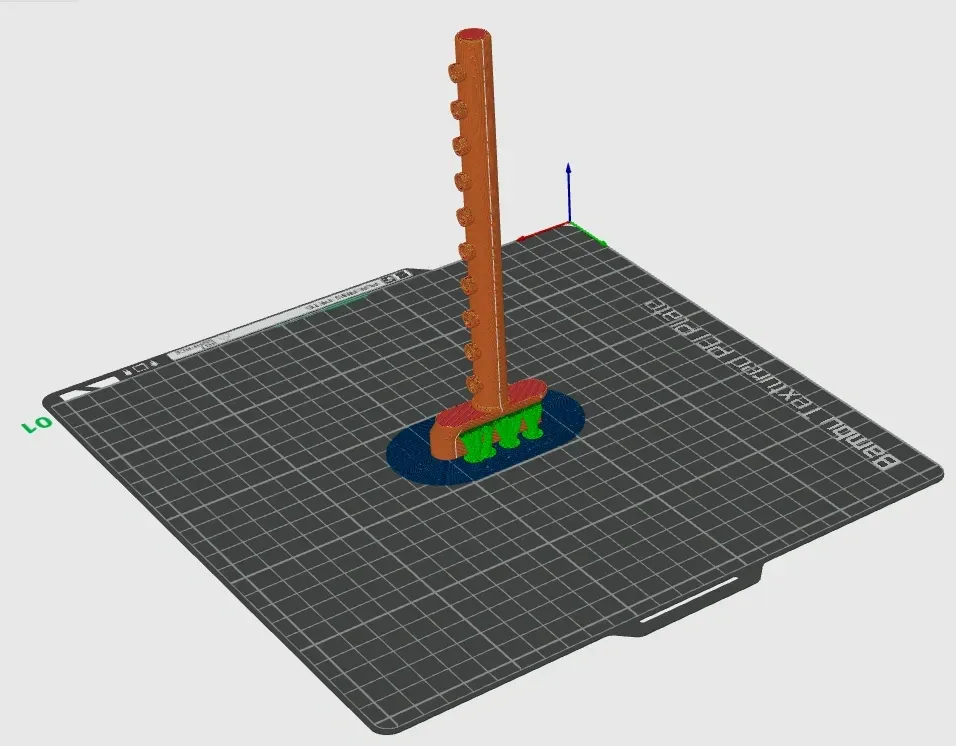

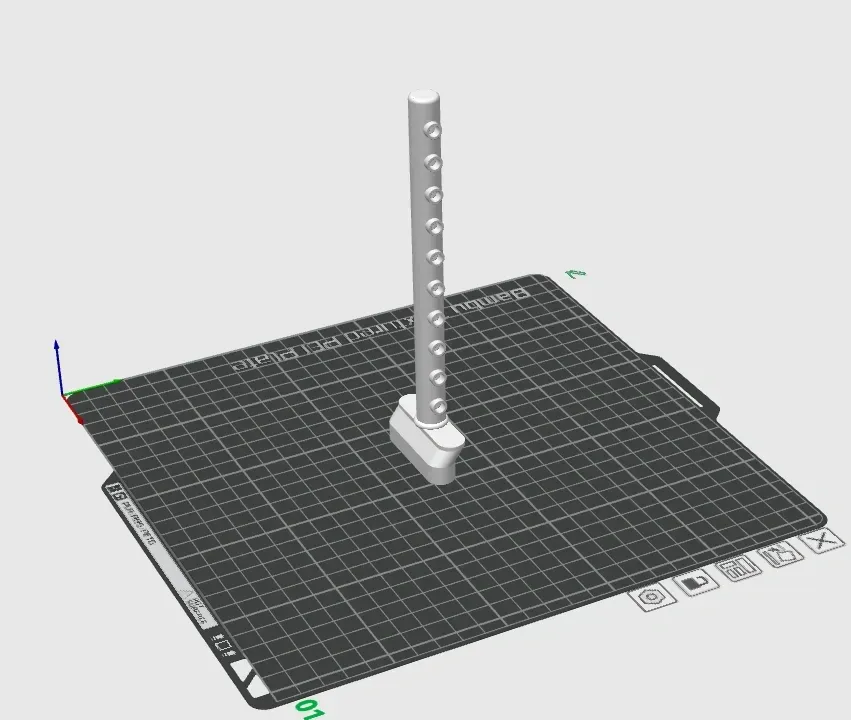

The original horizontally placed model is now vertical. The uploaded file has been configured to add supports and brims. I tried printing directly and found that due to the vertical placement, the snap hook is prone to breaking at the junction of the pipe. So the final model uses a ring for reinforcement.

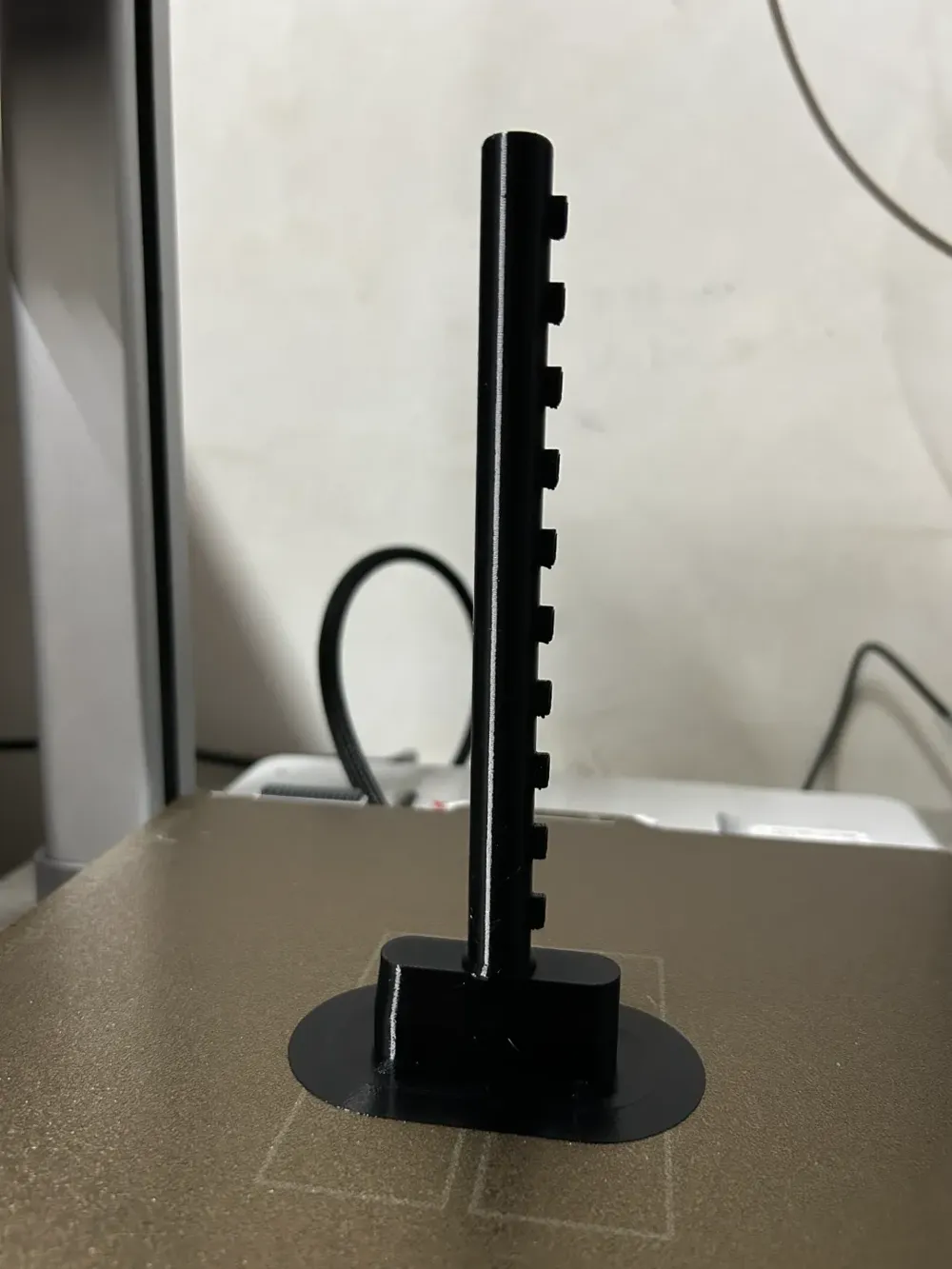

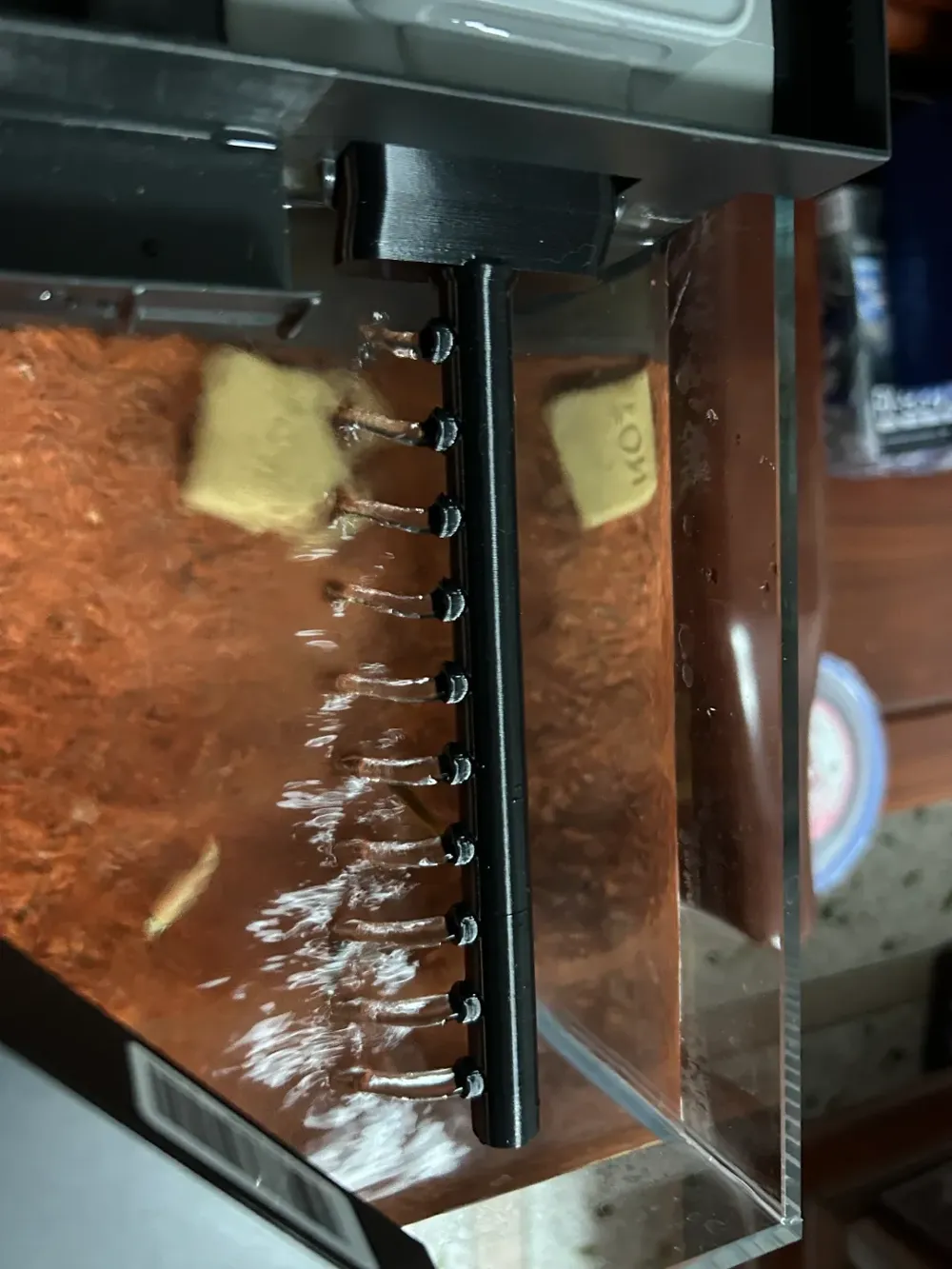

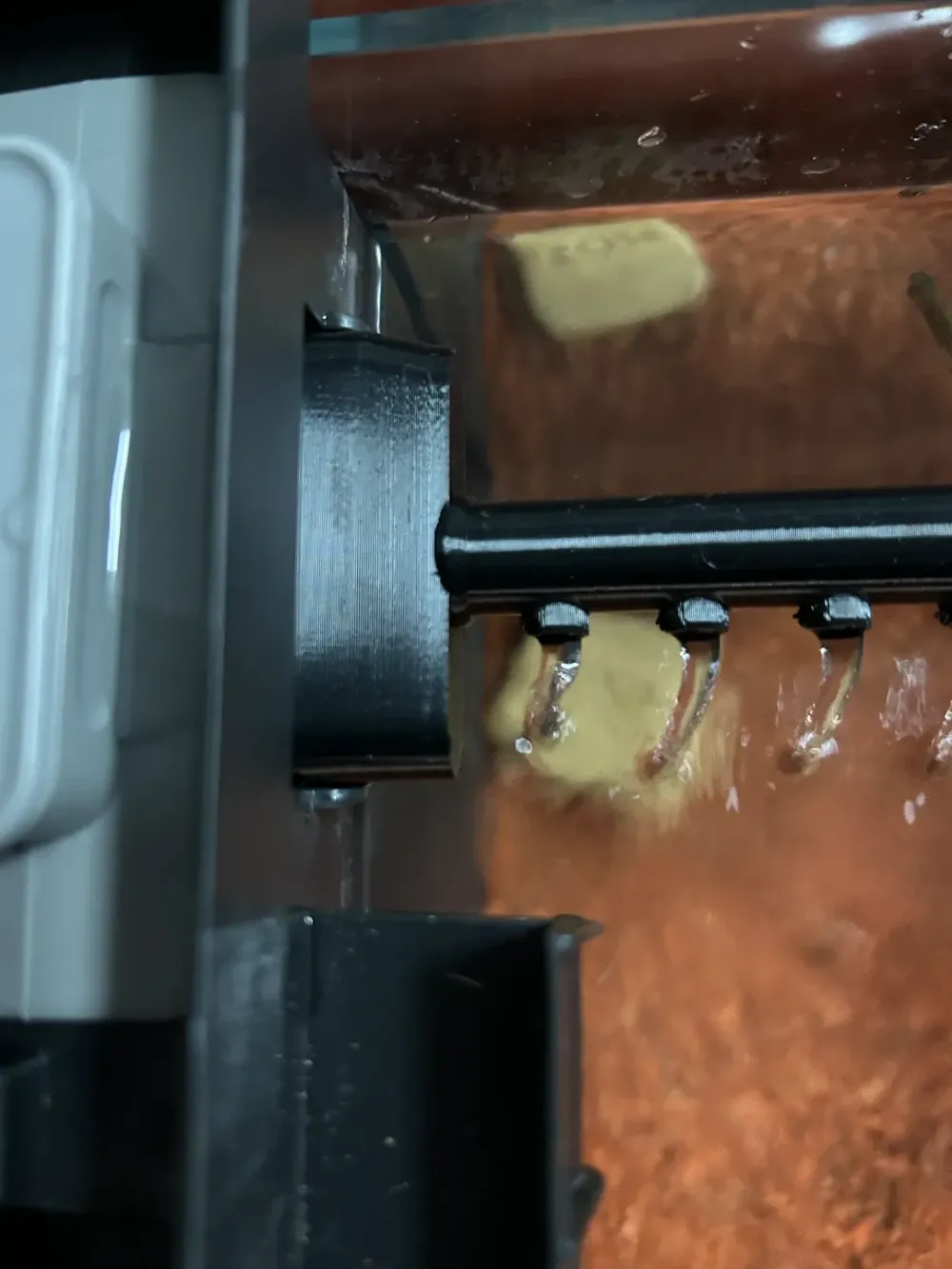

The final product is also good. I tried it and it fits perfectly without any leakage. This is my first time modifying the model, if there are any shortcomings, please point them out, thanks.
