Description

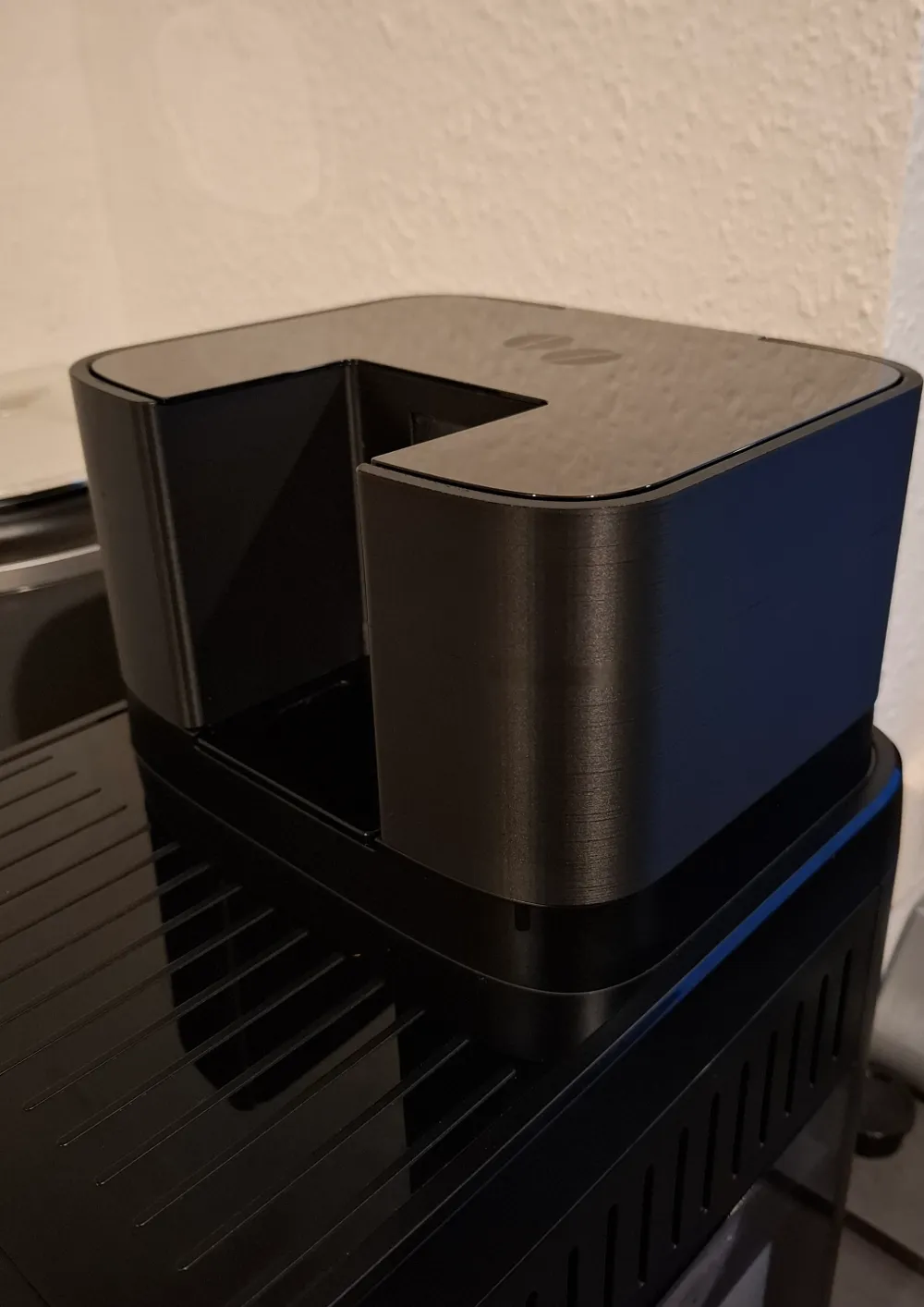

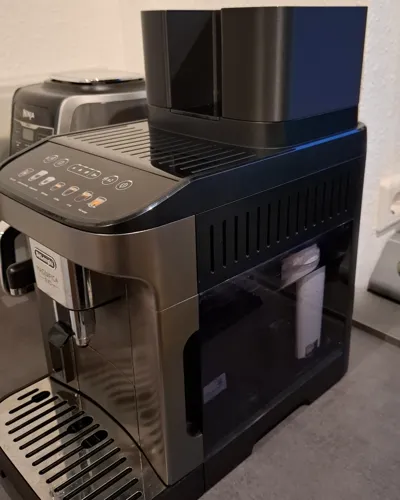

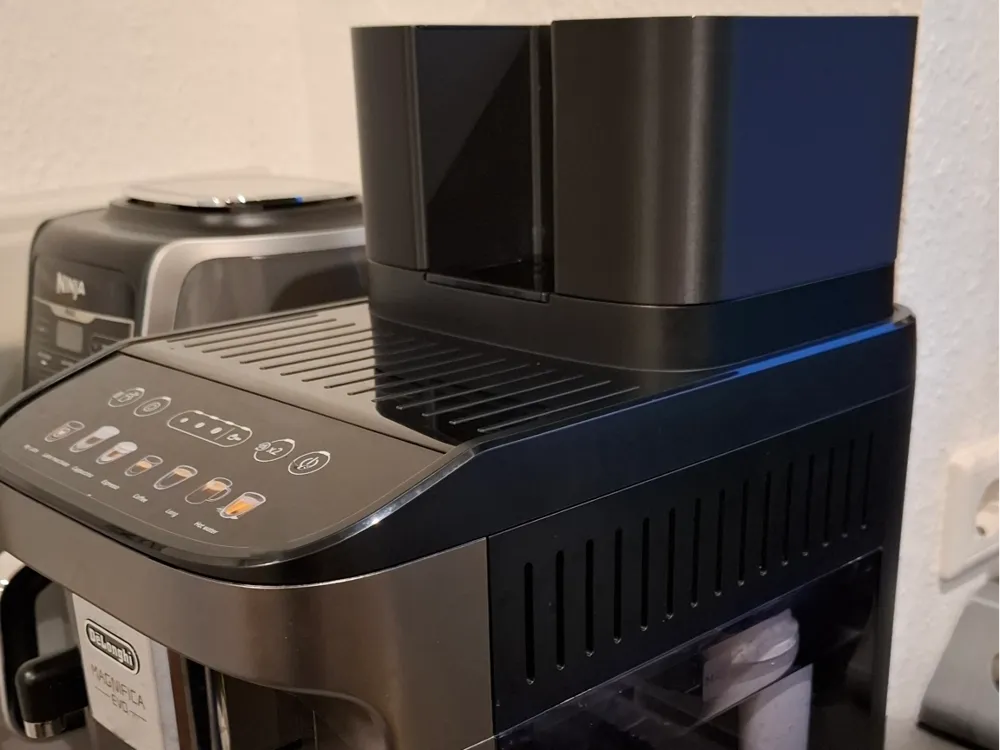

This is an extension for the bean container for the Delonghi Magnifica Evo (ECAM290.81.TB) coffee machine.
There are four variants:
5 cm high with or without a viewing window.
or
10 cm high with or without a viewing window.

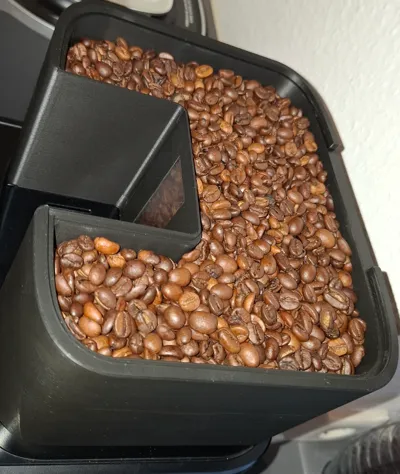

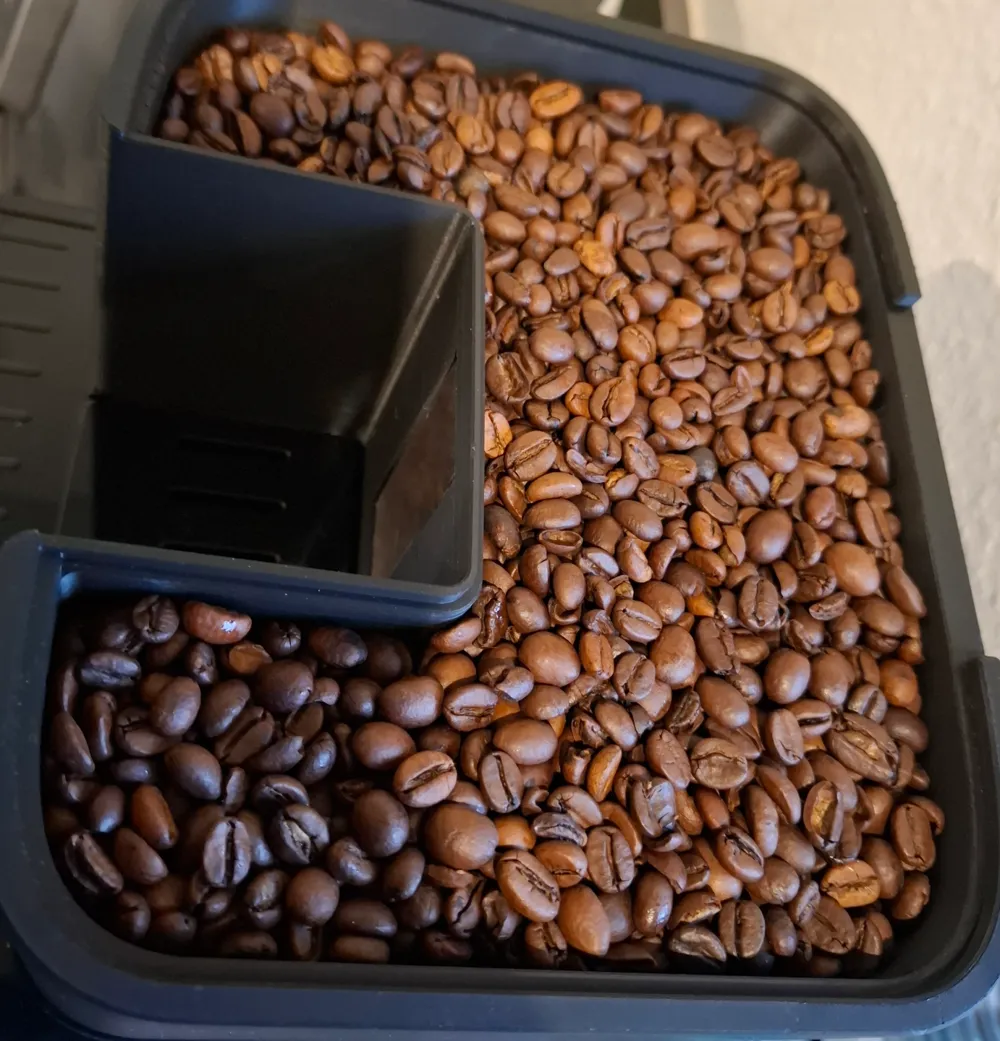

Approximately one kilogram of coffee beans can fit into the 10 cm high extension.
The compartment for ground coffee remains fully functional.

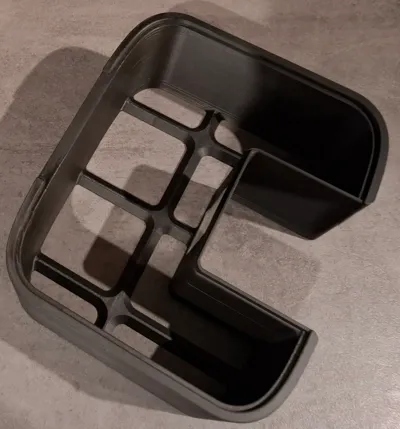

I printed the extension from PLA and the interface layers from PETG to make the support structure easy to remove.
There is a very interesting video on YouTube about this: https://www.youtube.com/watch?v=Matf1Mna2zI

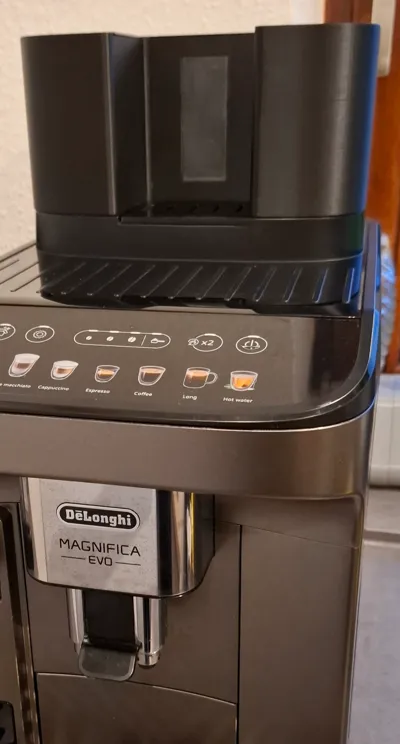

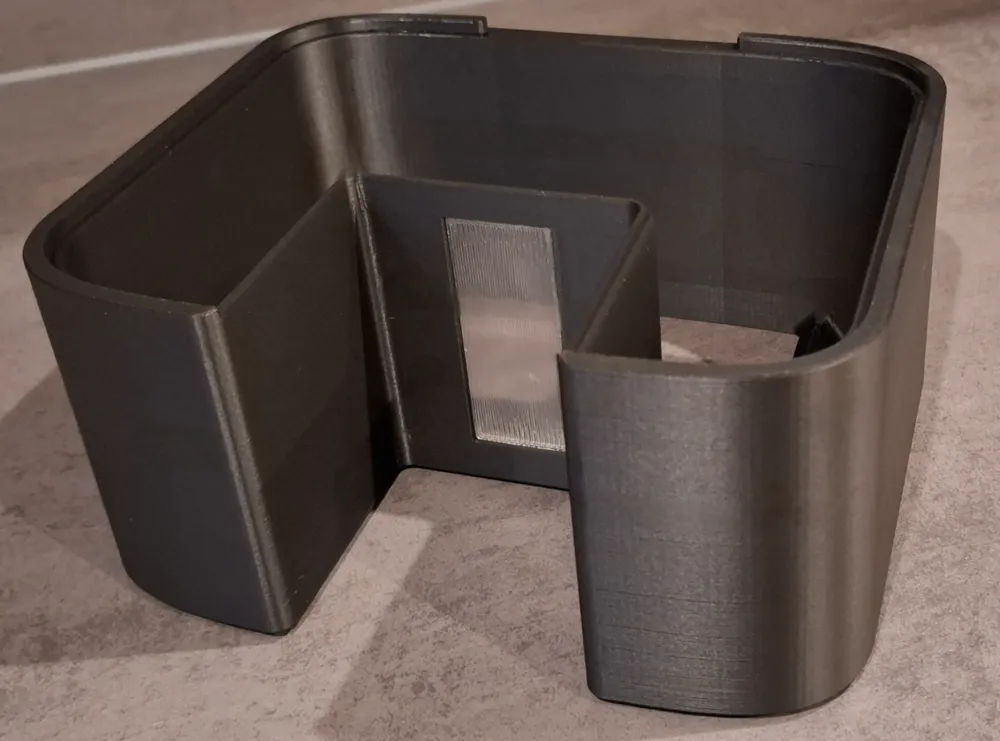

The viewing window must be cut from a piece of transparent Plexiglas or printed from transparent filament and secured with a few drops of superglue.
There is a print profile for the viewing window, which may need to be adjusted to the filament used.

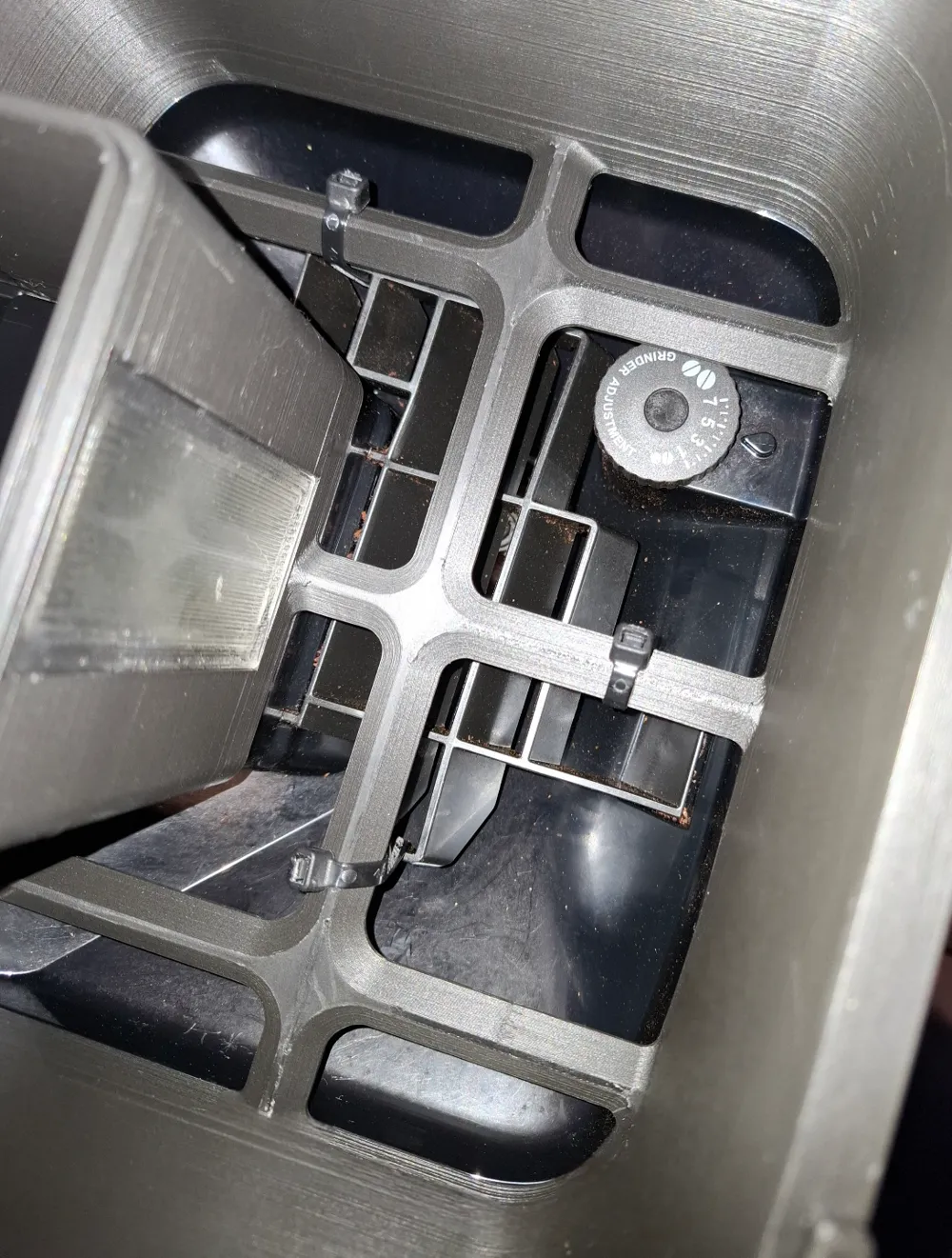

I attached the extension to the machine with three cable ties to prevent accidental tipping.
