Expanded filament inlet, AMS Manifold four-in-one-out

Updated 2025/6/7:

• Added A1 mini mounting slot

  (I don't have an A1 mini, so I haven't actually tested it. It's modified based on other users' models, https://makerworld.com.cn/zh/models/1015979-a1-mini-liao-jia-ci-xi-shou-dong-huan-liao-4se-mms?from=search#profileId-1044862)

  If you encounter any issues during testing, please provide feedback with photos

Updated 2025/4/11:

• Increased inlet connector spacing to prevent interference
• Enlarged inlet connector threads for easier screwing
• Added chamfer to the inlet for smoother flexible filament feeding
• 100% infill near inlet/outlet threads to reduce the likelihood of failure under stress

In-machine testing indicates normal operation; the included tubing requires no modification and can be used directly

Note: Nitrile/latex gloves may increase friction. Ensure the Teflon tubing at both ends is fully inserted!!!!

--------------------------------------Divider-----------------------------------------------------------------------

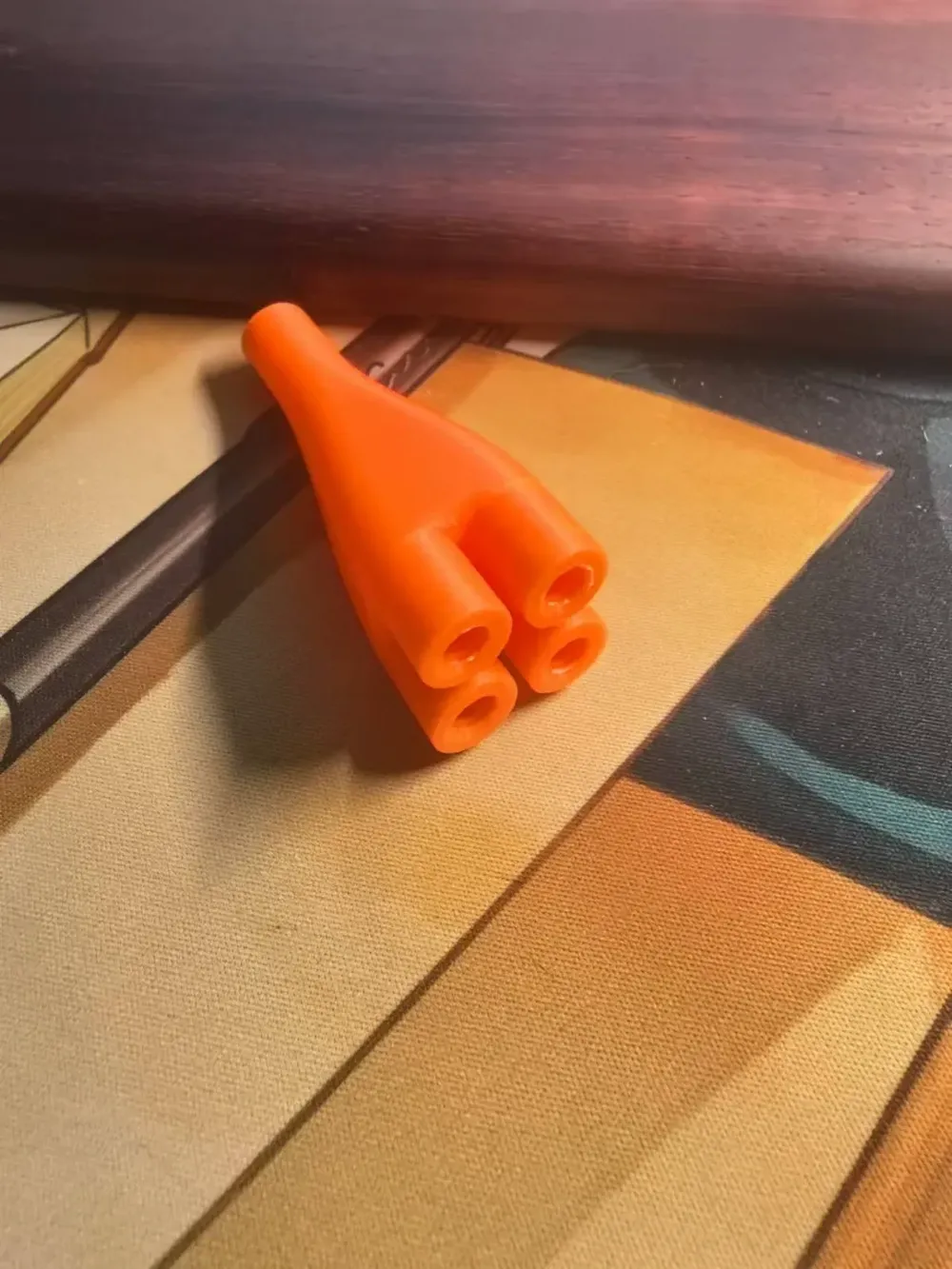

AMS Manifold, Quadruple Output

0.08mm layer height, print upright. Use dedicated support material for optimal support contact; however, using entirely PLA is also feasible

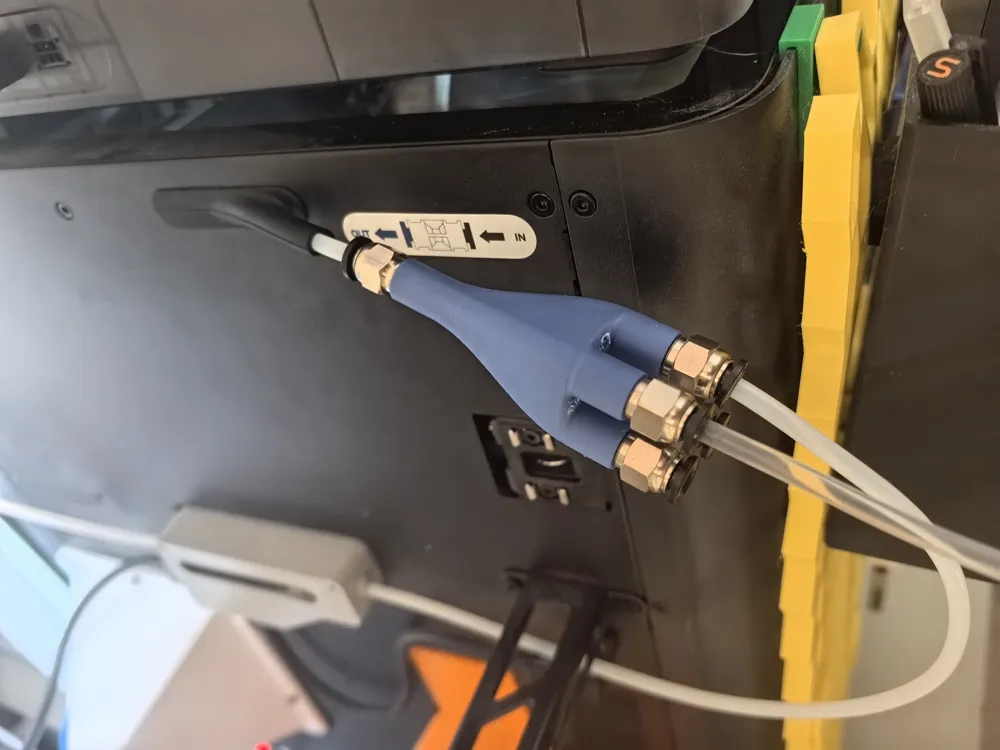

Real-world testing confirms normal operation and filament feeding via the AMS

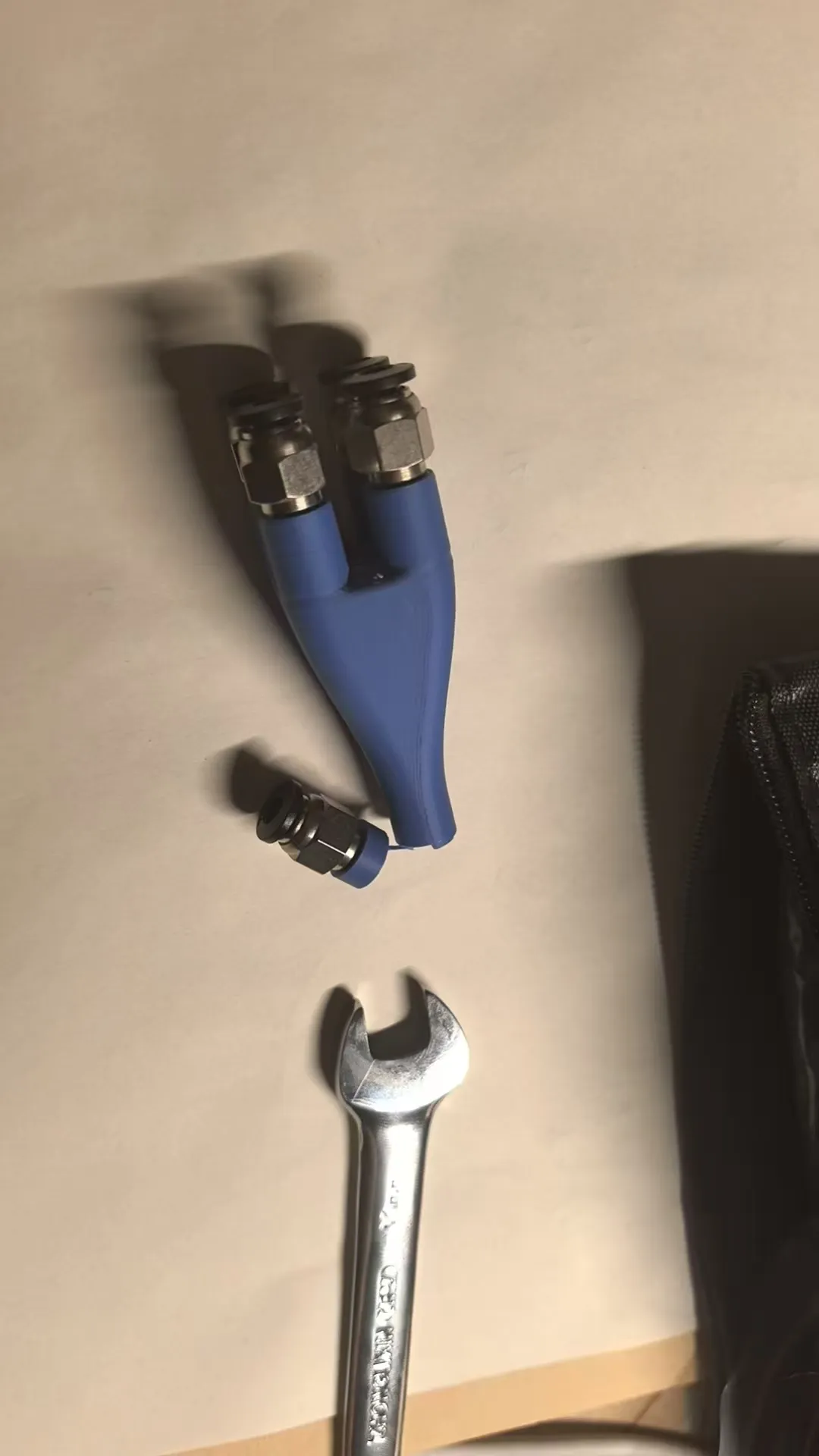

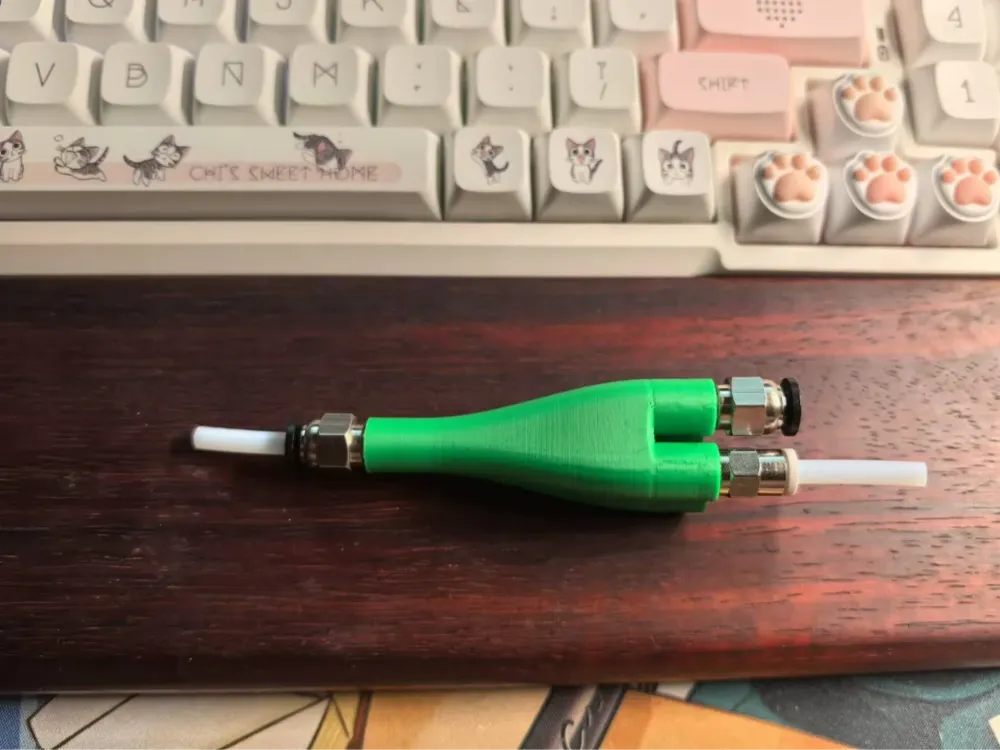

All five ports incorporate threads, compatible with PC4-M6 (through) pneumatic connectors, 2.5mm bore, fitting the included tubing

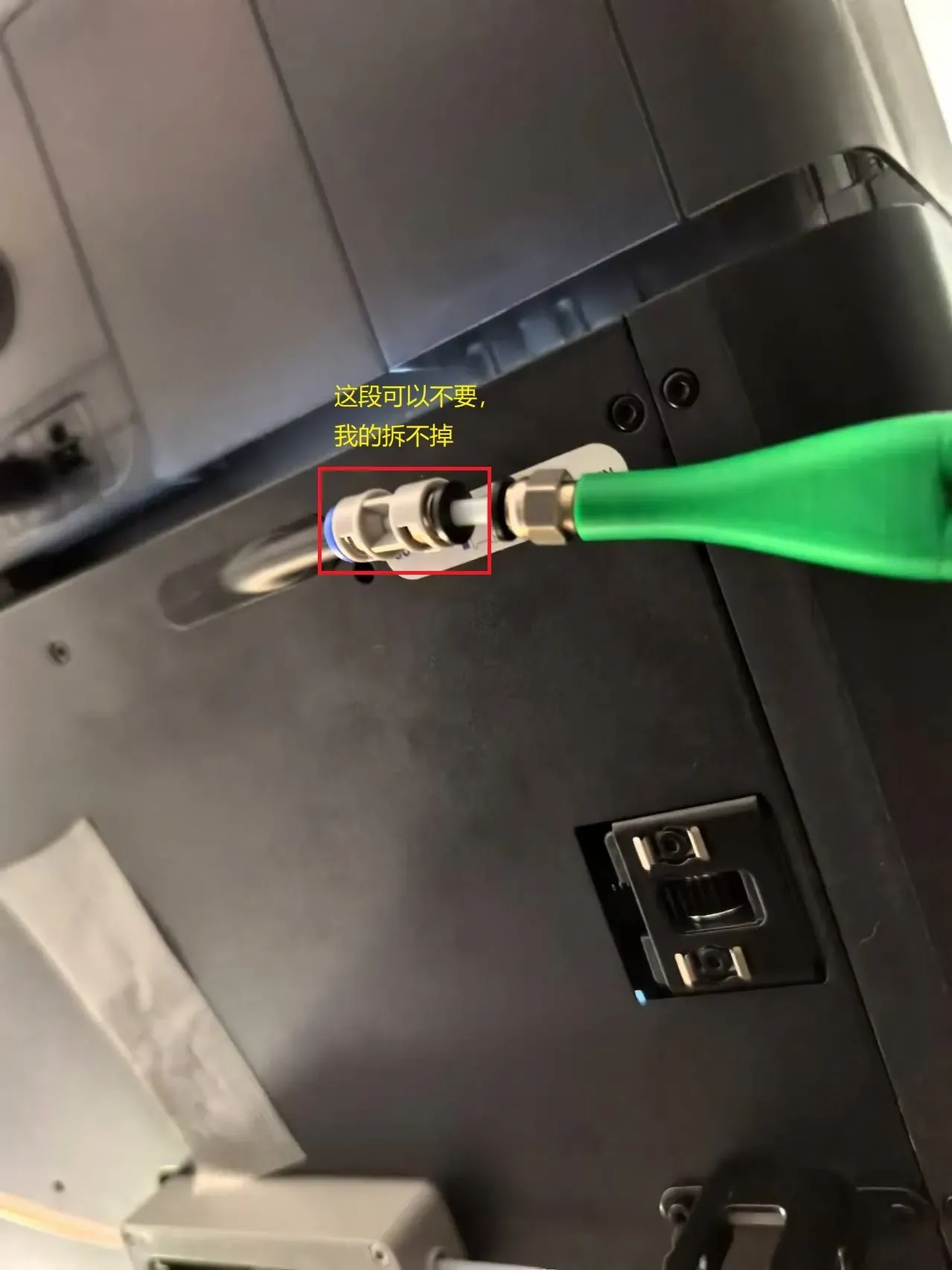

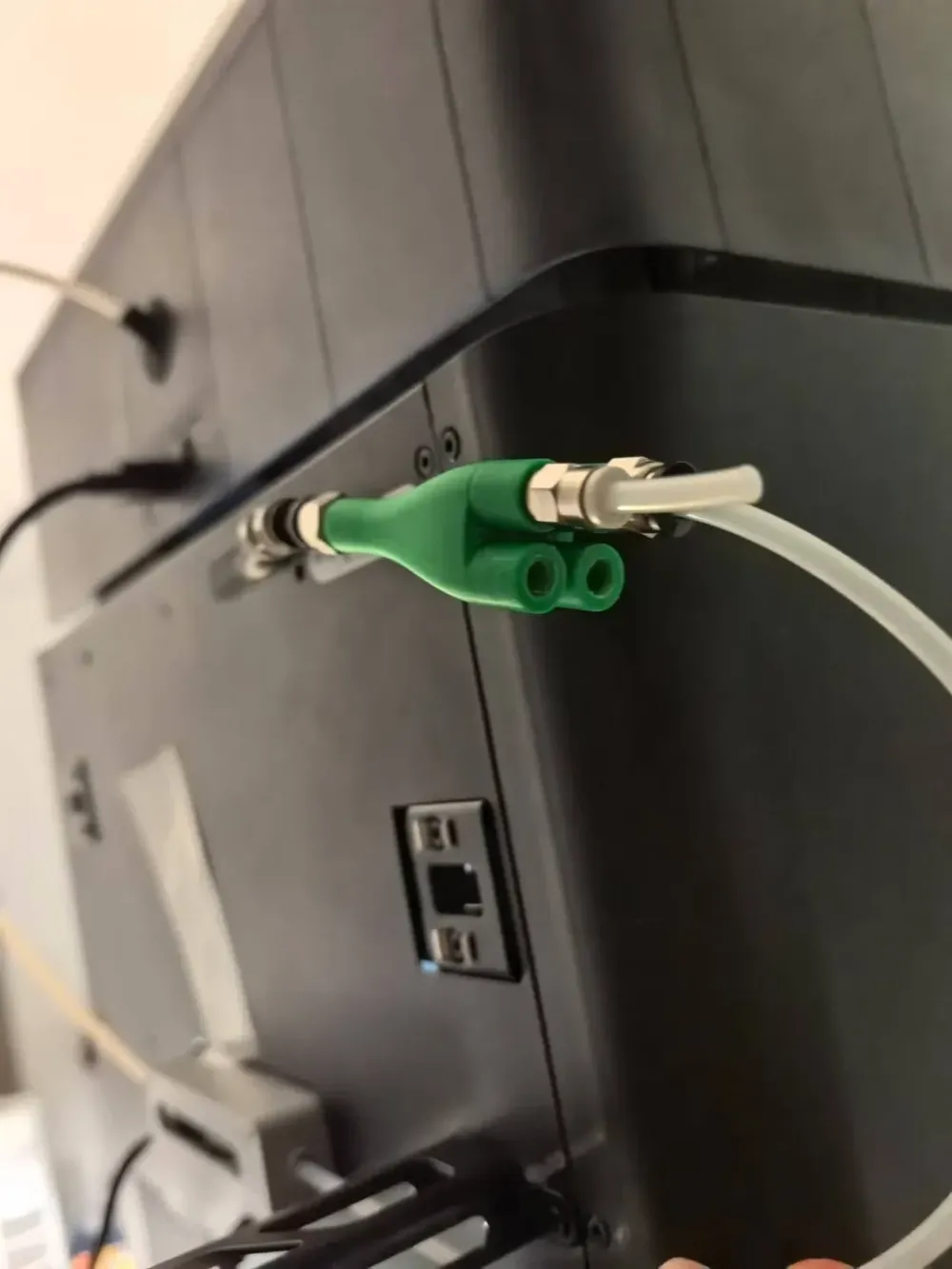

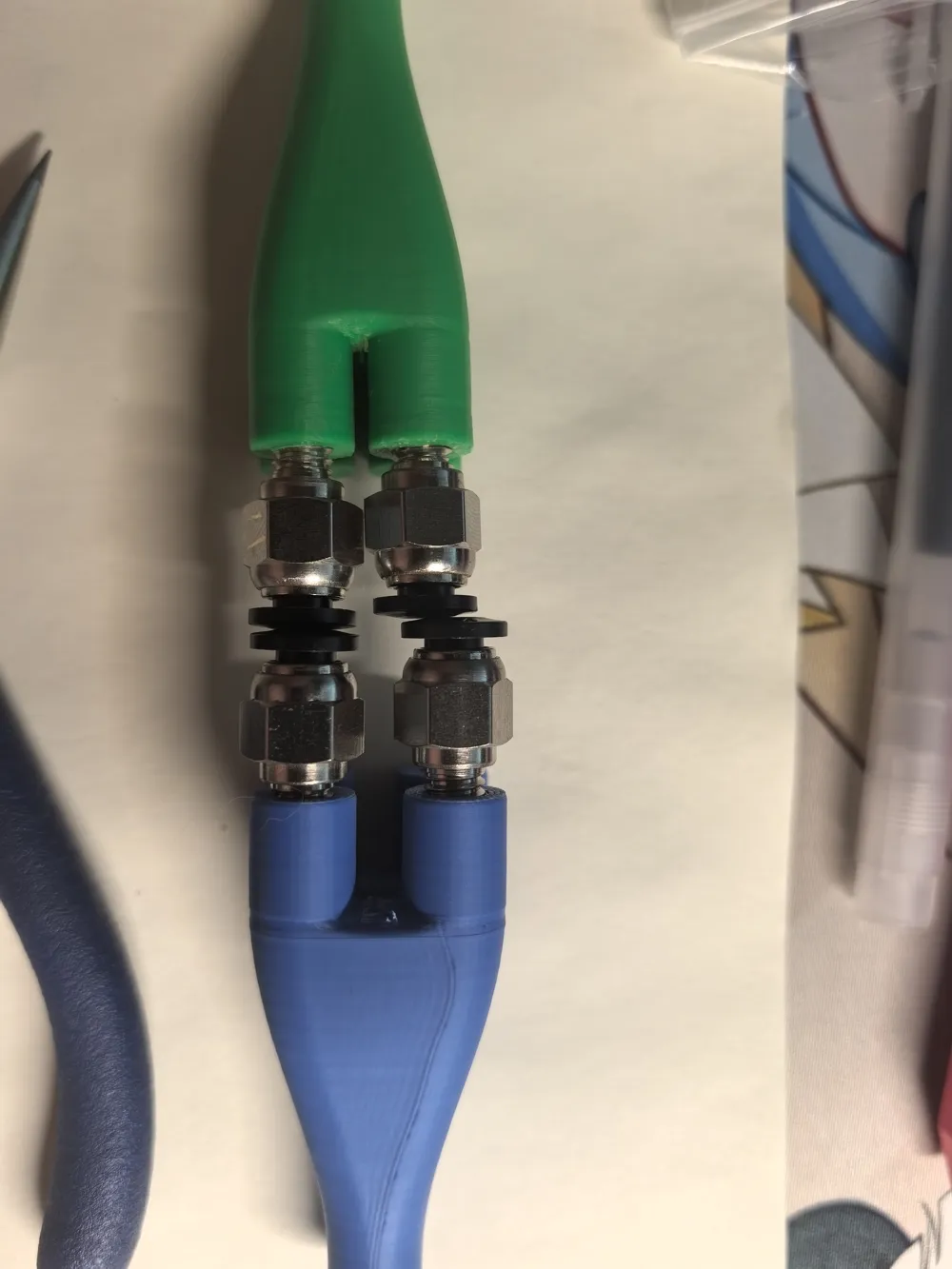

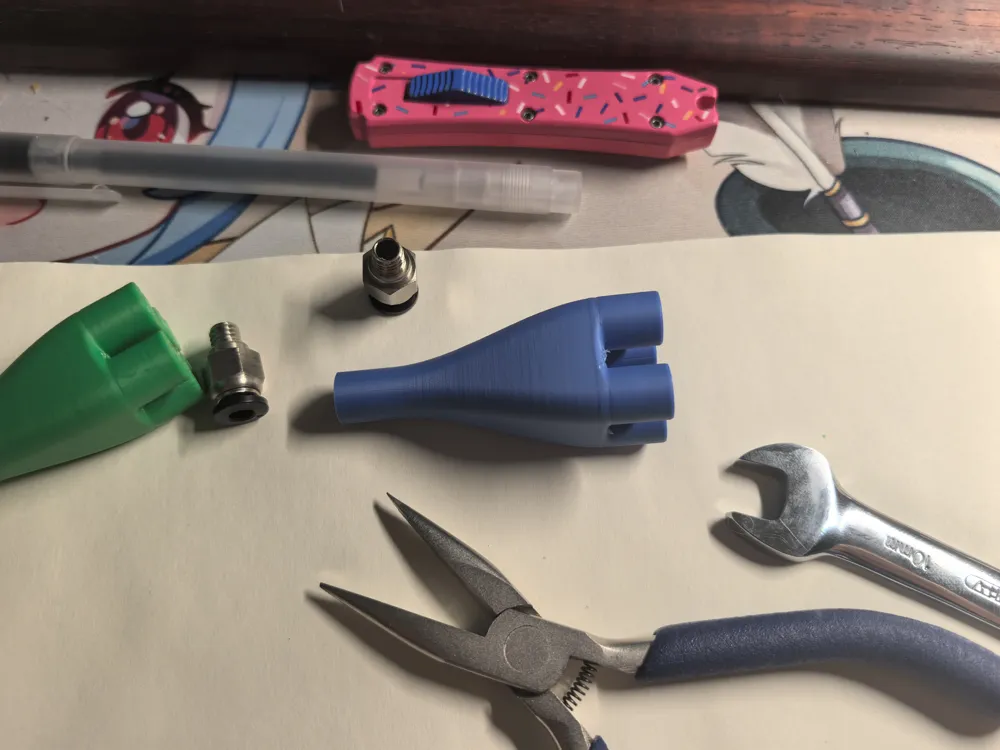

My additional connector is due to a malfunctioning original connector that I couldn't remove. For your installation, simply connect the manifold directly to the print head tubing, as shown below:

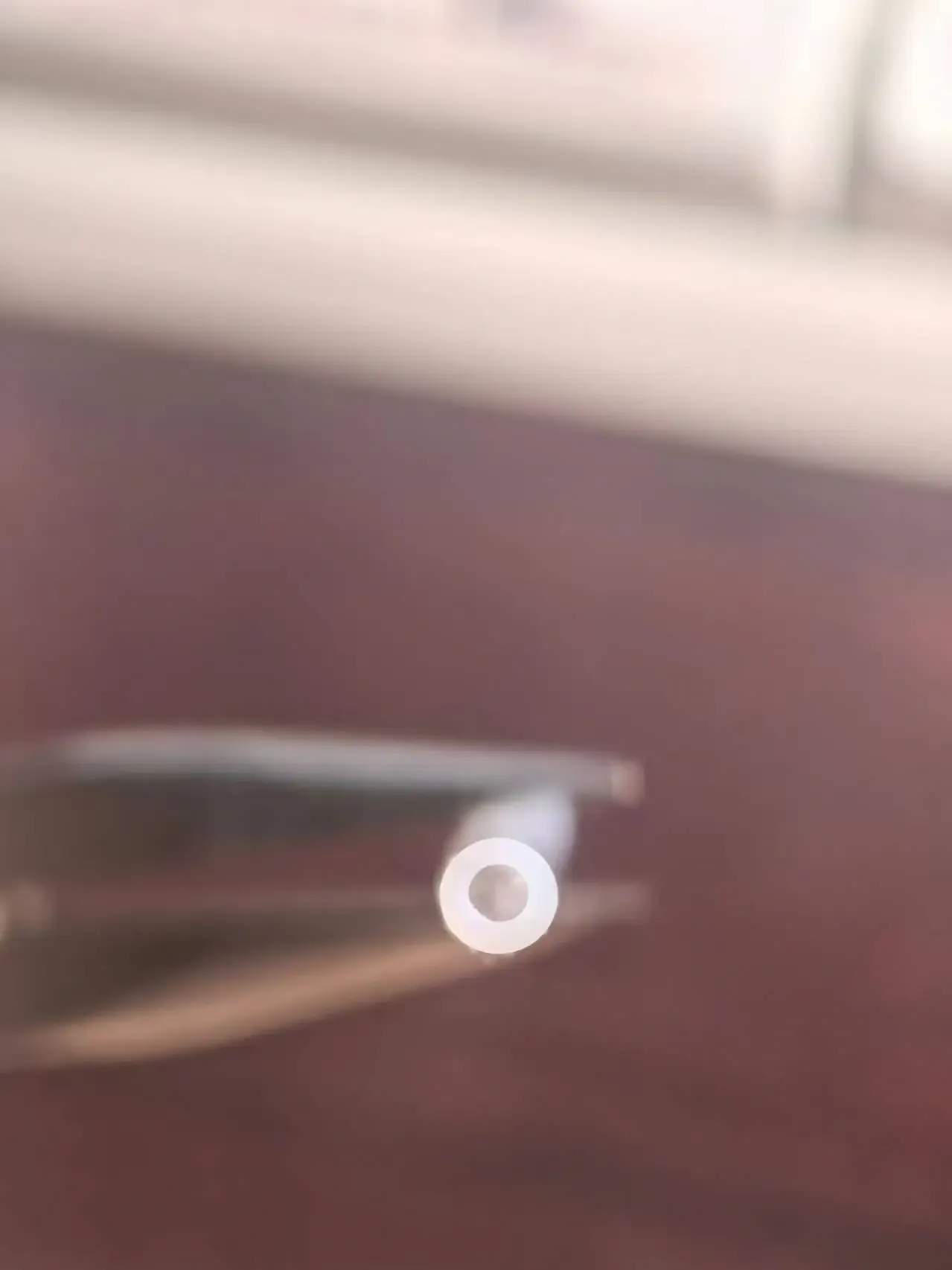

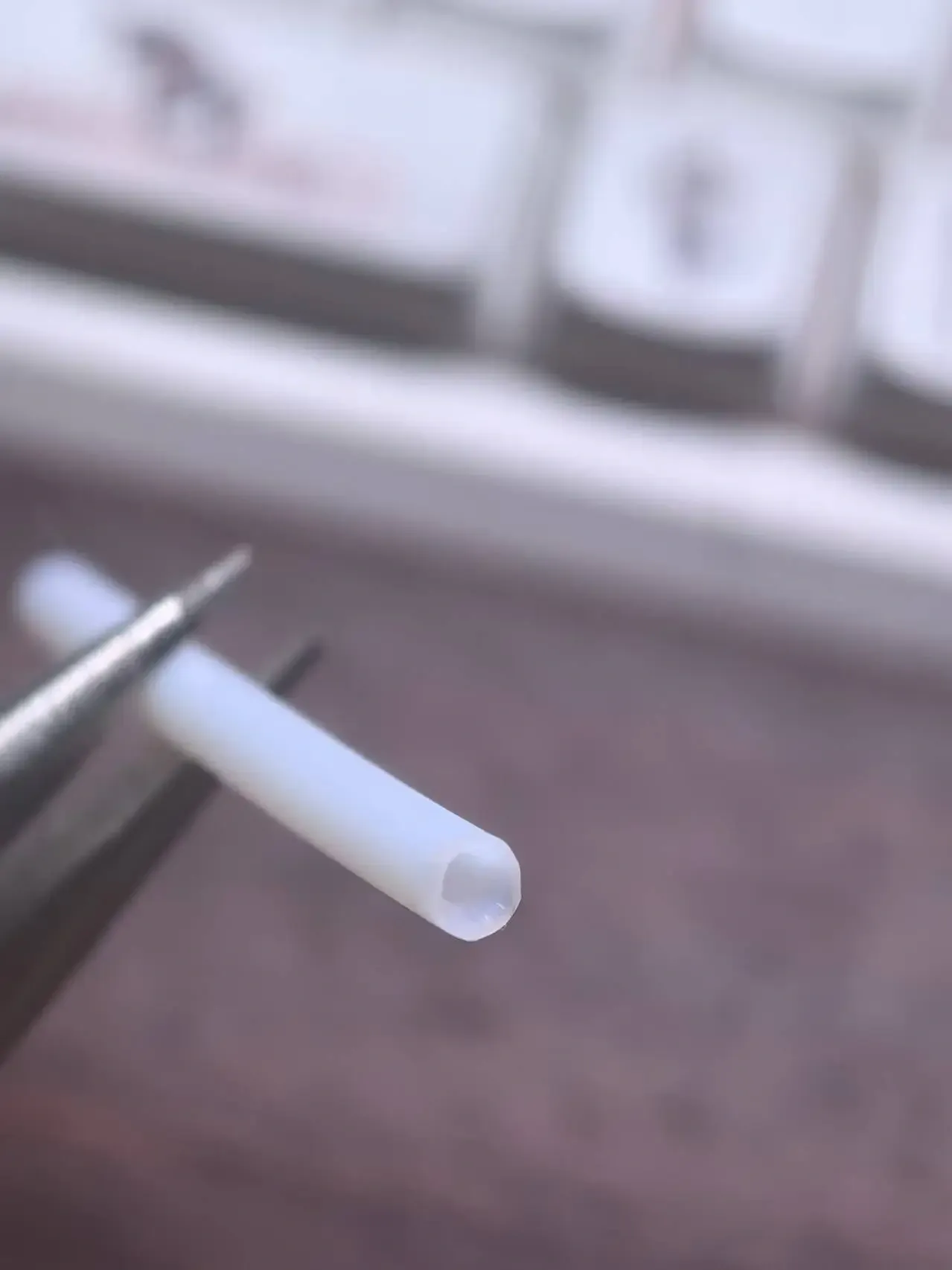

I only have 4*2mm Teflon tubing on hand, requiring chamfering of the outlet tubing. The included 4*2.5mm tubing should not require this
