Spirit / Opportunity Mars Rover Model
Print Profile(1)
Description
History:
I first was introduced to the Mars rovers a few years ago, I found a 3D printable model of Curiosity. That model sparked a fire inside me, one that has grown ever since, and has shaped my life in ways I never would have thought. This model is based around a similar structure to that Curiosity rover model, it's a snap-together model using pins.
About this model:
I designed this to be able to be printed in single color printers, all colored pieces are separate snap-together pieces. The rover takes approximately 13 print hours on a Bambu printer, and uses around 330g of filament.
How to assemble:
There are 3 sized pins included inside the print files (technically 5, but two are different shapes). Below are the sized pins and where they go.
Large (22mm):
x24 - Solar Panel Connection
Medium (18mm):
x1 - High gain antenna dish rotation
x8 - Suspension & wheels
x2 - Arm (base connection)
Small (14mm):
x4 - Mast / head assembly
x3 - High-gain antenna base
x1 - Low gain base to panel
x3 - Body to panels
x2 - Arm (outer connections)
Square (18mm):
x2 - Suspension to body
Flat-head:
x2 - Mast Cam Head

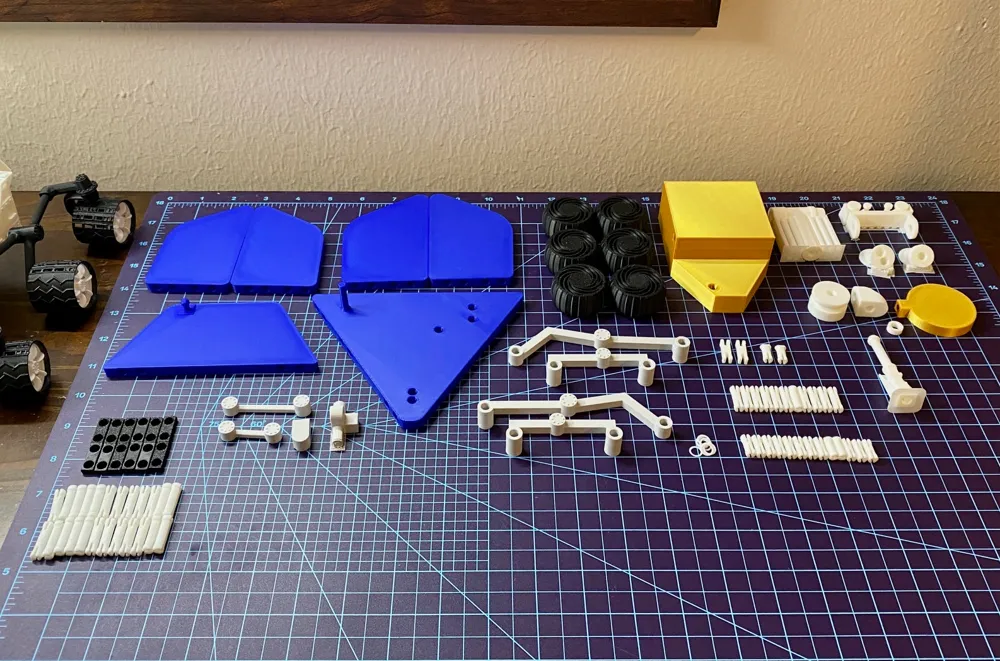

Assembly guide:
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
