Magnetic Air Duct

Universal Exhaust Duct for P1P/P1S/X1C/E1

Please download and print the updated model from my latest exclusive model. Important updates have been made there.

Materials Required:

1. 80mm diameter ventilation pipe (one)

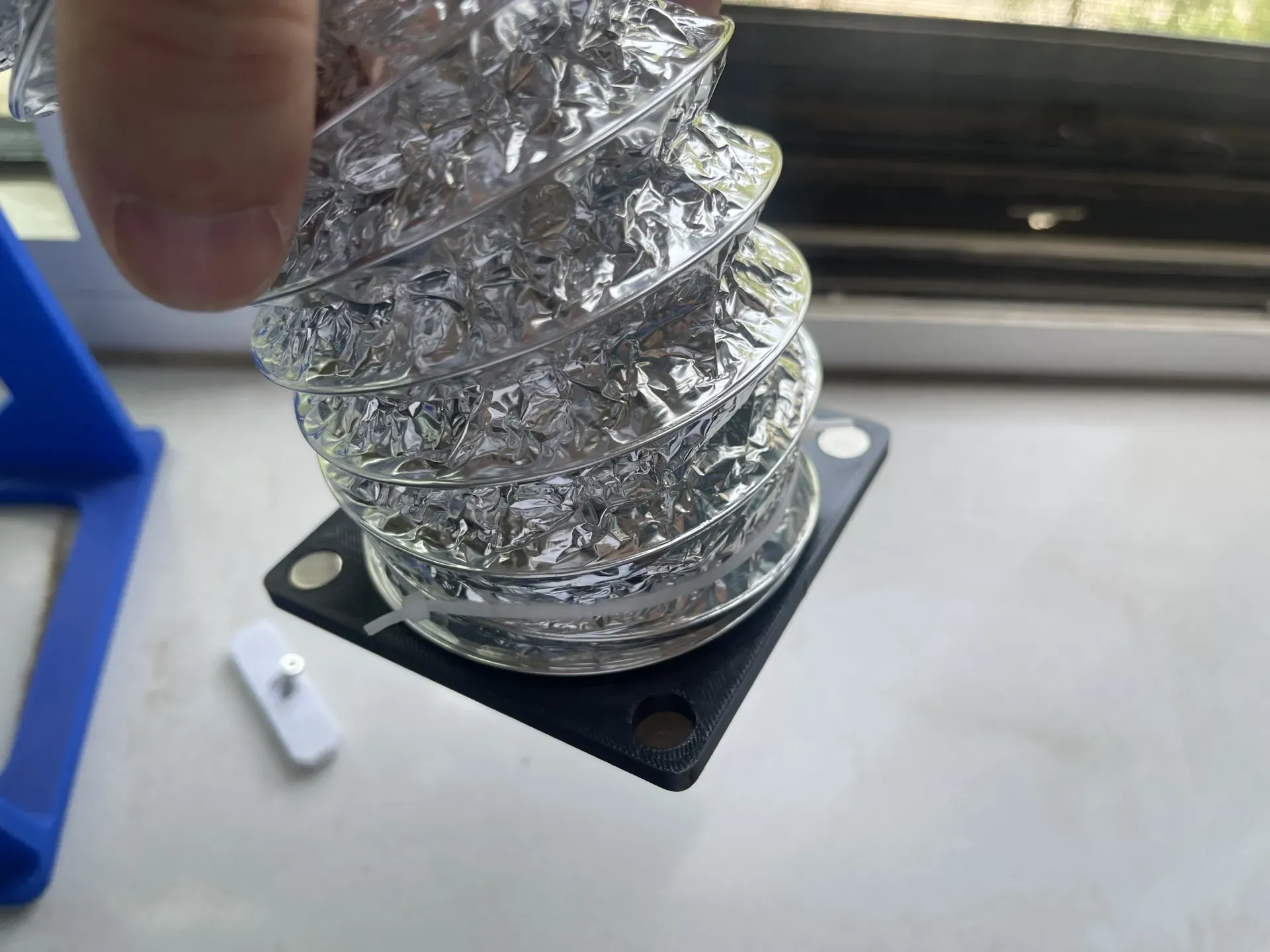

2. Several cable ties (10 or more)

3. 5*10 cylindrical strong magnets (at least 14)

Advantages:

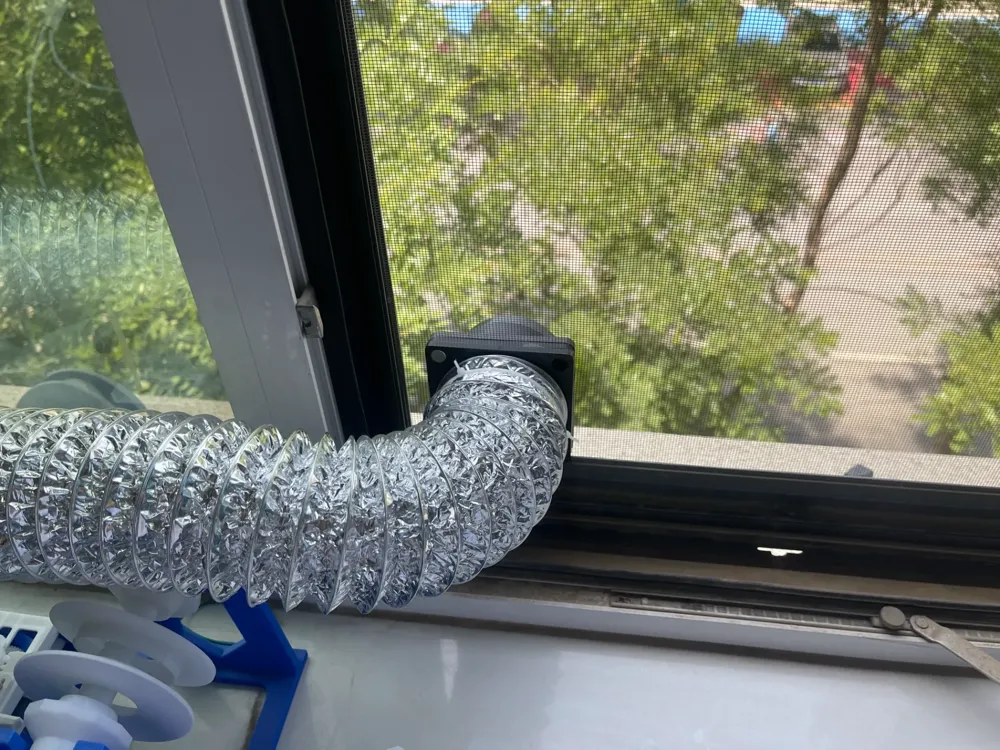

1. It can be magnetically adsorbed to the screen window to prevent mosquitoes from flying in.

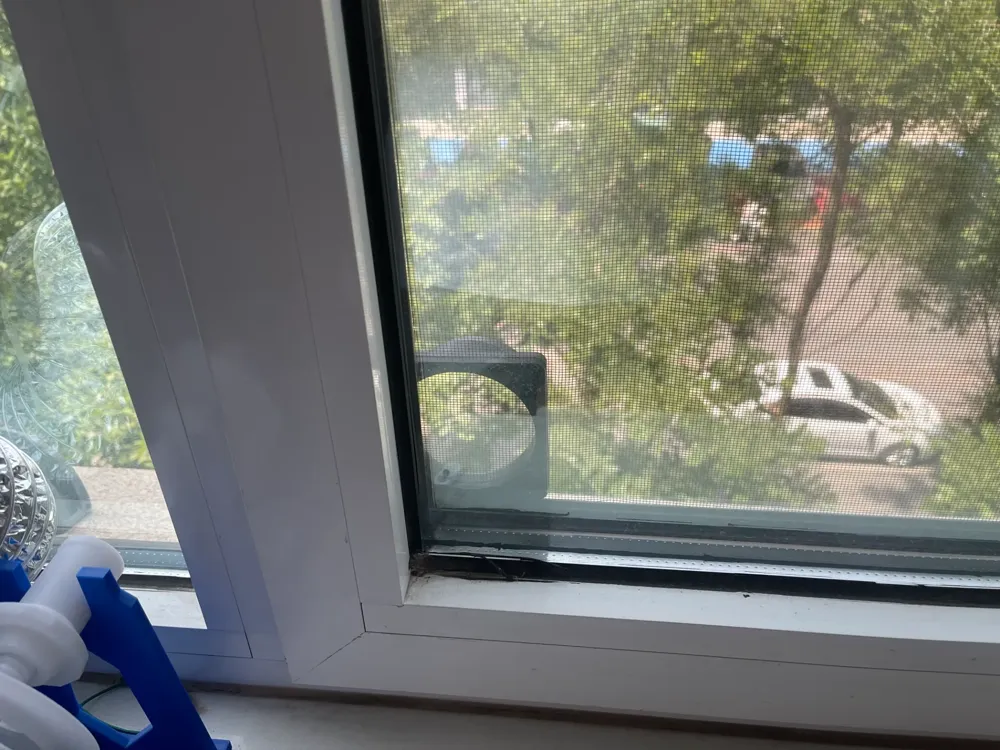

2. The magnetic design allows for easy removal at any time. The end that remains on the screen window does not affect the closing of the window.

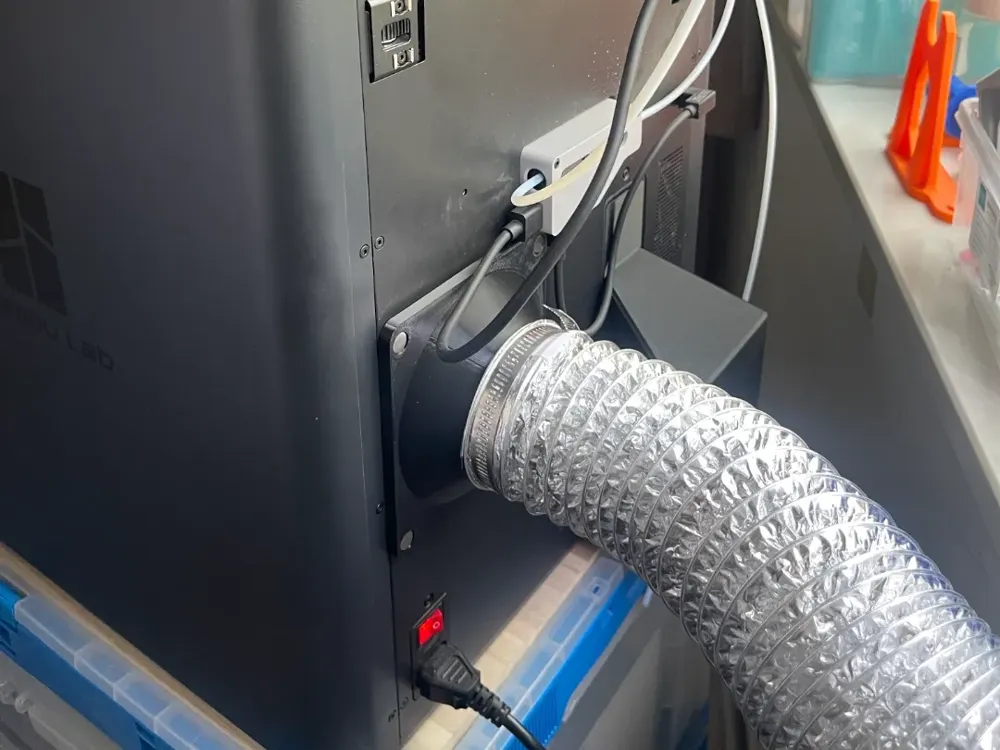

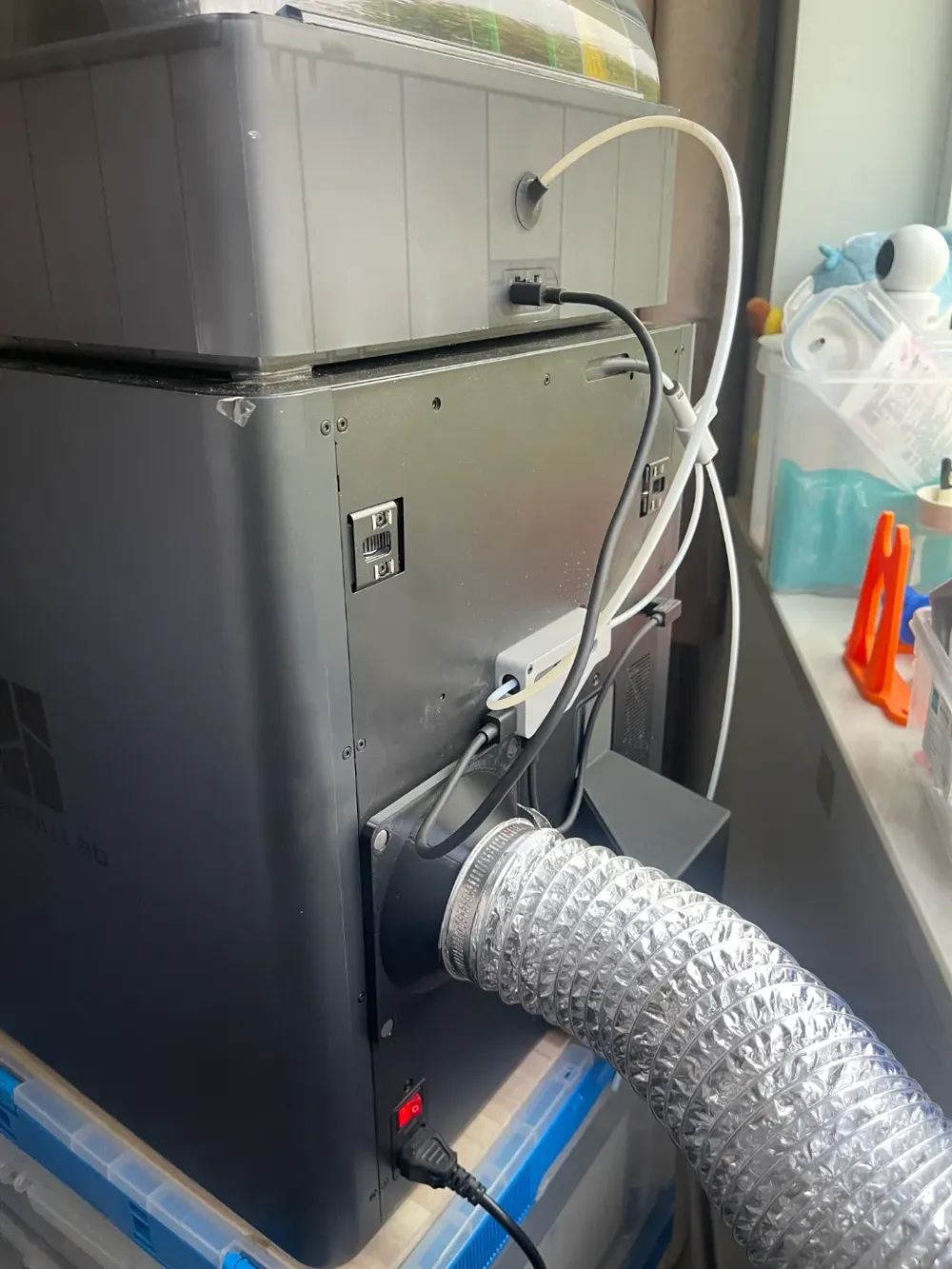

3. The printer end is also magnetically attached and can be removed at any time.

4. In conjunction with a sealed waste bin, a negative pressure space can be created inside the printer box, preventing the printing odor from leaking out. At the same time, air is drawn in from the motherboard heat dissipation port, enhancing the heat dissipation of the motherboard.

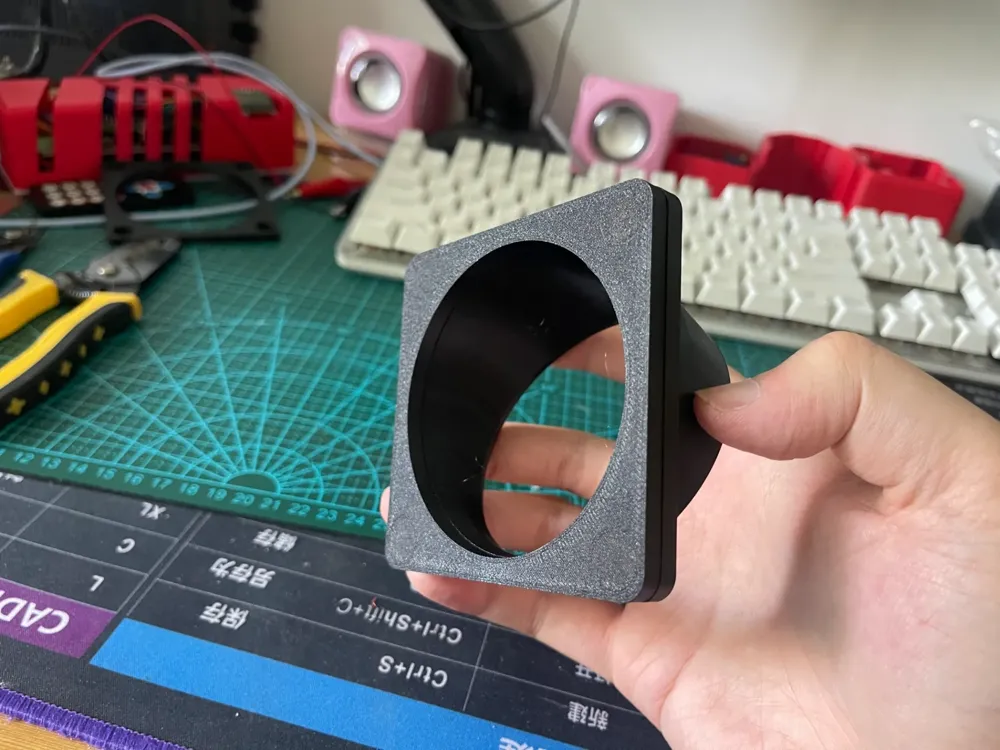

5. The window end has a rain cover design to prevent rainwater backflow.

Assembly Guide:

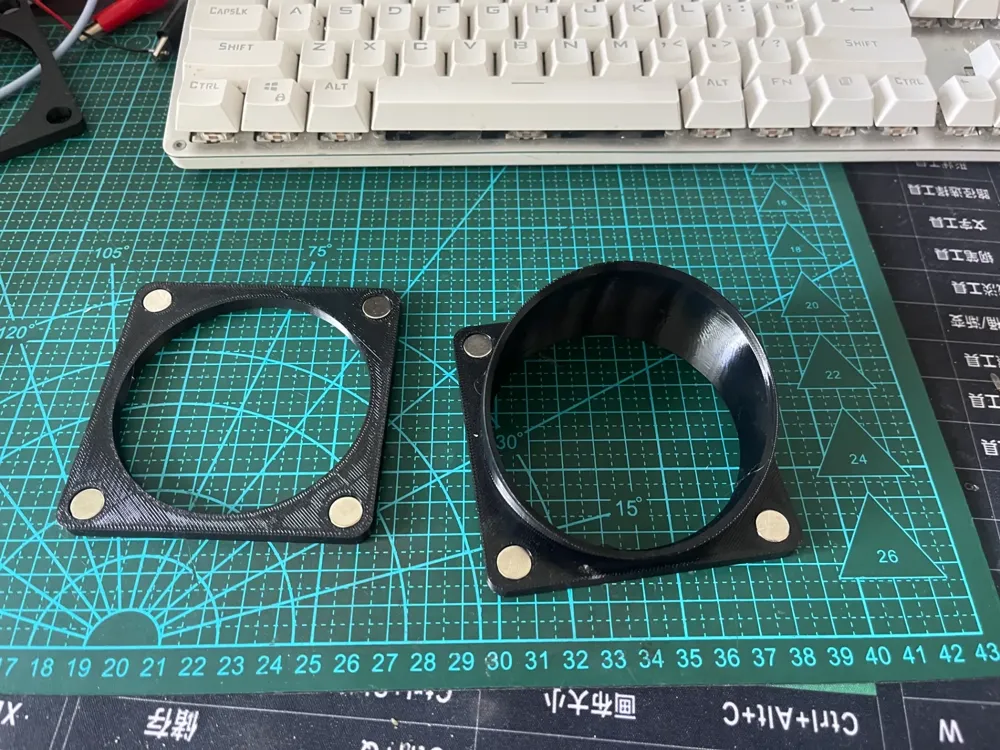

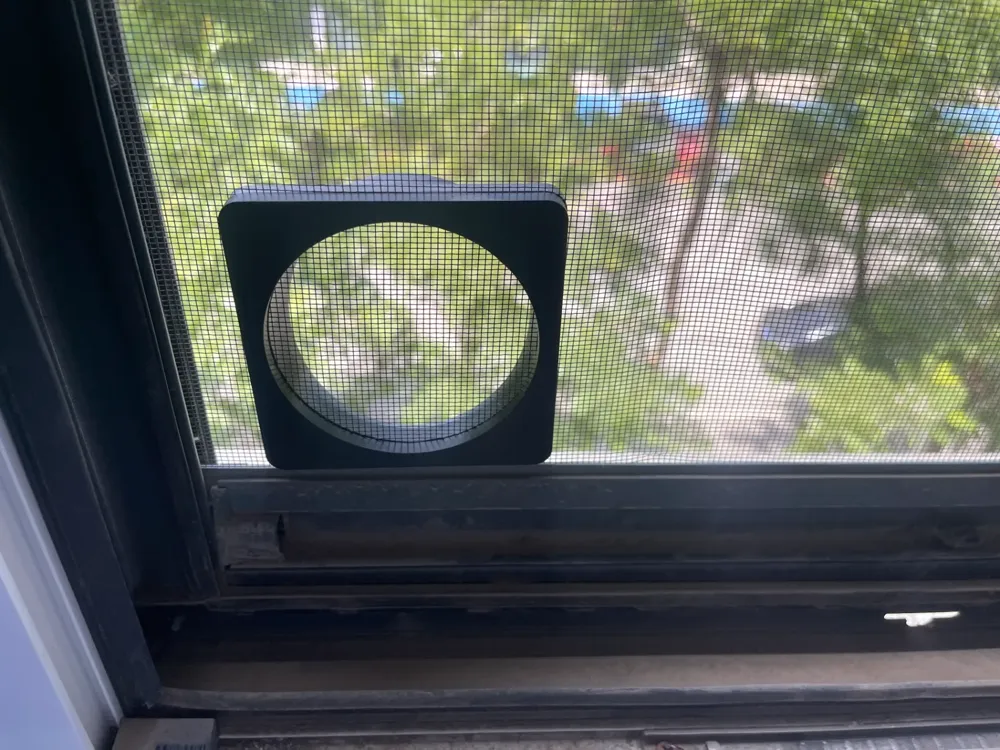

1. This solution is harmless to the screen window. The screen window end is adsorbed to the screen window by the inner and outer components and 8 magnets. Please pay attention to the polarity of the magnets.

2. The magnets are not glued and can be directly inserted and secured by friction.

3. Two magnets can be removed from the vent on the screen window side to prevent excessive magnetic force.

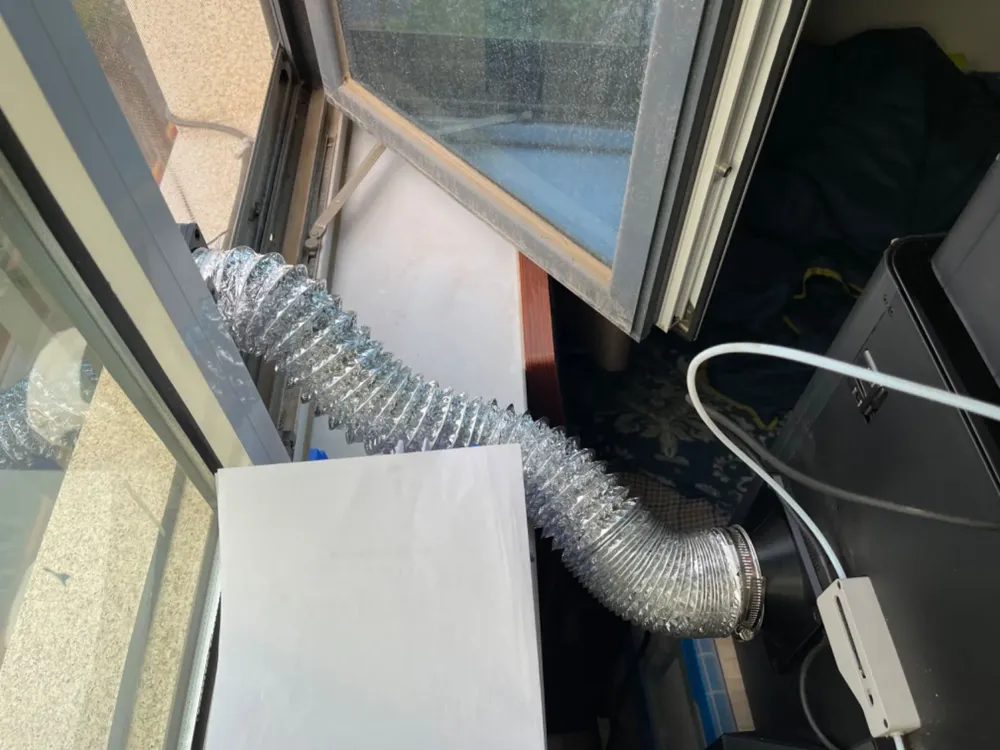

4. If you are concerned about gas backflow, you can buy another ventilation pipe and connect it to the outer end of the screen window, extending it to a distance.
