【3030】Free Travel Hole Making Jig (M20 Knurled Drill Bushing Version)
Print Profile(1)
Description
All my works prohibit any unauthorized third-party sales. I have already communicated with MakerWorld officials and reserve the right to pursue legal action.
The description here can refer to the 3030 end face opening jig, M20 version.
The M20 knurled drill bushing version of the opening jig is not a replacement for the original M14 knurled drill bushing version. Their purposes differ—this is a crucial point.

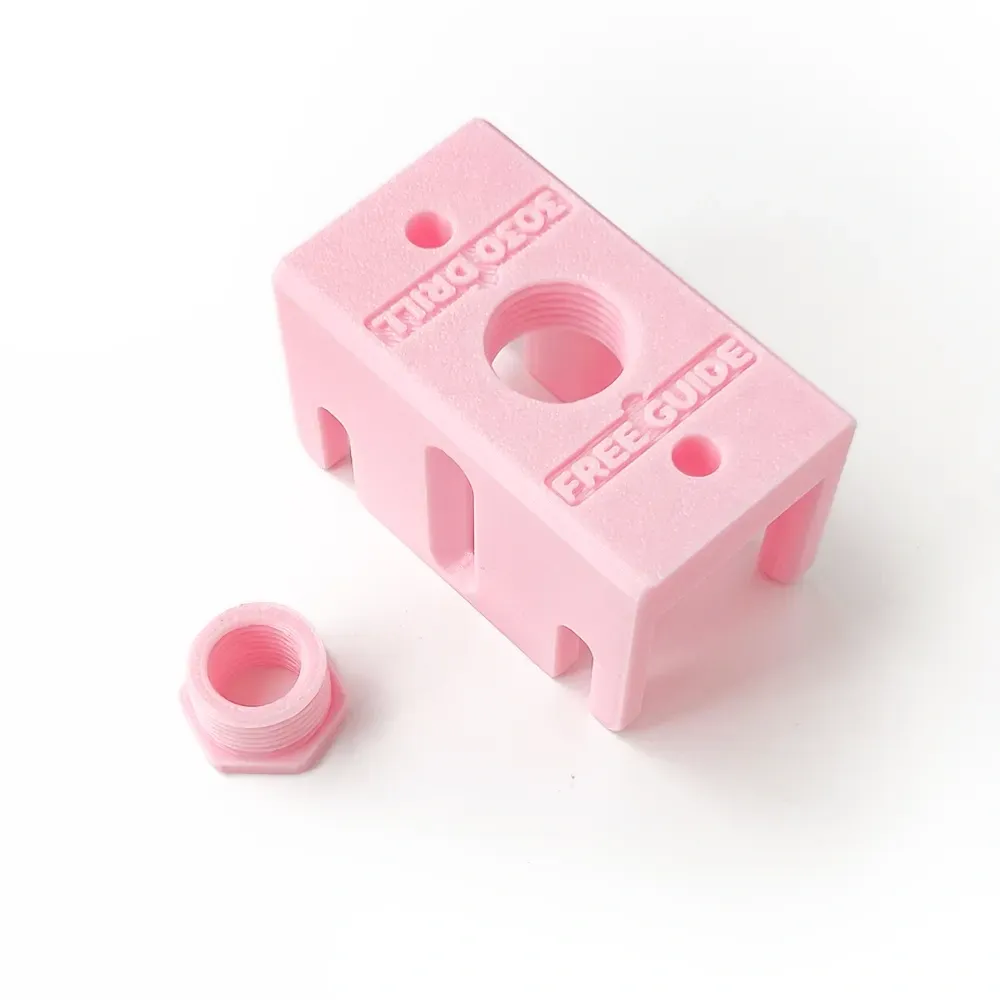

The M20 drill bushing version opening jig is suitable for creating Φ14mm countersunk holes. This specification is key.
- M8 cup head screws—the cup head portion is 14mm usable
- 30-gauge European standard whistle pieces—14mm usable (however, not suitable for use with this jig due to differences in end face distance)
The smaller drill bushing version of the opening jig is highly compatible with Φ6~8 drill bushings, used for wrench holes/through holes.

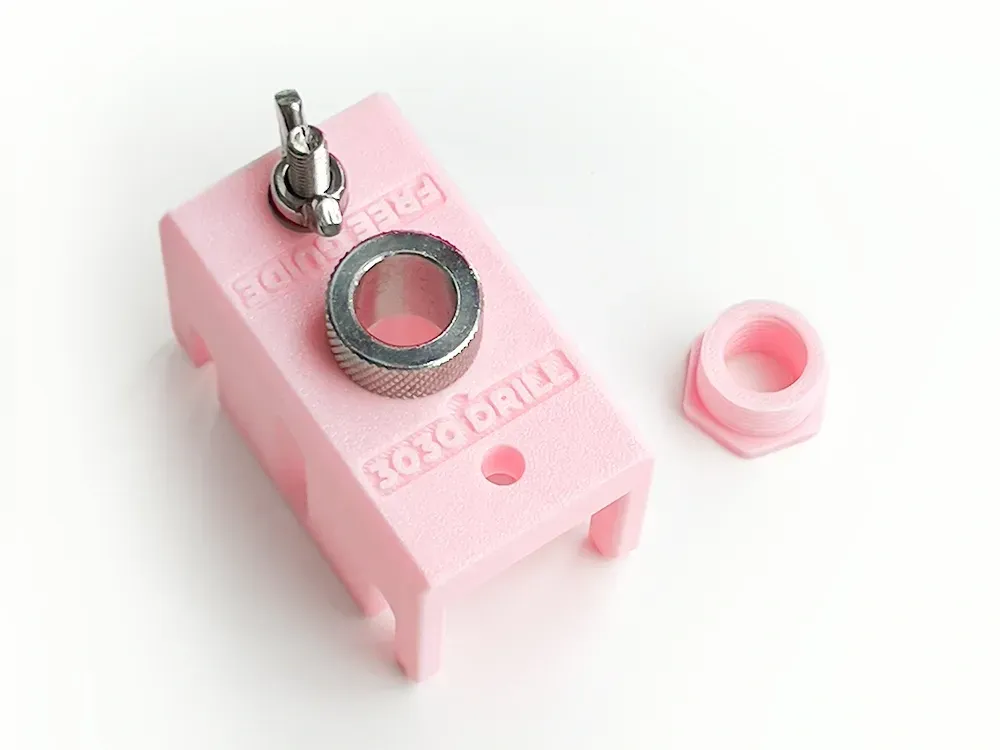

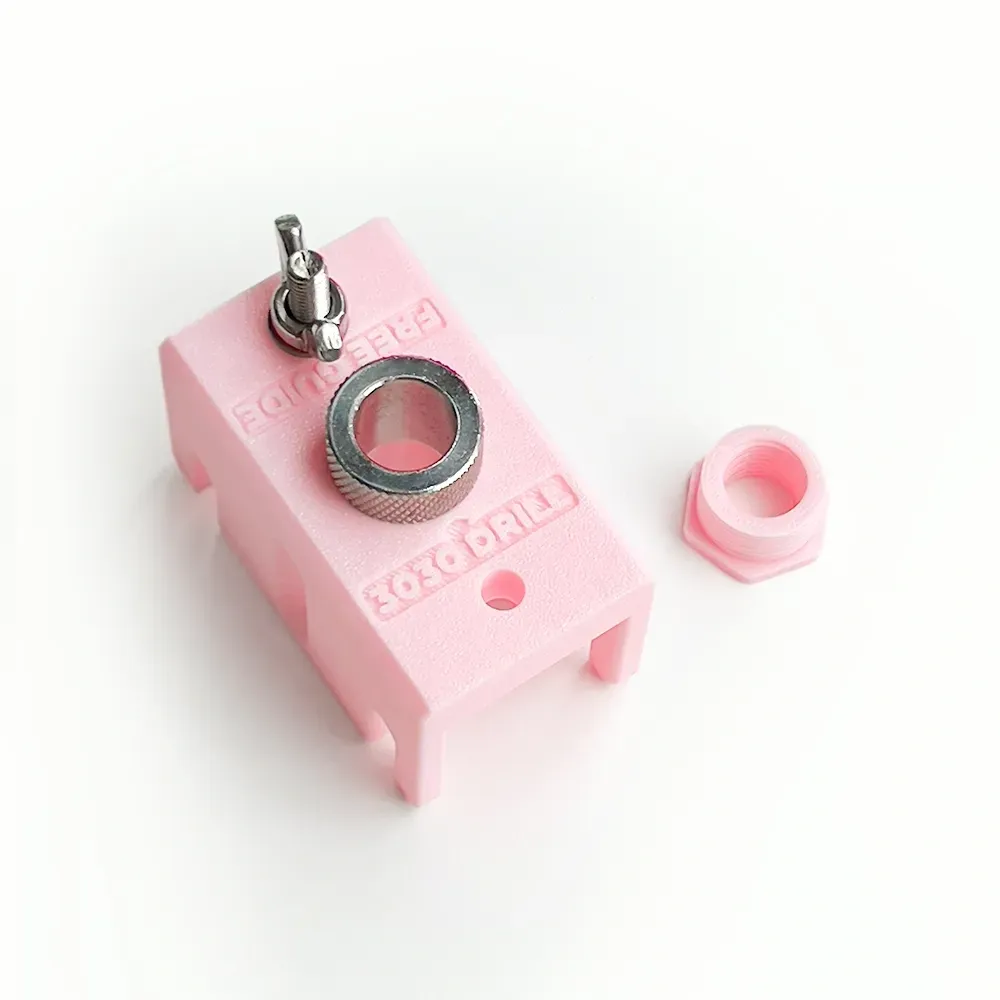

Hardware components list:
- Stainless steel knurled drill bushing, thread specification M20x1.5, inner diameter 14mm
- T-bolt, M6 specification, 25mm length
- Wing nut, M6 specification
- M6 washer
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
