"Rhinoceros" - EDC Knife / Pocket Knife / Mini Knife

If you are interested in my other designs, you can browse my homepage or collections  IKEA Skadis and accessories   Modular storage box  1:2000 boat model 1:700&1:350&chibi versions Daily necessities 3D printing related Toy

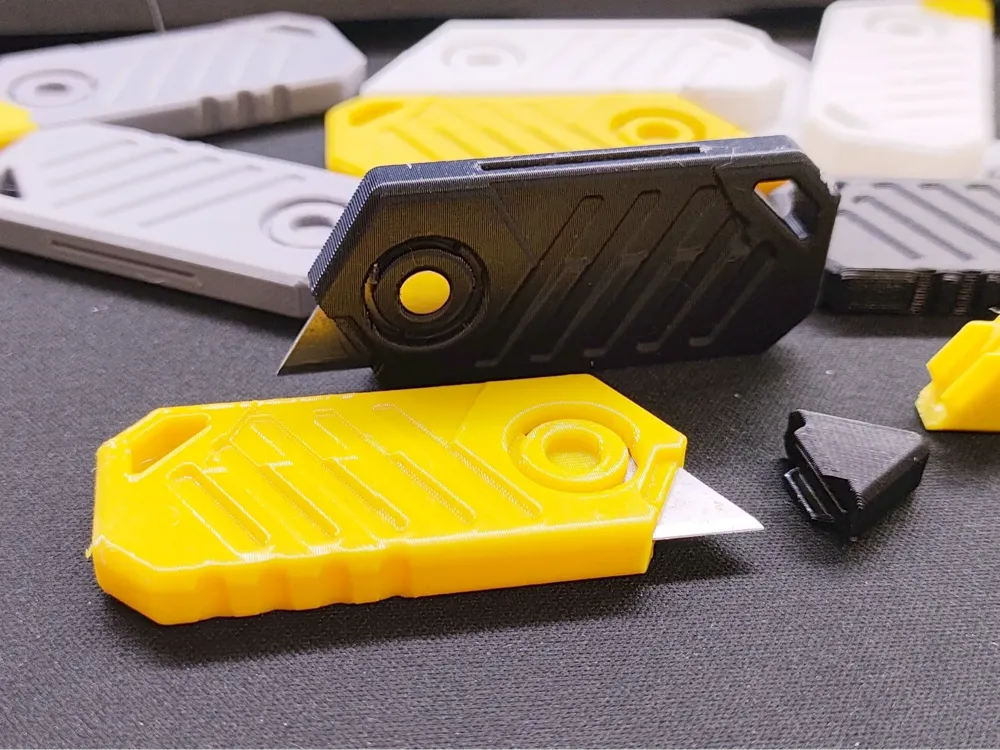

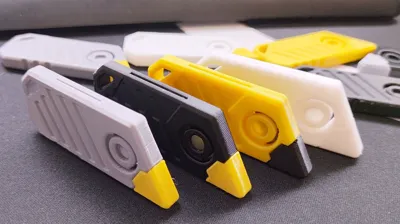

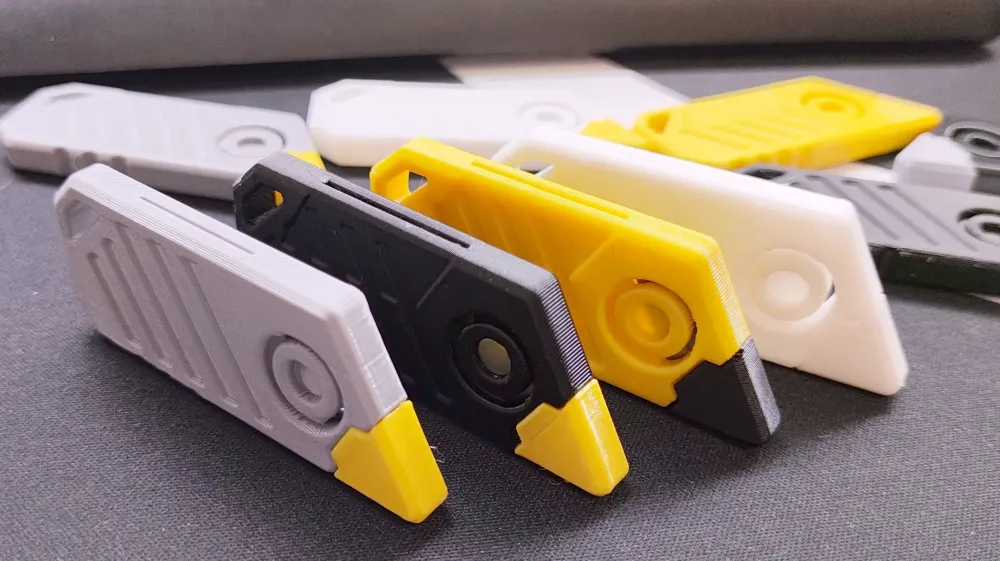

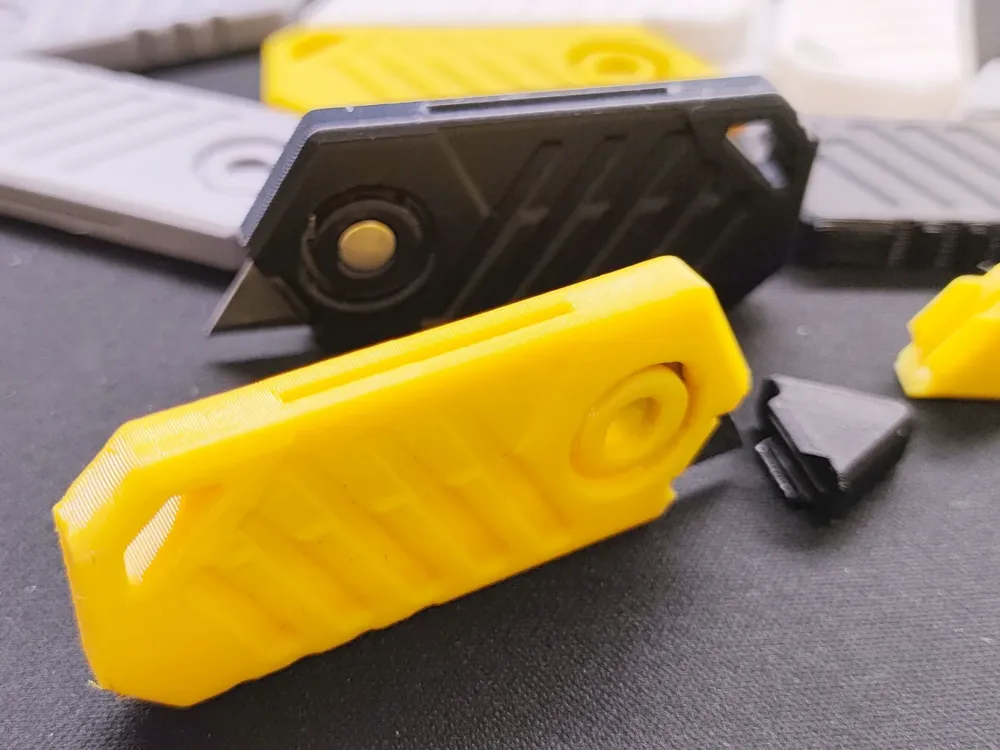

This is a very compact and small knife, I feel it resembles a large-billed bird, so I named it "Rhinoceros Bird"

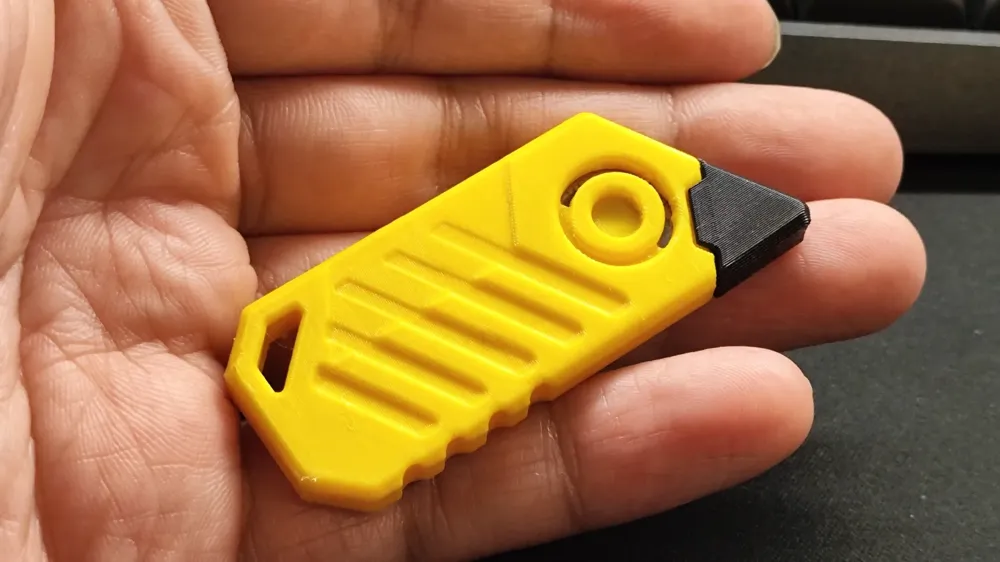

The knife is easy to carry, or hang on a keychain, or it can be placed at home to open express parcels😁

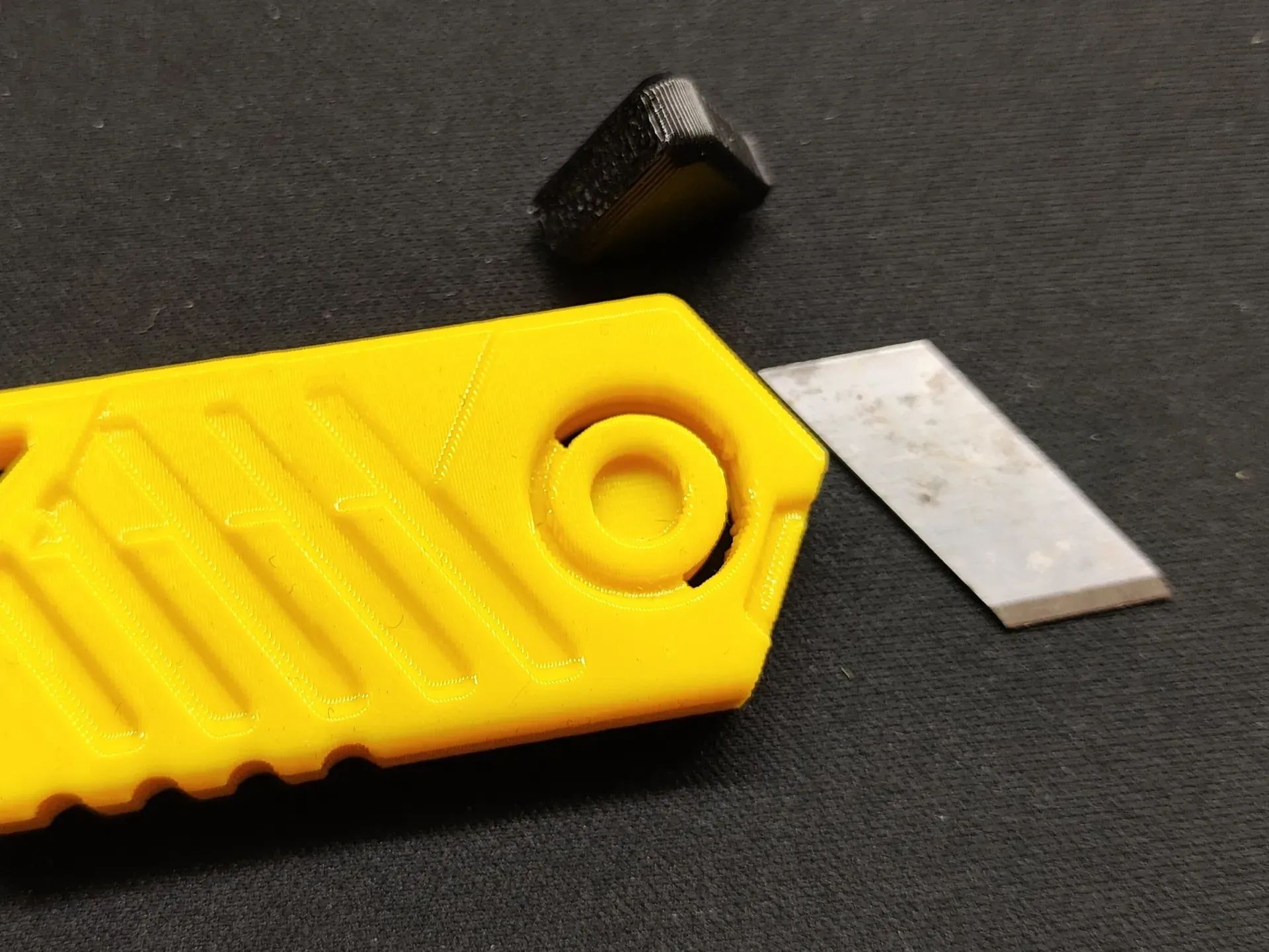

Using the most common 18mm wide, 10mm long utility knife blade, break off one section, insert it into the "bird's head", be careful when installing, after all, the blade is sharp

The bird's beak (lid) has been tested repeatedly, and now the tightness is just right, it basically won't fall off

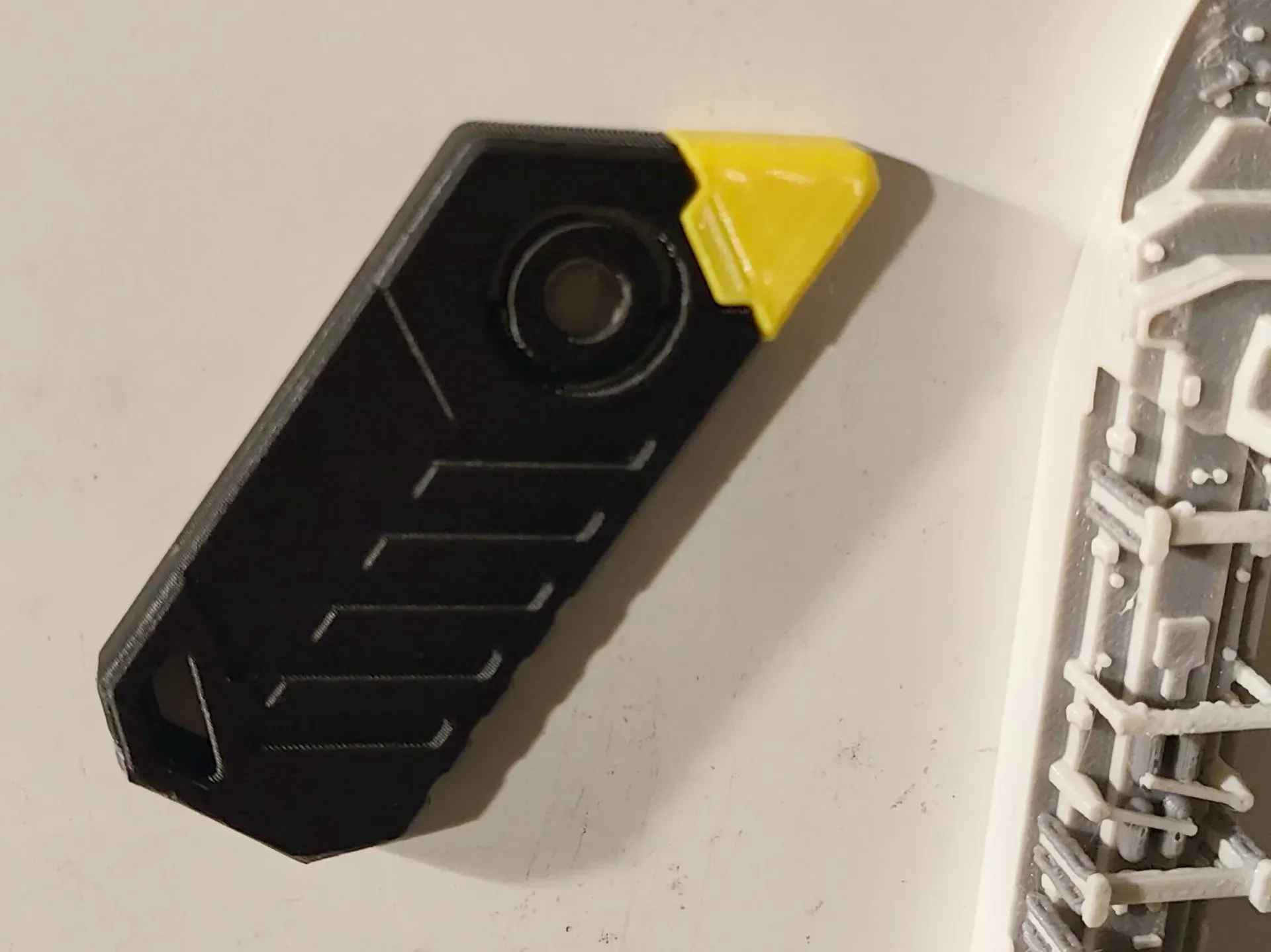

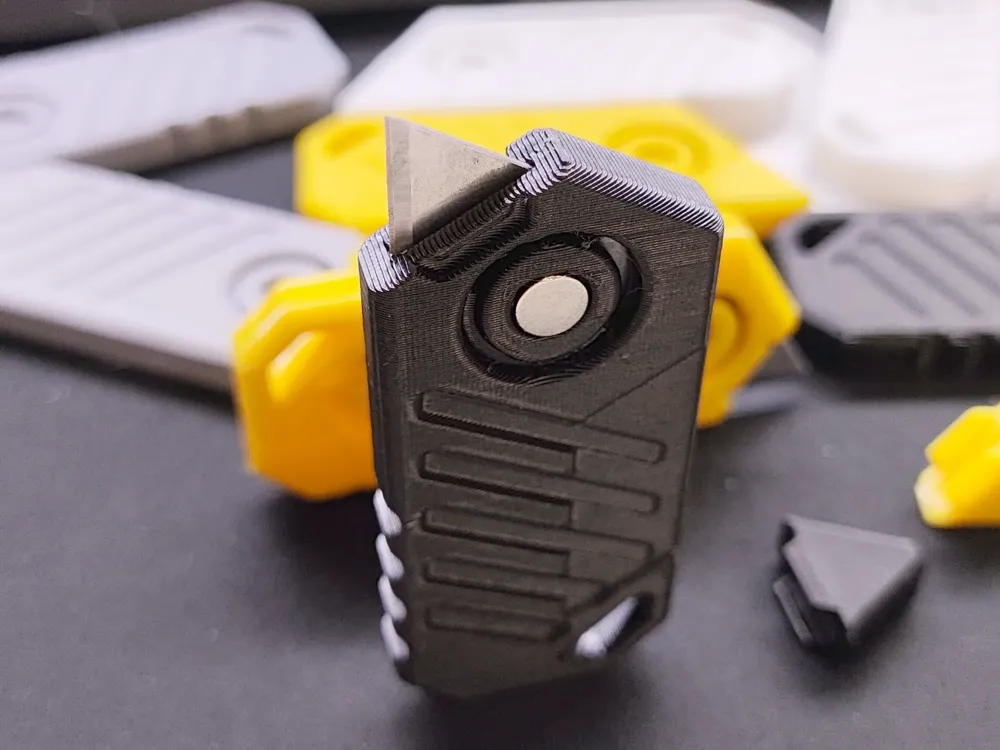

You can install a 5x2mm magnet on both sides of the bird's eyes, which can both help to hold the blade and make the knife magnetic, such as sticking to the refrigerator

The blade can also be used as a folding knife, there is a slot on the upper part, which is used to break the blade, although it can be broken by hand, I still use pliers to clamp the blade, insert it into the blade in the direction shown on the picture (exactly 10mm), and then break the blade, which is safer

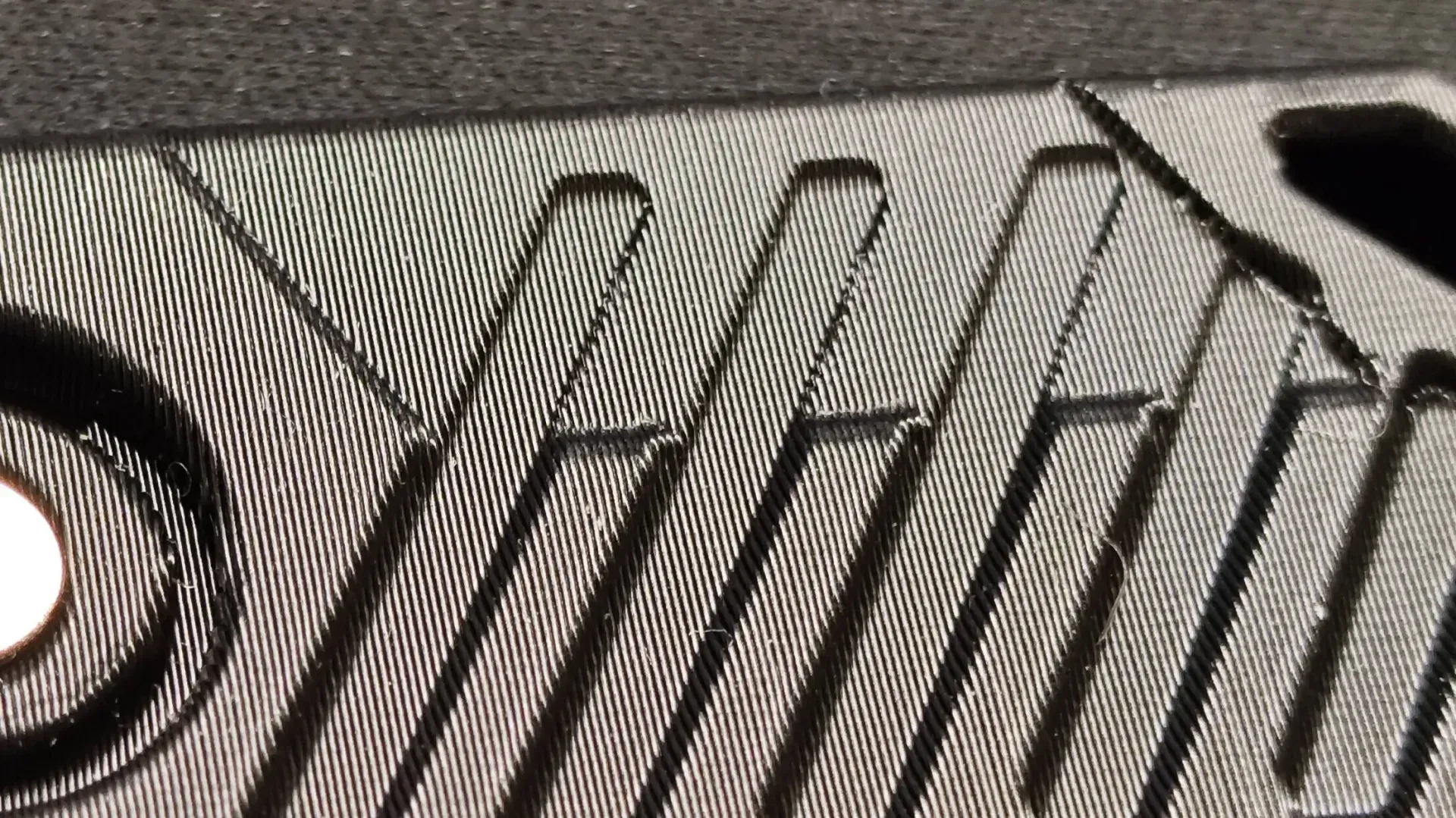

The blade is printed in an upright manner, I have disabled brim in the configuration, it can be printed successfully, but if you encounter printing problems, you can enable brim, just need to trim the tail of the blade after printing
