PlayStation VR2 Headset and Controller Station

Overview

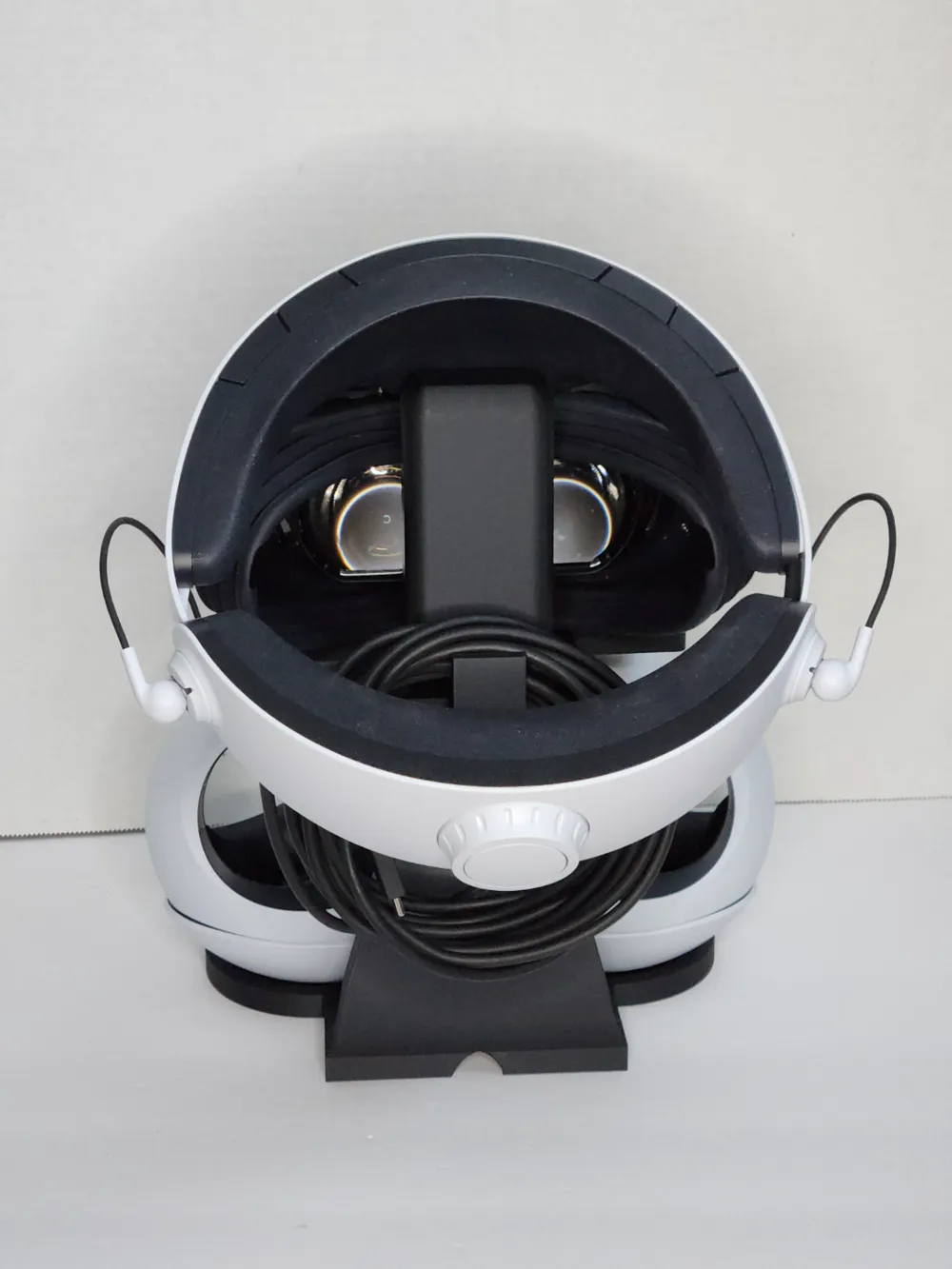

The PlayStation VR2 (PSVR2) Headset & Controller Station is designed to perfectly complement your PlayStation VR2 setup by providing a secure and highly functional stand for both the headset and Sense controllers. Built to integrate seamlessly with the official PSVR2 Sense Controller Charger base, this stand elevates your headset above the charging base, creating a compact, space-saving solution for your VR gear. With a custom cradle for the headset and precise cut-outs for controller charging base and cord, this stand is the ultimate display and storage solution for PSVR2 owners.

Features

• Integrated Charger Fit: The oval base is tailored to house the PSVR2 Sense Controller Charger base securely, using it as a stable foundation for the stand.
• Headset Cradle with Lens Protection: The cradle includes front cut-outs to prevent any contact with the headset’s camera lenses, ensuring they remain scratch-free.
• Forehead Support for Stability: An extended section on the cradle provides added support for the forehead section of the headset for stability.
• Cable Management: The back of the cradle includes a convenient hook for organizing the headset cable, while the base has a tunnel cut-out, allowing the controller charging base cable to pass through cleanly.

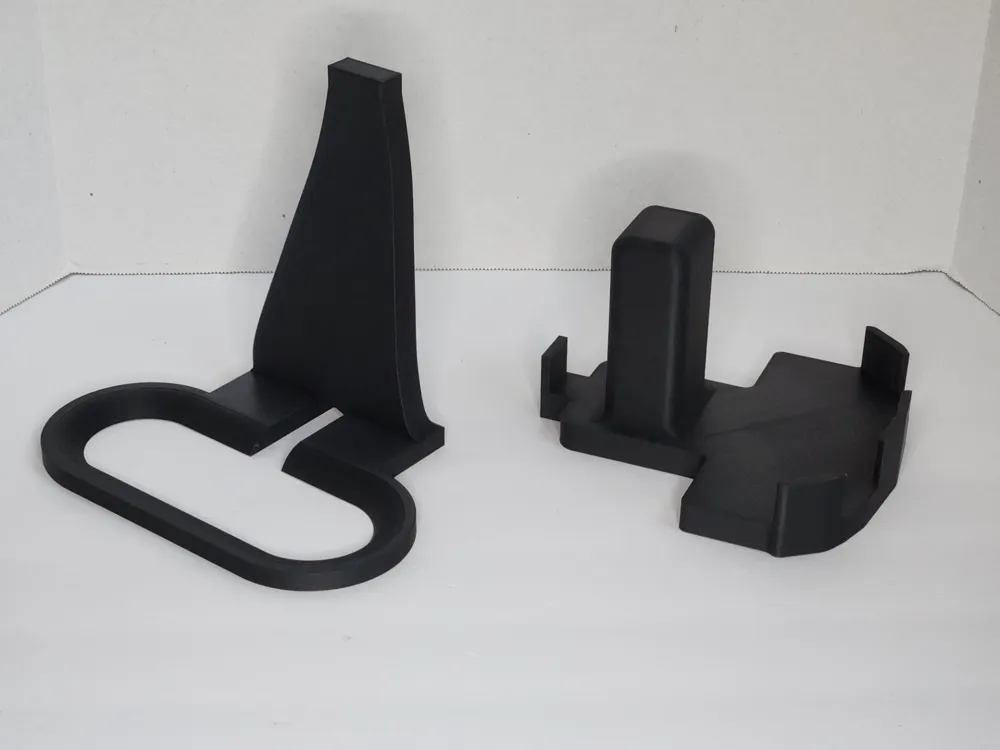

• Modular Design: The stand and cradle are printed as separate pieces for easier printing and secure assembly.

Assembly Instructions

1. Print both components: Print both the headset cradle and the base.

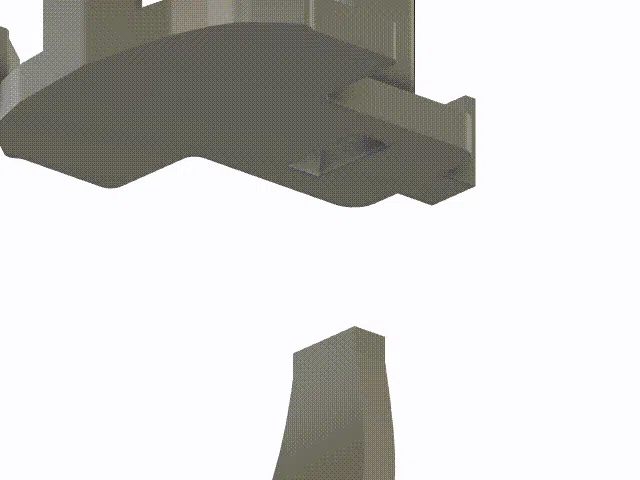

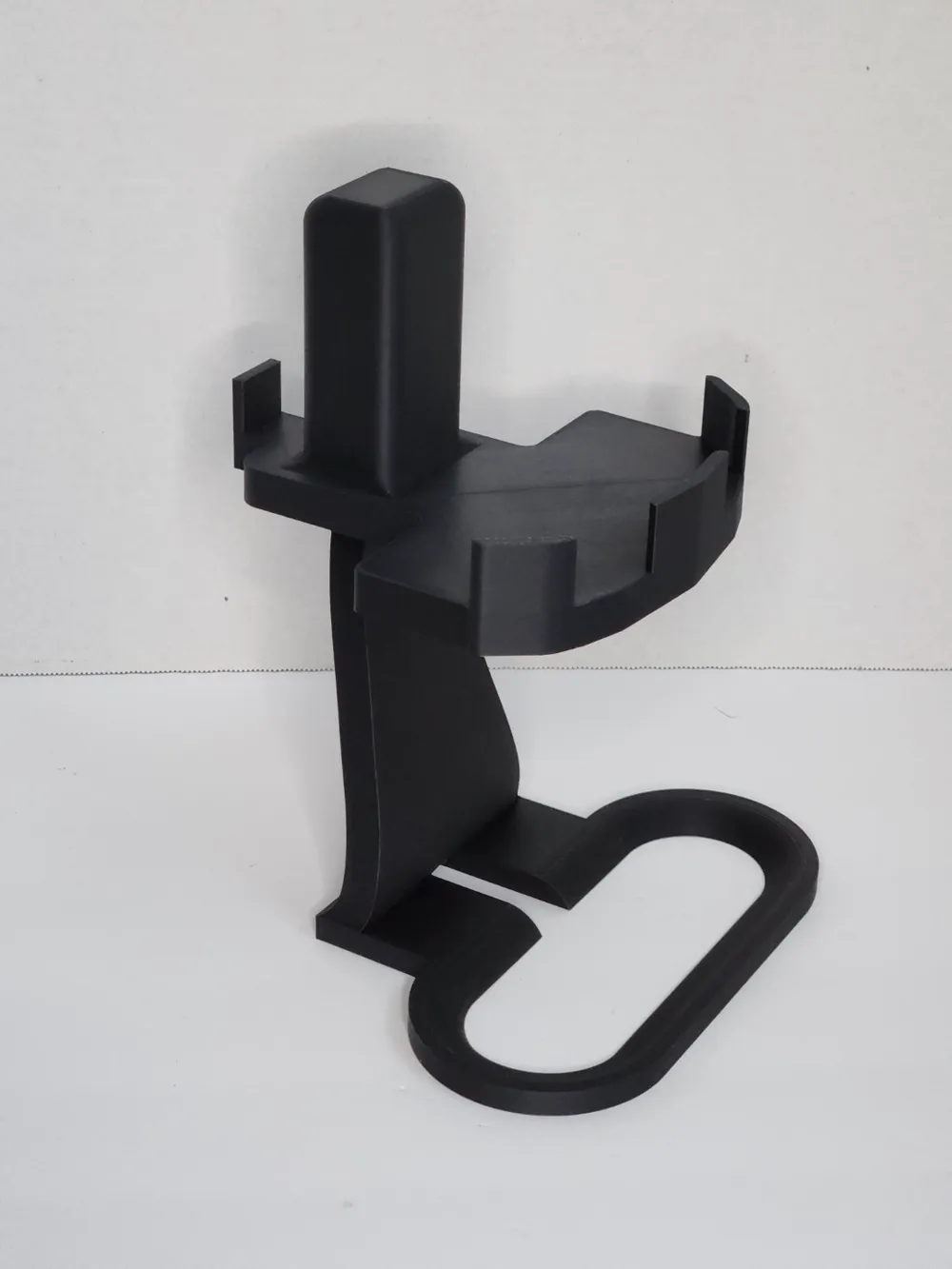

2. Attach the Headset Cradle: Slide the cradle piece onto the top of the stand. The design allows it to fit securely over the charging base, providing an elevated spot for your headset. Note: The fit is tight to ensure stability, so you might need to apply some force when sliding the headset cradle onto the top of the stand.

3. Place the Charger in the Stand: Insert the PSVR2 Sense Controller Charger base into the oval recess on the base, ensuring a snug fit.

4. Cable Management: Run the charger’s cable through the cut-out tunnel at the back of the base, and hang the headset’s cable over the rear hook on the cradle for a clean look.

Suggested Print Settings

• Material: PLA or PETG
• Layer Height: 0.2mm
• Infill Pattern: Gyroid
• Infill: 15%
• Supports: No supports needed unless you are printing the A1 Mini profile
