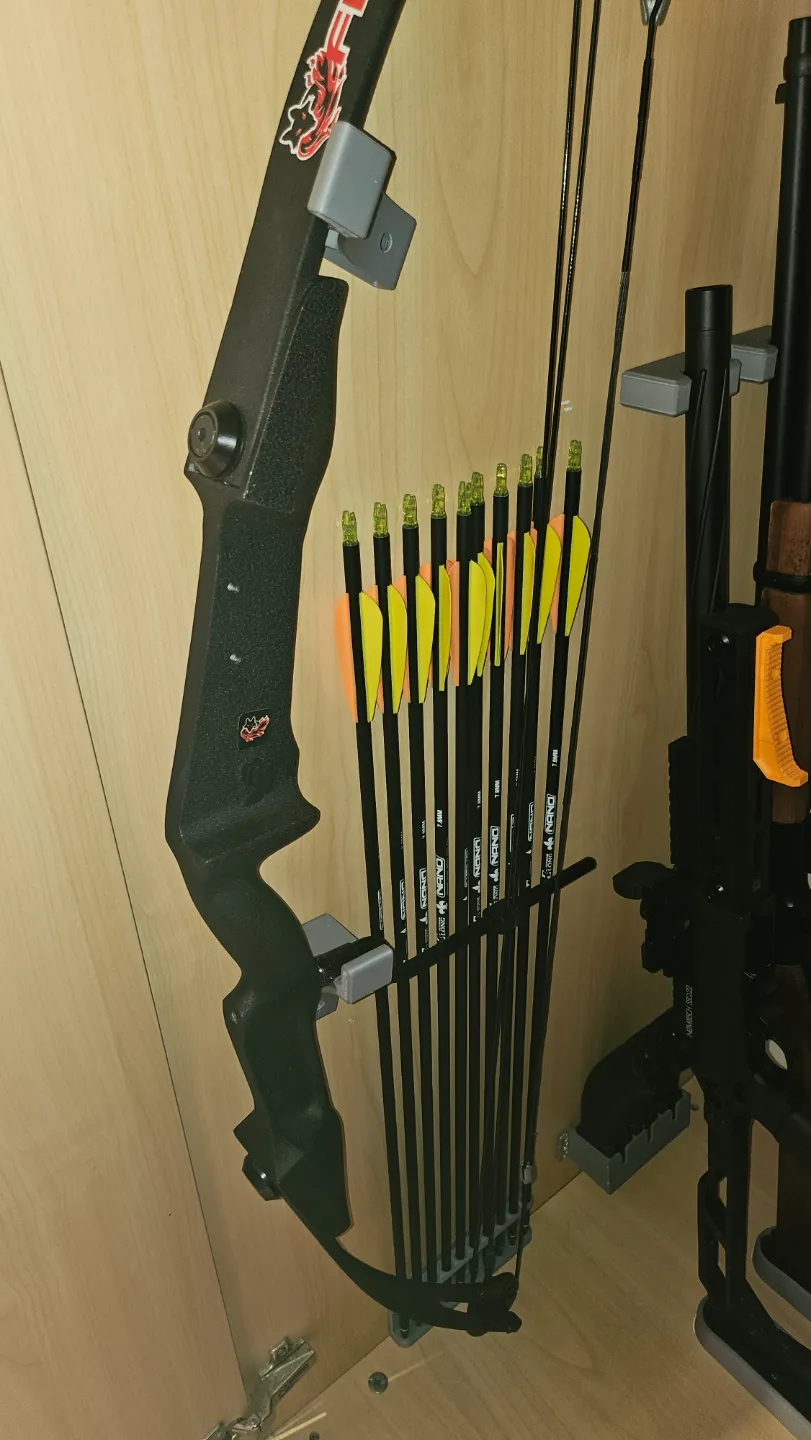

Just a simple compound bow and Arrow wall mounts.

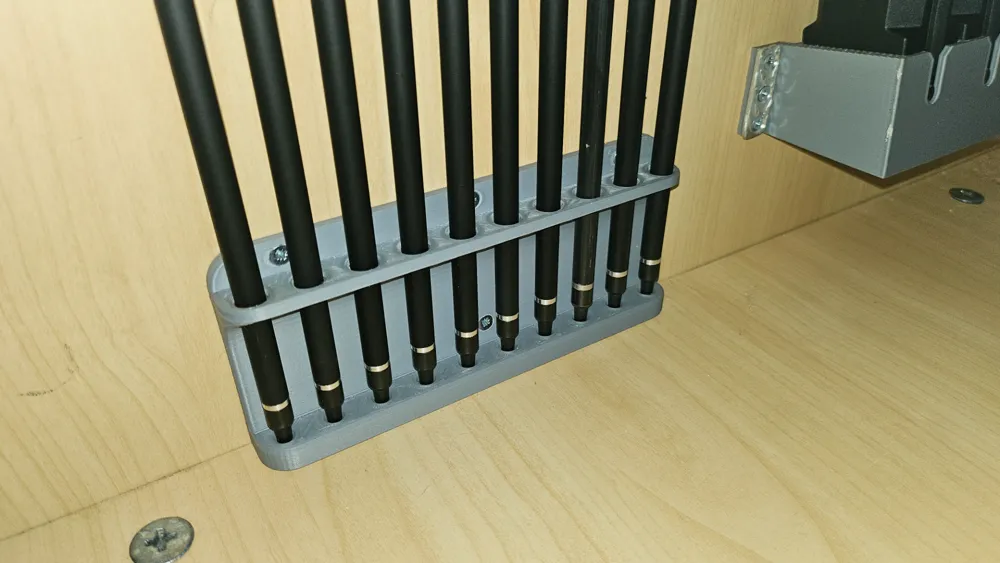

The arrow mount fits 10 of them.

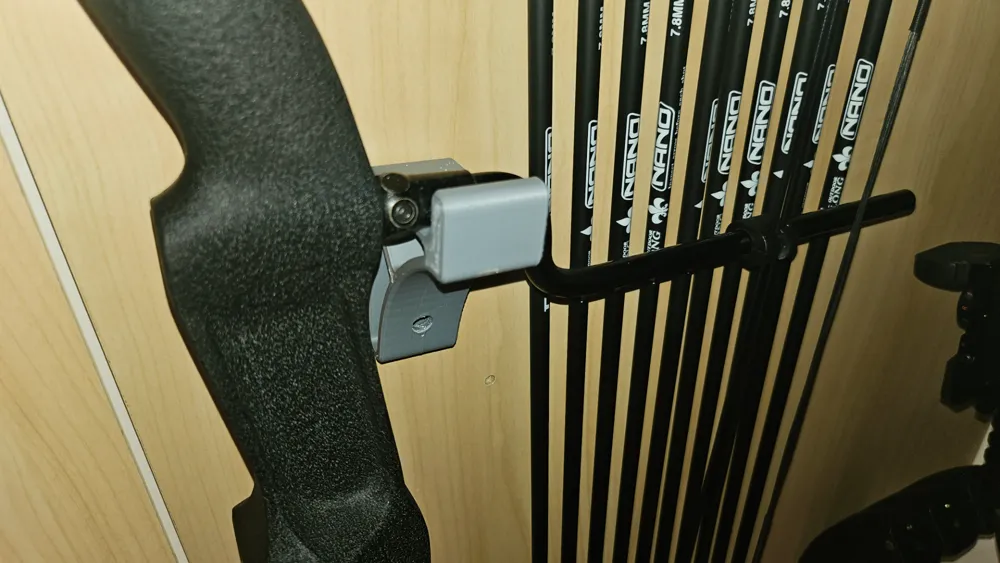

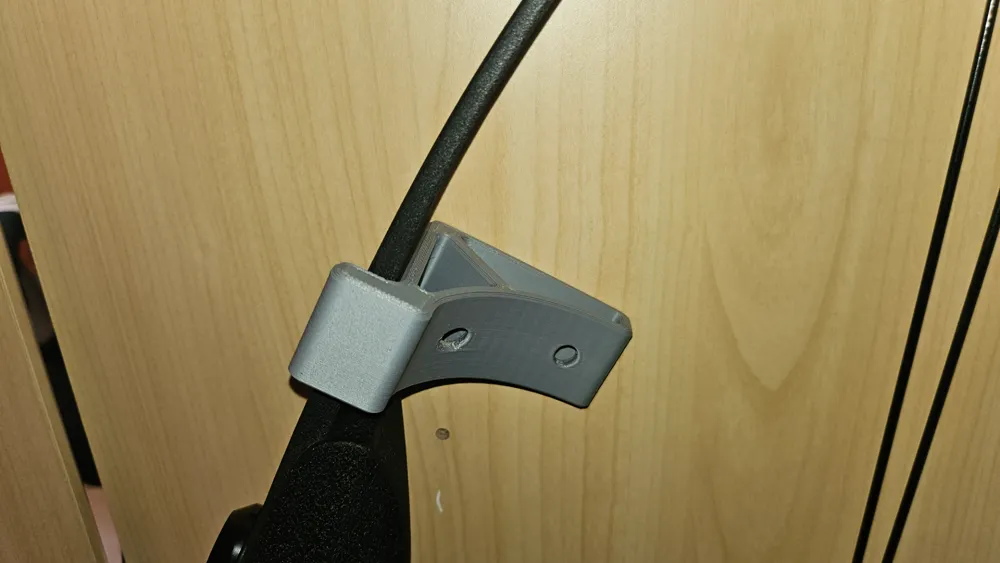

The first bow support holds the weight of the bow on the cable rod and the second support , which it's slightly longer, simply holds the bow from the limb. In my case I could do both supports with the first type.
Screws needed (all Countersunk):
- 2x M3x16 for the Bow Mount 1
- 1x M3x16 for the Bow Mount 2
- 4x M3x16 for the Arrow Mount
