Adjustable Fixture for Lithium Battery Spot Welding (Second Edition)
Print Profile(2)
Description

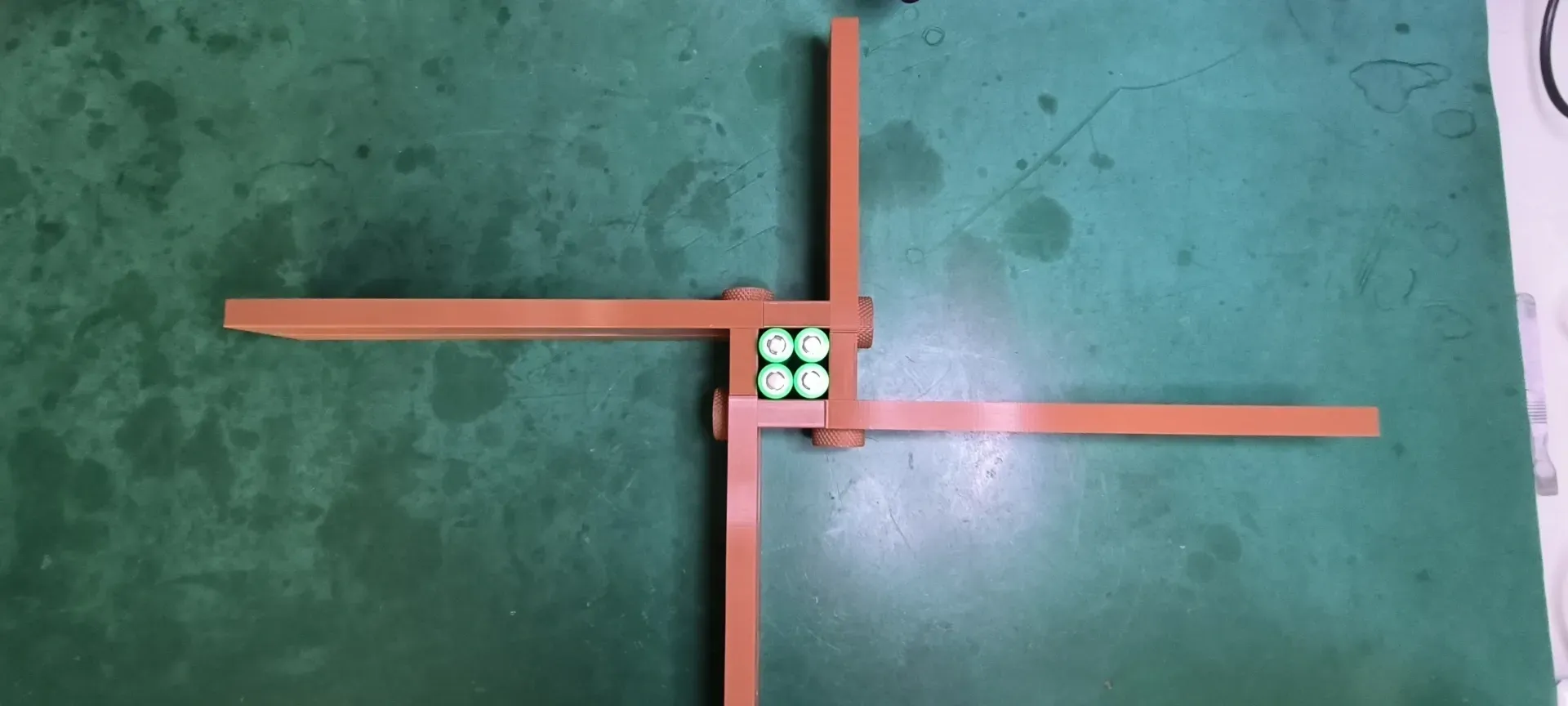

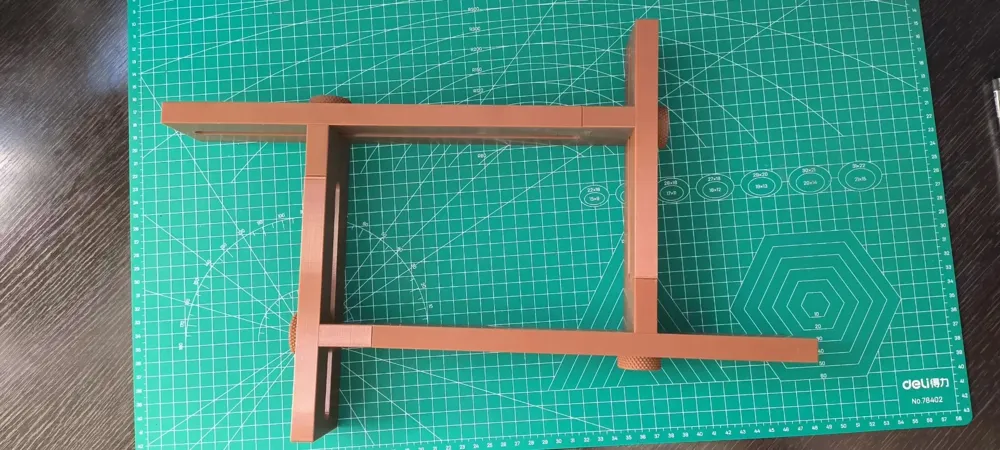

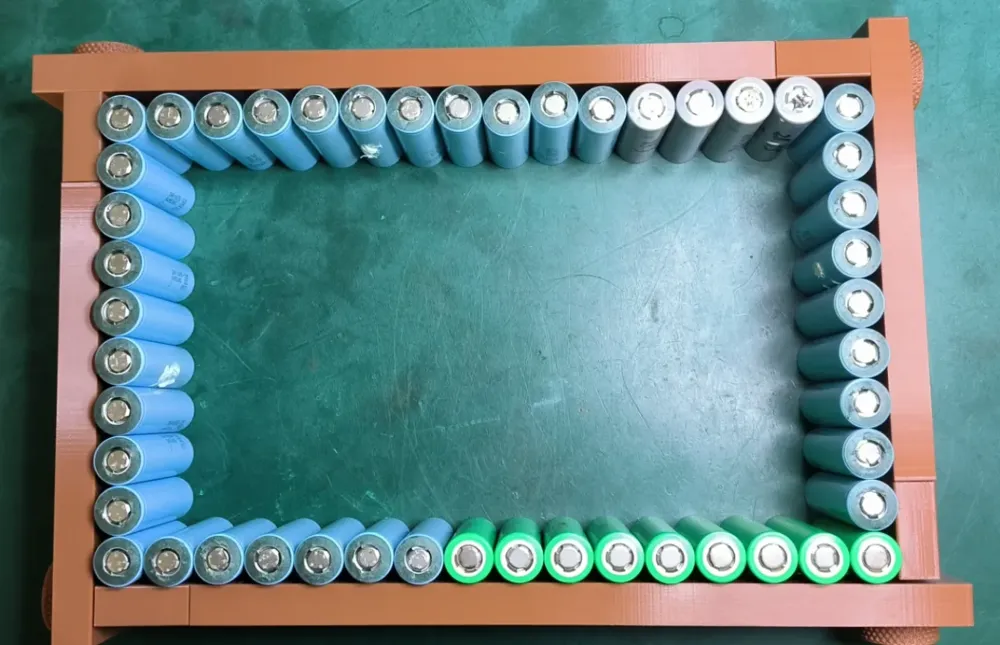

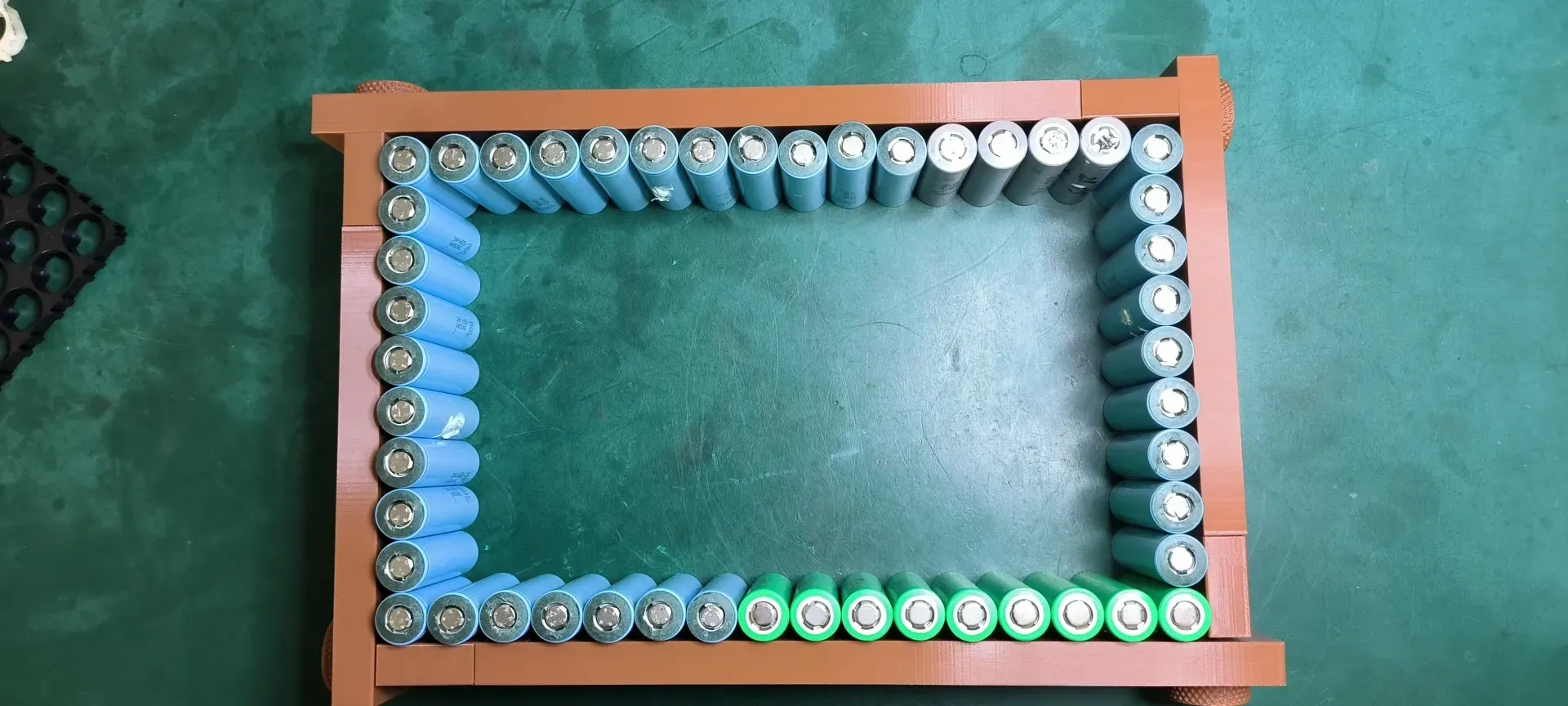

Fixture for lithium battery spot welding, clamping range for 18650 batteries up to 16x10 cells and as small as 2x2 cells, other specifications can be measured by yourself
Second version, issues such as the tight fit between the screw rod and nut, and easy breakage of the screw rod have been fixed As shown in the figure

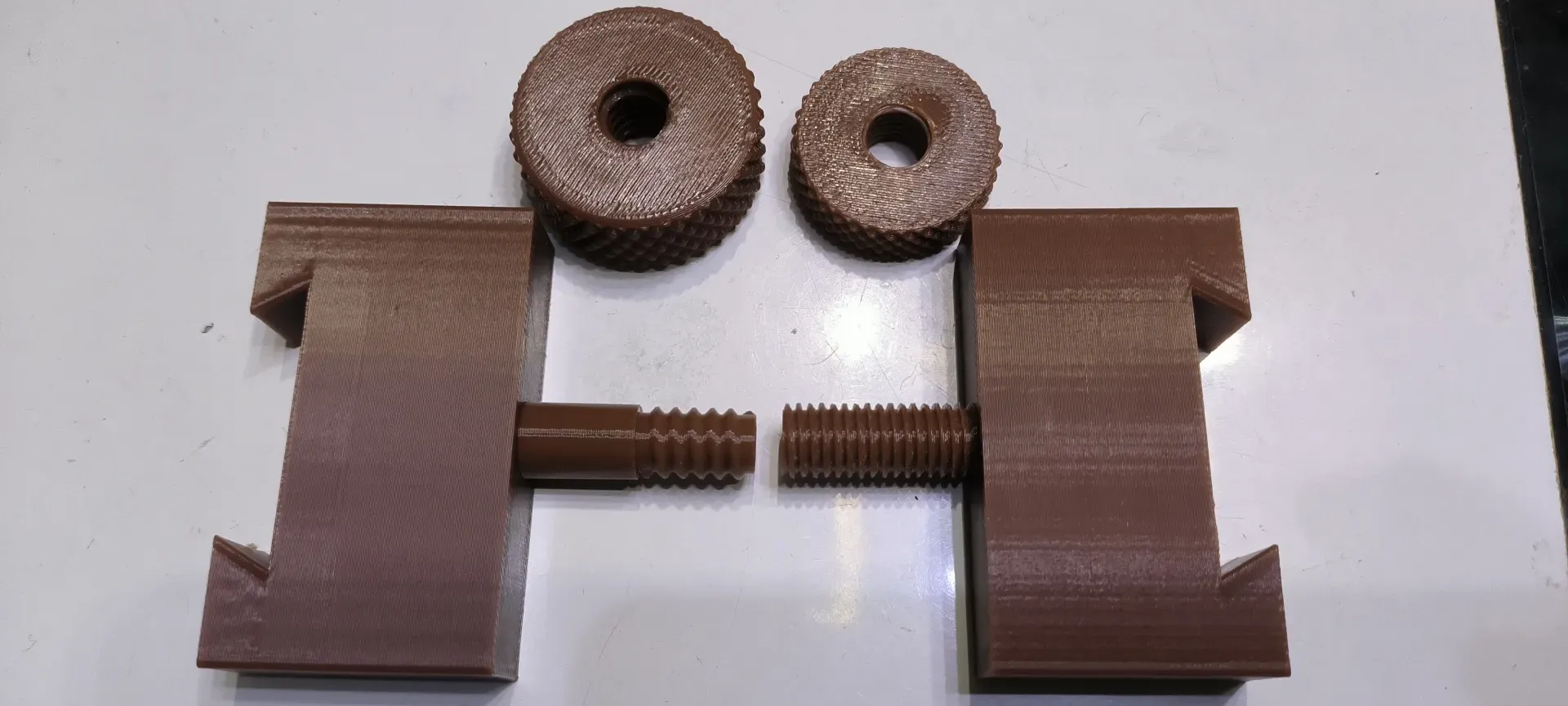

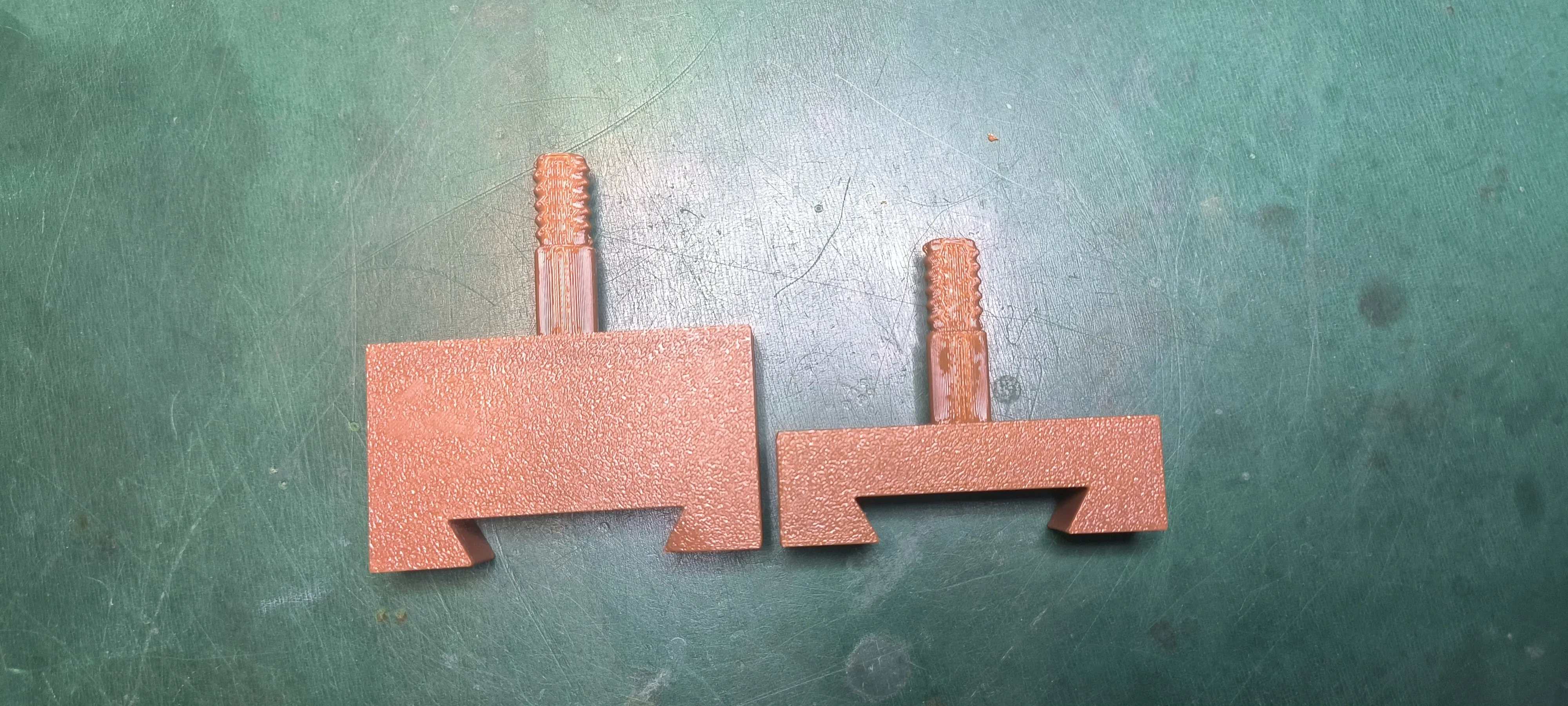

The left is the second version, the right is the first version First, the knurled nut has been enlarged and thickened for a more comfortable feel Second, the screw pitch of the rod has been increased, and the threads are shorter and thicker, making them less prone to breaking during use and more robust Furthermore, the outer walls of the screw rod section in the print settings have been increased from 2 to 4 perimeters, making the entire screw rod difficult to twist off In the second version, the fit between the screw rod and nut has also been adjusted to be smoother different printers may vary, but it has been verified on my P1SC print For those who need it, please download and print Your support is greatly appreciated

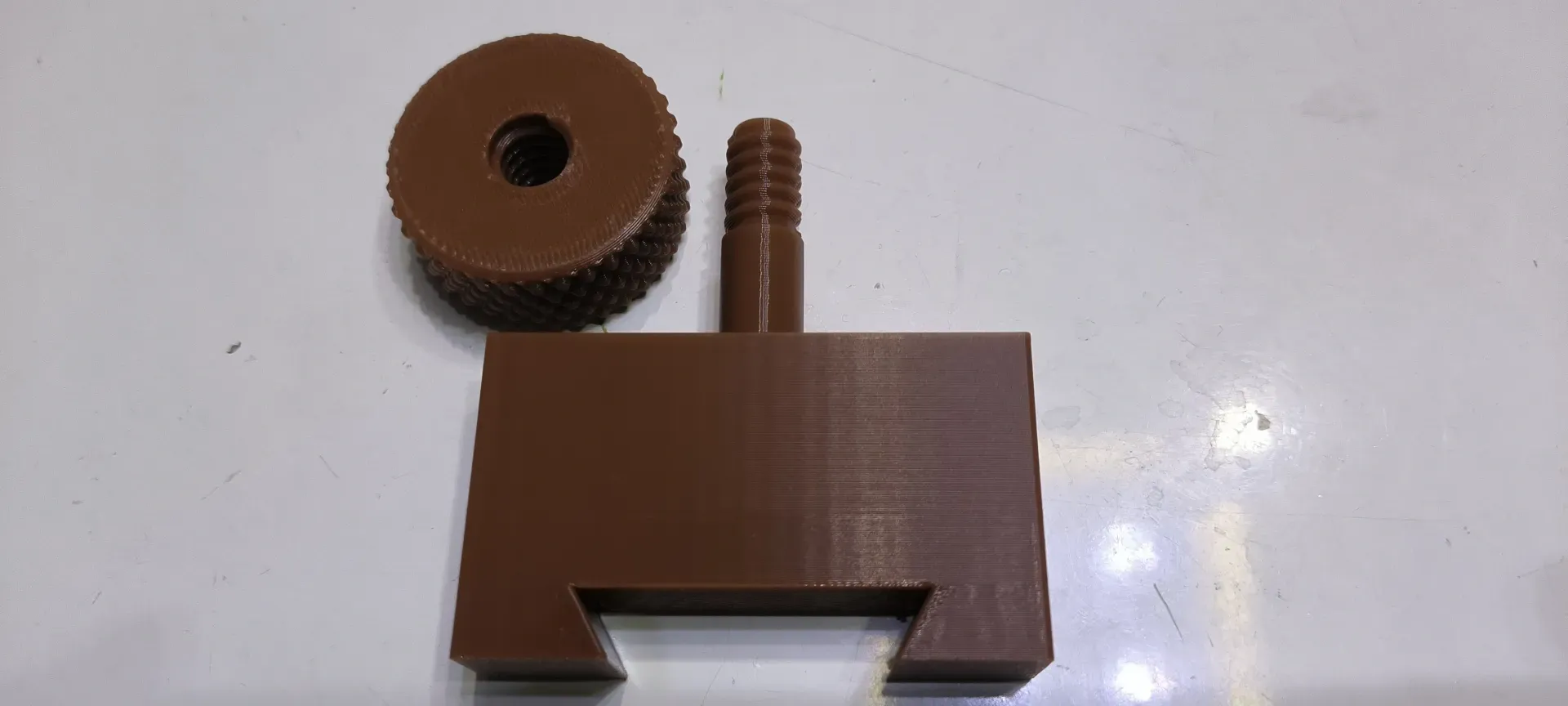

Since my lithium battery fixture uses a mortise and tenon structure, if you have already printed the first version and want to switch to the second version, you only need to print the two parts shown in the figure below

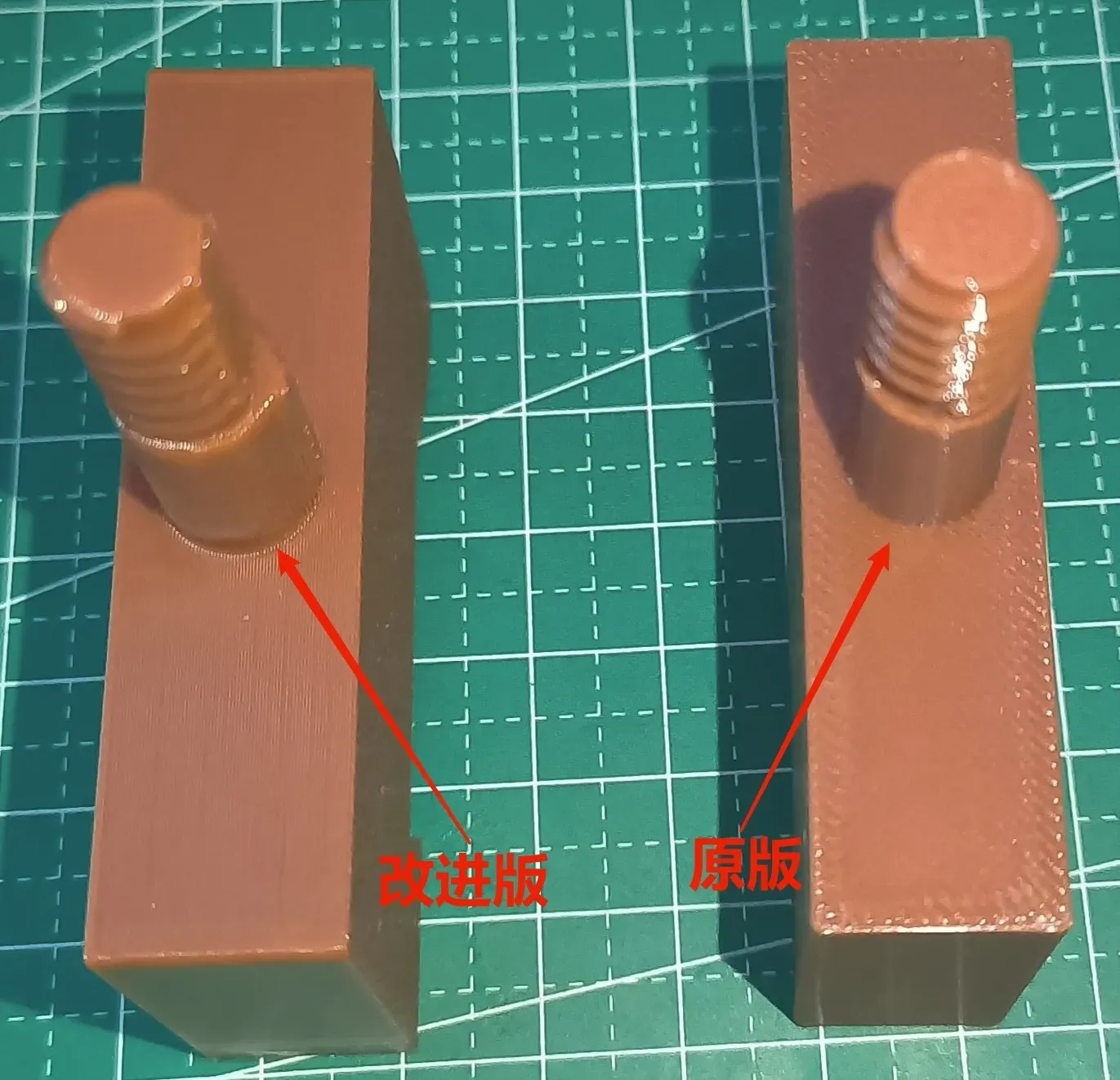

Improvements for the second version are out See figure:

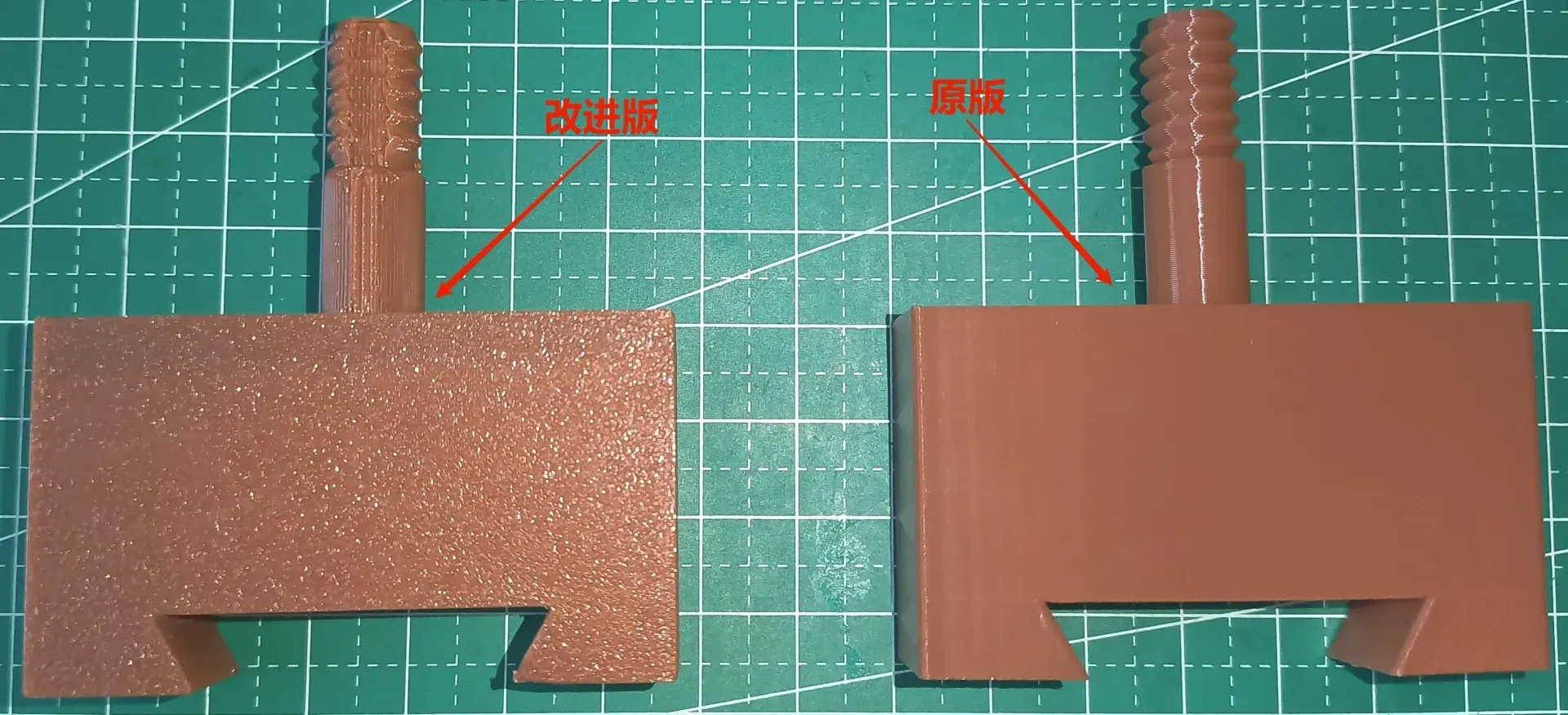

The improved version has part of the threads cut off, allowing for printing flat, and a modifier has been added to fill the threaded part 100% This raises the transverse stress strength of the screw rod to a new level Netizens often reported insufficient screw rod strength, but this time there should be no problem To print the improved version, please select the second print profile Thank you

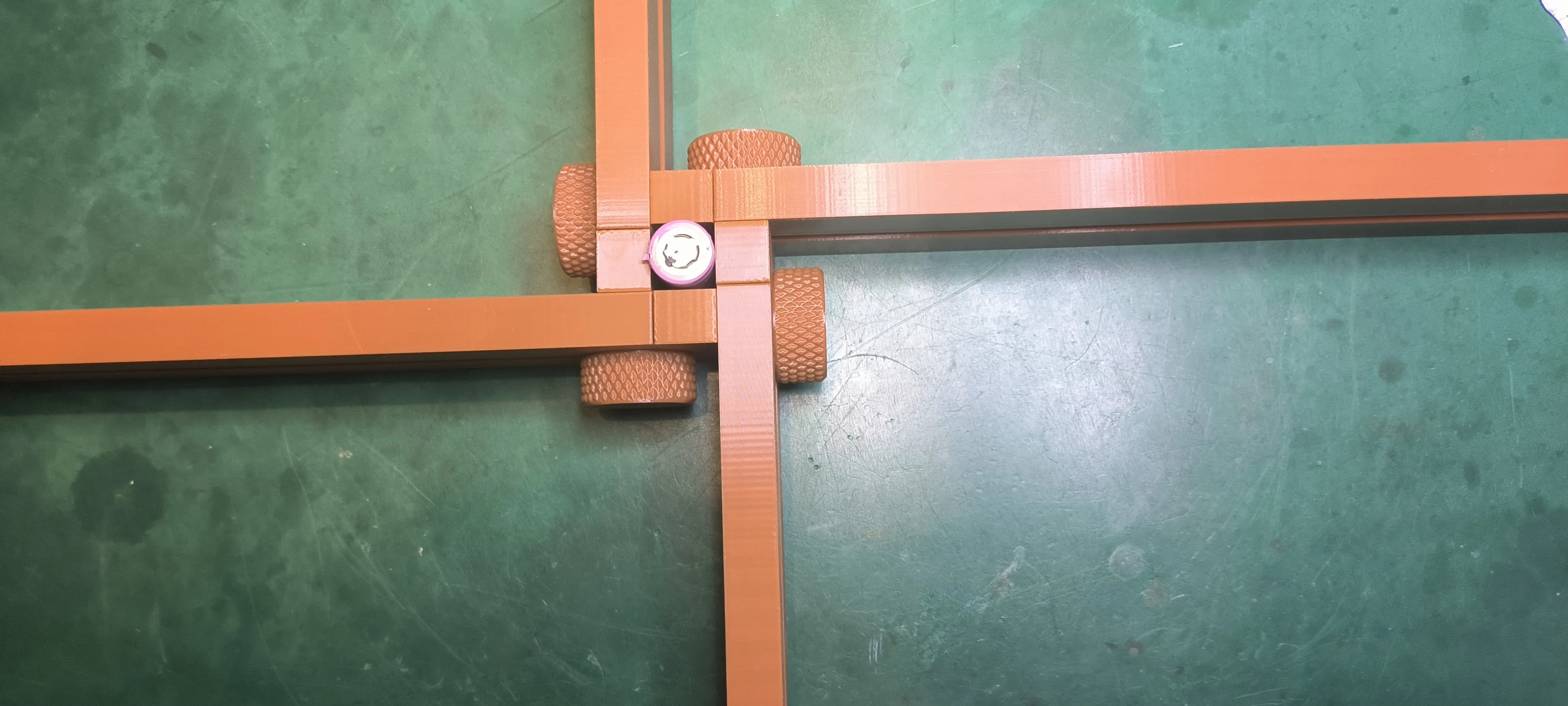

Some netizens suggested that the battery fixture should be able to clamp a single row of batteries, so the size of the screw rod part was modified See figure:
This allows for clamping a single row of batteries at minimum The profile has been uploaded Your feedback is greatly appreciated
