Ace Deck X3 Electric Skateboard Front Protection Handle Headlight Footrest Camera Mount

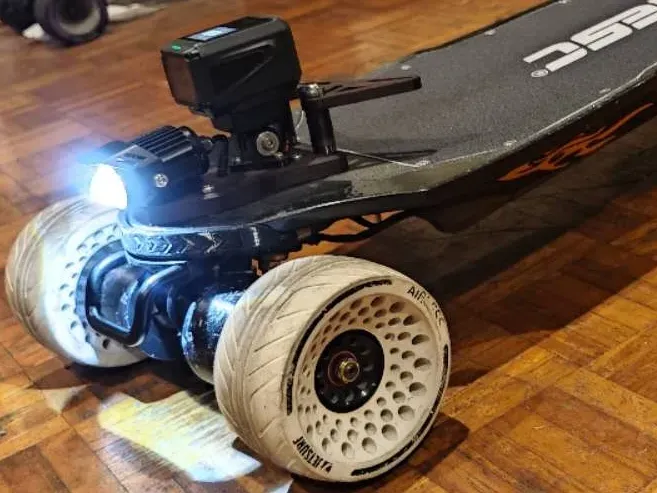

Ace Deck X3's front extension assembly, including front protection, handle, headlight, footrest, and camera mount.

Durability has been rigorously tested for over half a year of frequent use. Additionally, the main page has rear assembly

Can be printed on demand, not necessarily all installed. Most of the parts are also suitable for other skateboards.

It is recommended to use a relatively hard TPU for the handle bracket and head protection (such as 72A). The rest are recommended to be PETG.

All original design files have been uploaded for your convenience. Refer to the uploaded STEP file for assembly instructions.

Hardware accessories:

The footrest part requires a long M5 screw, the specific length varies according to the height. The height is adjusted by adding or subtracting the number of shims. In addition, at least two M5*8*7 copper embedded nuts (or shorter) are needed.

The camera mount part requires three M4*8*6 copper embedded nuts (or shorter), and three M4 screws with a length of 10~16. Additionally, to fix the camera, an M5 screw with a length of at least 32 and an M5 nut are needed.

The handle part requires two M5 screws with a length of 8~20. The handle model is UHFN66, please search and purchase it yourself.

The front light requires an M5 screw with a length of 8~10. The spotlight link is as follows: http://e.tb.cn/h.gzEGuNdqeX0bCqu?tk=12mC3puWxs8
