Mechanical M6 Bolt/Screw Sorting Device
Print Profile(1)
Description
Video about the Designing process, The functionality and the Assembly (of the M3 version which works the same way)
Boost Me (for free)
Boost Me (for free)
Enjoy this Device? Boost it so can release more High Quality Models for free in the future!

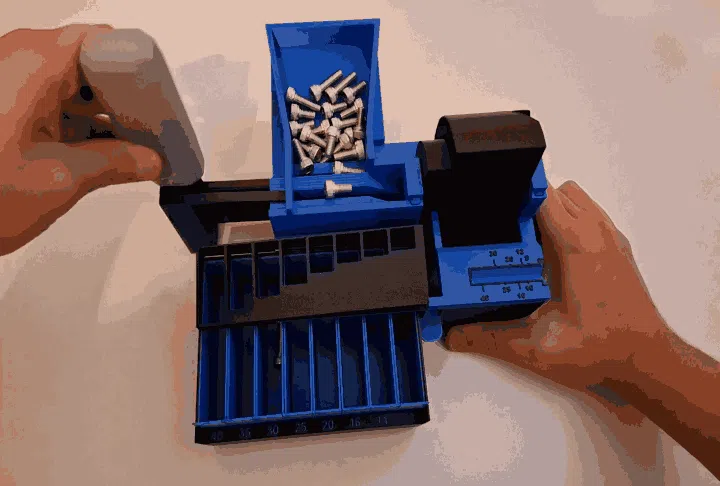

Mechanical Bolt Sorting Device for M6 bolts/Screw 12-40mm
End the struggle of manually sorting your bolts
- Fully 3D Printed
- Operated by hand. No need for motors
- No other parts needed (Just a drop of glue)
- Printed with PLA
- High reliability
- Removable bins
Support my work by becoming a PATREON or Buy me a Coffee.
Supported Bolt Lengths:
- M6x12
- M6x14
- M6x16
- M6x20
- M6x25
- M6x30
- M6x35
- M6x40
Bolts shorter than 12mm wont work because their head is too heavy compared to their body which prevents the device from working
Bolts longer than 40mm wont work because the device only supports lengths up to 40mm
Not the length you need?
Download the Step file of the sorter and adjust it to your desired length.
PARTLIST:
- Base 1x
- Clamp 1x
- Container 11x
- Handle 1x
- LifterBig 1x
- LifterPin 2x
- LifterSmall 1x
- MainPlate 1x
- Rotator 1x
- Rotatorlid 2x
- Rotatorpin 2x
- SliderBottom 1x
- SliderTop 1x
- Sorter 1x
- Tray 1x
FILAMENT
i used this PLA+ but any other Pla should work as well
PLA+ (reflink)
IMPORTANT:
- Operate the device slow for a reliable outcome. Swinging the handle too fast will cause failures
- Maker sure there is no elephant footing, brim or anything else on the rotator that can prevent the bolt from rolling out
Assembly:
