Lithophane rotating lapm

The link to the video of the assembled lamp and all the necessary information about the print settings and accessories can be found in the links below.

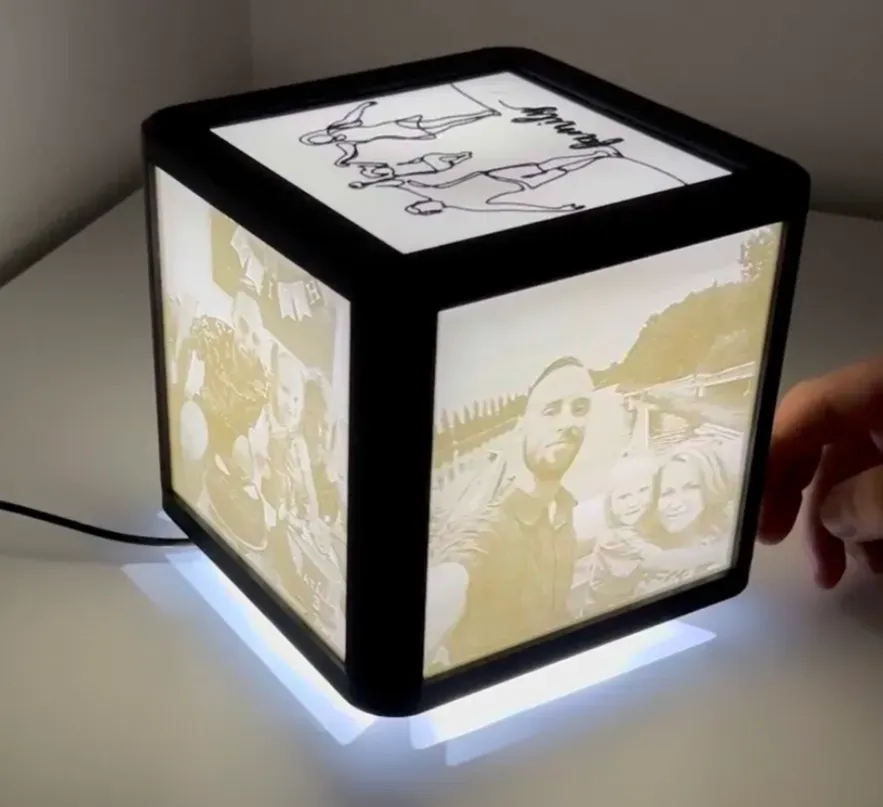

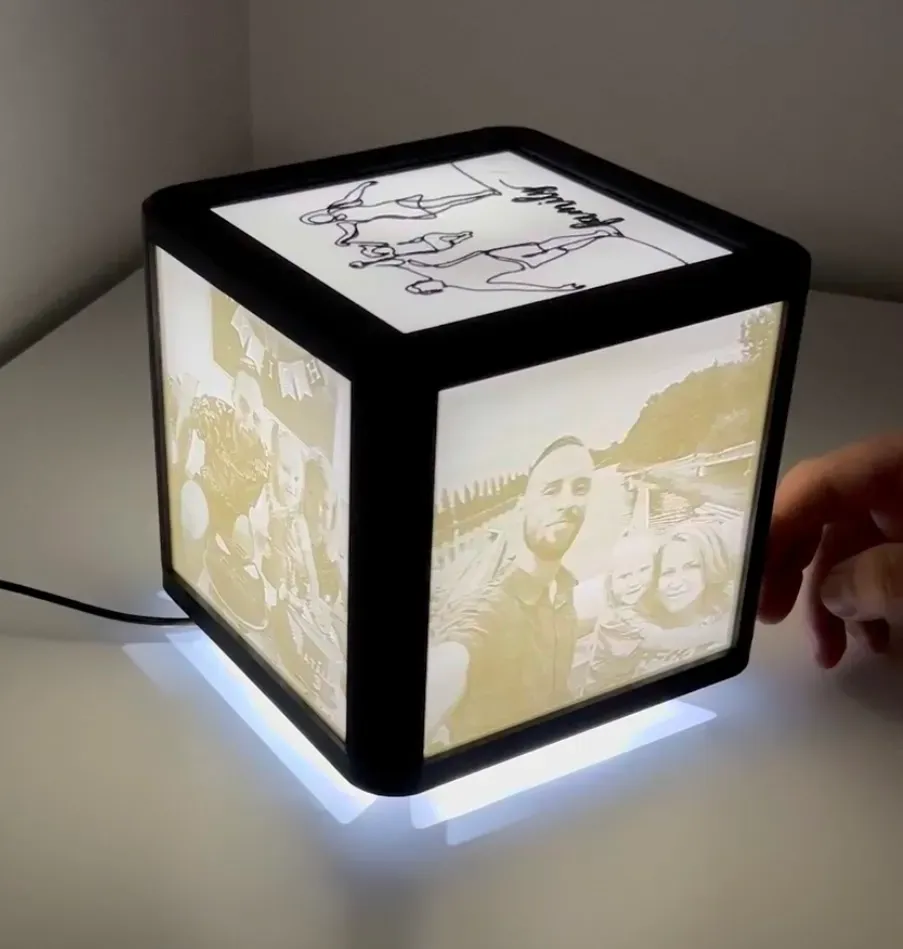

video:   Lamp Lithophane (youtube.com)

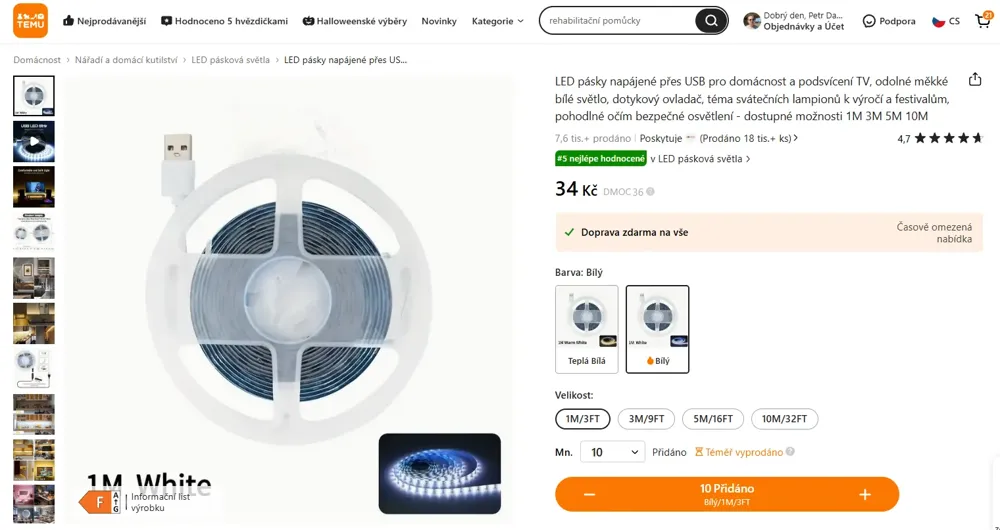

led belt:  LED pásky napájené přes USB pro domácnost a podsvícení TV - Temu Czech Republic

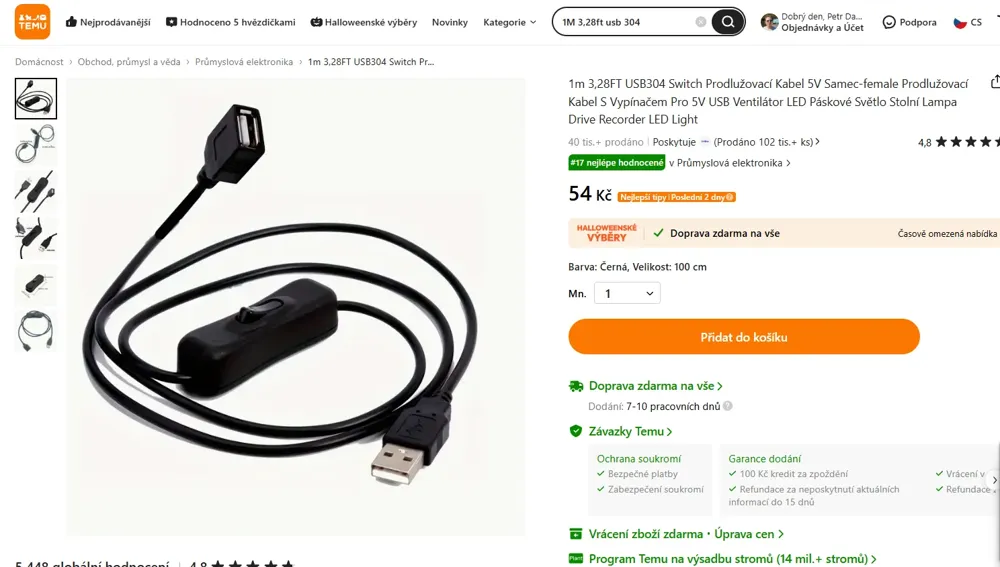

usb switch:  1m 3 28FT USB304 Switch Prodlužovací 5V - Temu Czech Republic

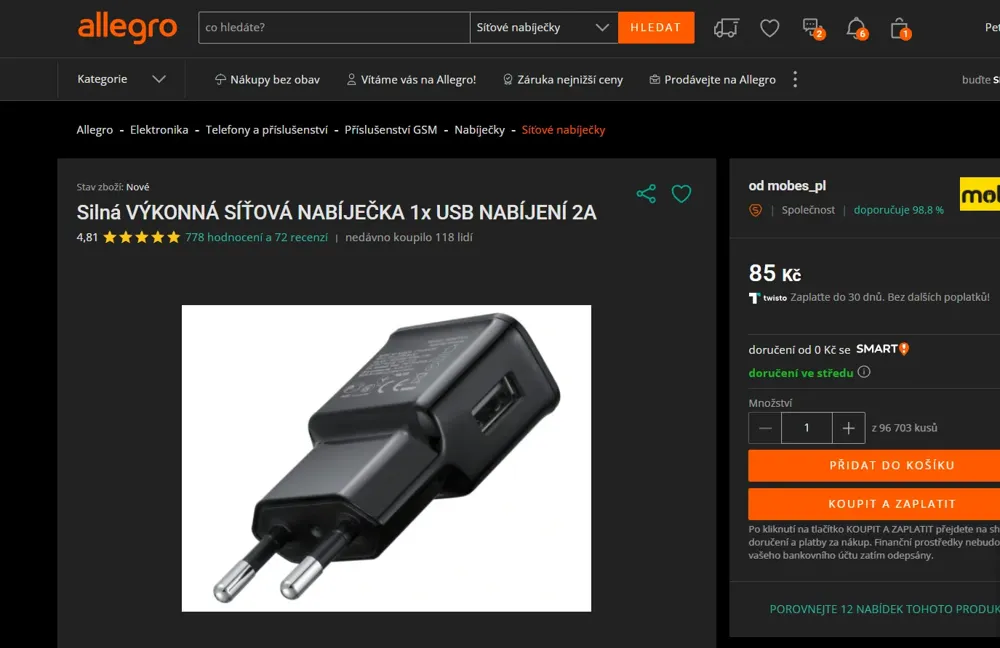

usb charger:  Silná VÝKONNÁ SÍŤOVÁ NABÍJEČKA 1x USB NABÍJENÍ 2A za 85 Kč - Allegro

lithophane photo generated:  ItsLitho • Free Online Image to Lithophane Maker

Setting print

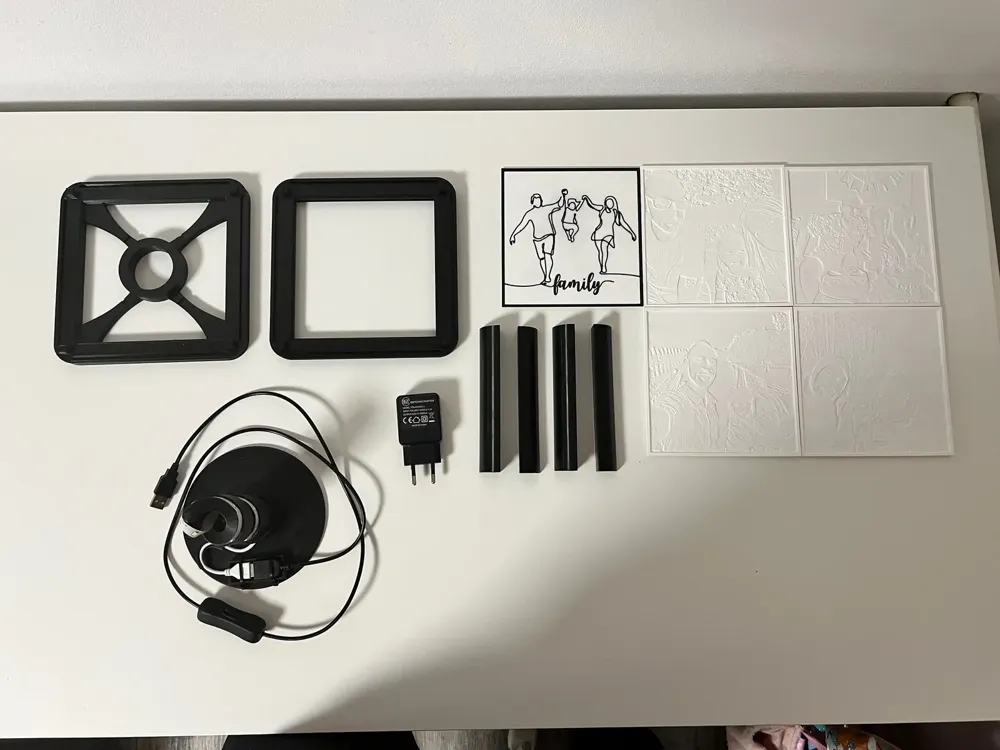

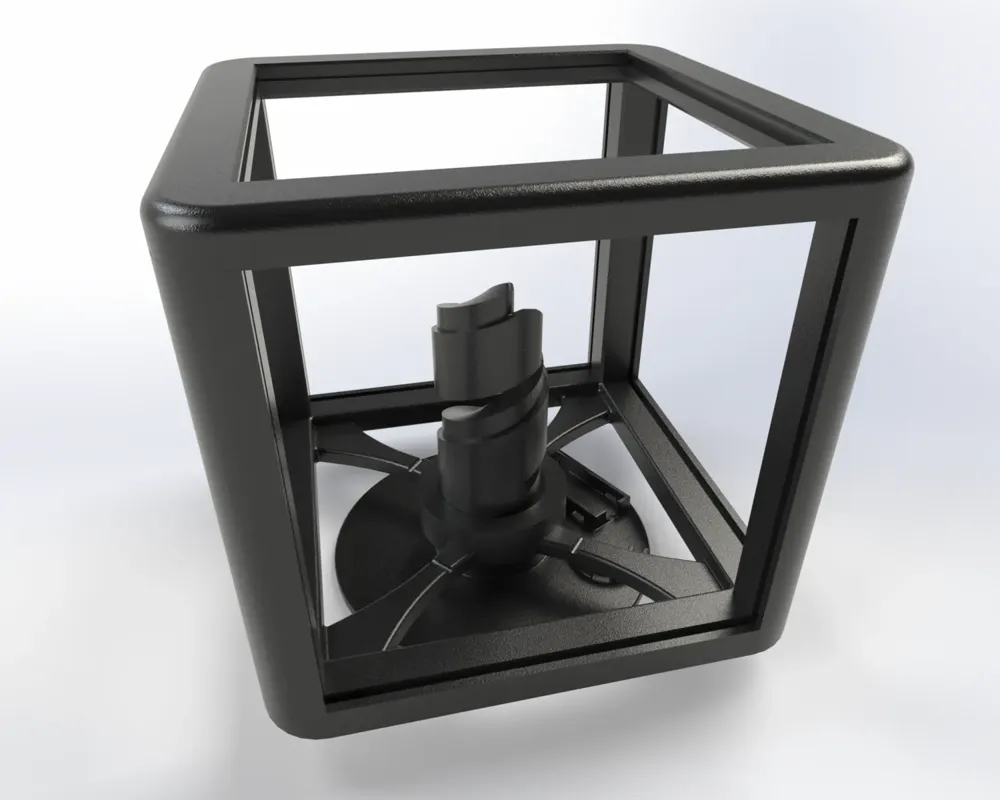

Lamp parts

material: PLA Black

detail: 0,20 mm quality MK3

perimeters: 2

fill: 5%

brim: NO

use supports only for the upper part

Lithophane setting

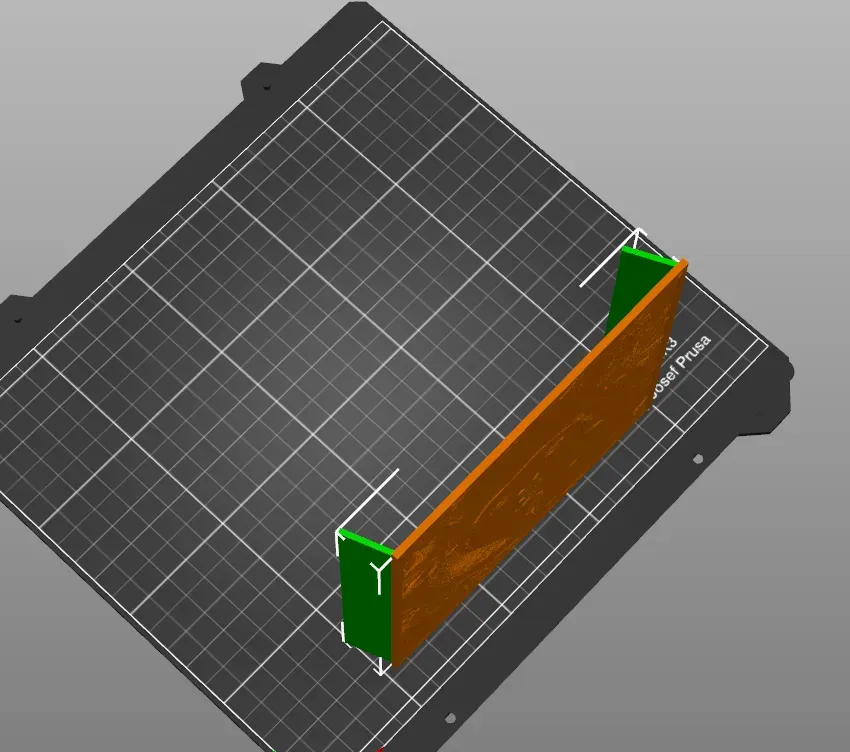

for lithophane printing it is a good idea to add plates to the edge of the photo for better stability and print guality ( size: 2x20x140 )

detail: 0,10 mm

perimeters: 1

top bottom: 1

lower bottom: 1

fill: 99%

brim: 6mm

the LED strip needs to be shortened as needed
