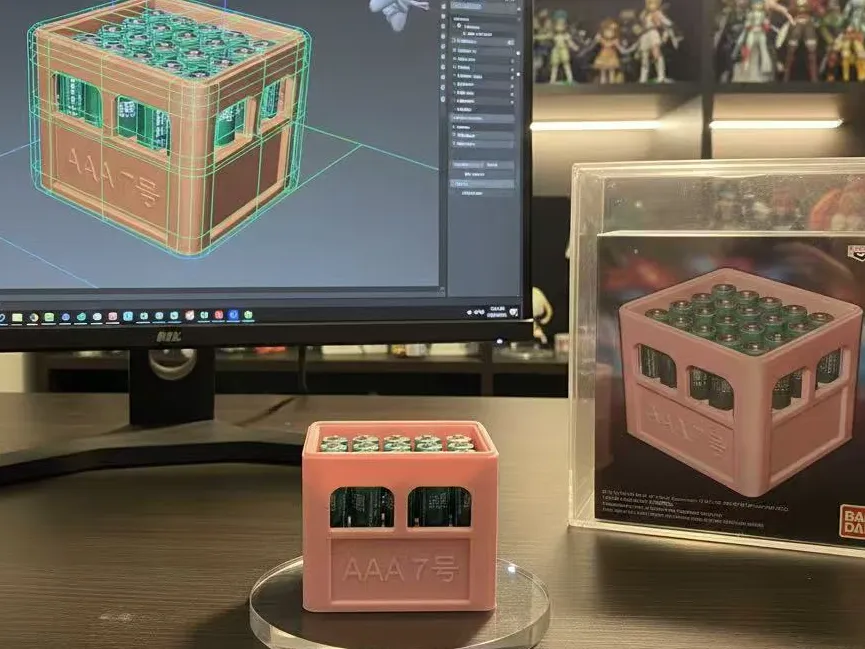

Stackable Beer Crate Battery Storage Box (51 common battery types, customizable for various battery sizes)
Print Profile(55)
Description
Boost Me (for free)

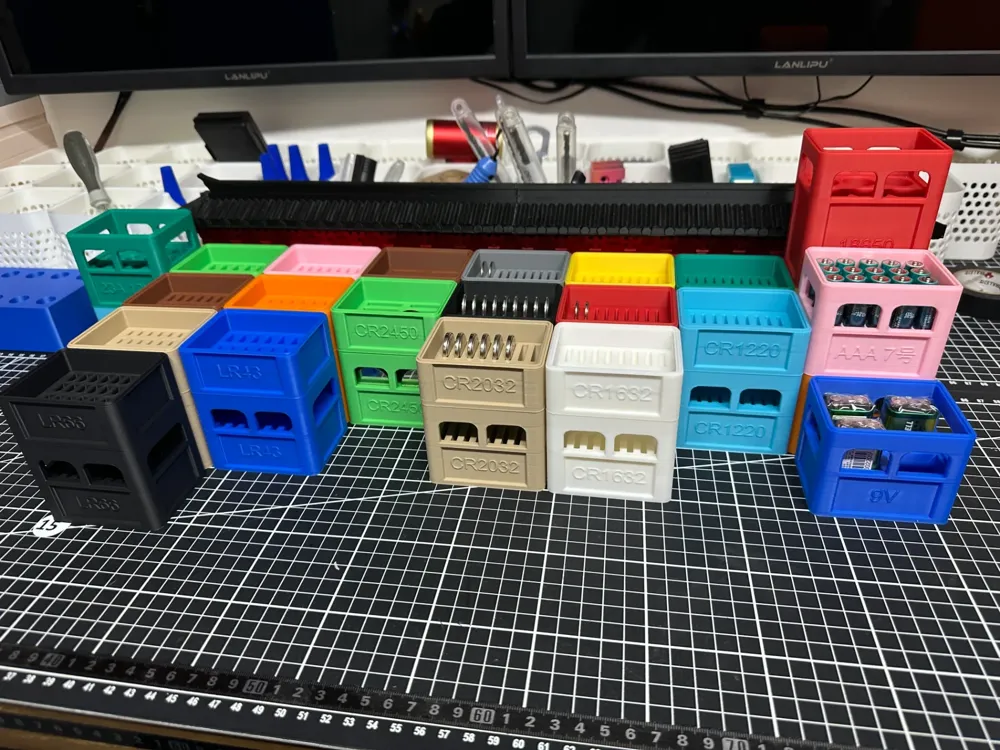

Stackable Battery Case, Interlocking Design with Secure Slots
Battery model customization is available, simply leave a comment.

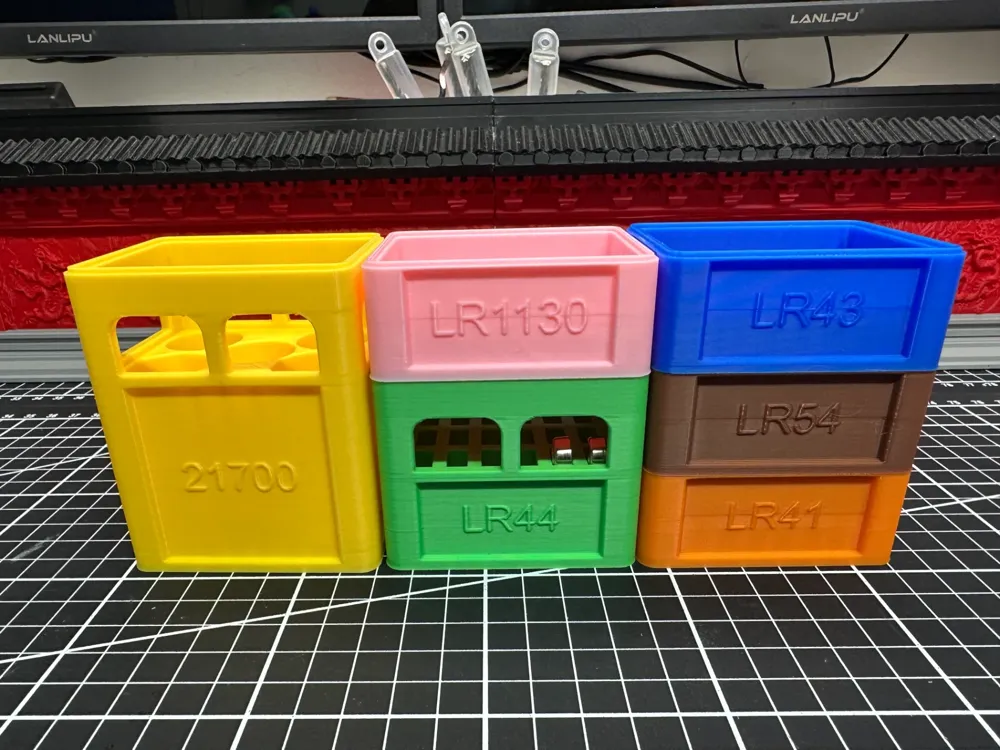

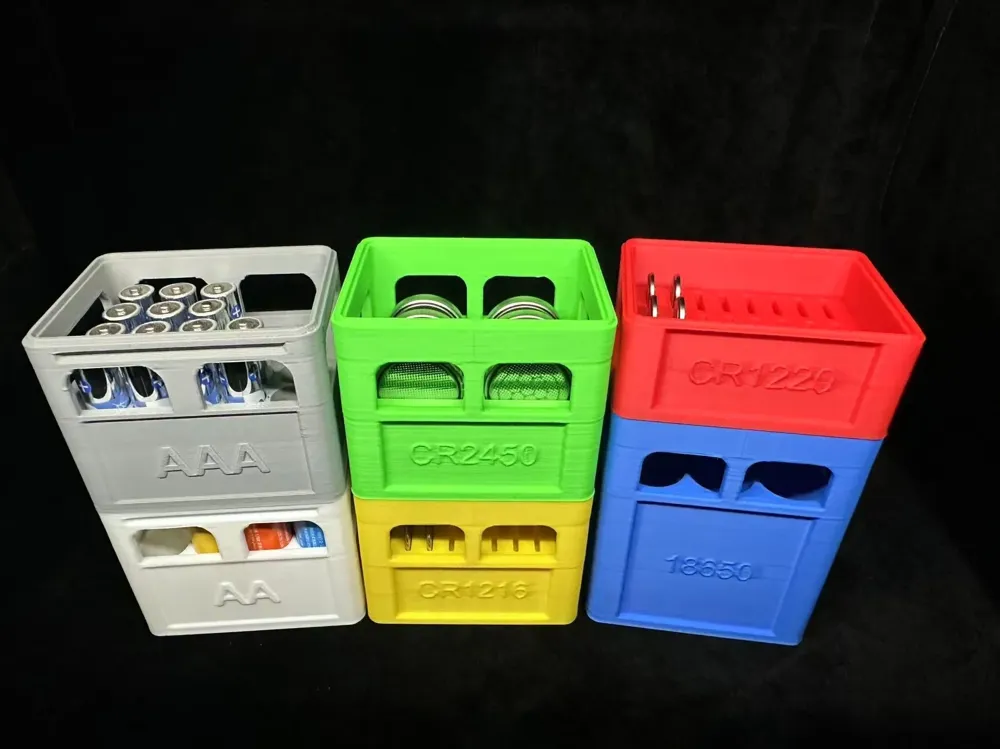

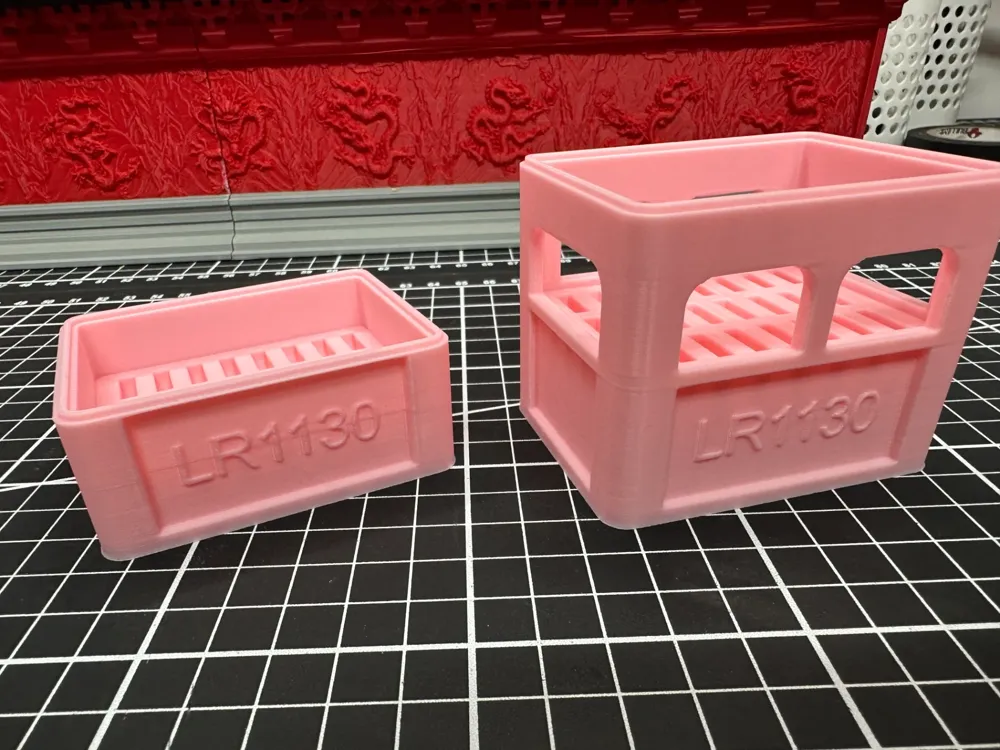

The new model is divided into: short-medium-tall versions, with a ratio of 1:2:3, allowing for interlocking and height alignment.
Battery models have been expanded to 51:
1.5V Series:
Size R20: Diameter 34mm, Height 60mm
Size R14: Diameter 26mm, Height 50mm

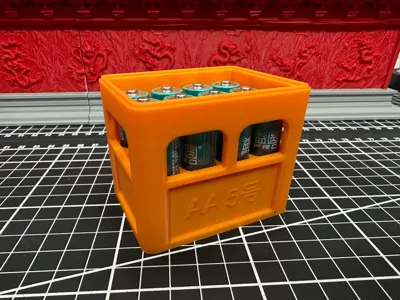

Size AA: Diameter 14.4mm, Height 50.4mm

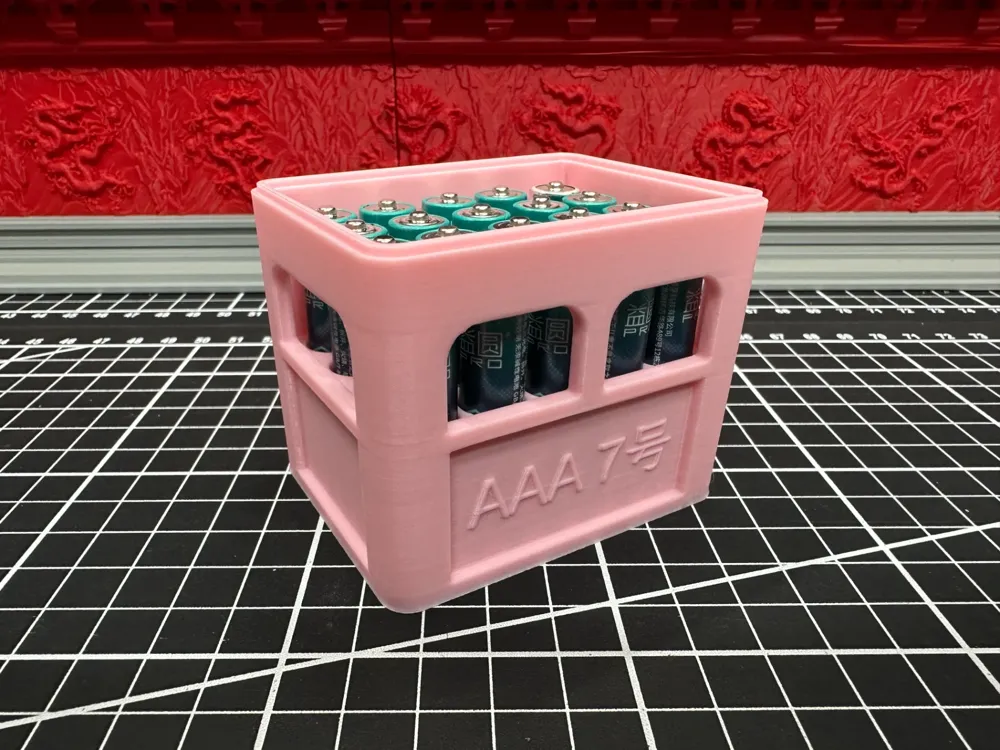

Size AAA: Diameter 10.5mm, Height 44.5mm
Size N R1: Diameter 11.5mm, Height 29mm
Size AAAA LR8D425: Diameter 8.3mm, Height 42.5mm
LR44 AG13: Diameter 11.6mm, Thickness 5.4mm
LR43 AG12: Diameter 11.6mm, Thickness 4.2mm

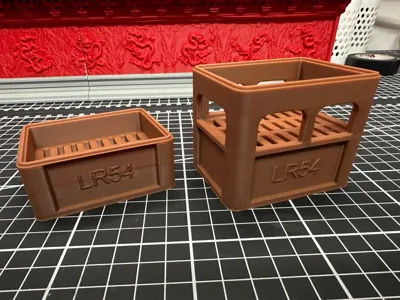

LR54 AG10: Diameter 11.6mm, Thickness 3.1mm

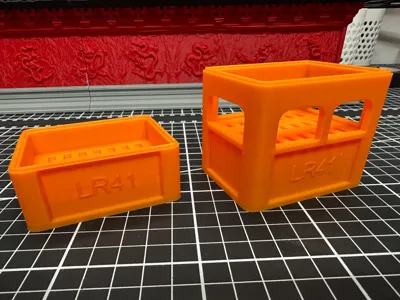

LR41 AG3: Diameter 7.9mm, Thickness 3.6mm
LR66 AG4: Diameter 6.8mm, Thickness 2.6mm

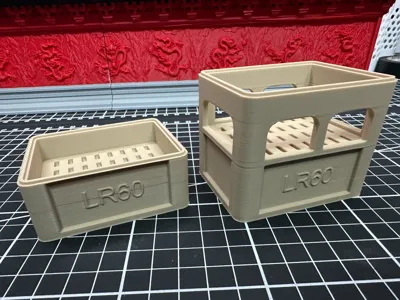

LR60 AG1: Diameter 6.8mm, Thickness 2.1mm
3V Series
CR17450: Diameter 17mm, Height 45mm
CR123A CR17345: Diameter 17mm, Height 34.5mm
CR2 CR15270: Diameter 15.6mm, Height 27mm
CR14250: Diameter 14.5mm, Height 25.5mm
CR3032: Diameter 30mm, Height 3.2mm
CR2477: Diameter 24mm, Height 7.7mm
CR2450: Diameter 24mm, Height 5mm

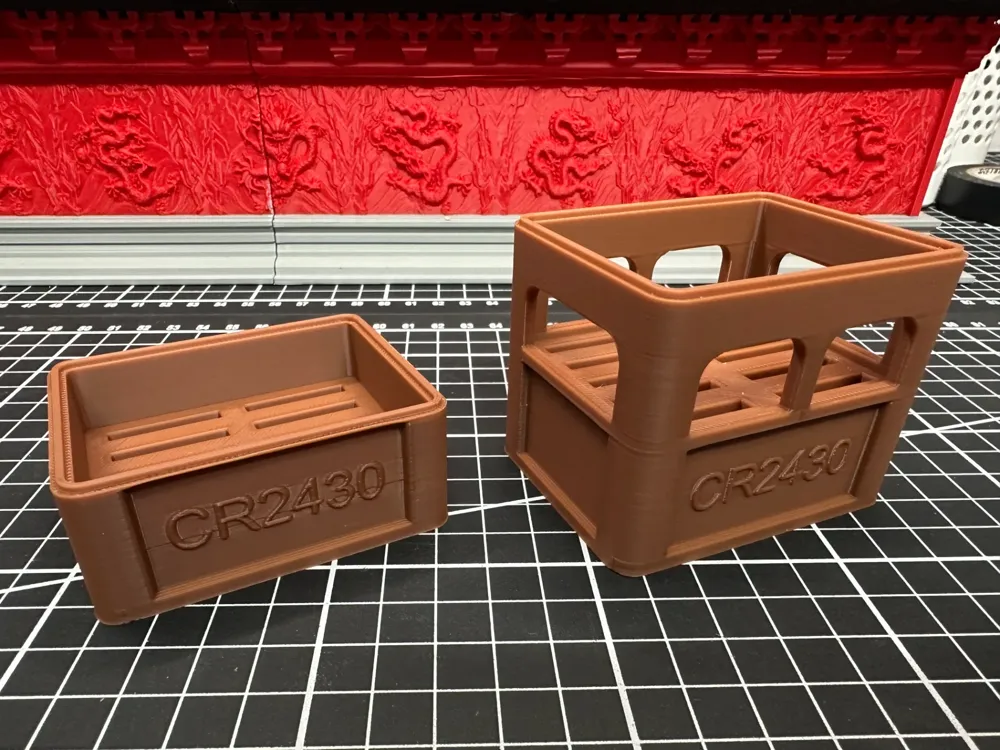

CR2430: Diameter 24mm, Height 3mm
CR2412: Diameter 24mm, Height 1.2mm
CR2354: Diameter 23mm, Height 5.4mm
CR2330: Diameter 23mm, Height 3mm
CR2032: Diameter 20mm, Height 3.2mm

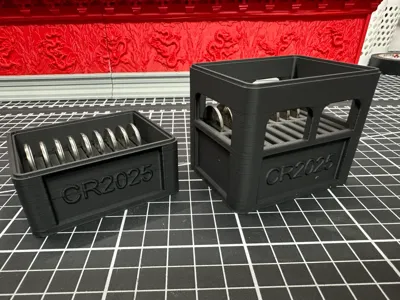

CR2025: Diameter 20mm, Height 2.5mm
CR2016: Diameter 20mm, Height 1.6mm
CR2012: Diameter 20mm, Height 1.2mm
CR1632: Diameter 16mm, Height 3.2mm
CR1620: Diameter 16mm, Height 2mm

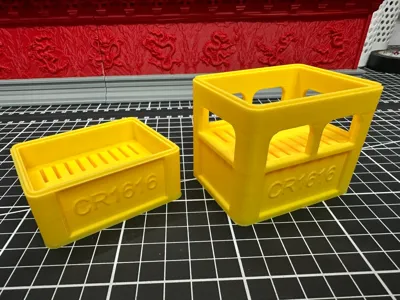

CR1616: Diameter 16mm, Height 1.6mm
CR1220: Diameter 12mm, Height 2mm
CR1216: Diameter 12mm, Height 1.6mm
CR1025: Diameter 10mm, Height 2.5mm
CR927: Diameter 9mm, Height 2.7mm
3.6V Series
ER14335: Diameter 14.5mm, Height 33.5mm
3.7V Series
26650: Diameter 26mm, Height 65mm
21700: Diameter 21mm, Height 70mm

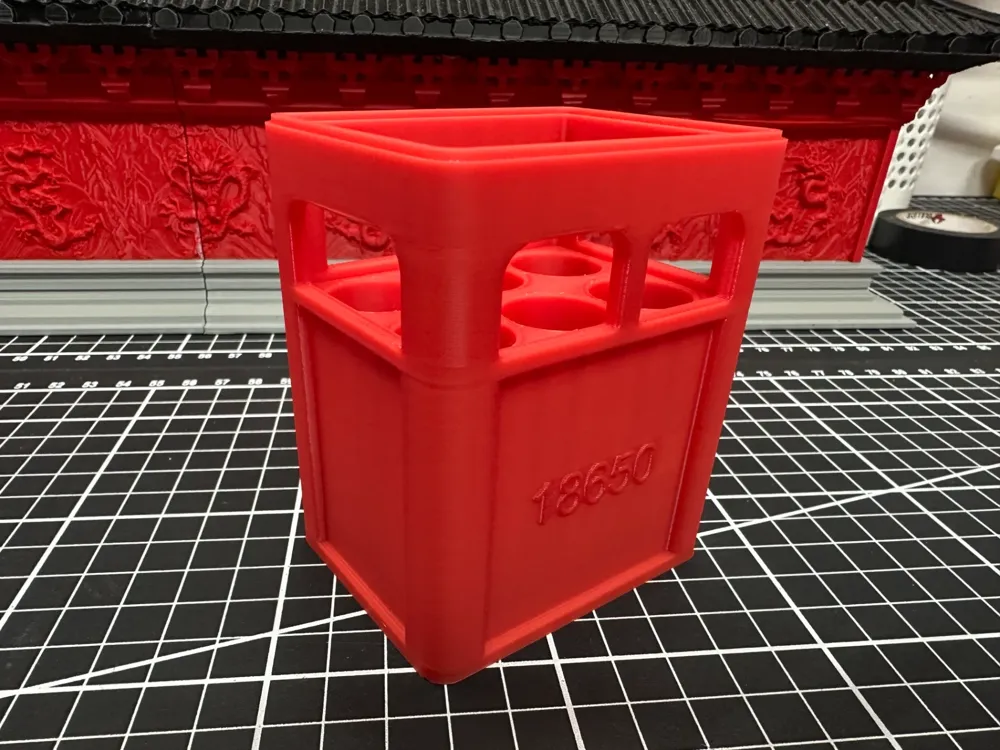

18650: Diameter 18mm, Height 65mm
18500: Diameter 18mm, Height 50mm
18350: Diameter 18mm, Height 35mm
16340: Diameter 16mm, Height 34mm
14500: Diameter 14mm, Height 50mm
10440: Diameter 10mm, Height 44mm
Xbox: Length 15.6mm, Width 30.6mm, Height 35.5mm
6V Series
4LR44 L1325: Diameter 13mm, Height 25mm
CR-P2: Length 35mm, Width 19.5mm, Height 36mm
2CR5: Length 34mm, Width 17mm, Height 45mm
9V Series

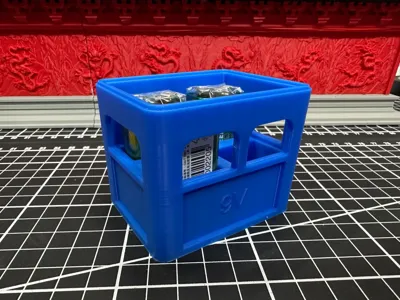

6F22 9V: Length 26.5mm, Width 17.5mm, Height 48.5mm
10A9V L1022: Diameter 10mm, Height 22mm
12V Series

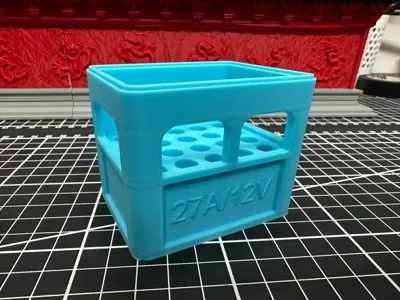

27A12V: Diameter 8mm, Height 28mm

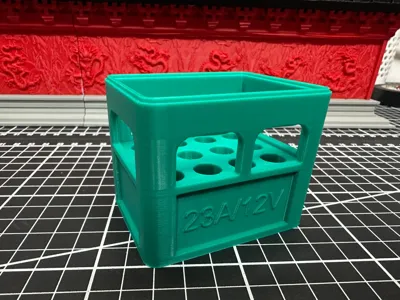

23A12V: Diameter 10mm, Height 28mm
