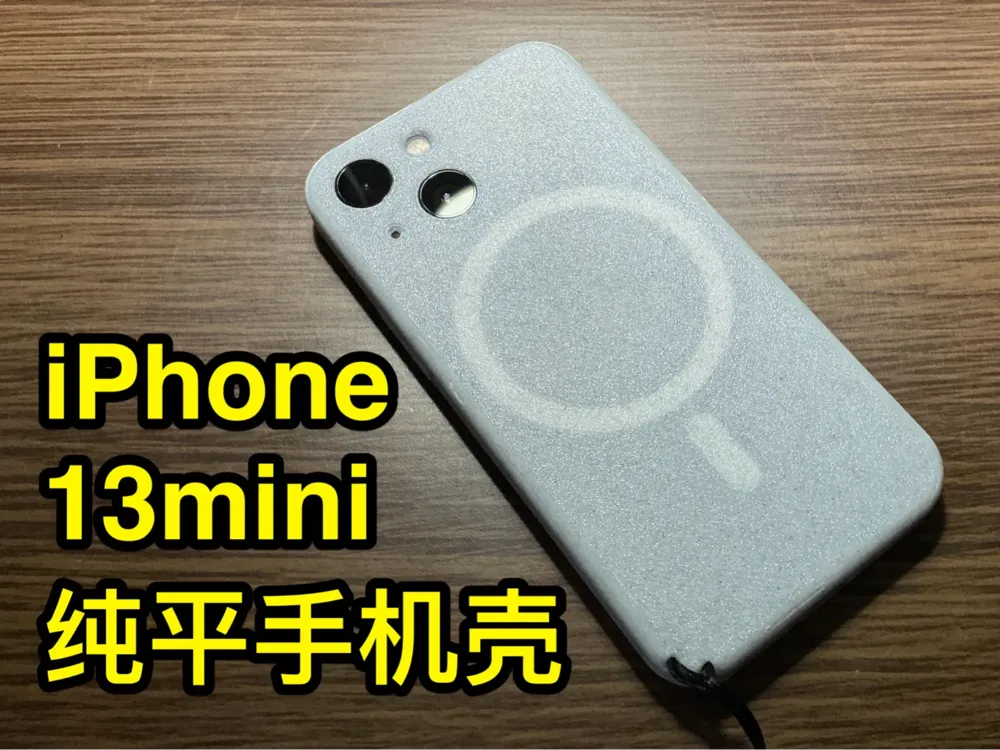

iPhone 13 mini Flat Phone Case

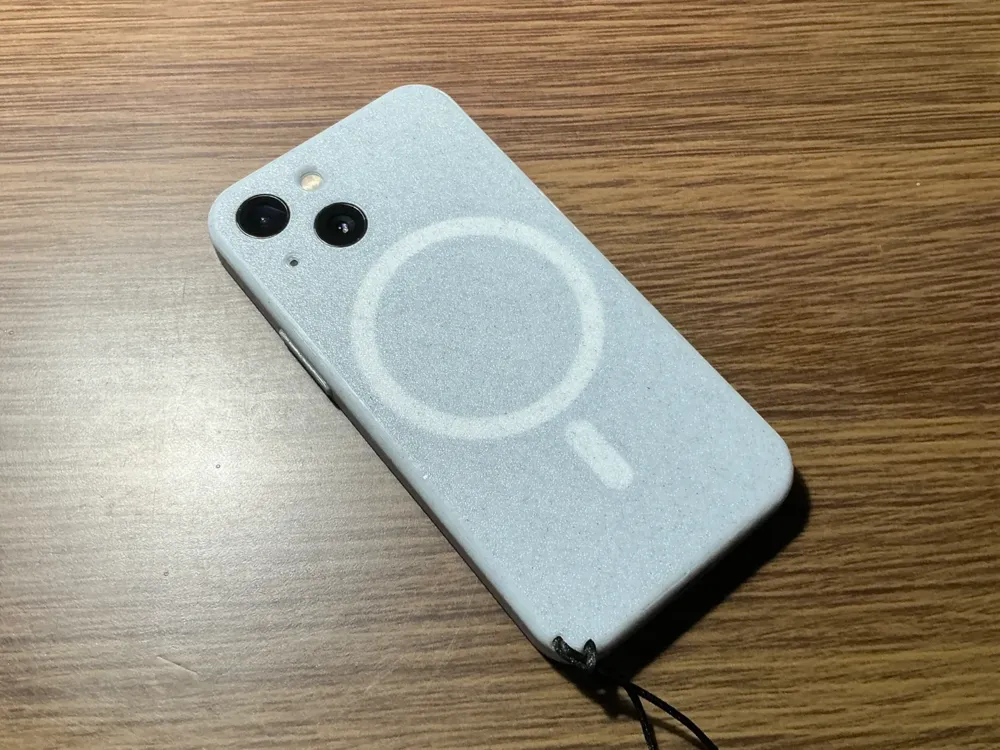

This is a phone case specifically designed for the iPhone 13 mini with a nearly flat back panel, inspired by the Mynus phone case from Japan. It supports MagSafe magnetic wireless charging.

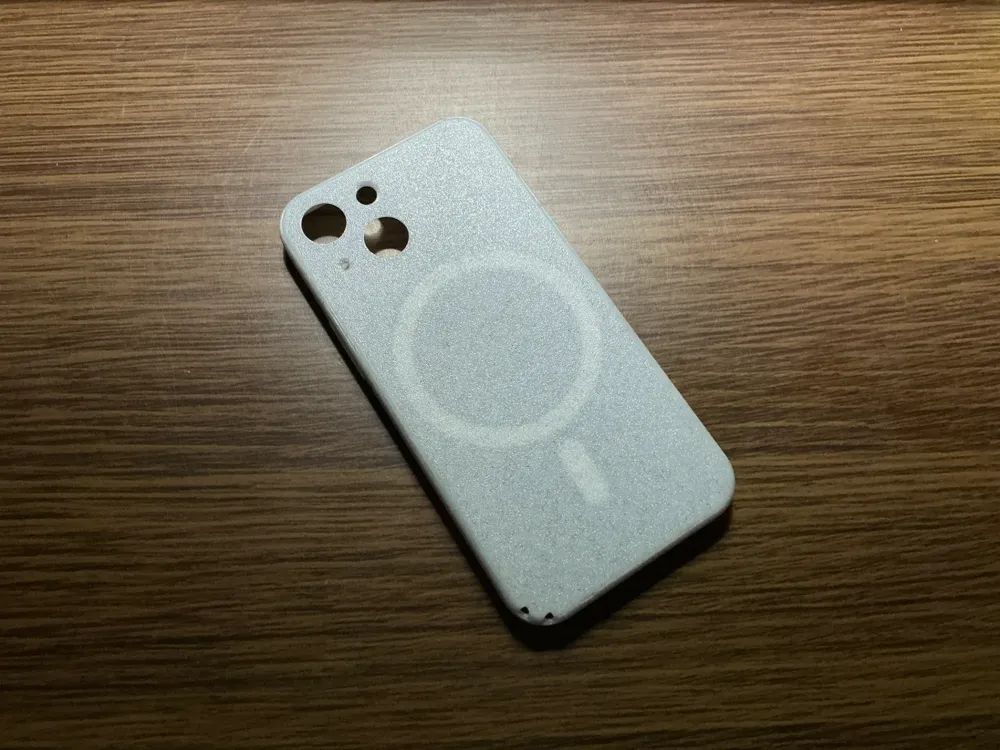

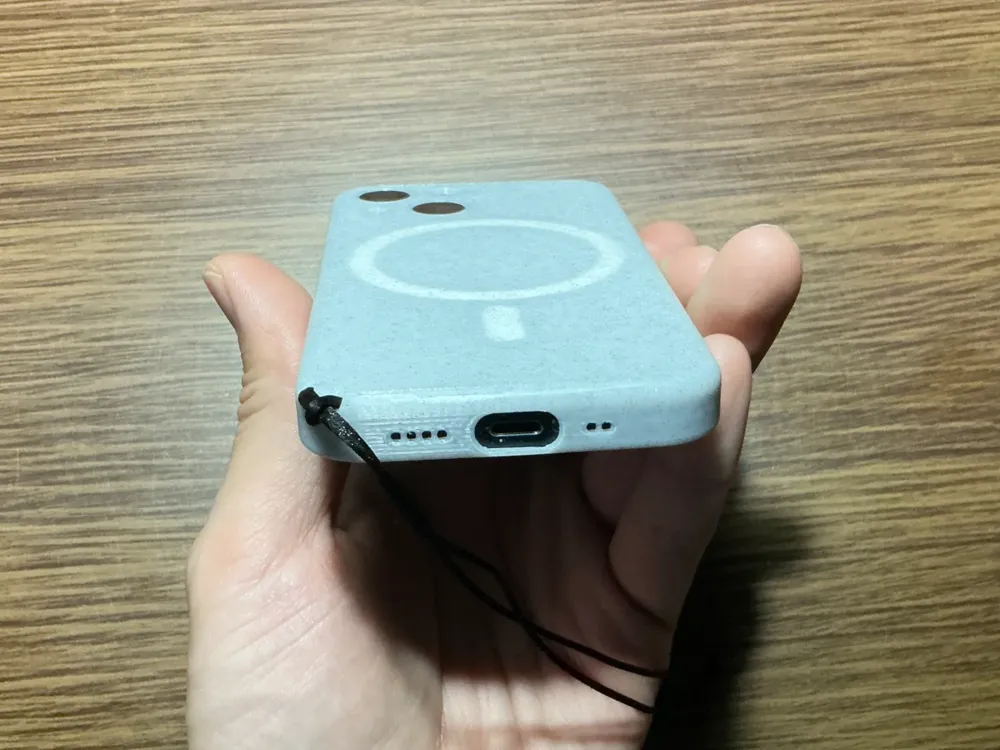

The back panel of the phone case is 2.6mm thick and protrudes 0.4mm above the camera, making it appear virtually flat visually. It features an embedded magnetic ring that supports MagSafe magnetic wireless charging and various magnetic accessories.

Introduction Video

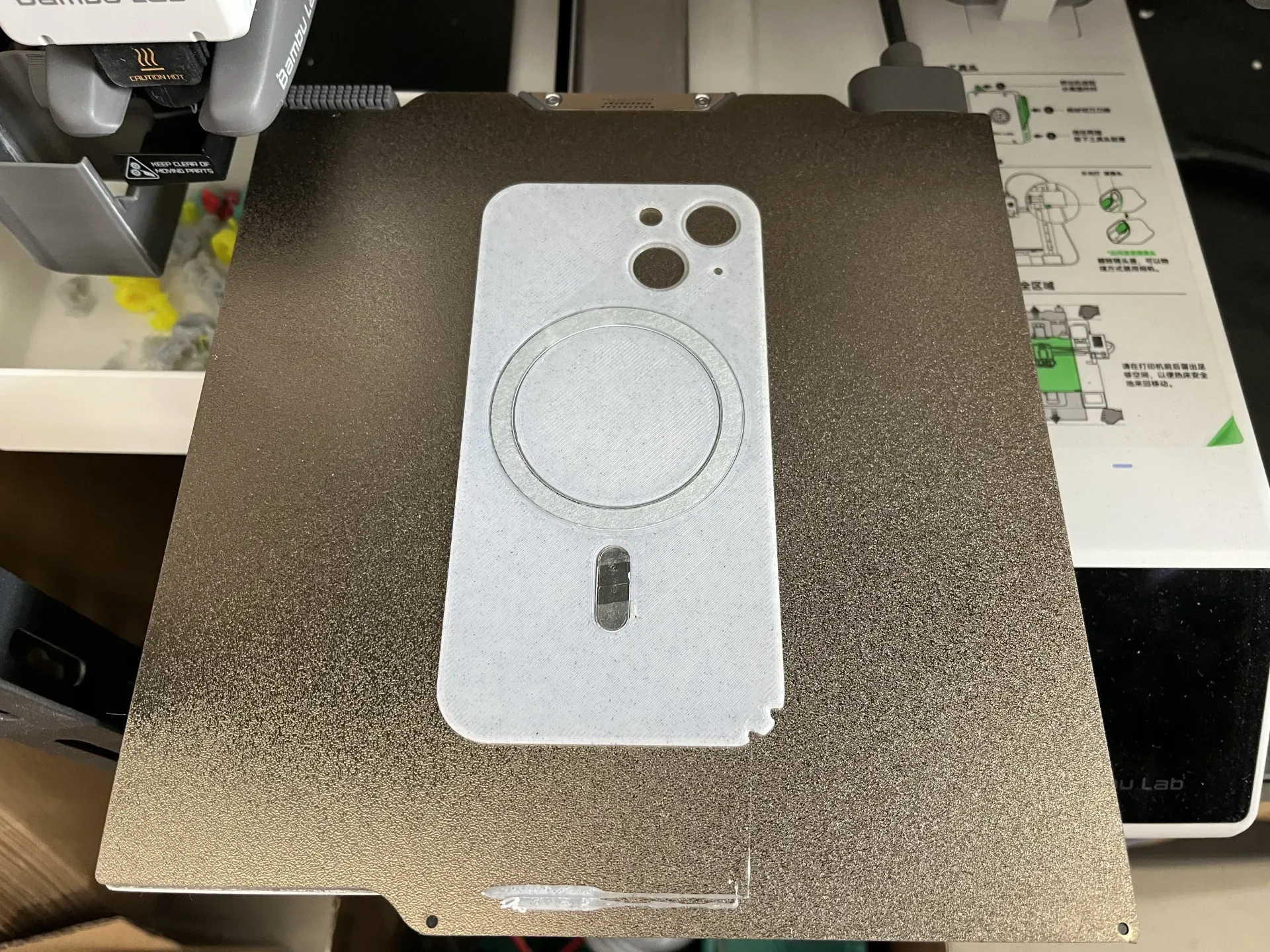

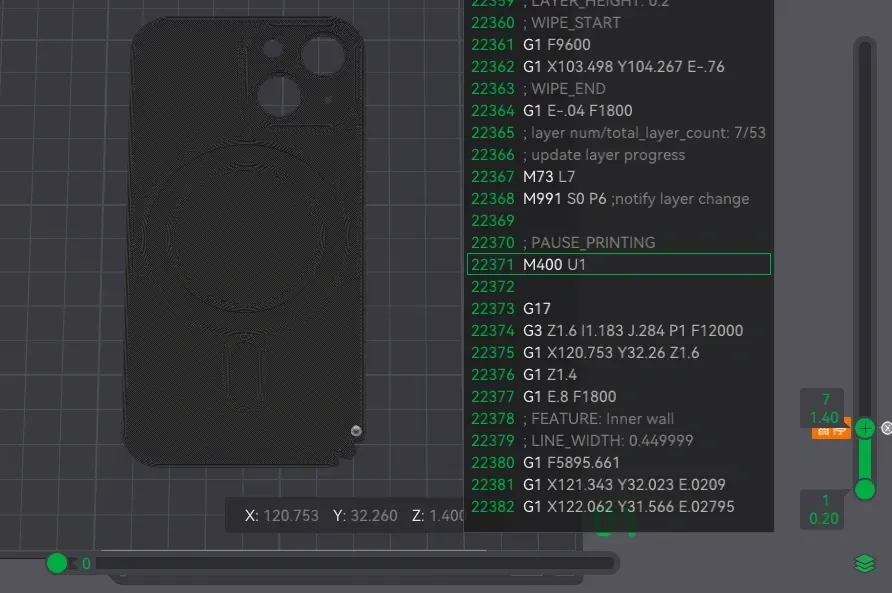

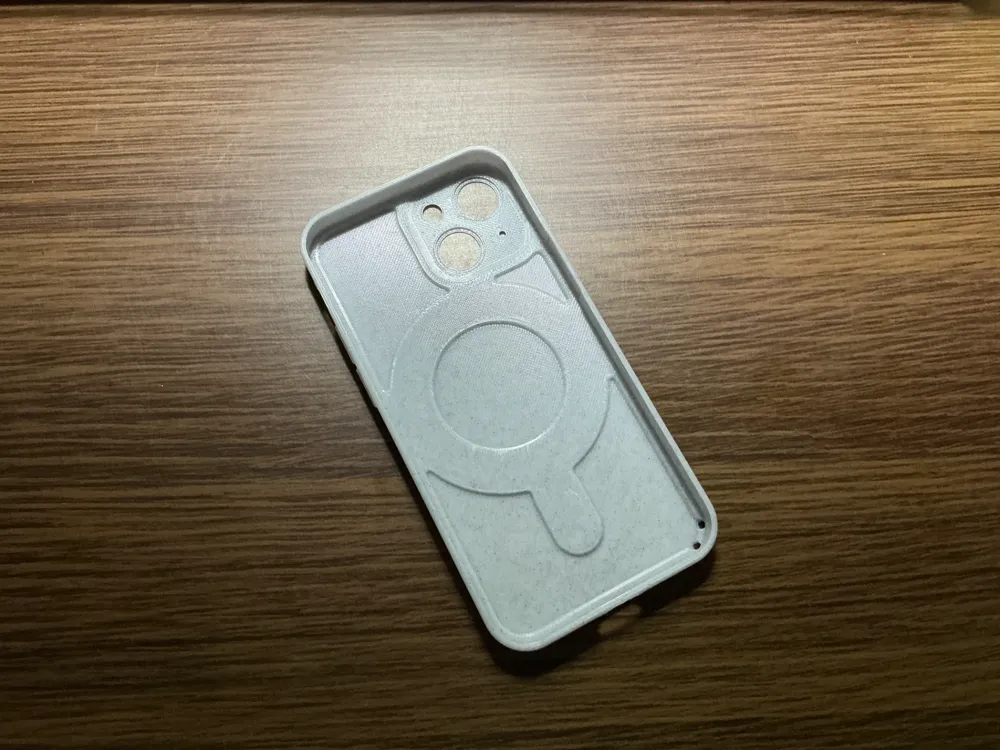

When printing, add a pause printing G-code before capping the magnetic ring section, place the magnetic ring in the slot, and continue printing to embed the magnetic ring.

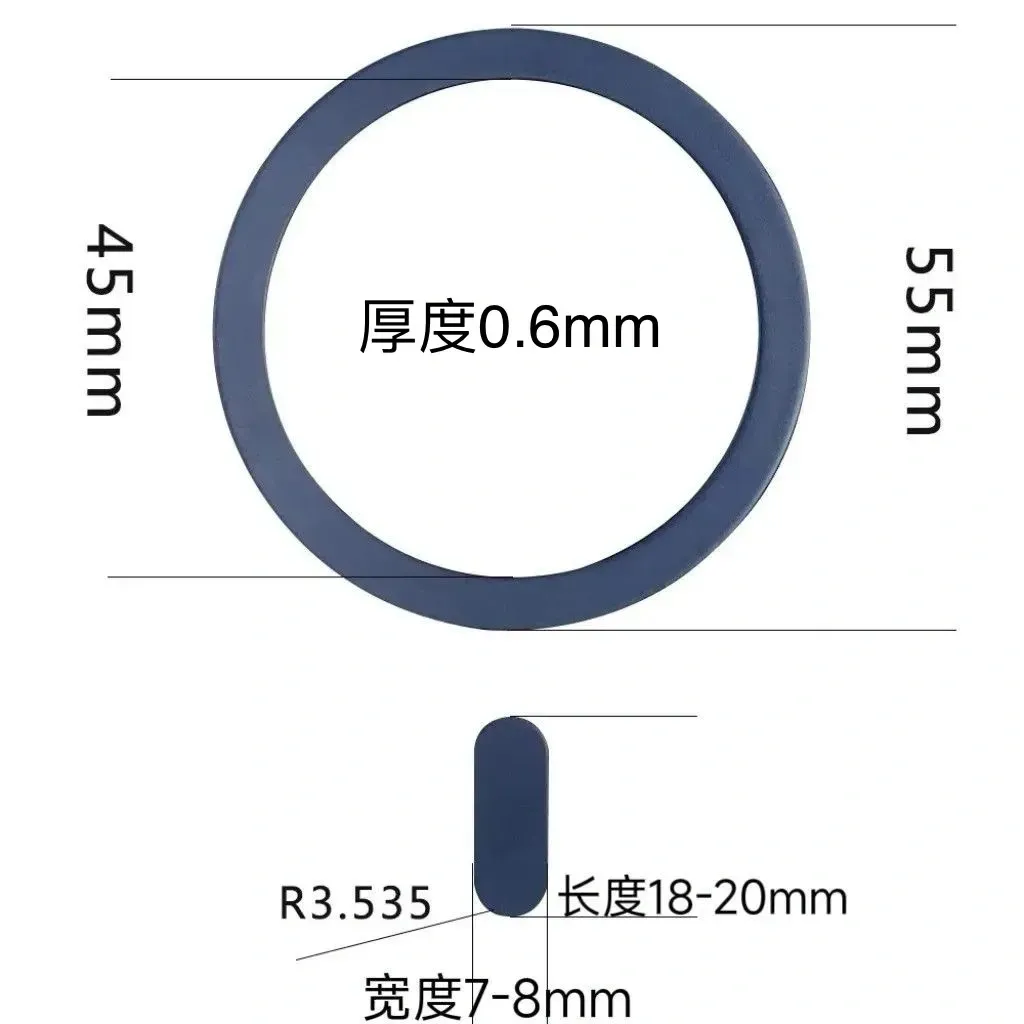

The compatible magnetic ring dimensions are shown below.

Please note: This phone case has the following drawbacks:

1. Due to the brittleness of PETG material after molding, it may shatter upon impact.
2. Due to the hardness of PETG material after molding, installation may scratch or damage the phone buttons.

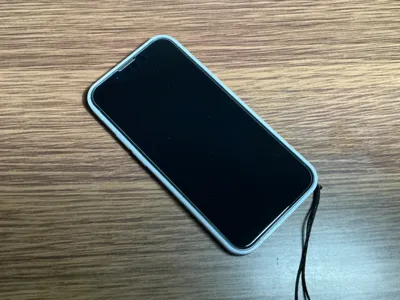

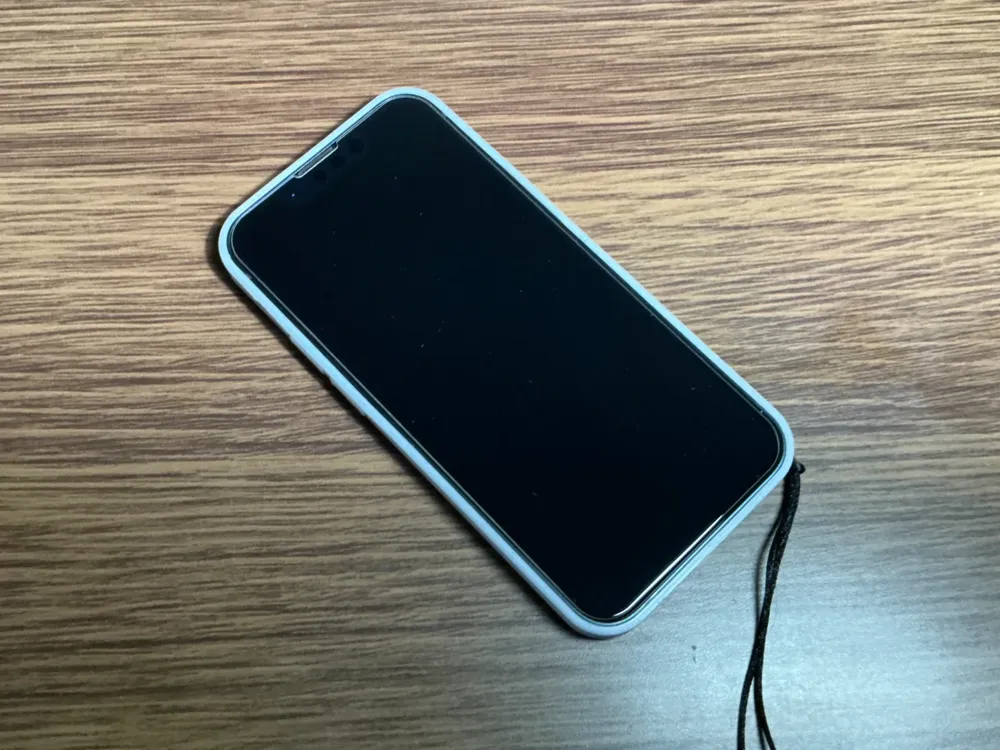

3. As the front bezel is lower than the screen, the screen is not protected when the phone is placed face down.
4. Since the back panel only protrudes 0.4mm above the camera, it offers minimal protection for the camera.

Due to the aforementioned four drawbacks, this is not a protective case that provides protection. It is merely a decorative phone case.

5. Installation and removal are difficult and may damage the phone.

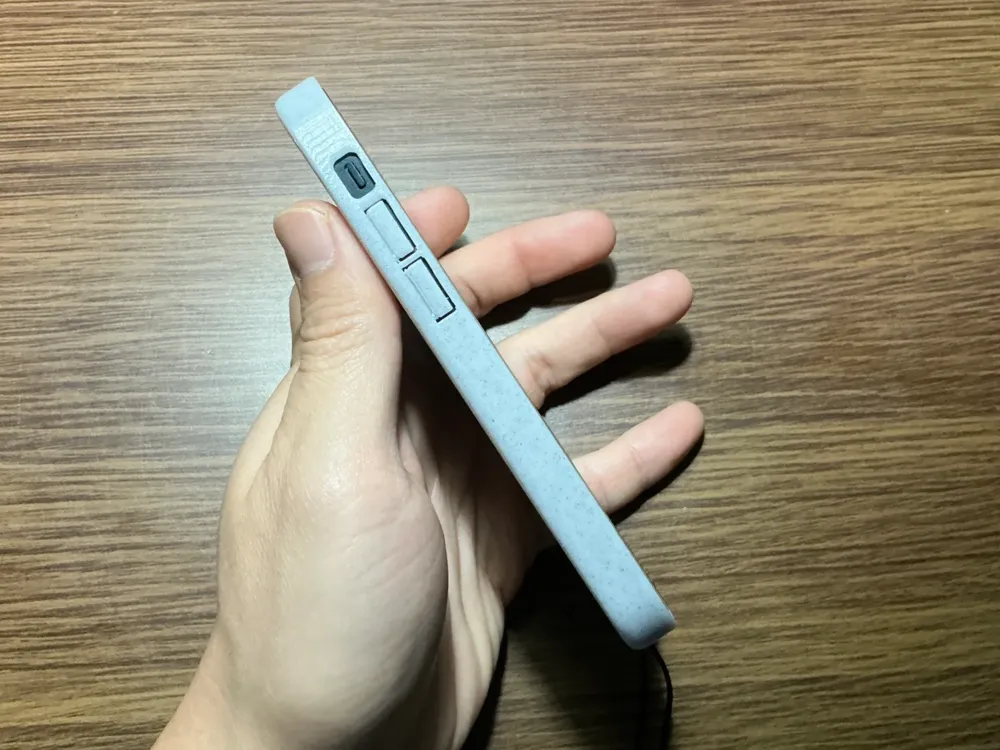

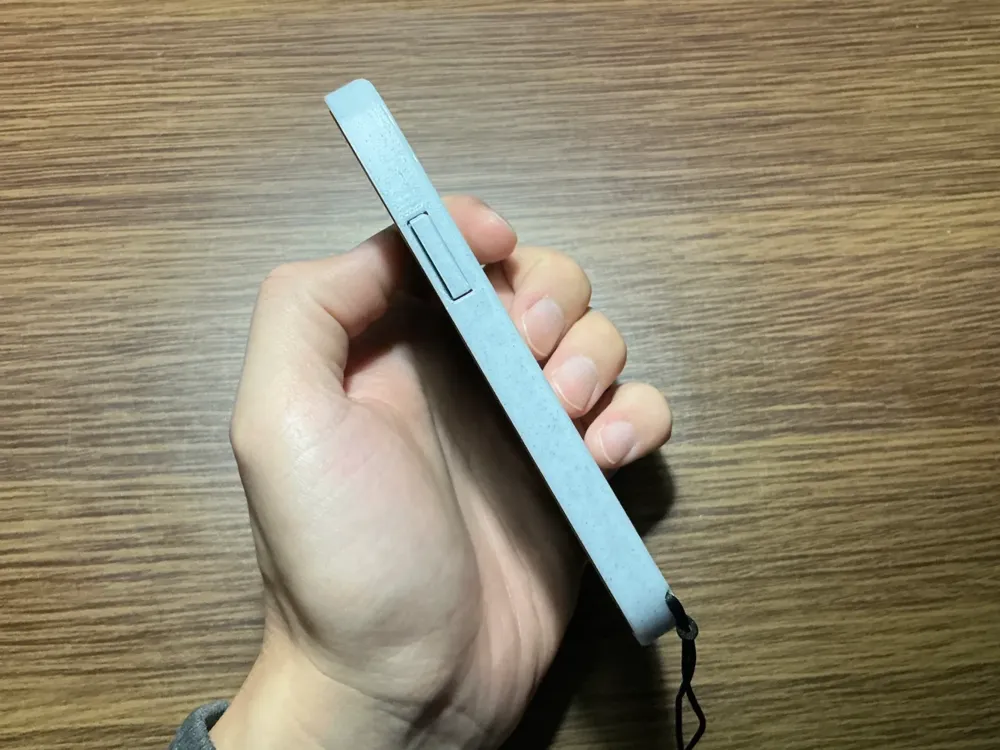

6. Pressing the buttons directly can easily cause breakage.
7. It only supports magnetic wireless charging. Ordinary wireless chargers with smaller coils require precise alignment for charging. Wireless chargers with larger coils or multiple coils cannot charge the phone.
8. The thicker back panel may affect charging efficiency, leading to slower charging speed and increased heat generation.
9. The front bezel cannot completely cover the phone's side frame, revealing the color of the phone body.
10. Dust can enter from various gaps.
11. The thicker back panel results in poor heat dissipation.

Due to the above drawbacks, the user assumes full responsibility for any consequences that may arise during the use of the phone case. I am not liable for any such consequences.
