Overhang, Bridging, Tolerance, Three-in-One Quick Test

Conserve material and rapidly assess diverse data
Adjust filament data and presets to your own specifications for parameter optimization based on actual conditions

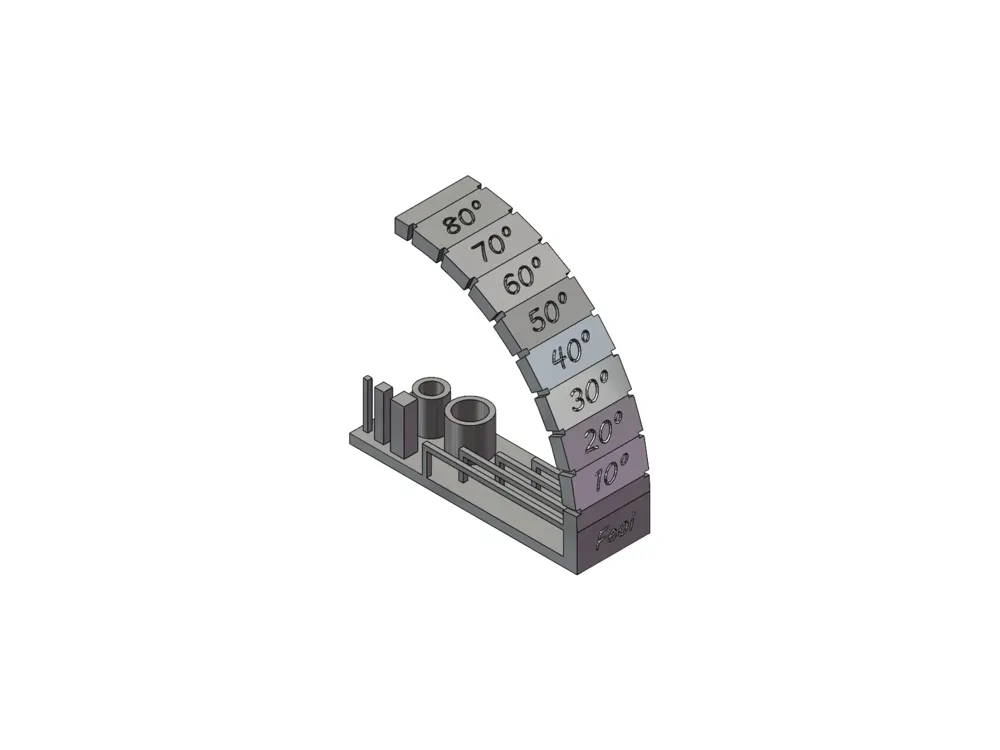

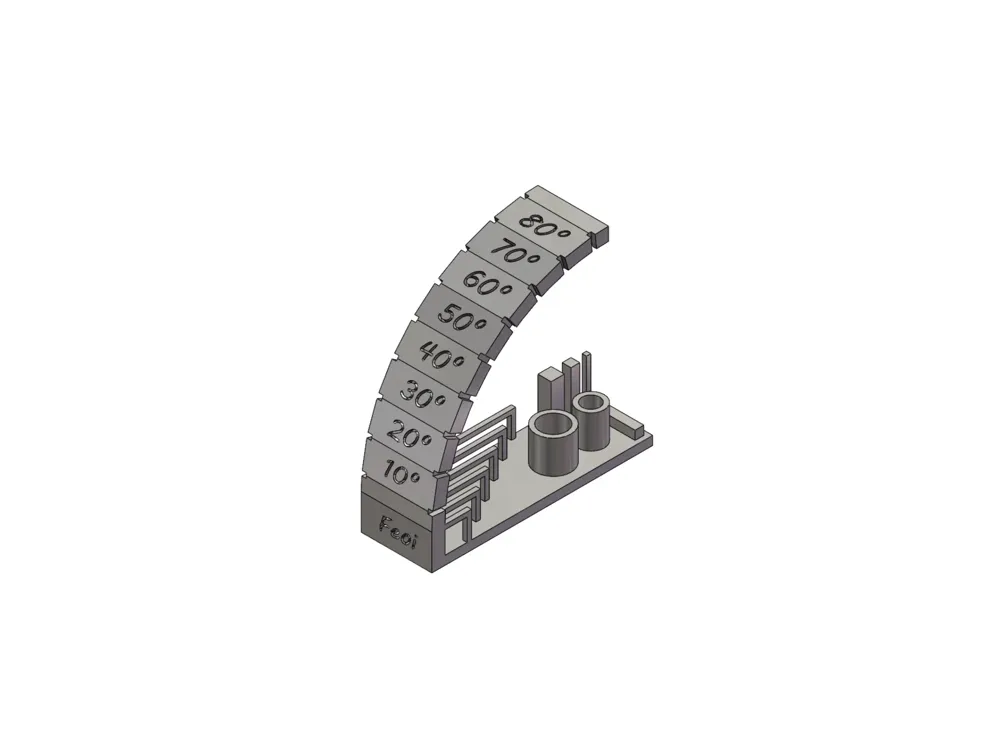

Corresponding recesses have been added to the side, and the back is designed with a curve to facilitate clearer problem identification
With a 0.4 nozzle and 0.2 layer height, drooping above 65° is normal due to the lack of supports; it will become increasingly suspended (cooling can be adjusted)
This test model aims to evaluate the impact of different settings on print quality under identical conditions; refrain from adding supports or altering layer heights to maintain comparability with others' results
For those who immediately provide low ratings due to imperfect prints, I would like to state*******************************

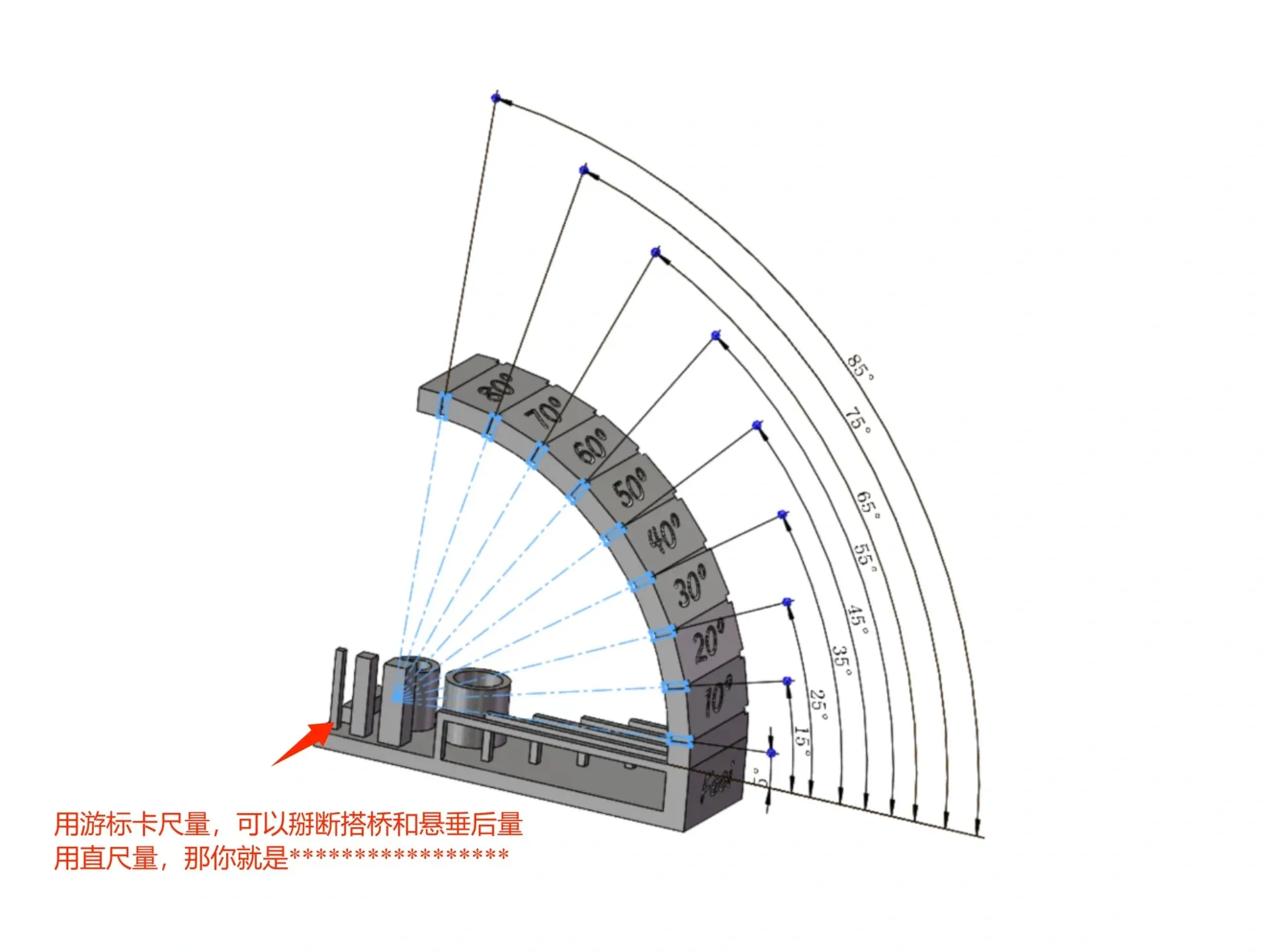

Bridge increments on the model are +5mm per step

Cylinders have inner/outer diameters and heights respectively of: 6/8/7.5 and 4/6/4.5
Cubic pillars are 1*1*5 / 2*2*7.5 / 3*3*10, the lying one is 2*2*10

Enhanced overhang performance through accelerated part cooling

Mitigate bridge drooping by reducing bridge flow rate or increasing bridge speed and cooling
Counteract bridge breakage by increasing bridge flow rate or decreasing bridge speed

Address dimensional discrepancies due to model shrinkage by adjusting outer contour and hole compensation

For first-layer adhesion issues, clean the build plate and increase the bed temperature (for manufacturers specifying glue-free printing, address non-adhesion by adjustments)

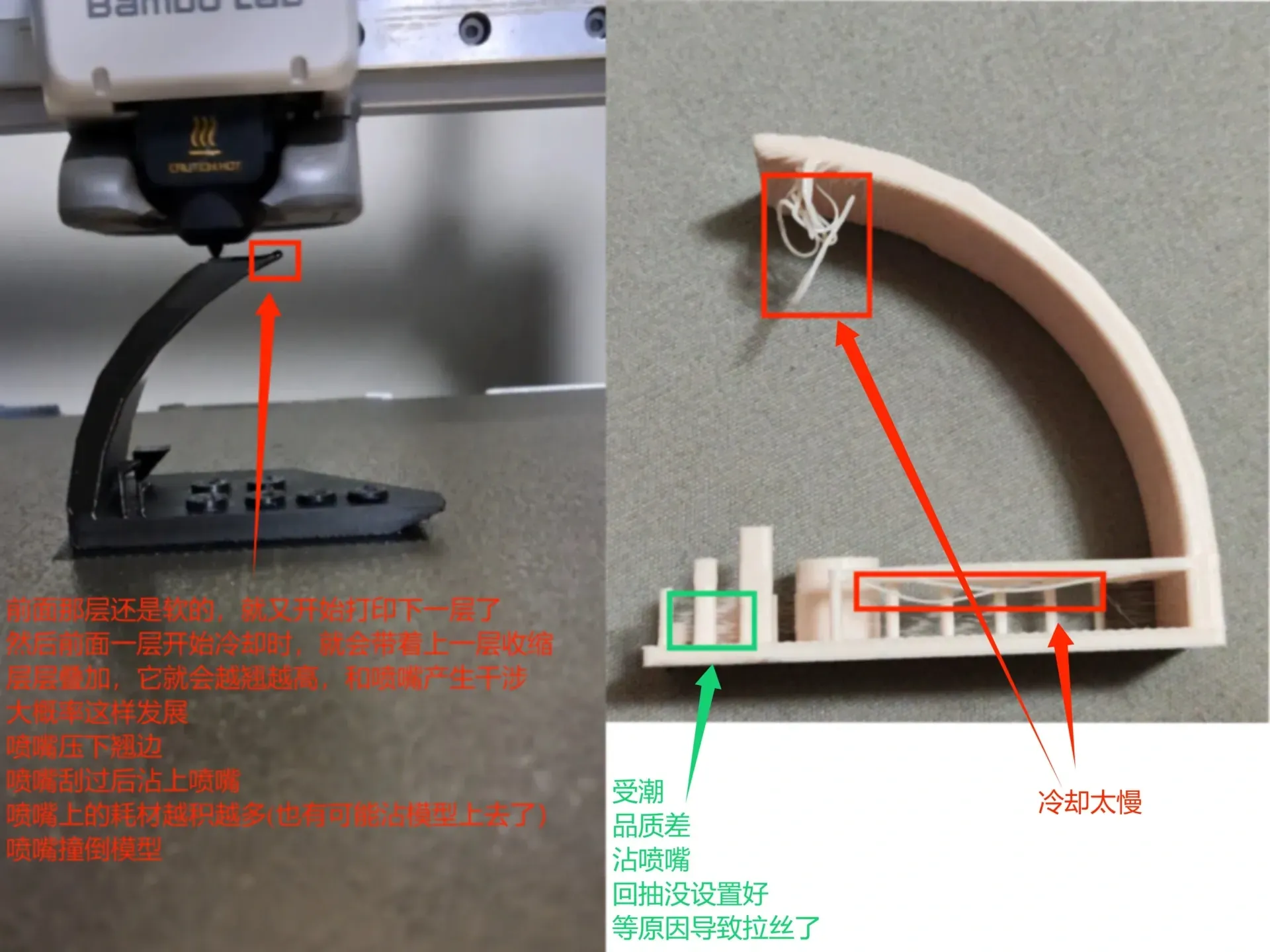

If the model detaches during printing, inspect for warping or nozzle scraping (refer to the example solutions)

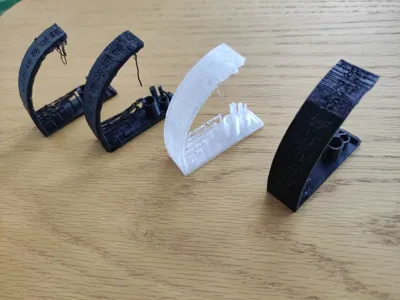

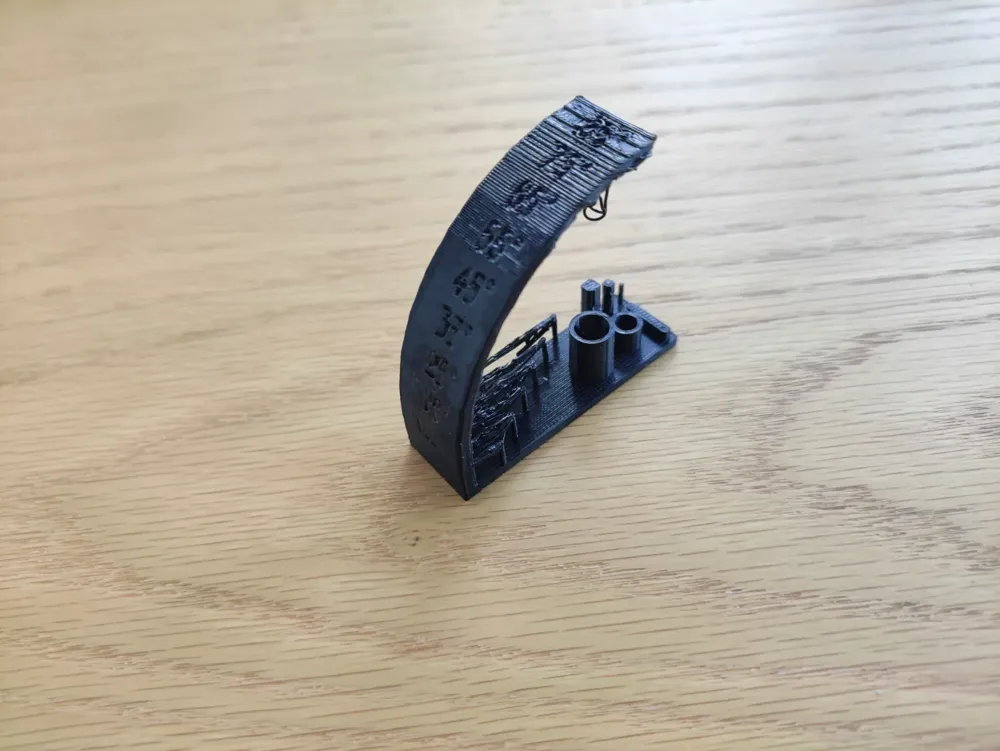

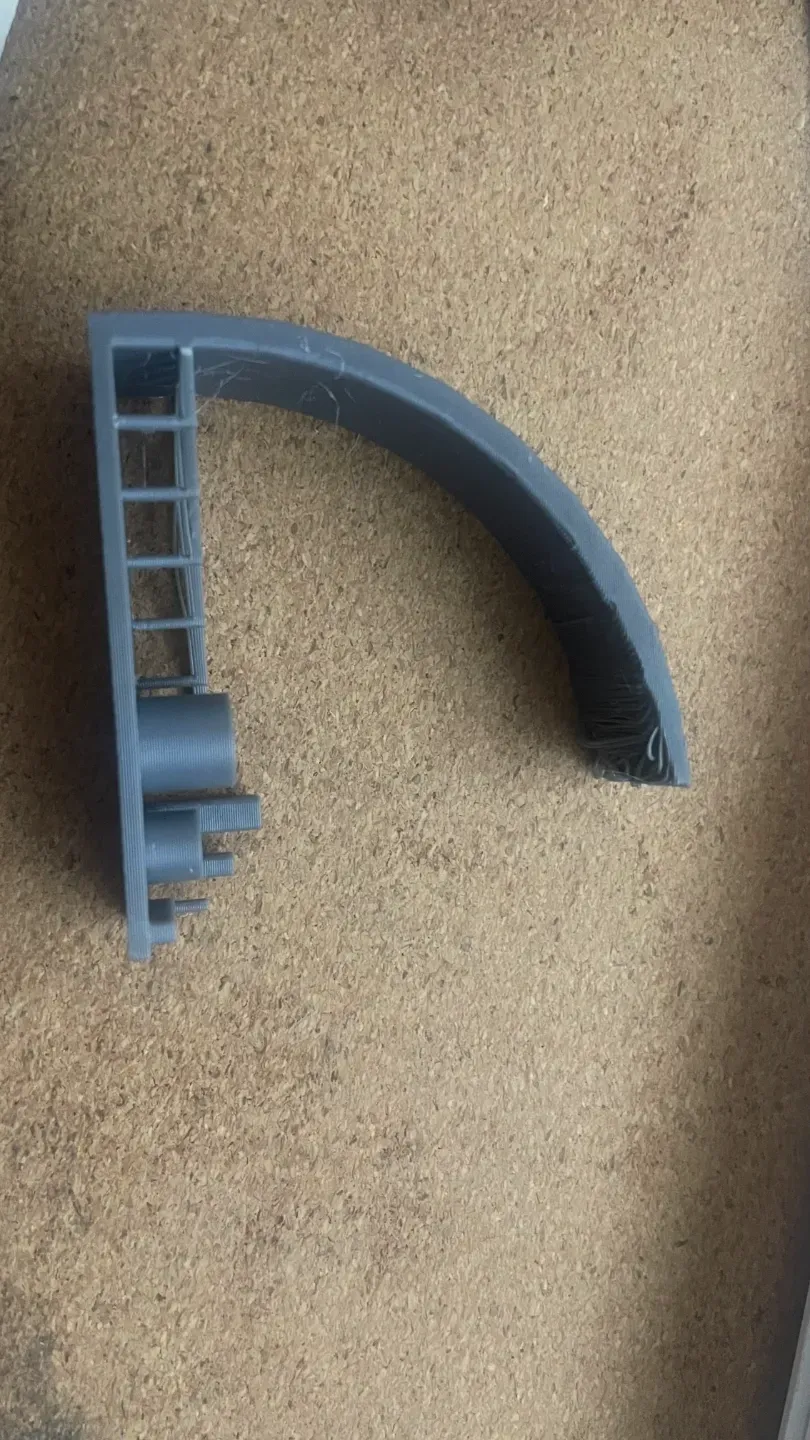

Examples from the comments section
