Magnetic Case for Temp and Humidity Sensor
Print Profile(1)
Bill of Materials
- Magnets x 4:
Description

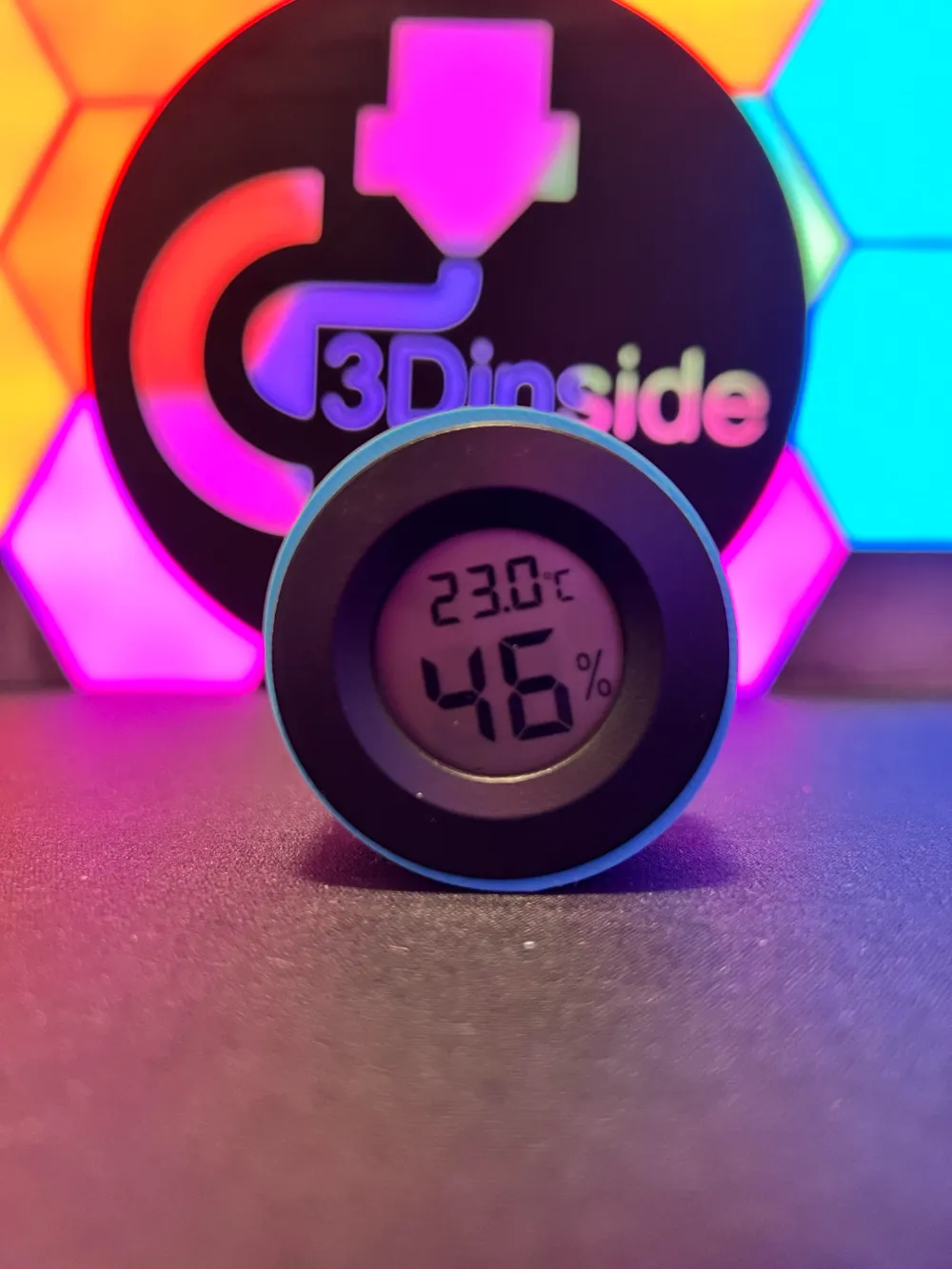

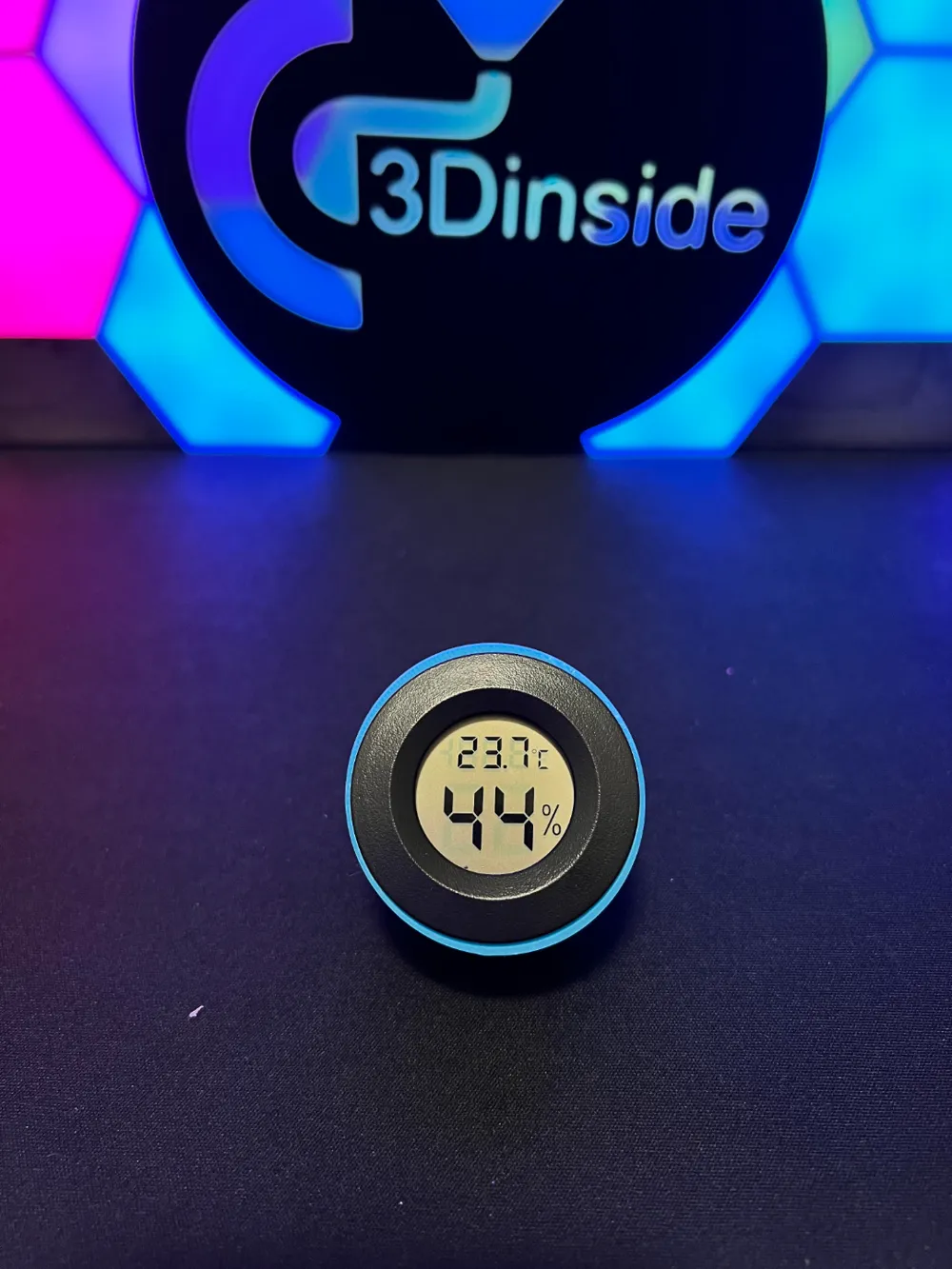

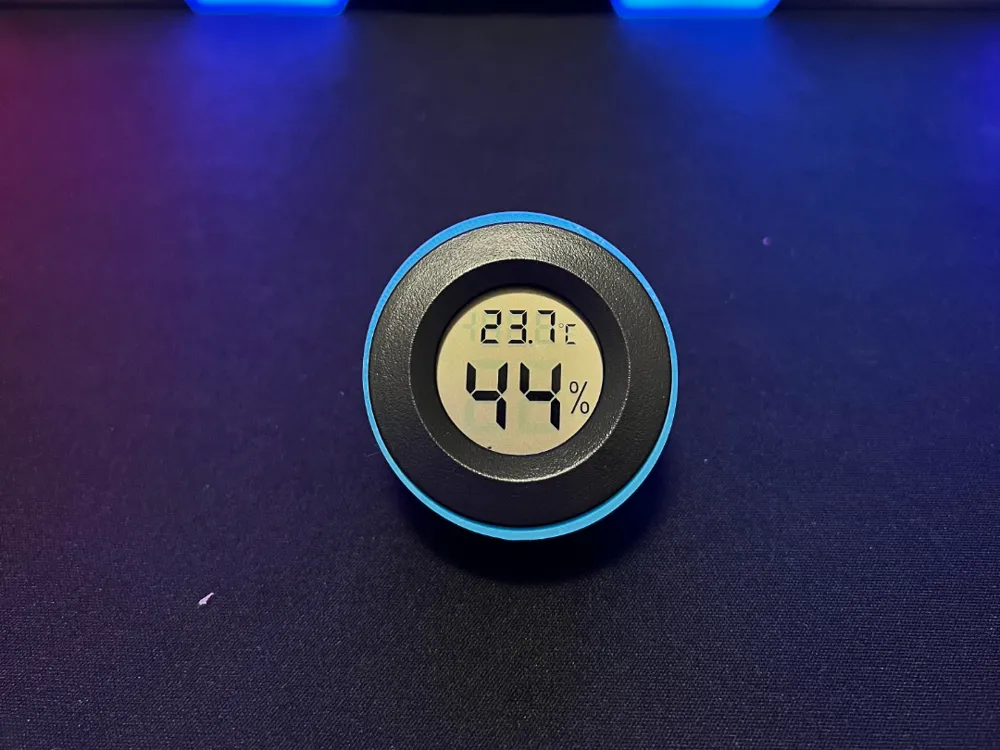

This is a magnetic case for a sensor that measures temperature and humidity.
I purchased the sensor from Temu, and this particular version has a diameter of approximately 41.15mm.
The case is designed based on this dimension. The thermometer has a gap at the back when placed inside the case, allowing the sensor to accurately read humidity and temperature.

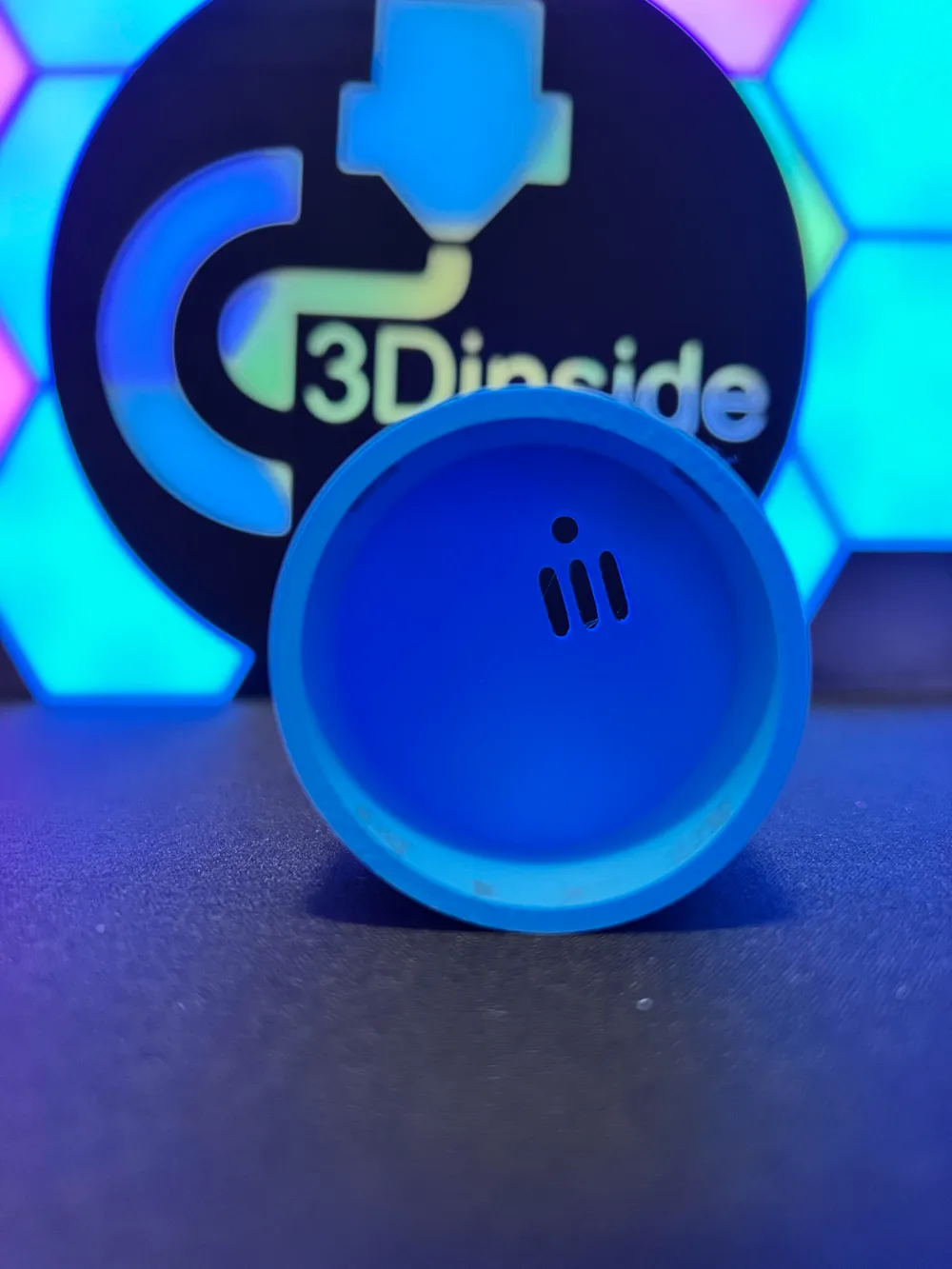

The case also includes corresponding holes for better measurements.
You should use supports for the holes where the magnets are inserted.

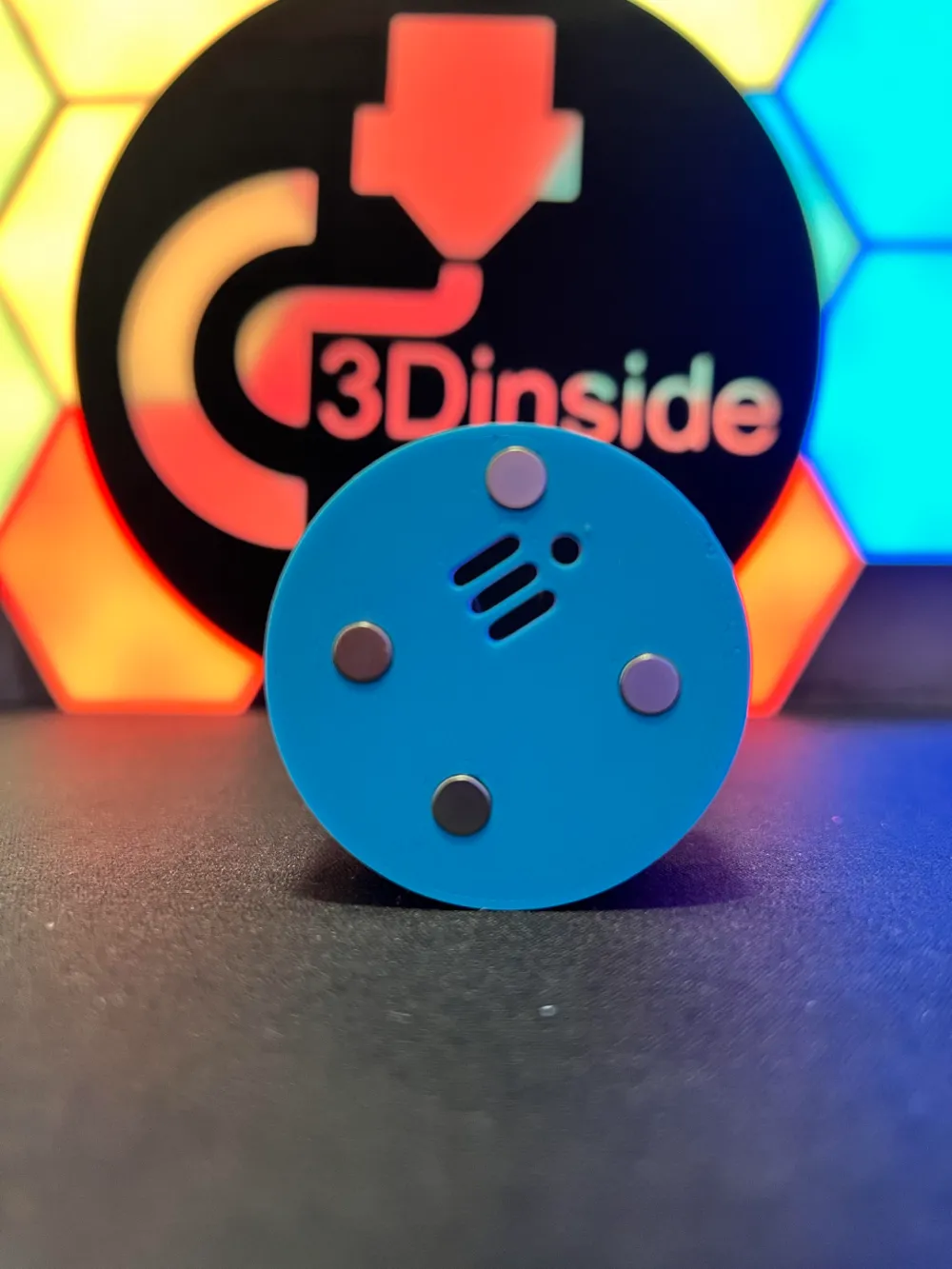

The magnets I used have a diameter of 6mm and a height of 2.7mm.
If desired, you can apply glue to keep the magnets securely in place
