Skadis Box with Rotating Bambulab Spools
Print Profile(1)
Description

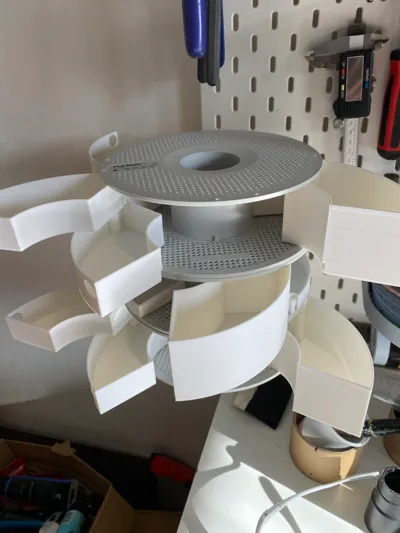

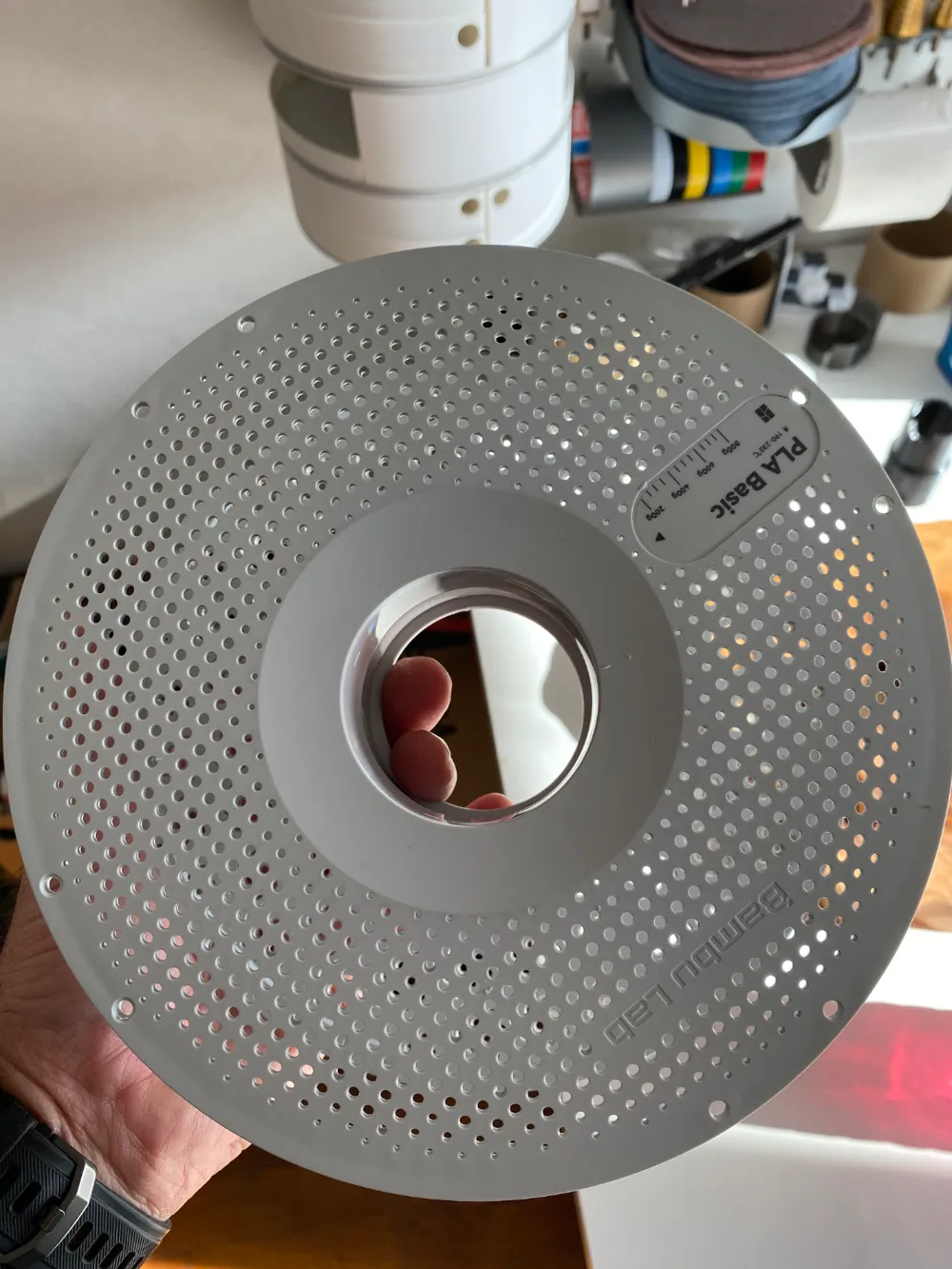

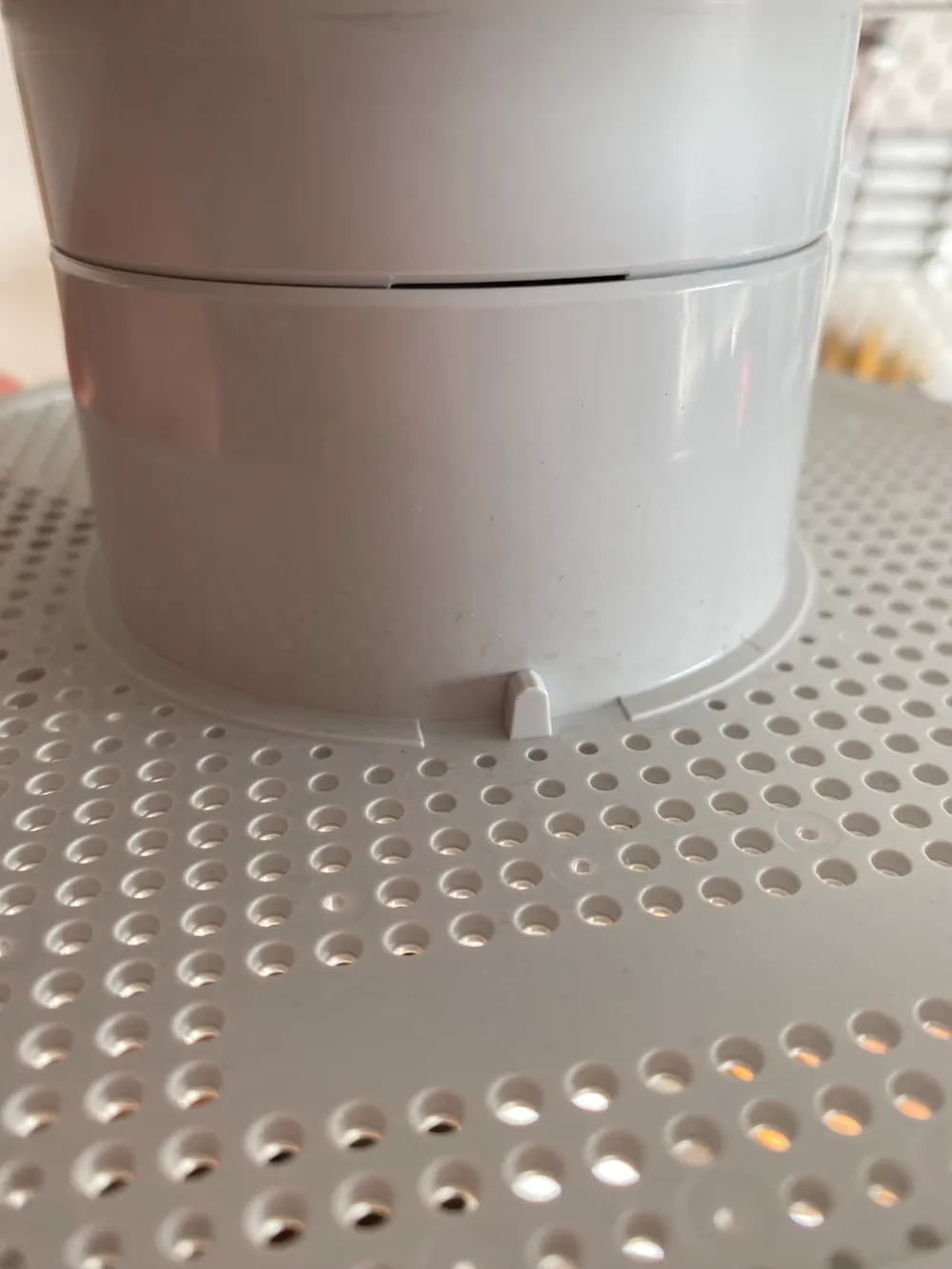

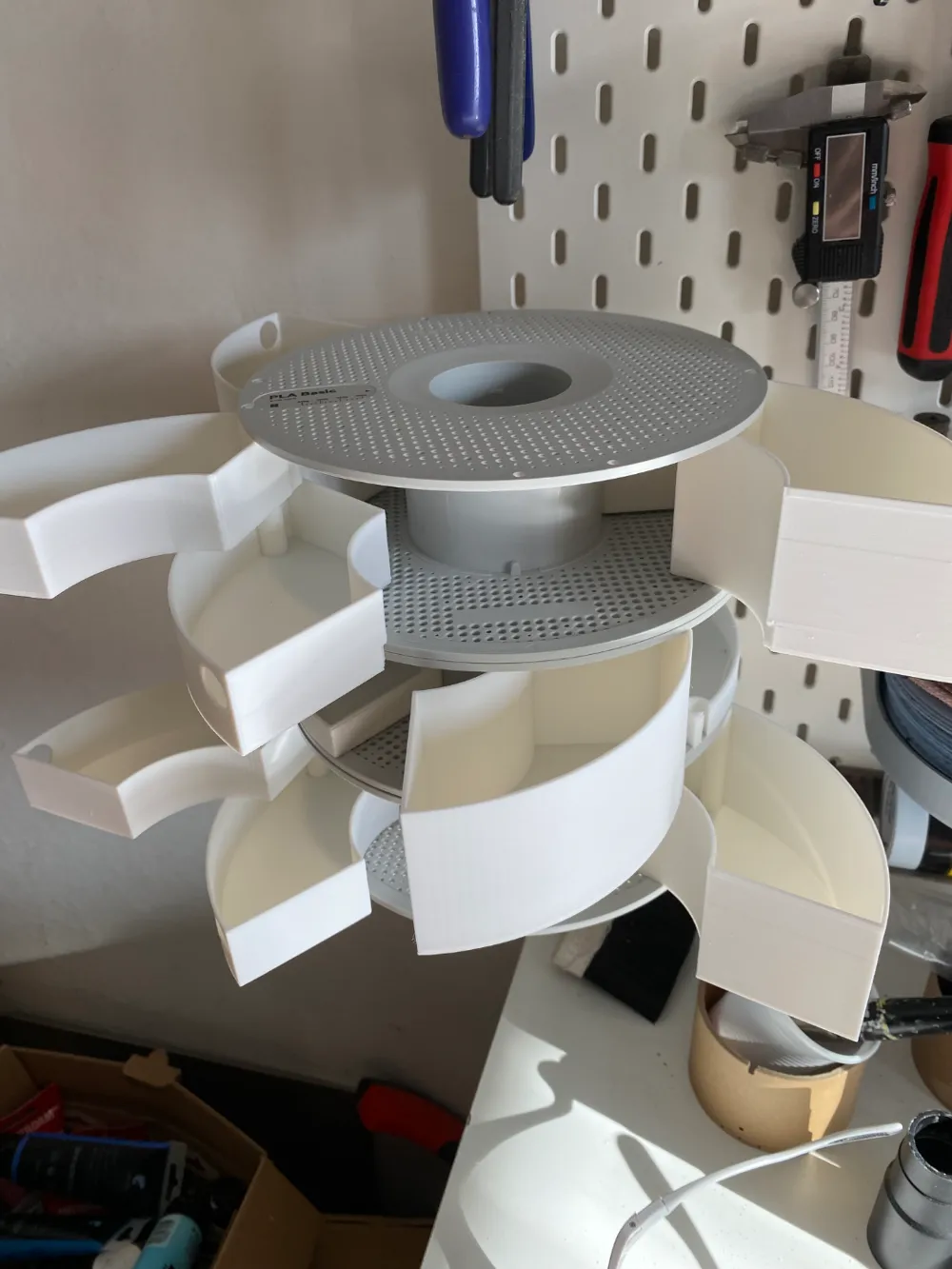

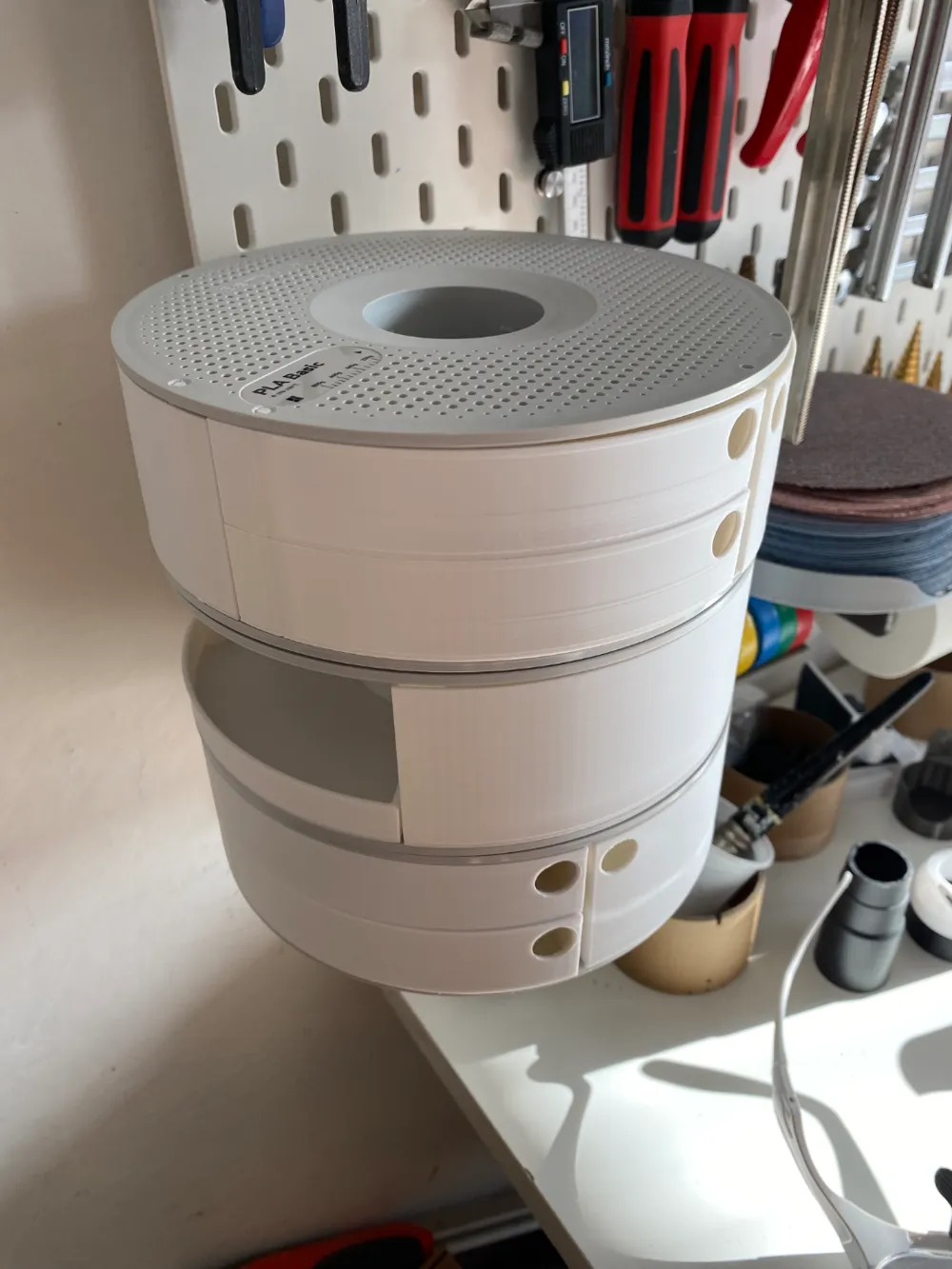

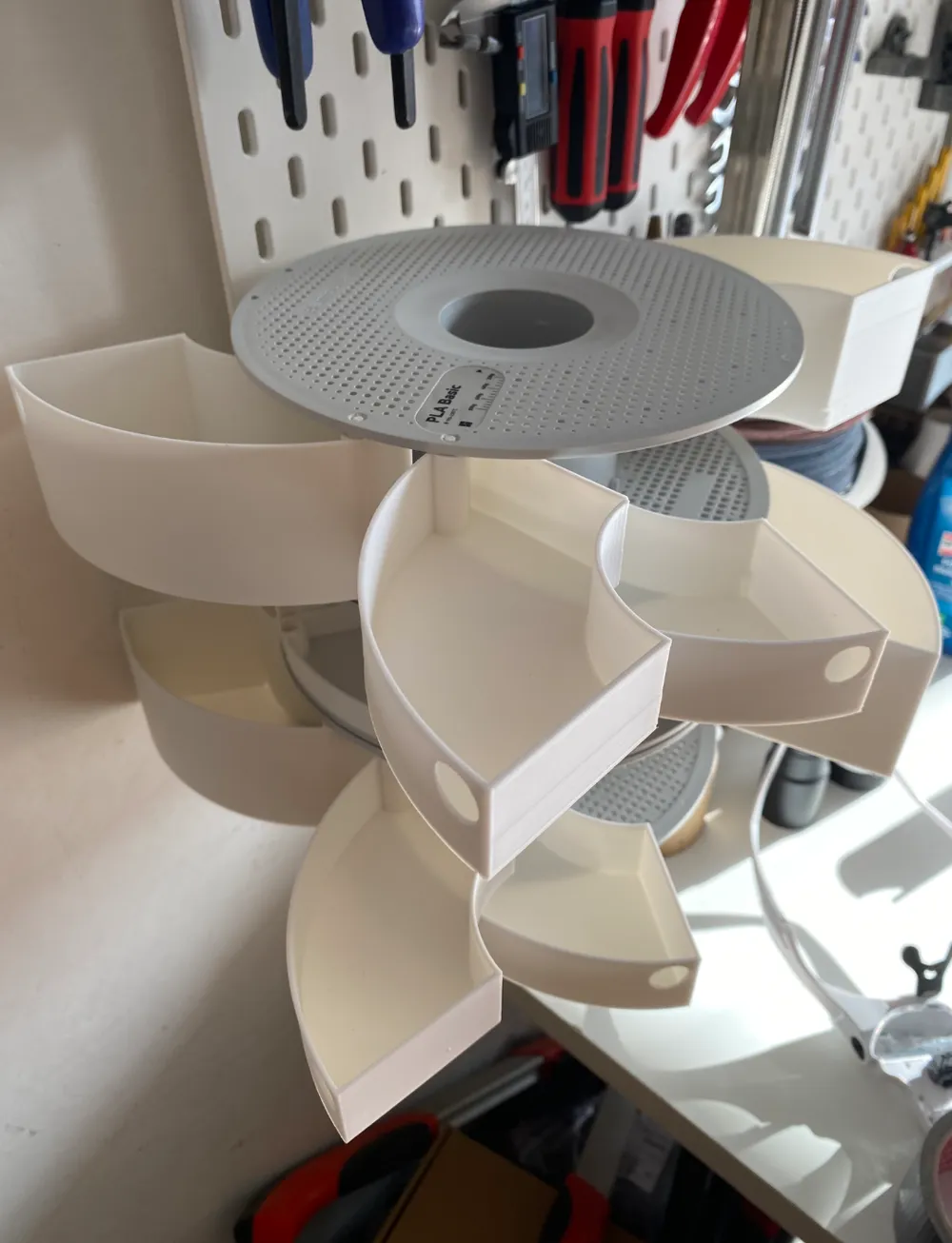

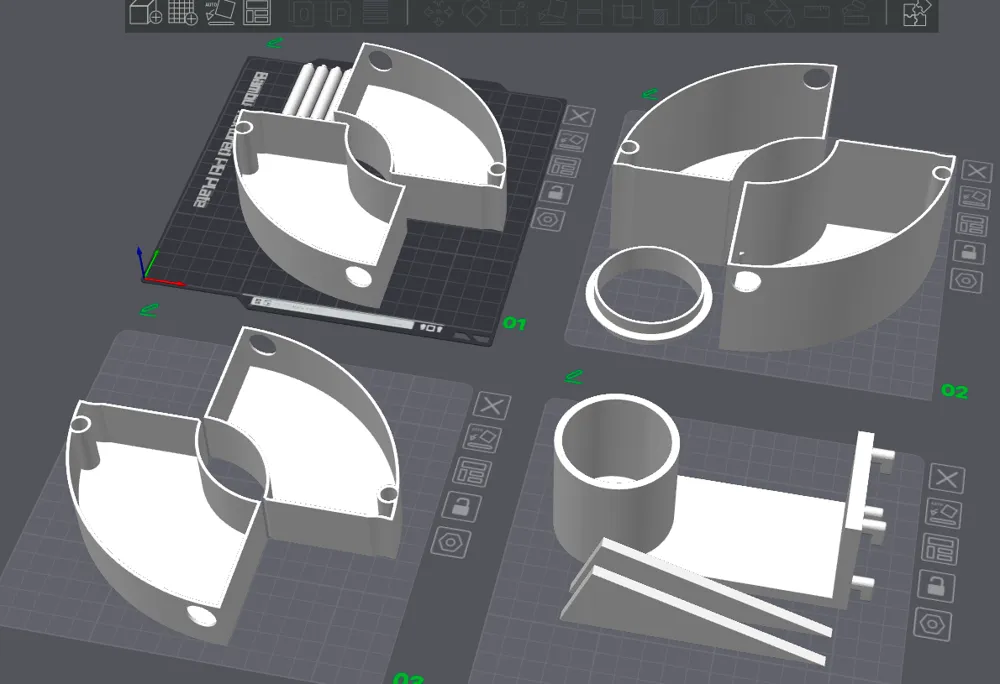

Drawing inspiration from similar projects, I have developed this system of small parts drawers, or other items, using empty Bambu Lab filament spools. In one of the two halves of the spool, you will need to drill 2+2 holes with a diameter of 3.5mm corresponding to the lower ones where the drawer pin will be inserted. Some drawers have small recesses so that they do not touch the plastic protrusions of the spools and close correctly. The double drawers have a height of 30mm and 28mm, the 30mm one being the lower one. Those who wish can still modify the model and create drawers of the desired size.

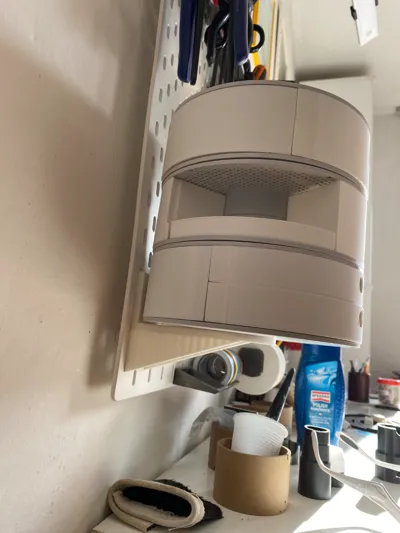

As for the Skadis support, the two triangular ribs will be glued to the support itself as shown in the photo.
