Description
Content has been automatically translated.

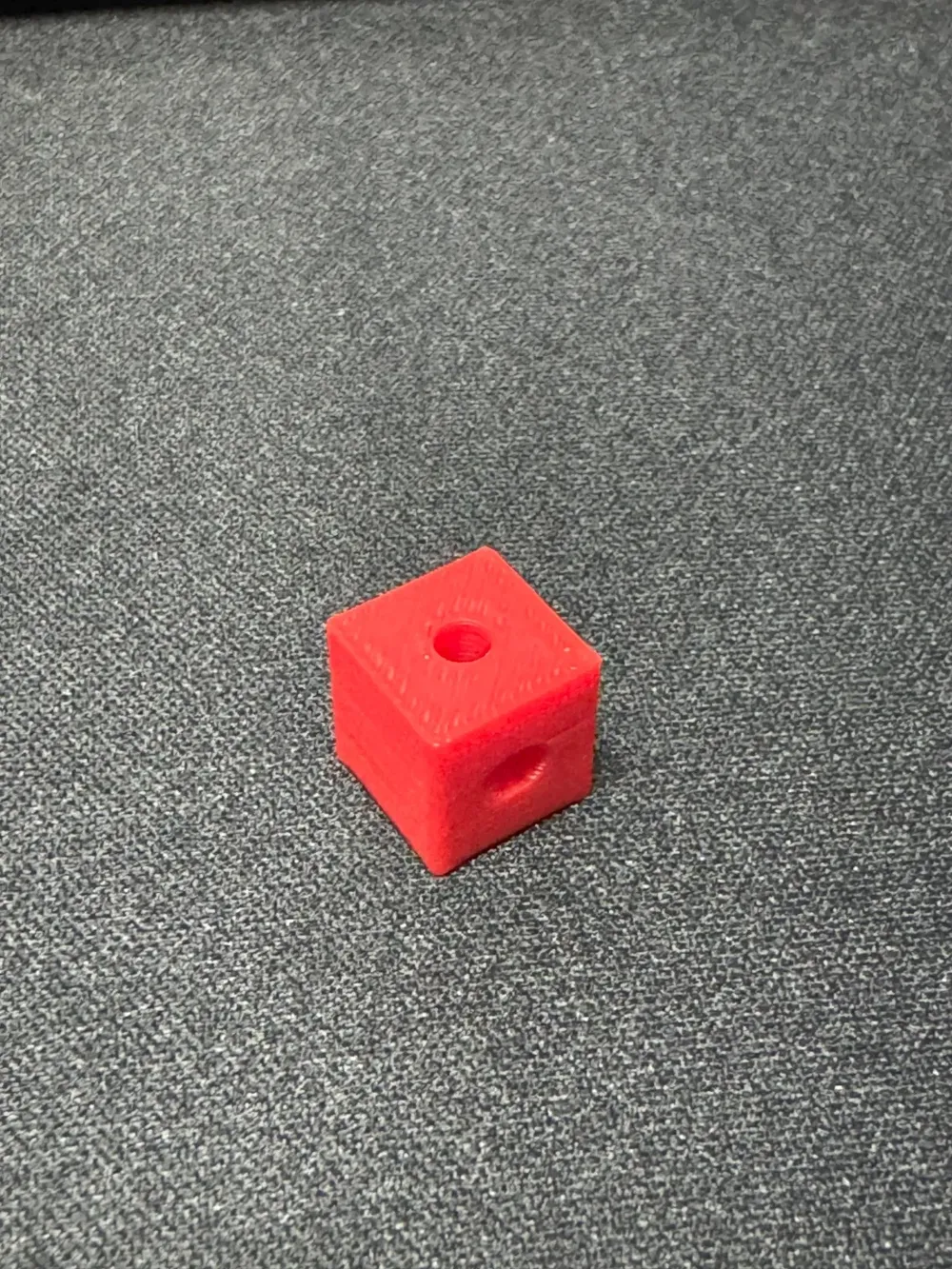

This is a small cube used to test the printing size accuracy and hole retraction size of the 3D printer.

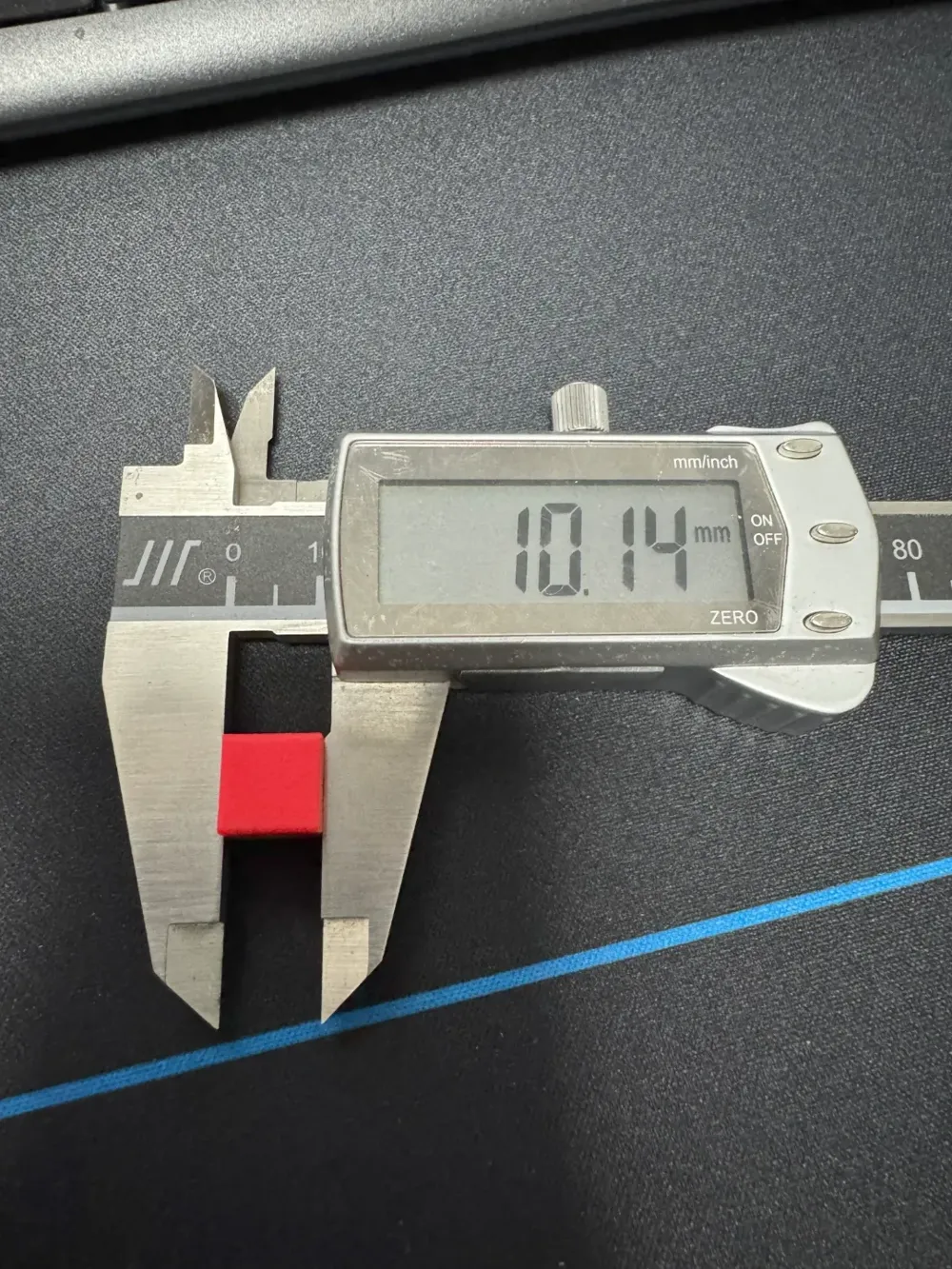

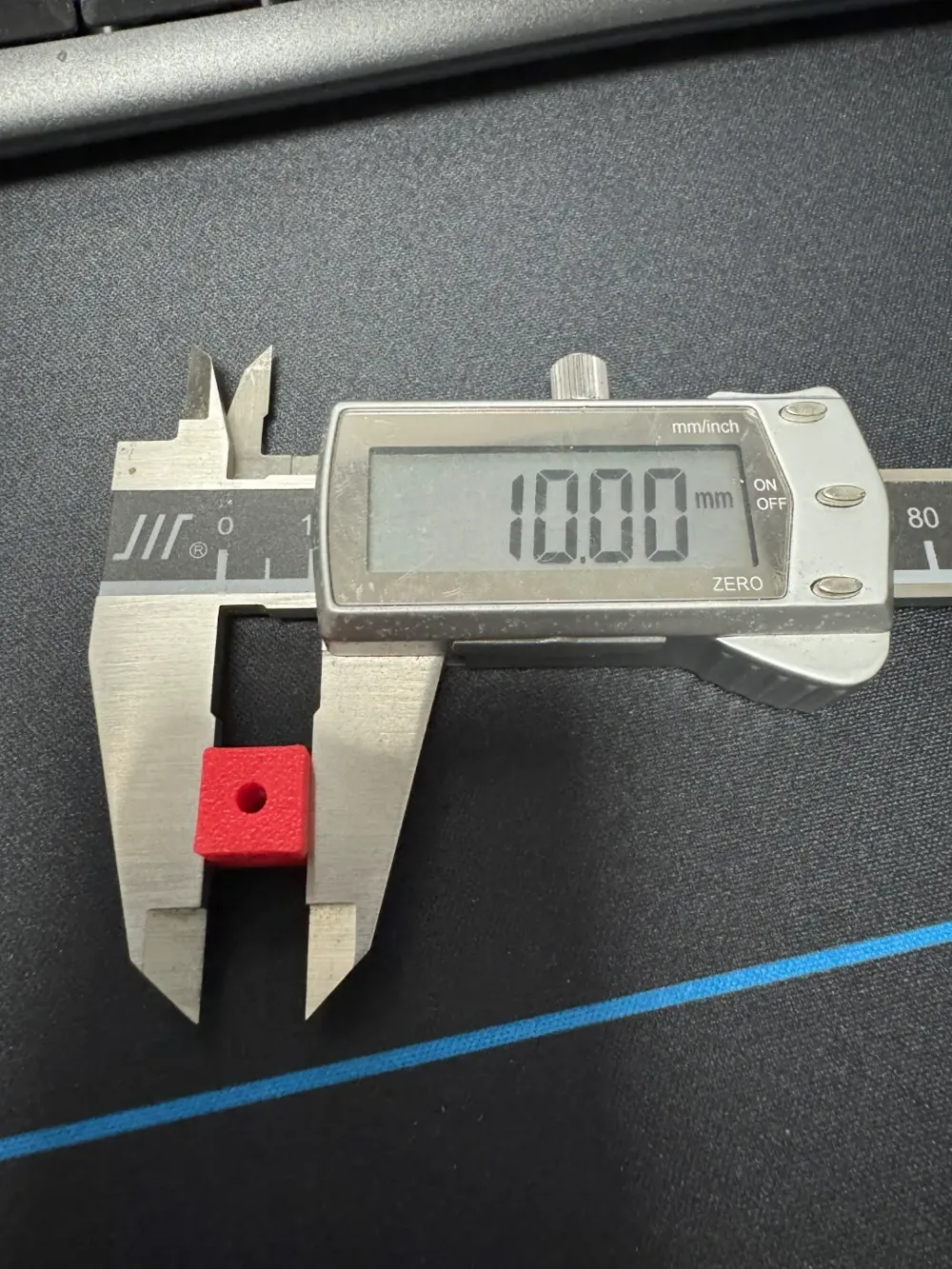

Specifications: 10mm Cube

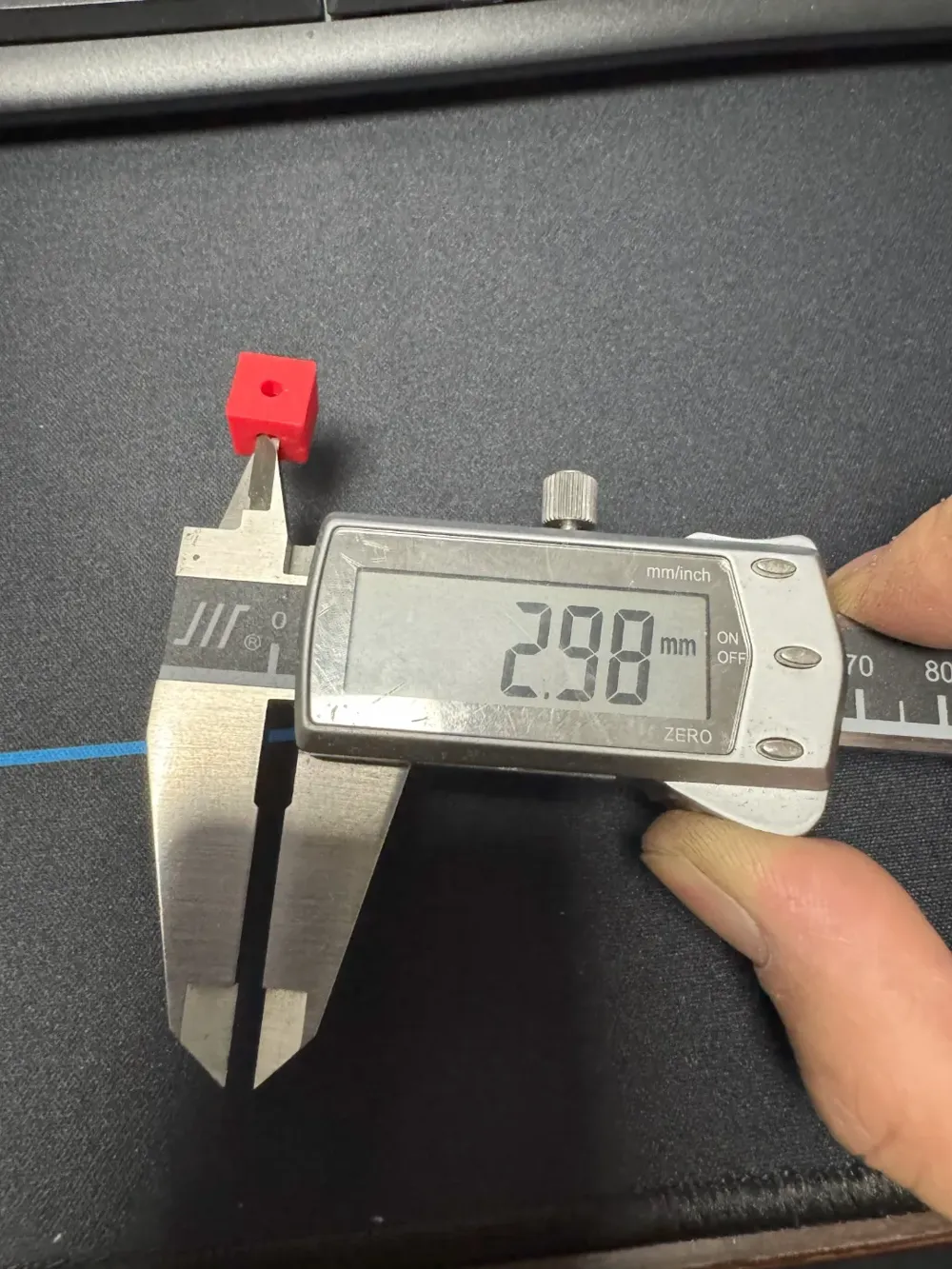

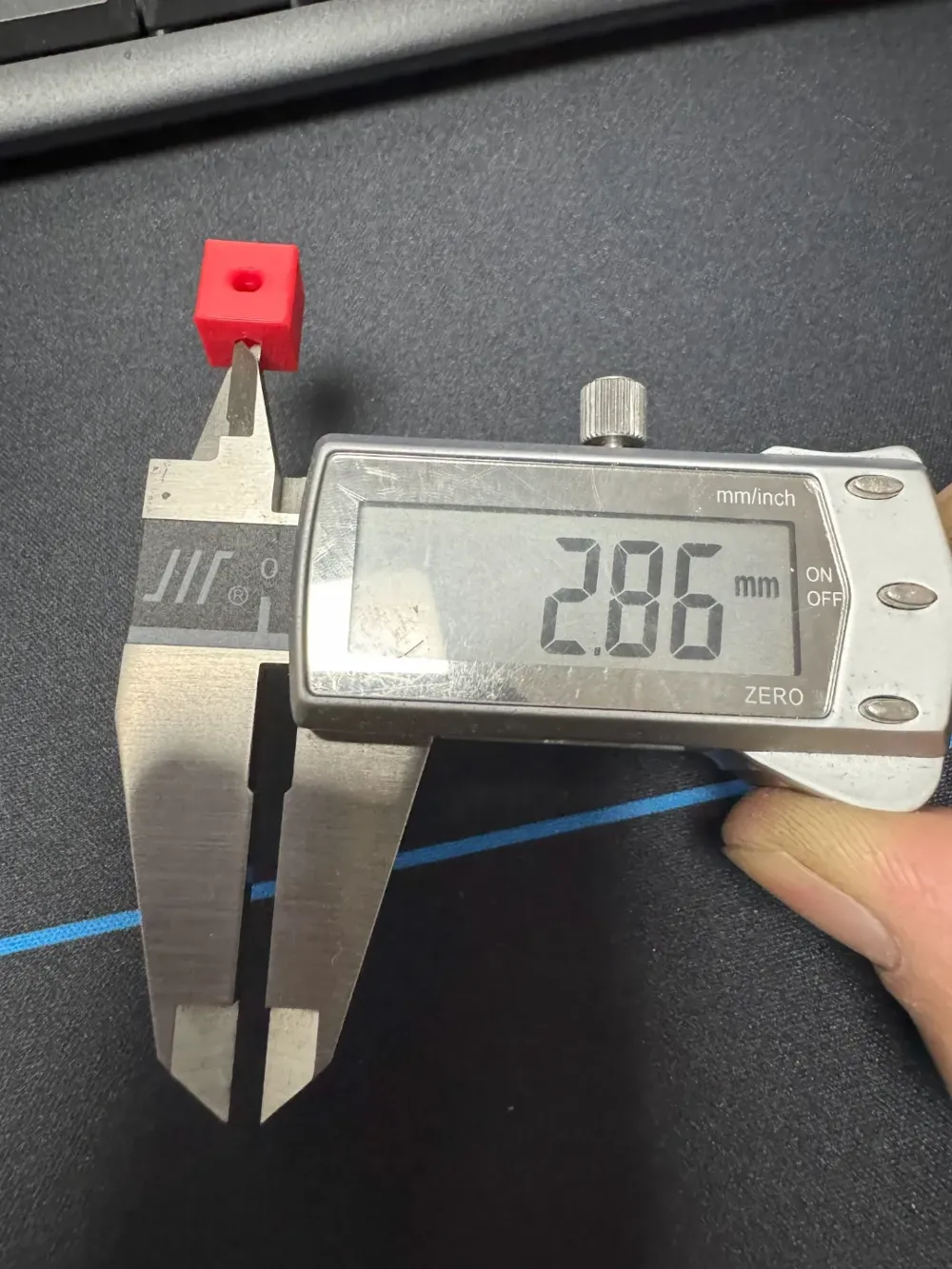

Hole diameter: 3mm round hole (two directions in X and Z)

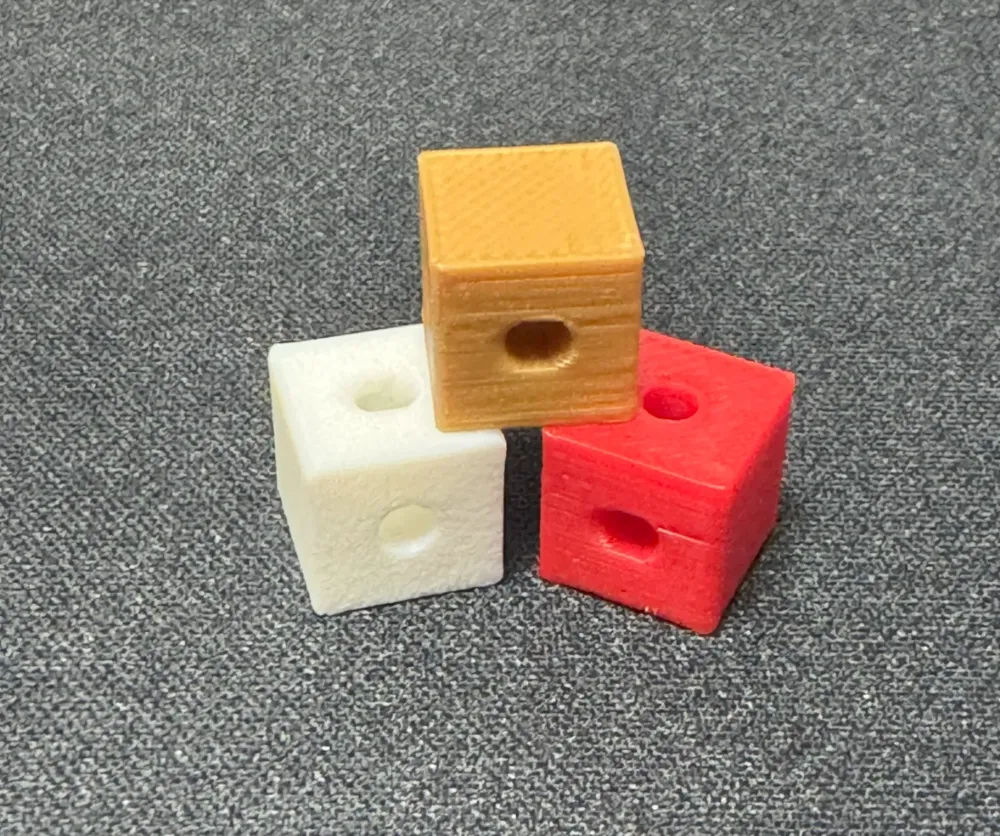

After testing, using Bambu Lab PLA material (data is manually measured and is affected by printing temperature, speed, etc. For reference only, it is best to print and test yourself)
XY direction: error
PLA Gold: 0.00, 0.03;
PLA Red: 0.00, 0.02;
PLA White: -0.02, -0.02;
Z direction
PLA Gold: 0.10
PLA Red: 0.13
PLA White: 0.11
