XL4016 Step-Down Buck Converter DC-DC
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
19
33
2
3
41
0
Released
Description

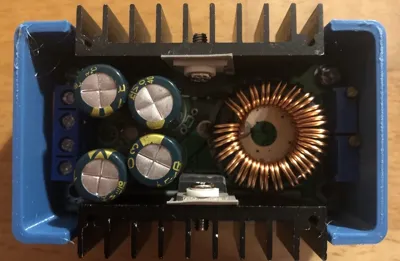

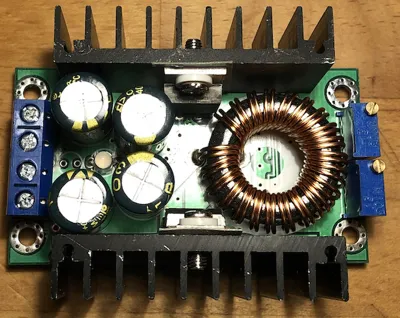

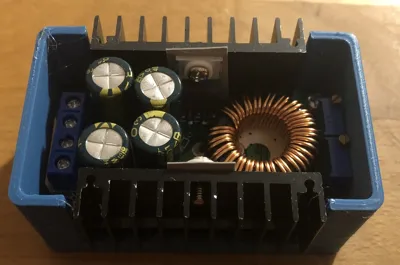

This is a Case for the XL4016 Step-Down Converter. The circuit board size is 65x36,5mm. The holes for the screws have a distance of 58 mm at the longe side and 26mm at the short side. The diameter of the hole is for 3x7,5mm sheet metal screws.
If you like the design leave a comment.
