Bill of Materials
- Schraube M5x12 x 3:
Description
Boost Me (for free)
**** UPDATE ****

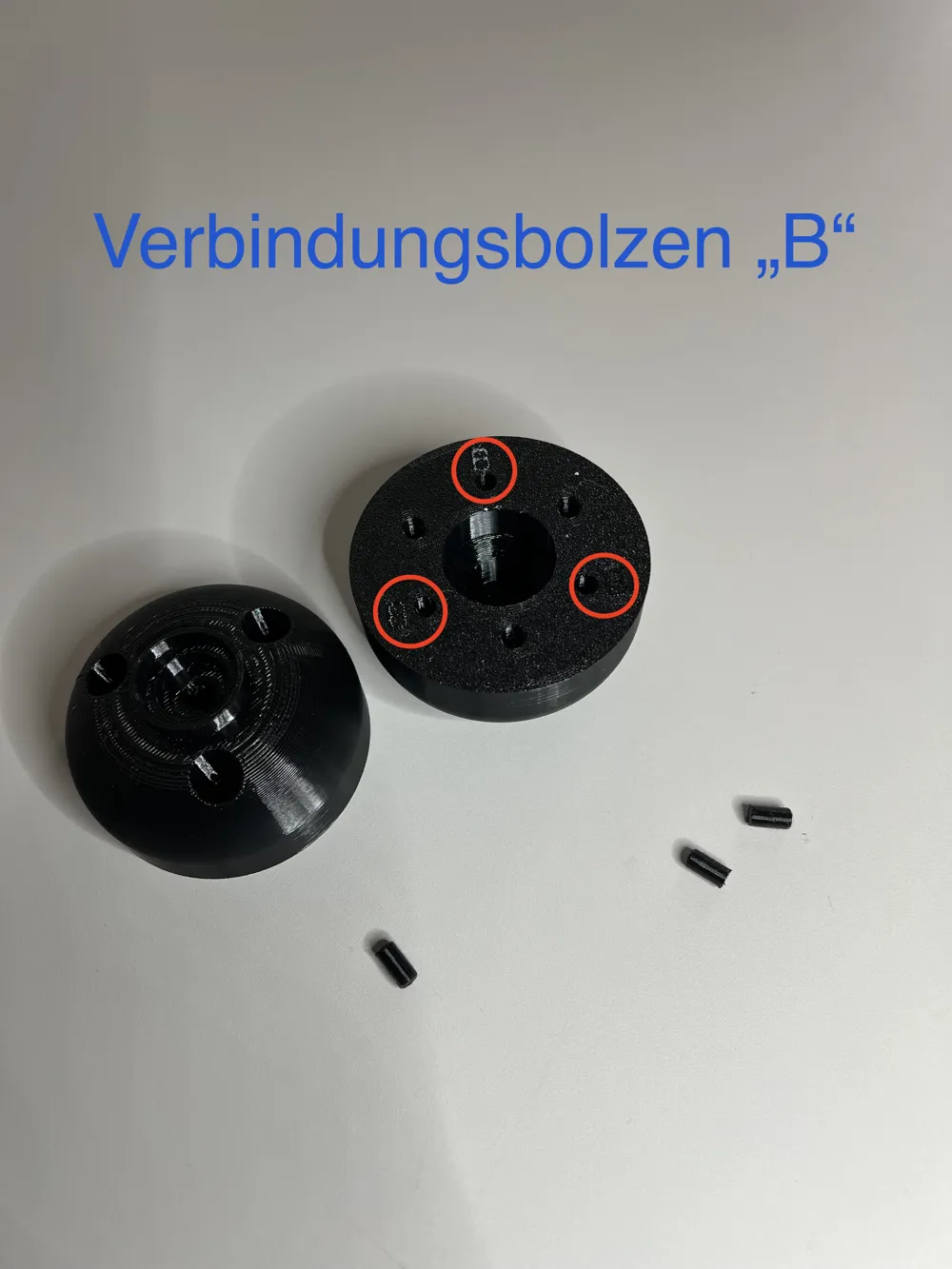

I have slightly adjusted the connecting bolts. In addition, there are three “B” markings on the flange of one half of the wheel. These mark the holes for the connecting bolts. The bolts should be pushed into the holes with some force, and later the two wheel halves should also be pressed together with some force. This creates a backlash-free connection, and the wheel should be stable enough in conjunction with the screws. With prints using other filaments such as ASA, ABS, or similar, it may be necessary to scale the parts slightly (see comment from user_3385629591 , thank you for the hint)
***********************************************************************************************************************

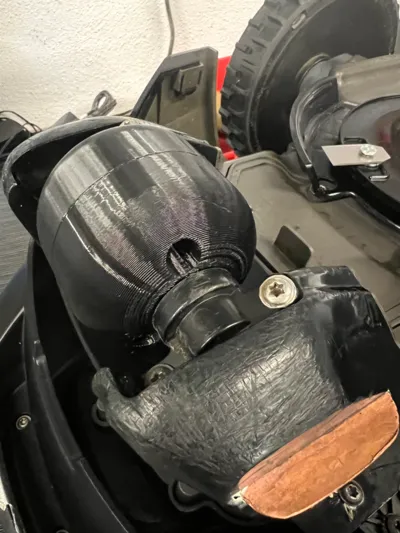

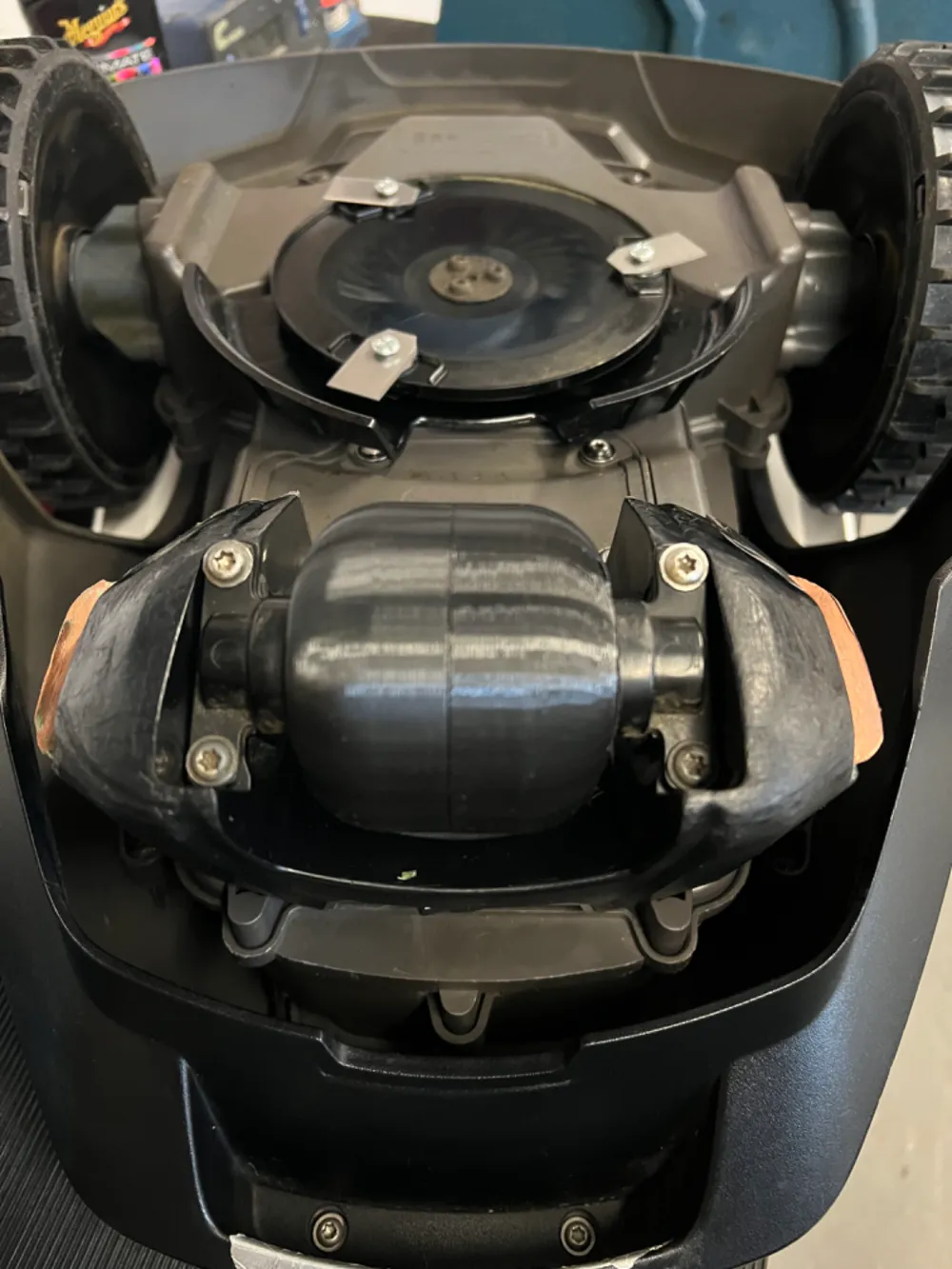

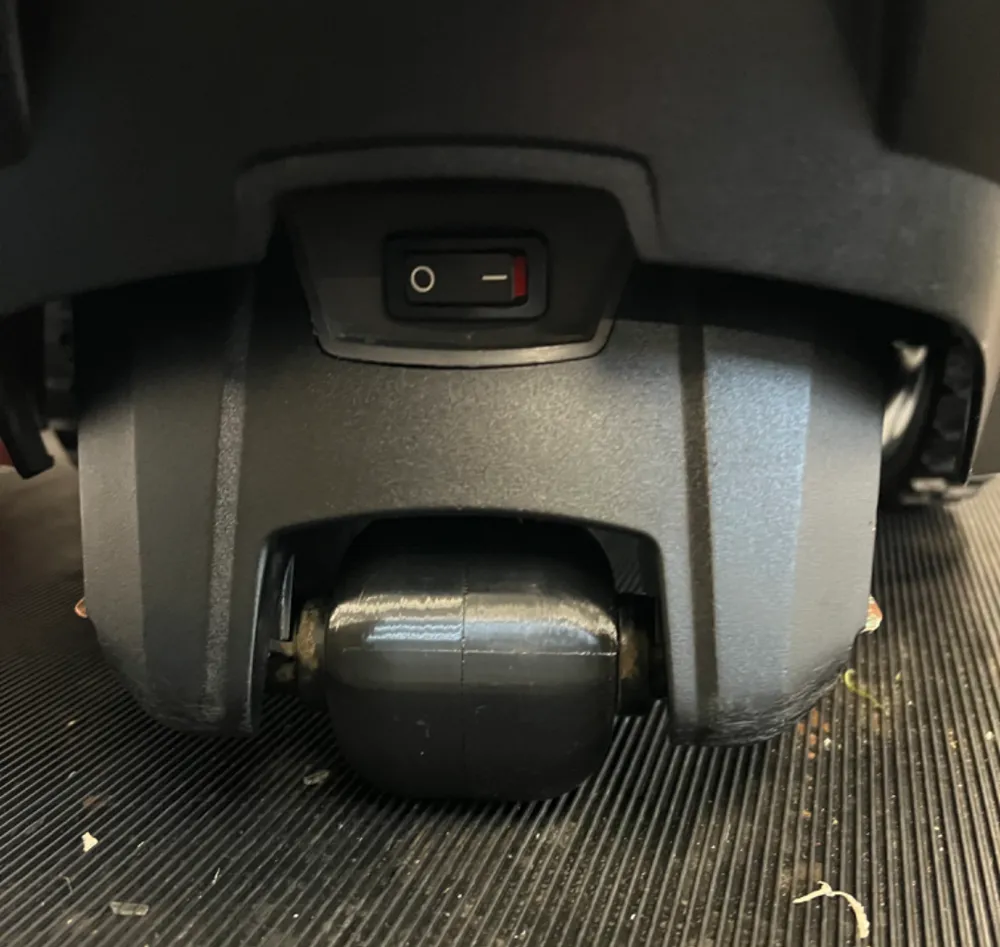

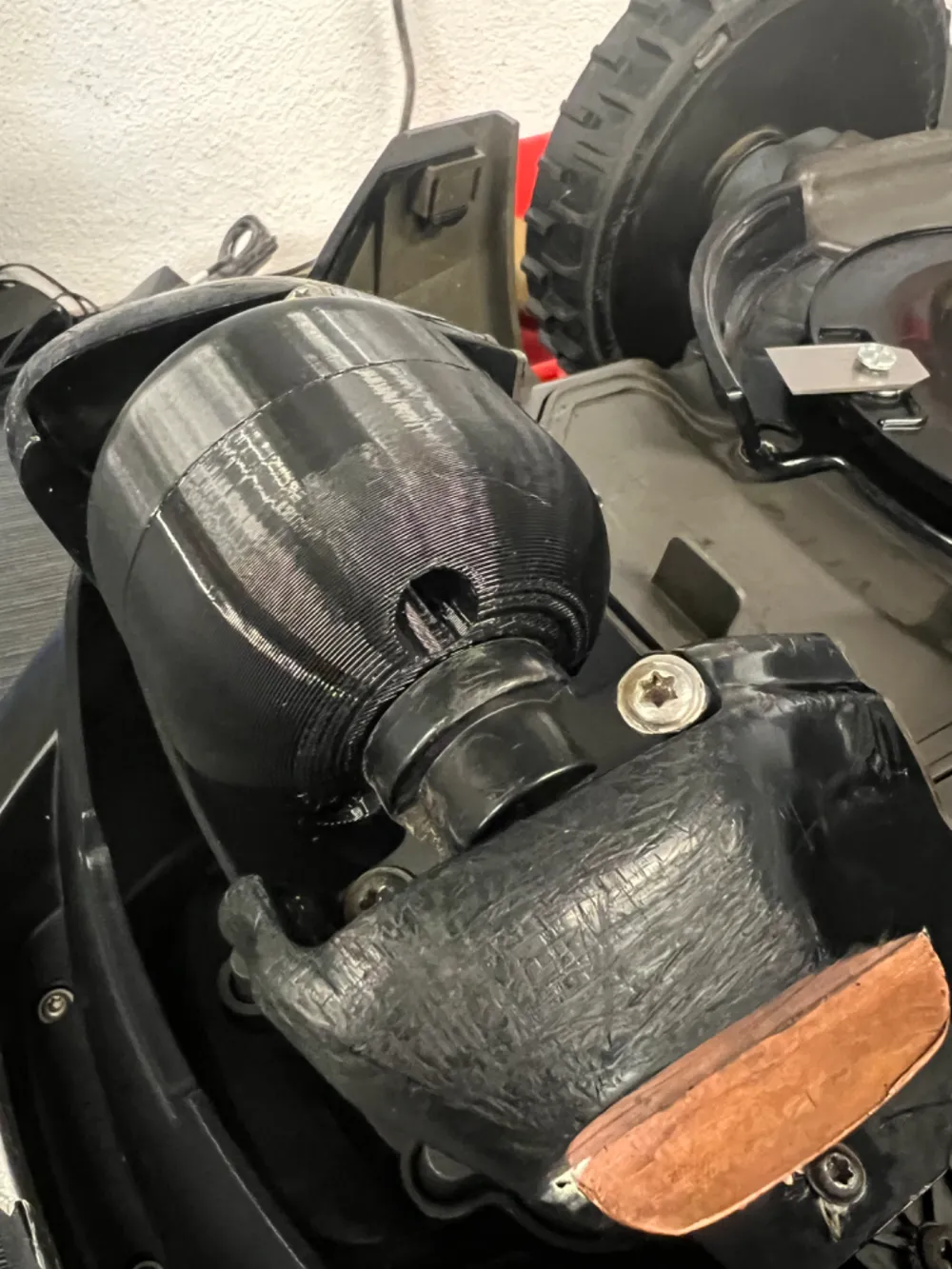

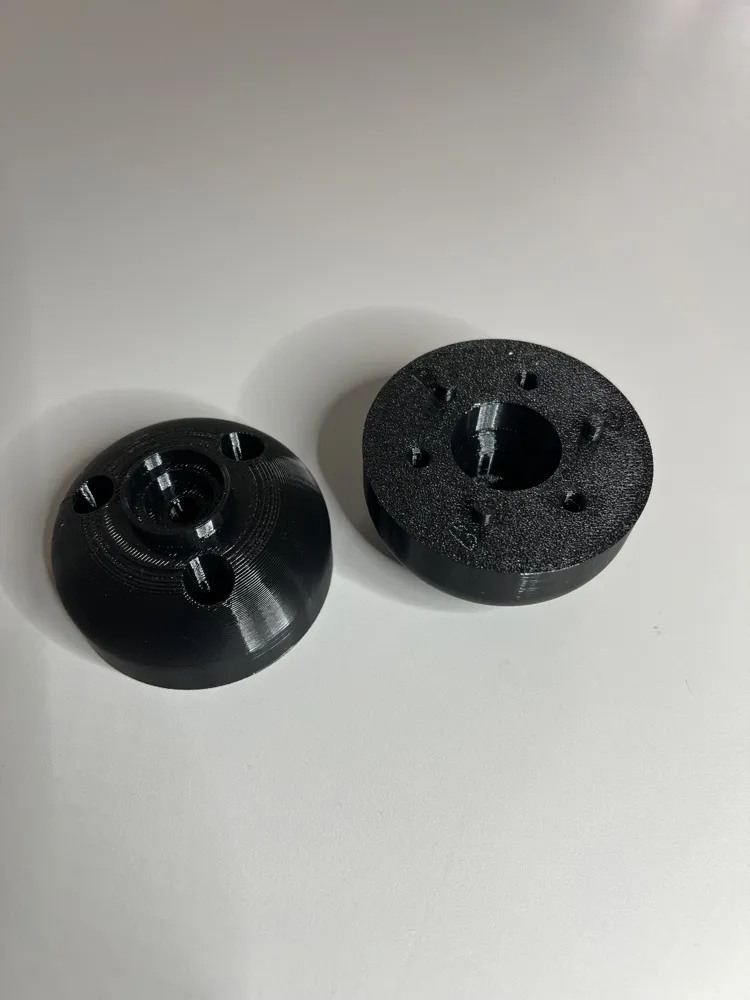

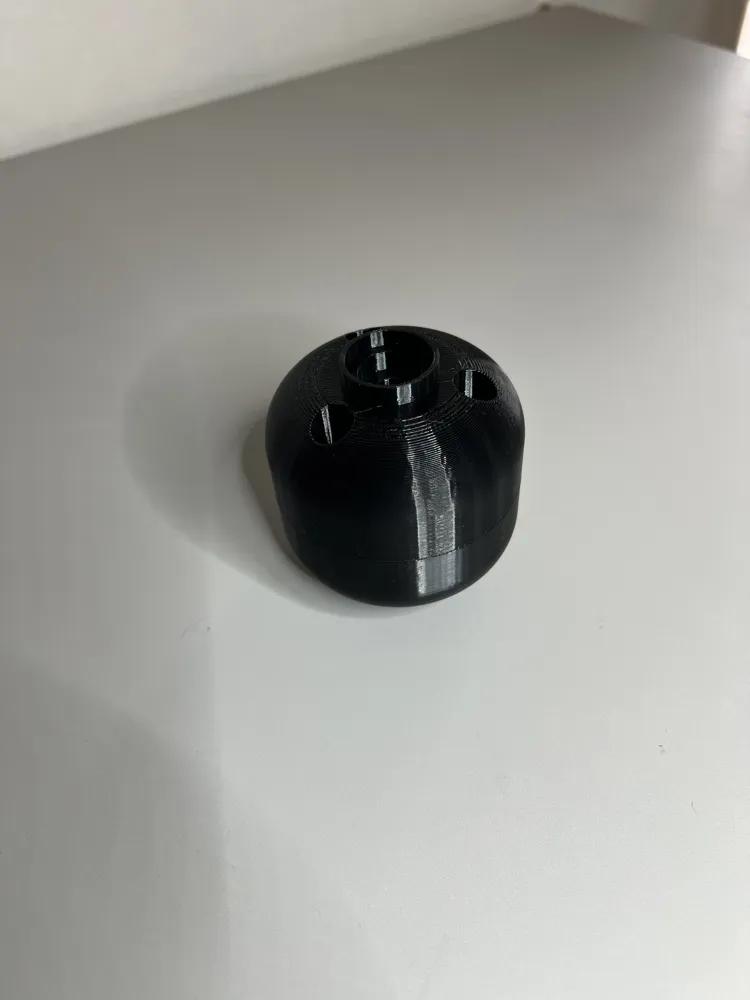

Rear wheel for a Husqvarna Automower 305. The original shaft, the screwed-on holder on the left and right, and the ball bearings are reused. The rear wheel is assembled from two halves. The three connecting bolts are inserted into one half of the wheel to achieve greater stability. Three M5 screws are required for fastening. The wheel should NOT be glued together. This facilitates later opening to replace the bearings or shaft.
