Bambu Filament Paper Tube Box and Matching Pegboard Bracket (Glue and Hardware Free)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.6 h
2 plates
Open in Bambu Studio
Boost
10
26
1
1
10
5
Released
Description
Content has been automatically translated.

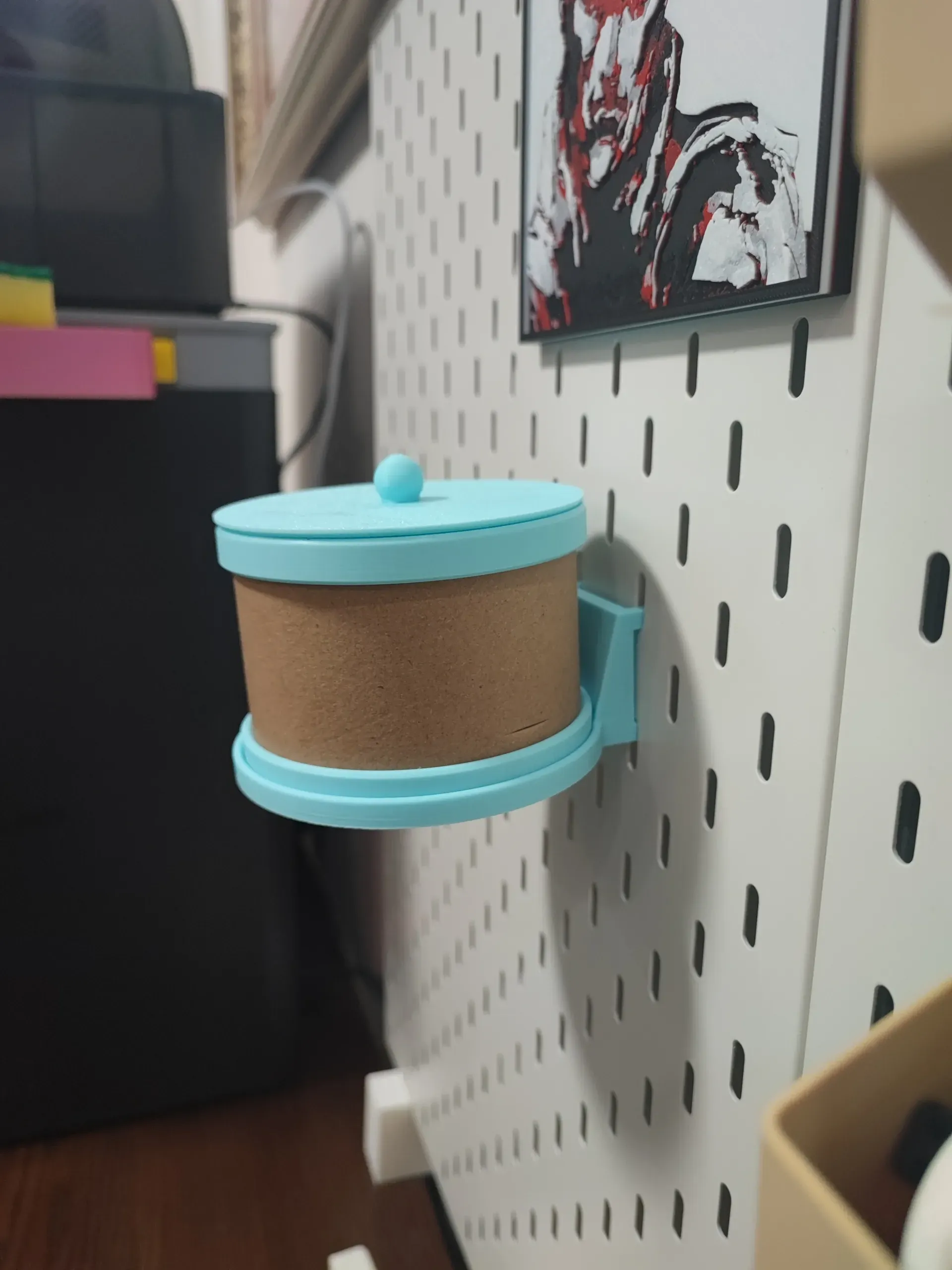

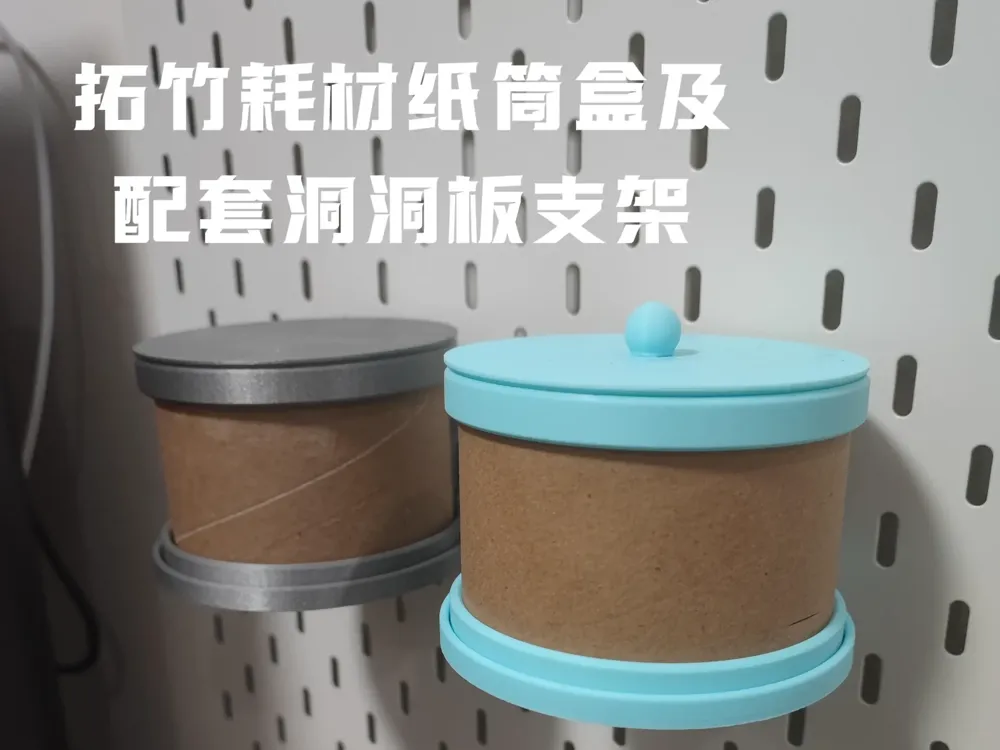

This is a design solution that can effectively utilize the paper tube in Bambu filament, and it does not require glue or hardware. Also, a pegboard bracket is designed for it, which makes it look neater.

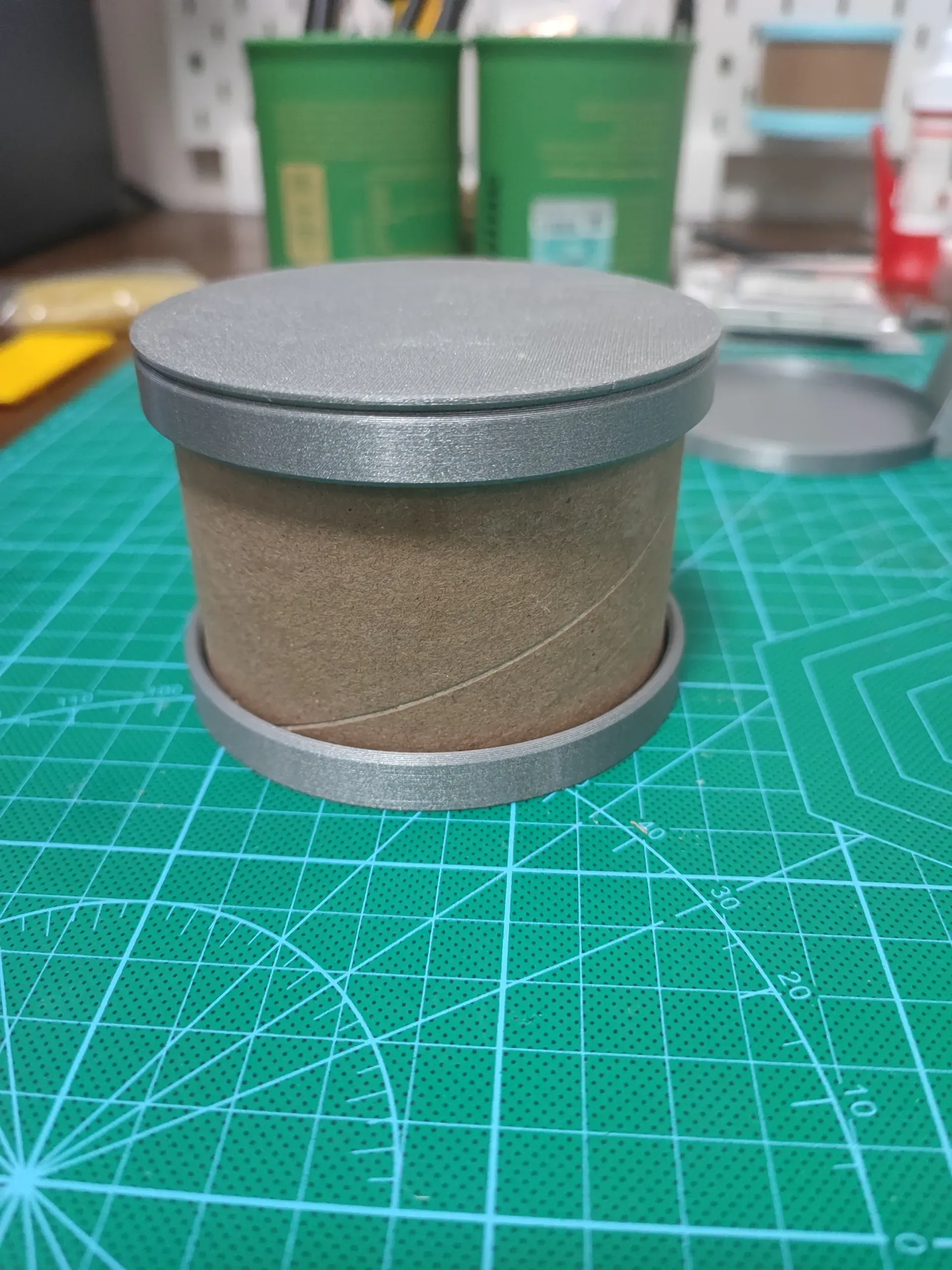

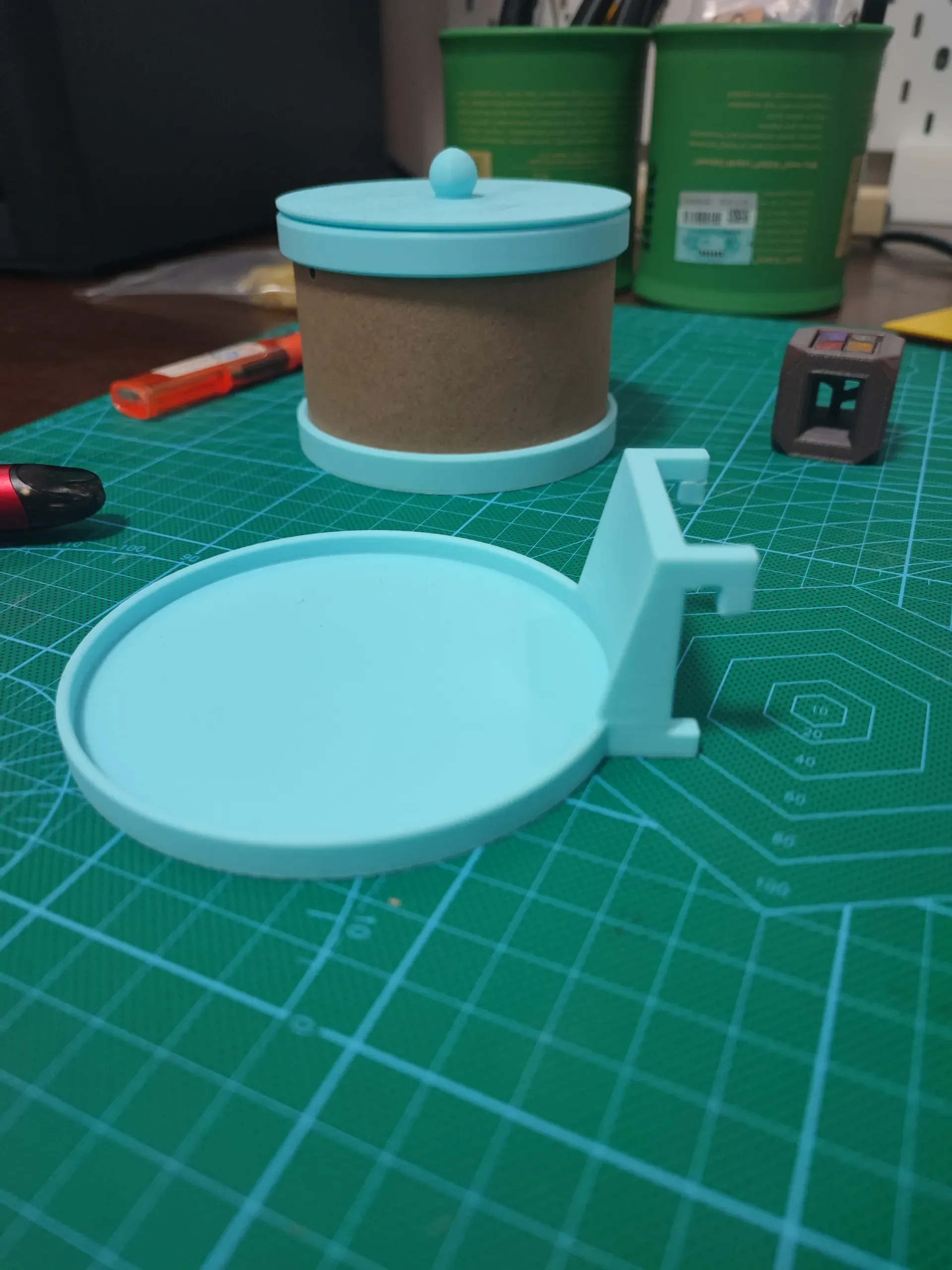

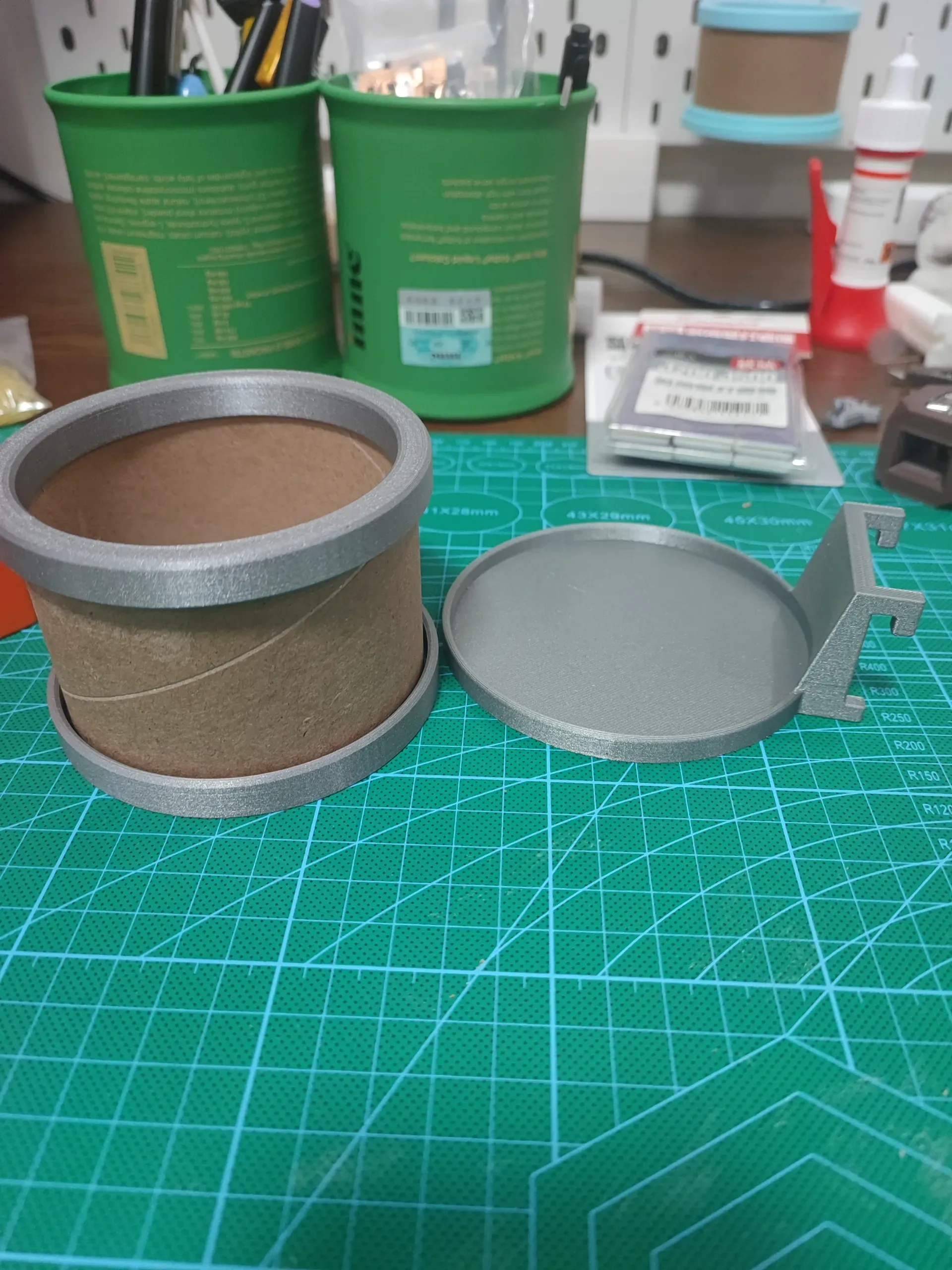

The model is divided into four parts: base plate, reinforcement ring, top cover, and pegboard bracket. There are two types of top covers, with and without buttons, you can choose according to your needs.
You can even just print the base plate and not install the lid and reinforcement ring.

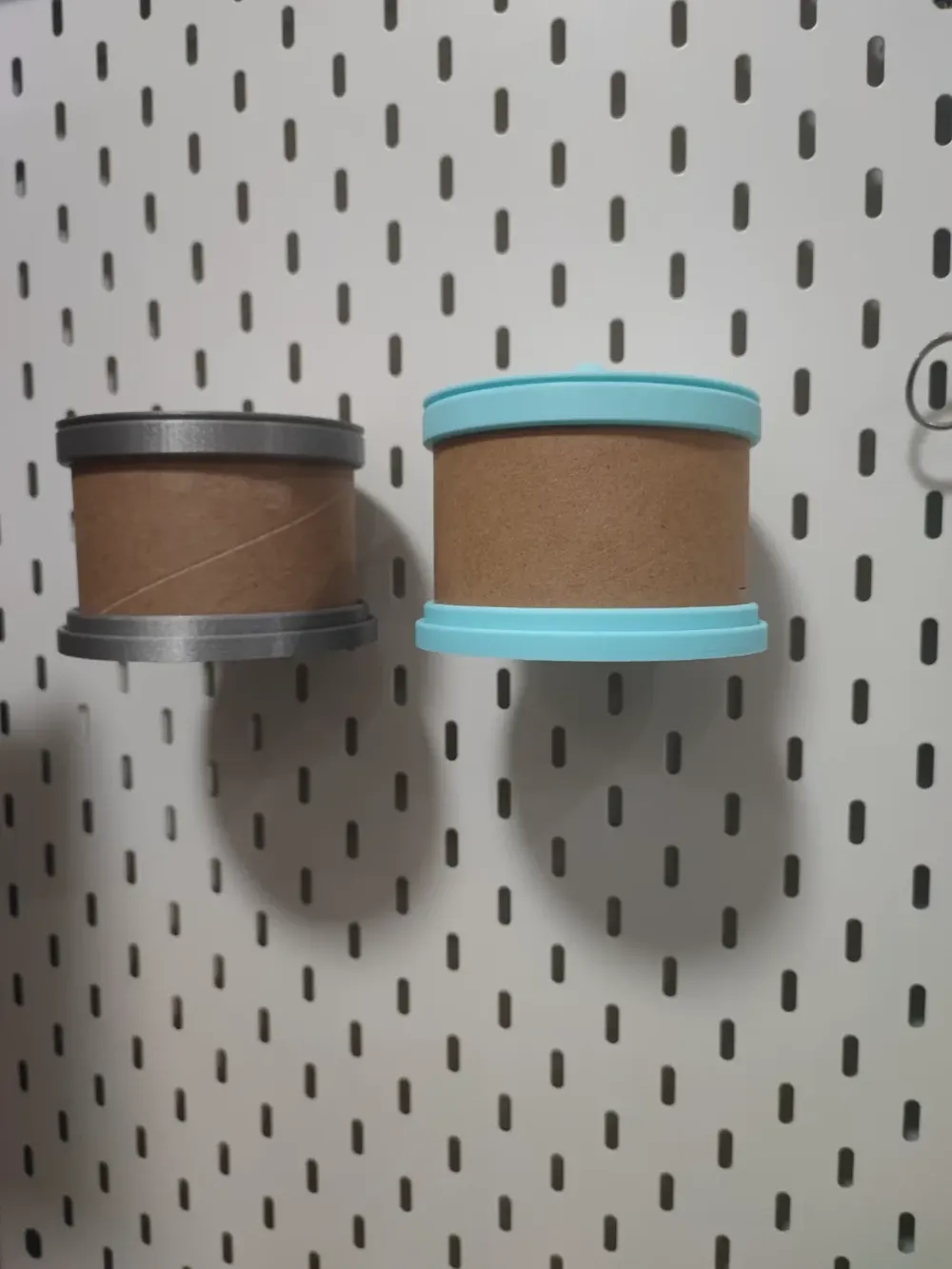

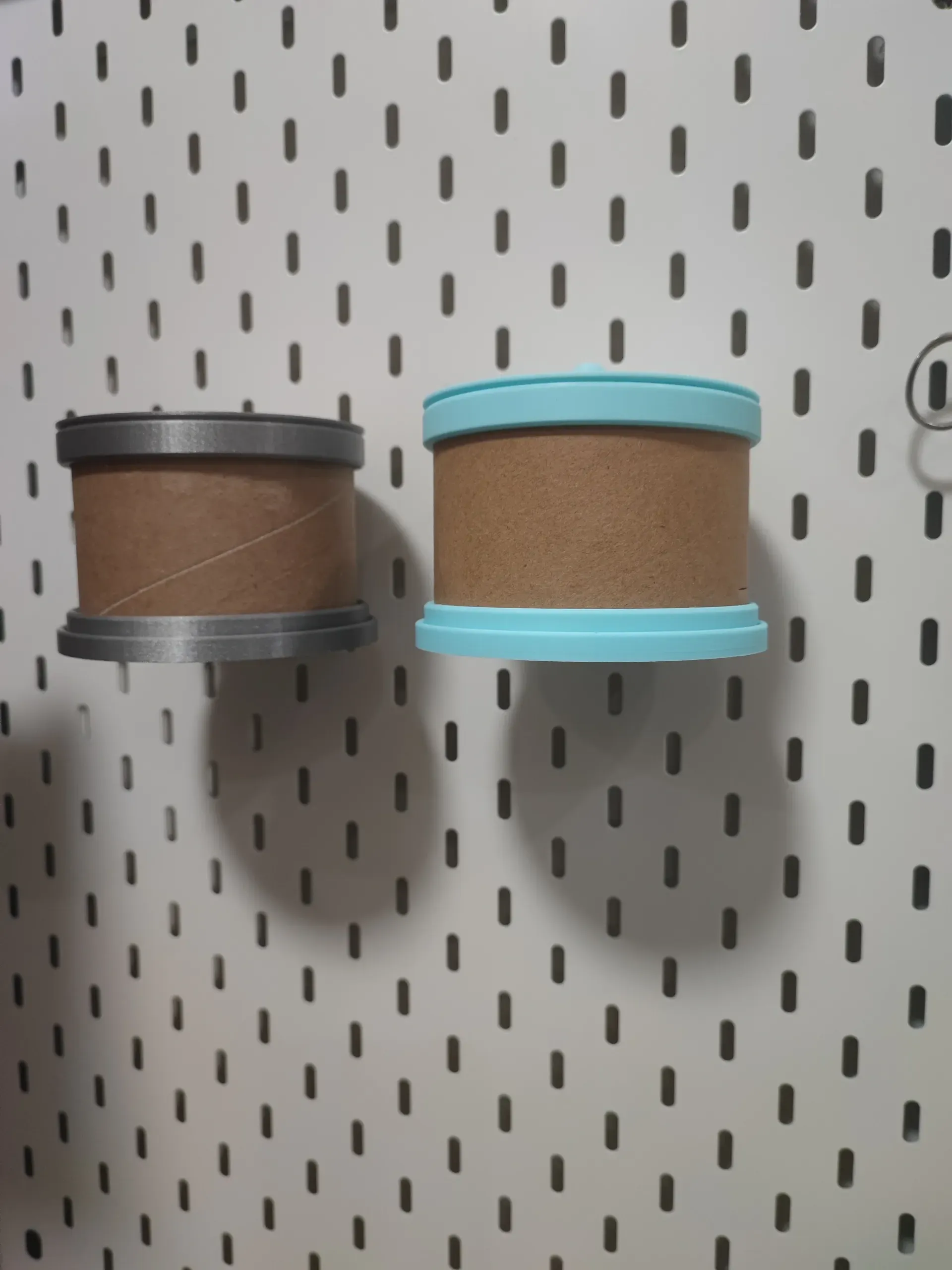

Due to the expansion of different materials, the reinforcement ring may be too large or too small, but it can be pressed in with force. The blue one is PLA+, and the gray one is PETG.

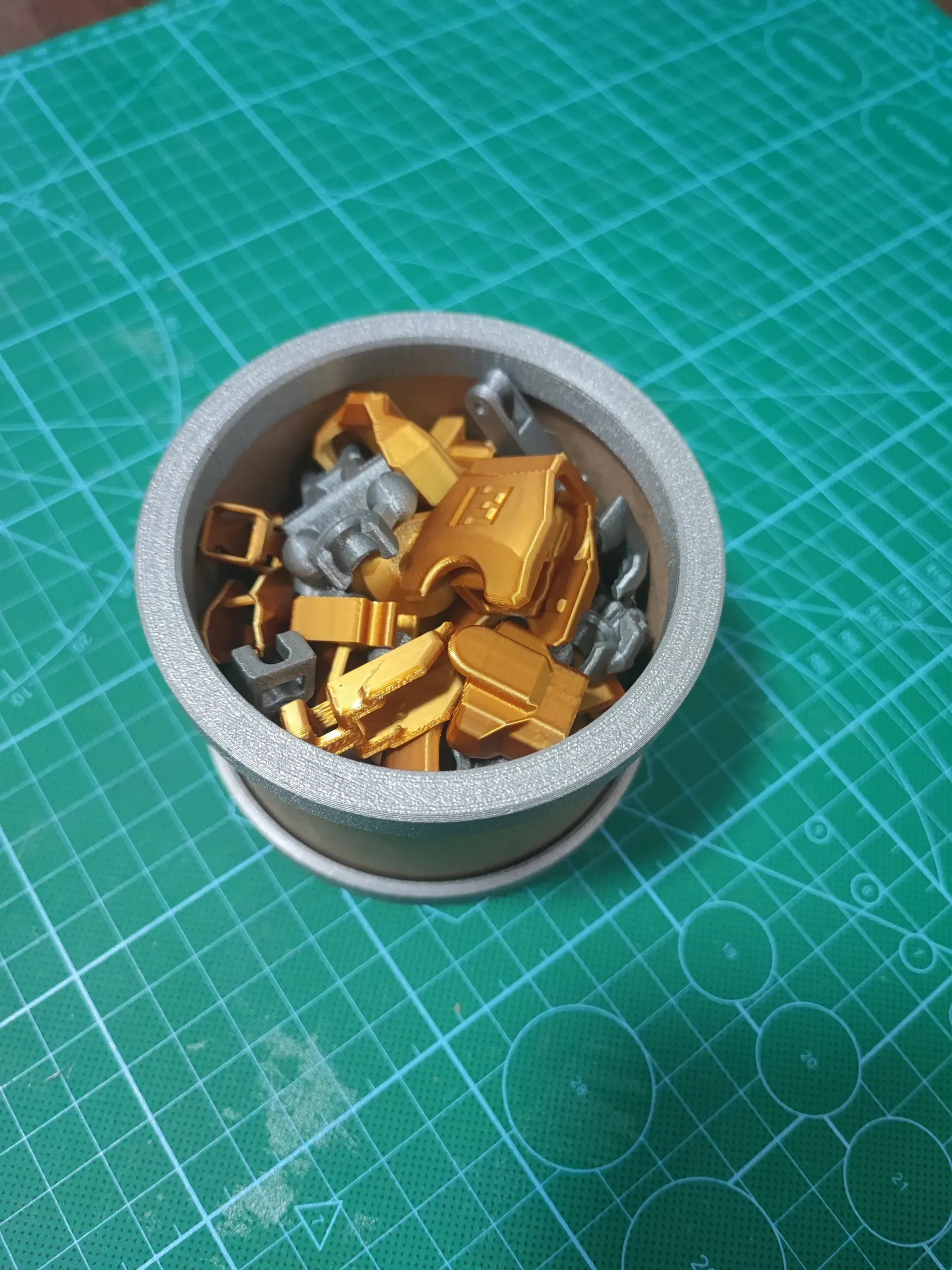

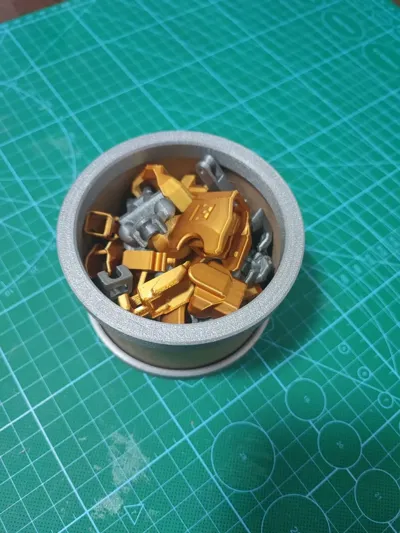

The volume of the box... is just right to hold all the parts of a 150% Dummy13.

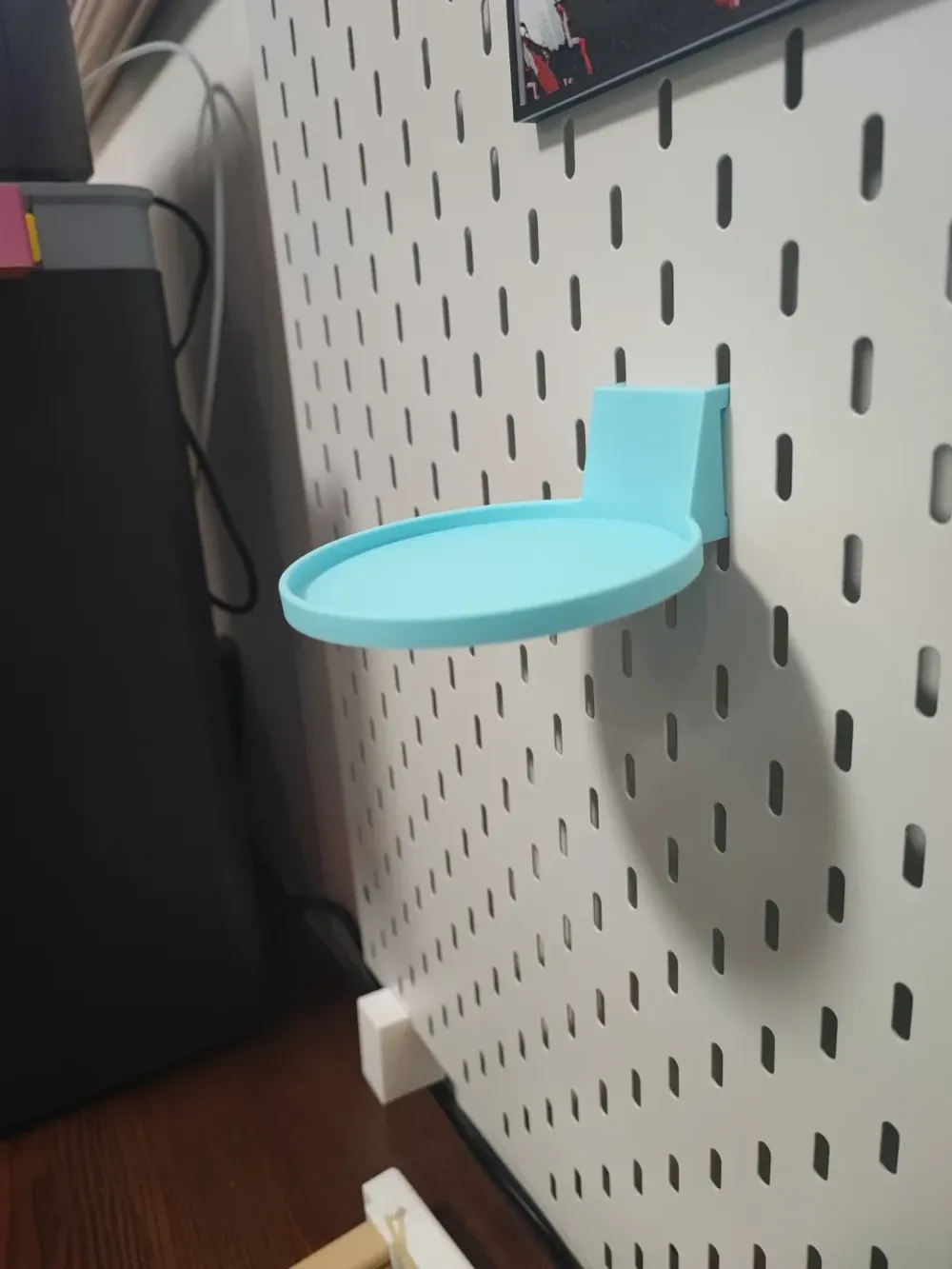

It is recommended to use PETG material for the pegboard bracket. If you are not going to put heavy items on it, PLA can also be used. However, it should be noted that the bracket has limited load-bearing capacity. If you store heavy items, please conduct a pressure test in advance to prevent the bracket from breaking, causing damage to the items or even personal injury.
I have uploaded all the engineering files, including .stp and .f3d, you can modify them according to your needs
