"Black Myth: Wukong" 1/1 Golden Staff Standing Support

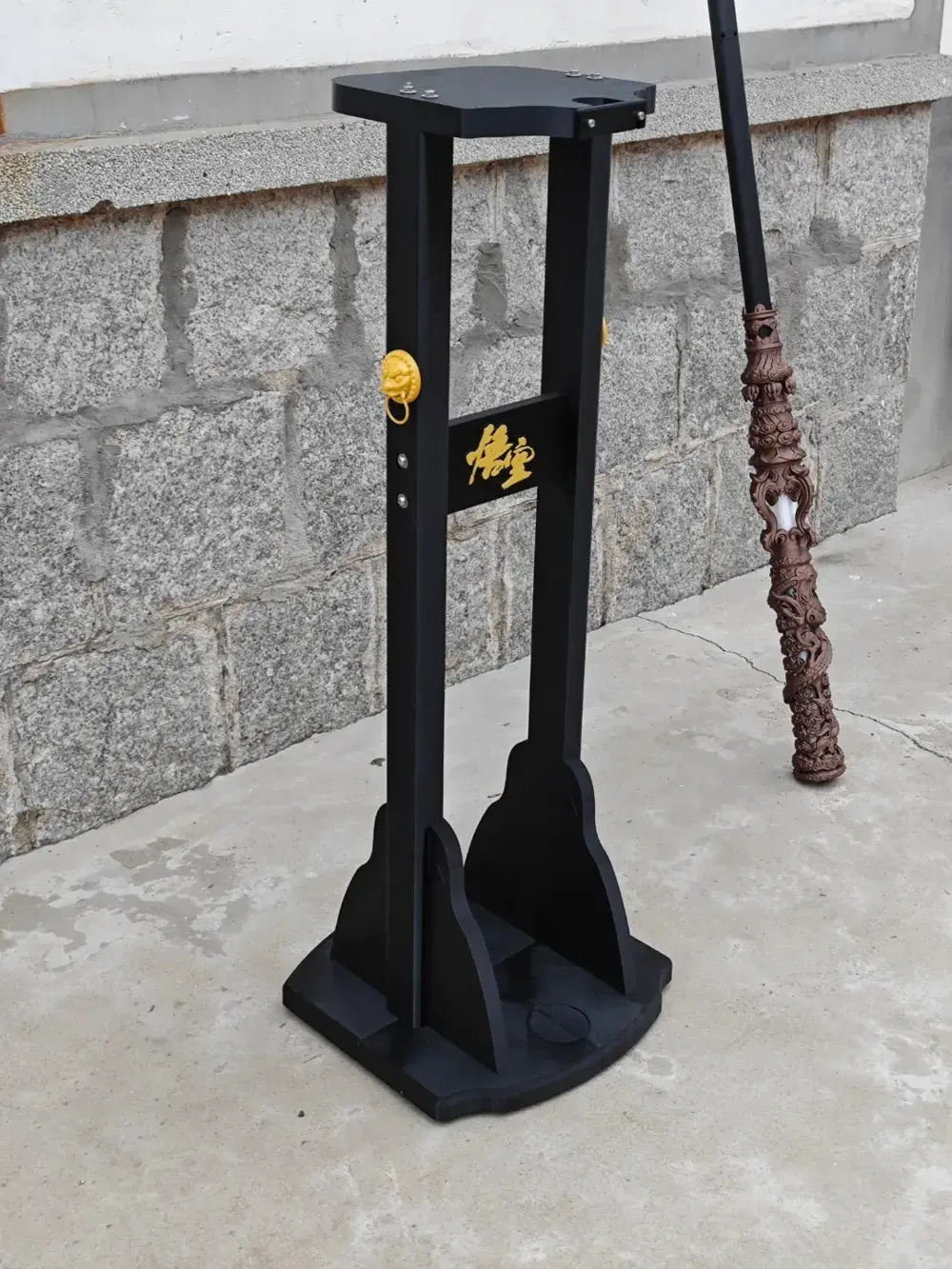

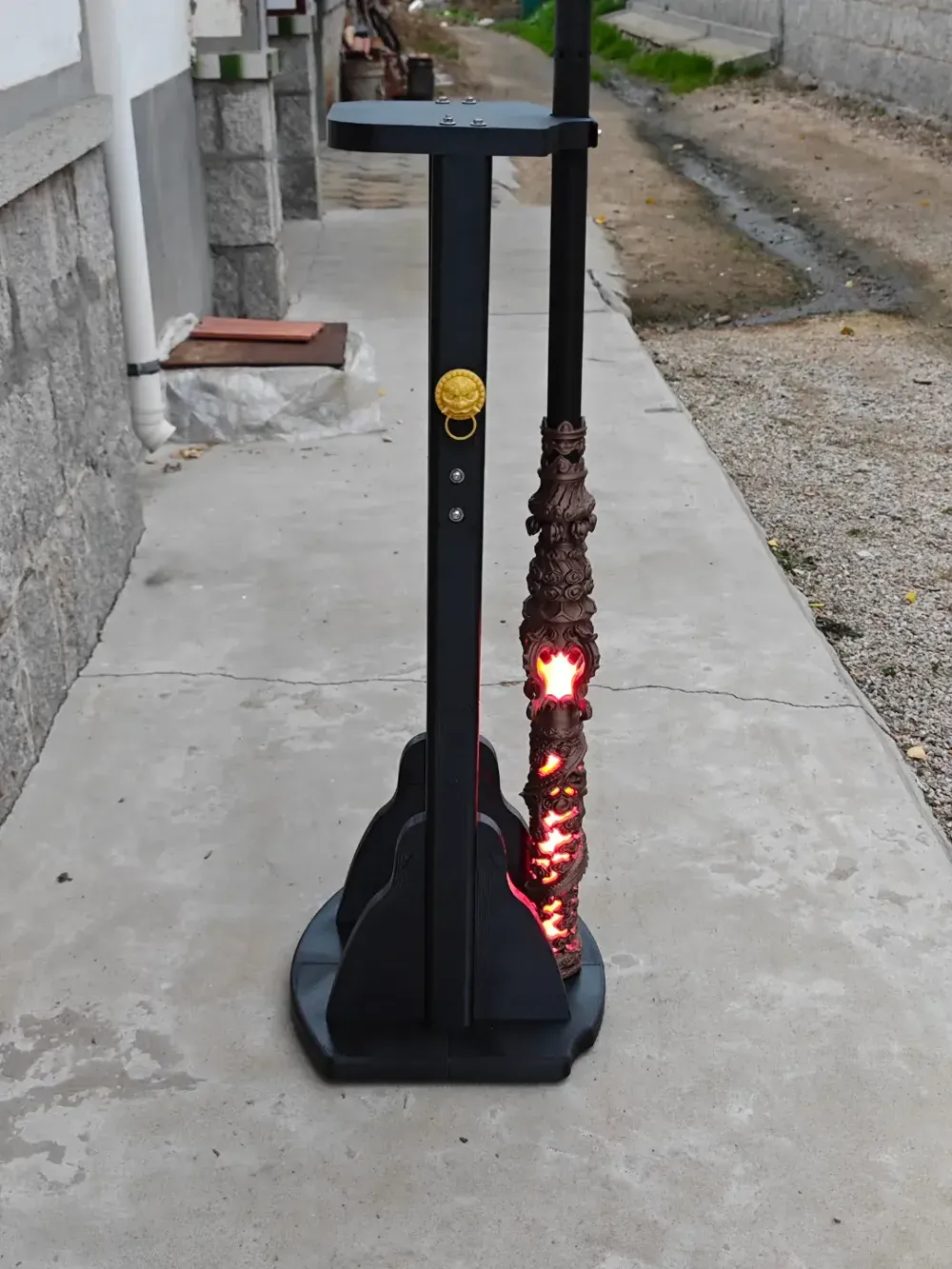

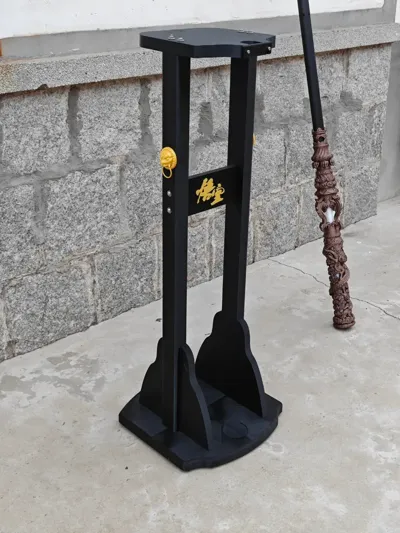

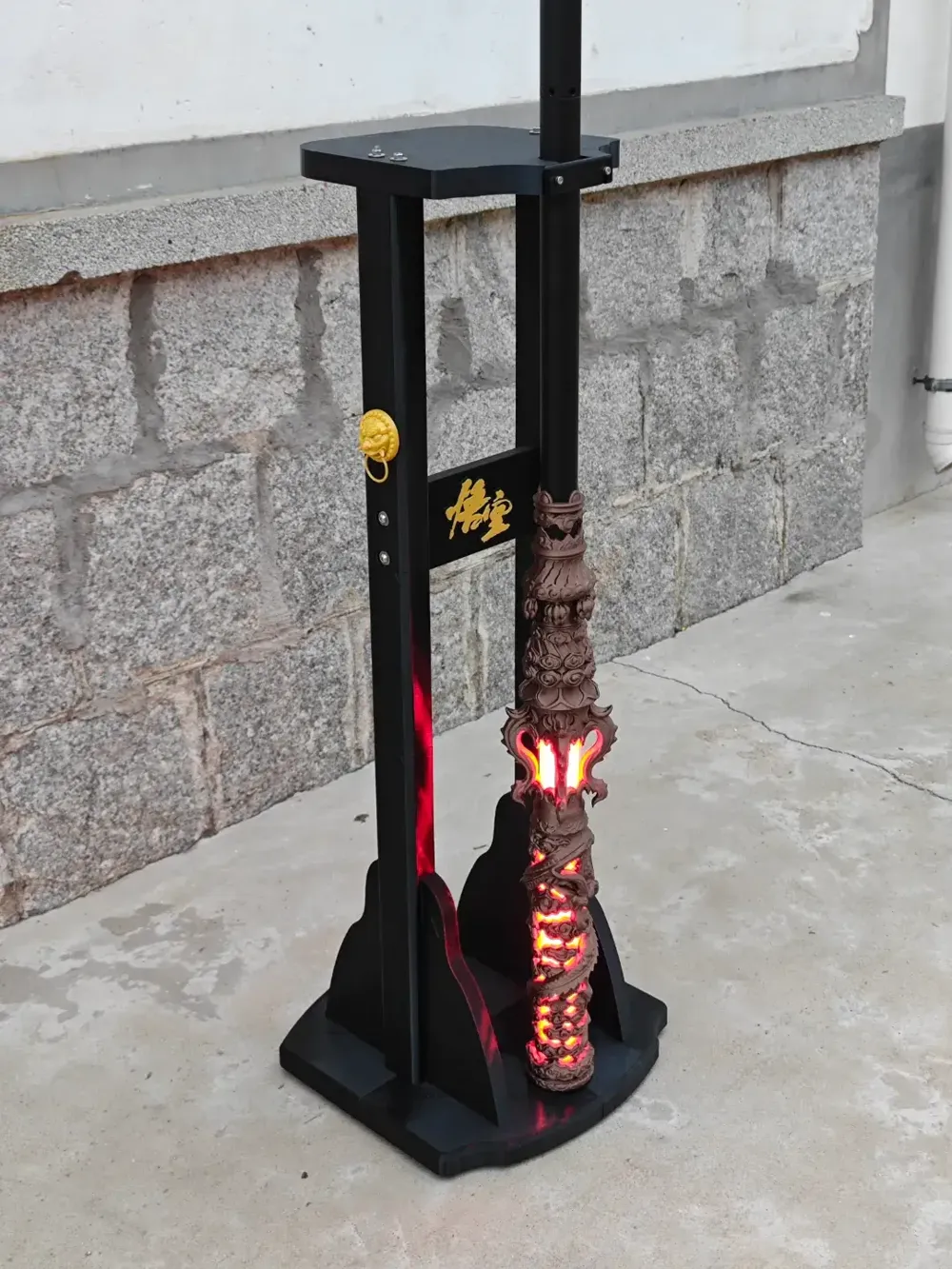

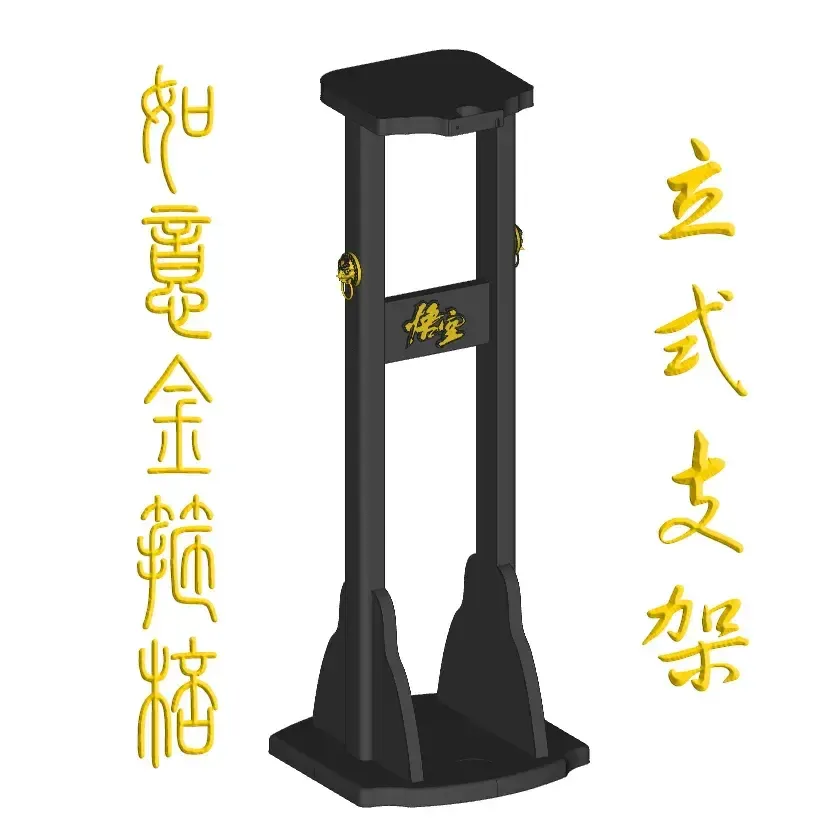

To facilitate the upright display of DaDaLand's 1:1 Golden Cudgel, I have meticulously designed a floor stand.

Standing 99 centimeters tall, its widest base measures 37 x 37 centimeters.

The required hardware is detailed below.

Certain prints will automatically pause mid-process to embed nuts!

Please read the instructions before printing!!!

Please read the instructions before printing!!!

Please read the instructions before printing!!!

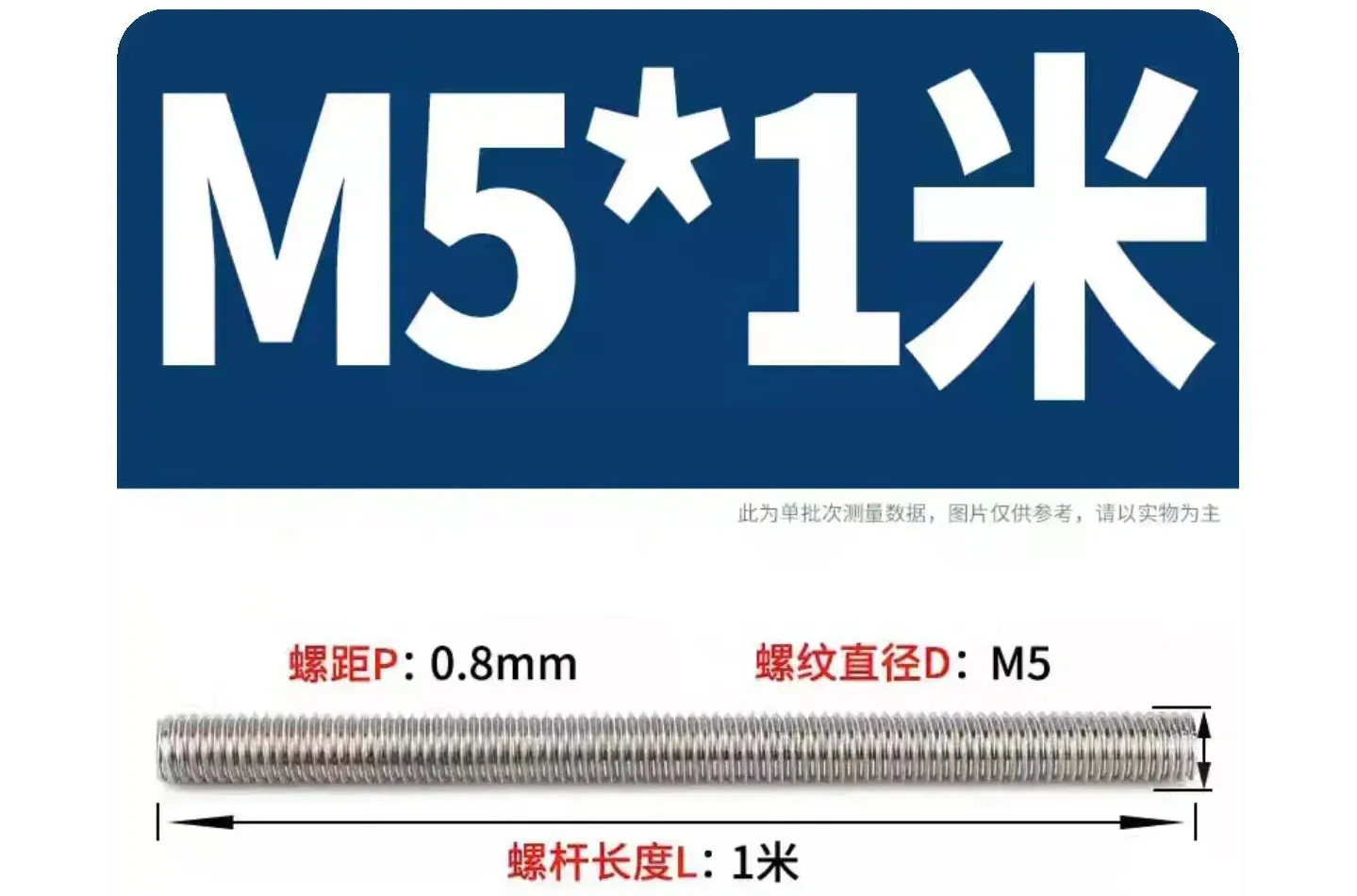

4 x M5 x 1000mm Threaded Rods

12 x Double-Ended Hex Nuts

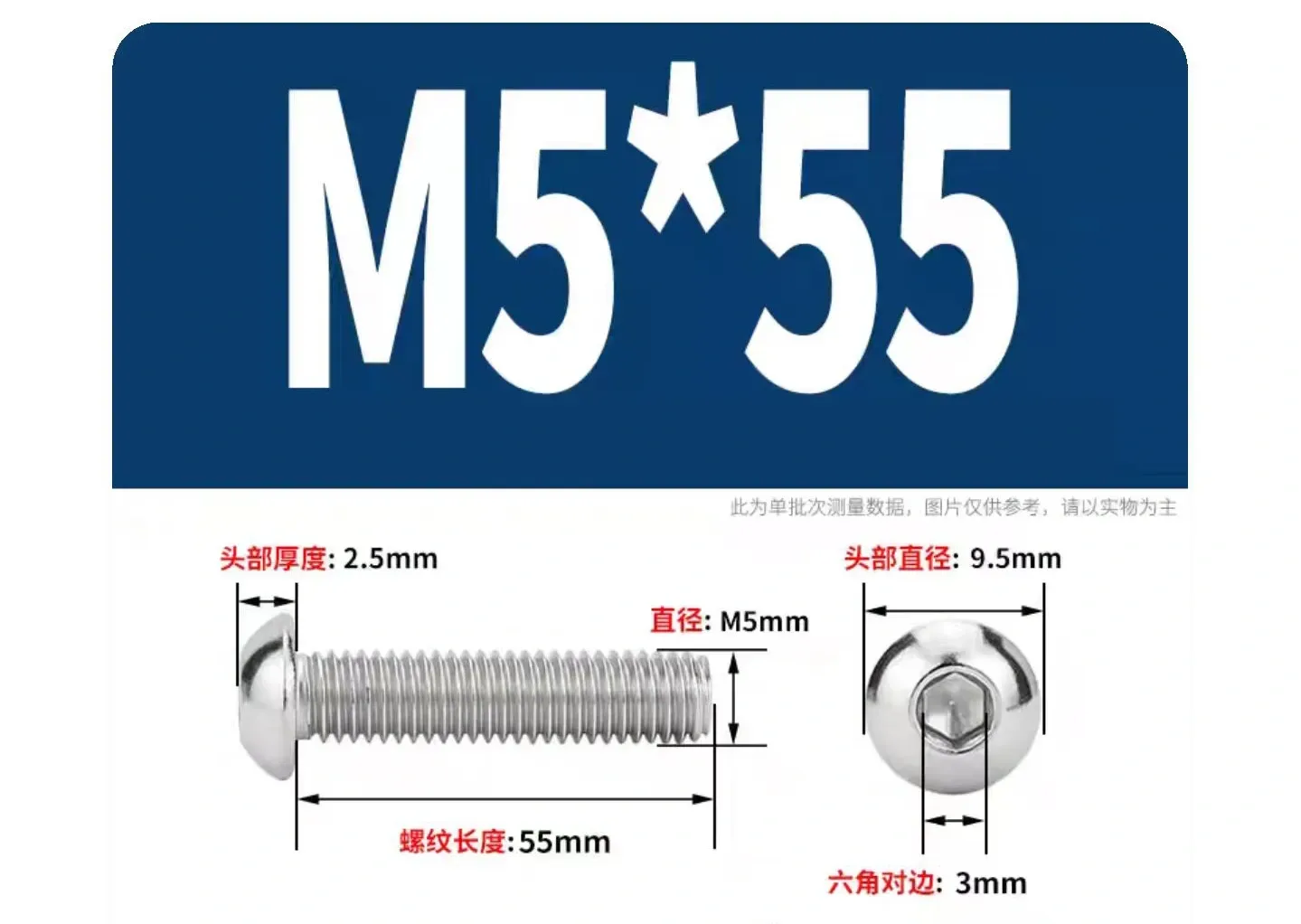

8 x M5 x 55mm Nuts

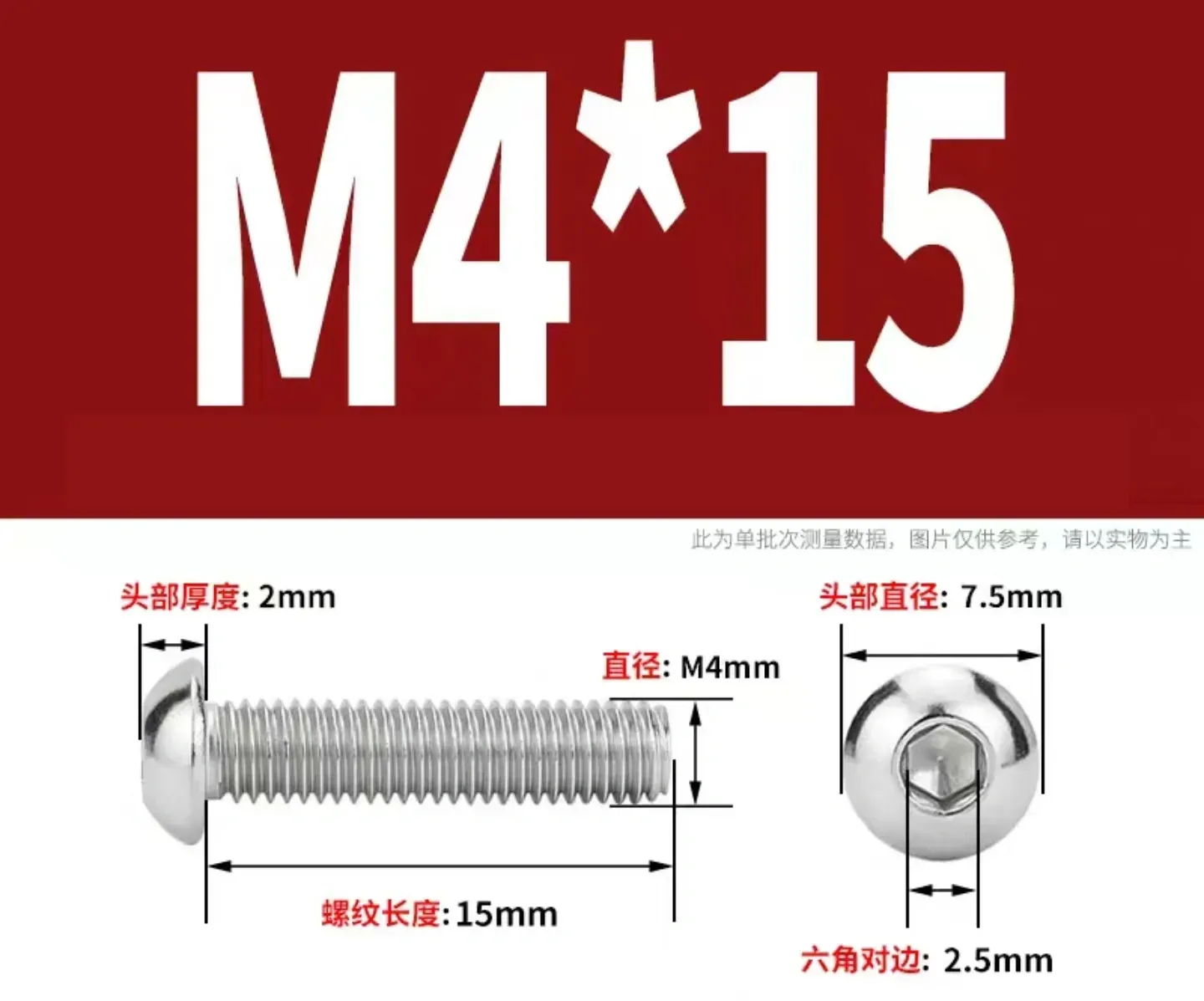

2 x M4 x 15mm Screws

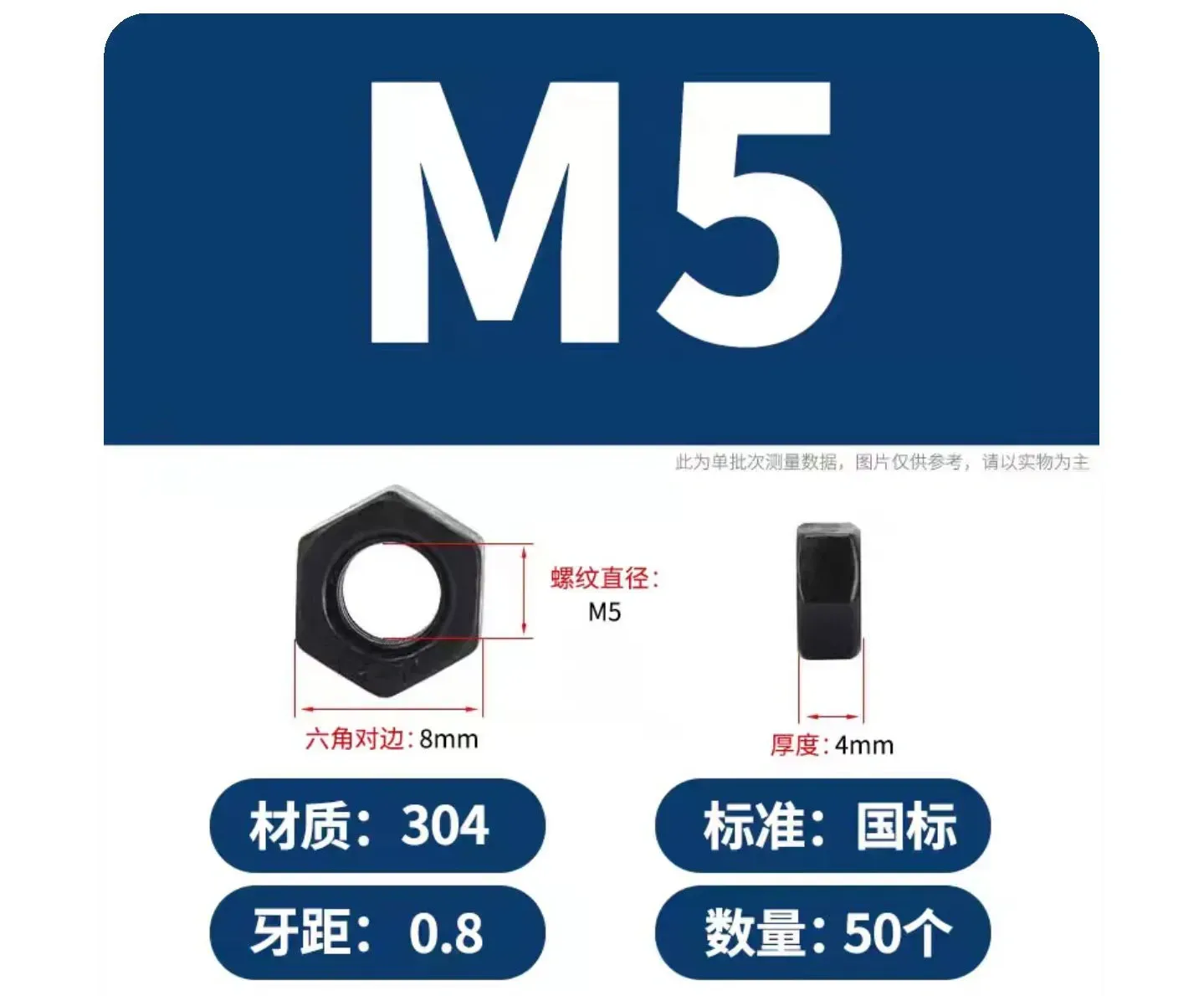

4 x M5 Nuts

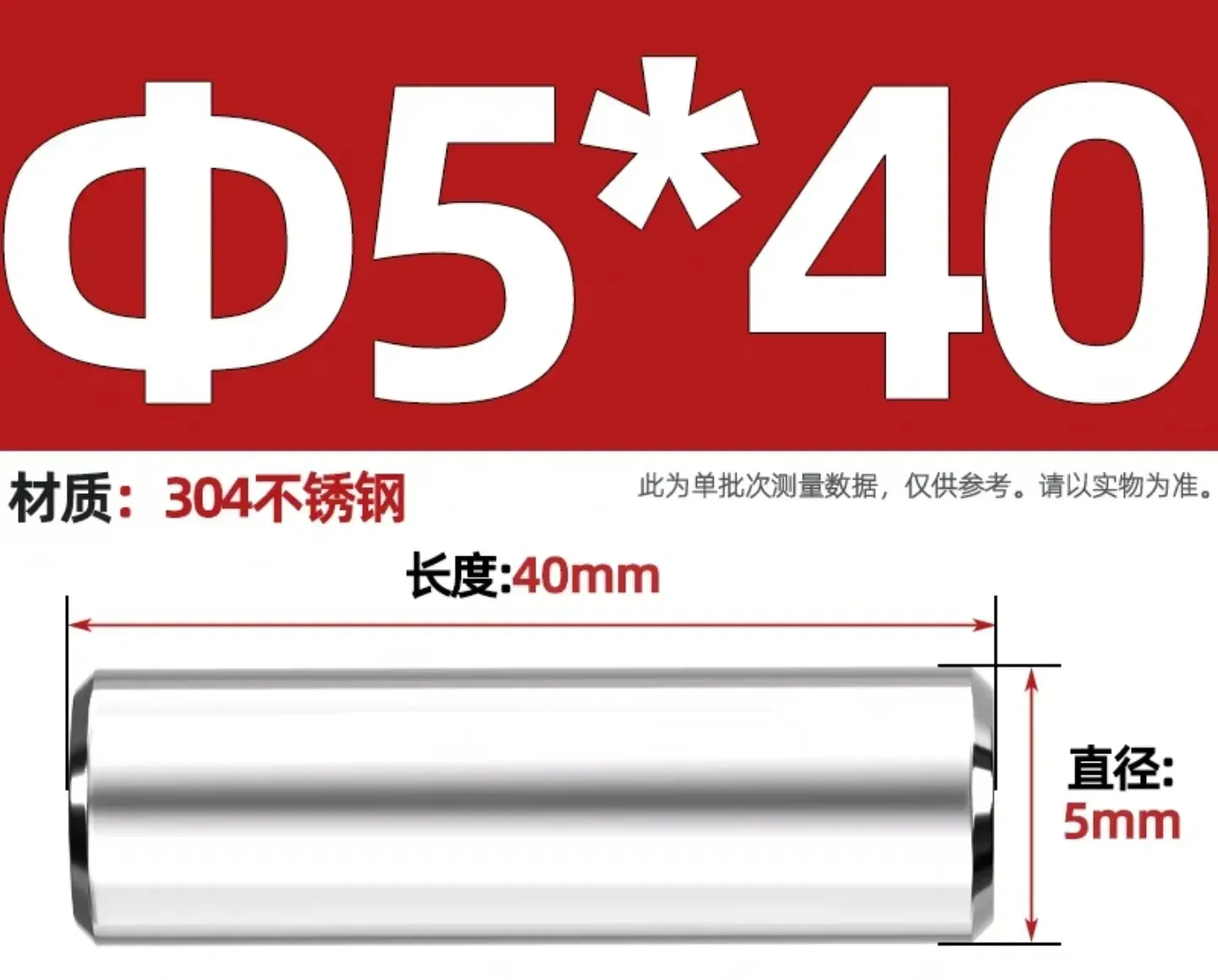

12 x 5 x 40mm Dowel Pins

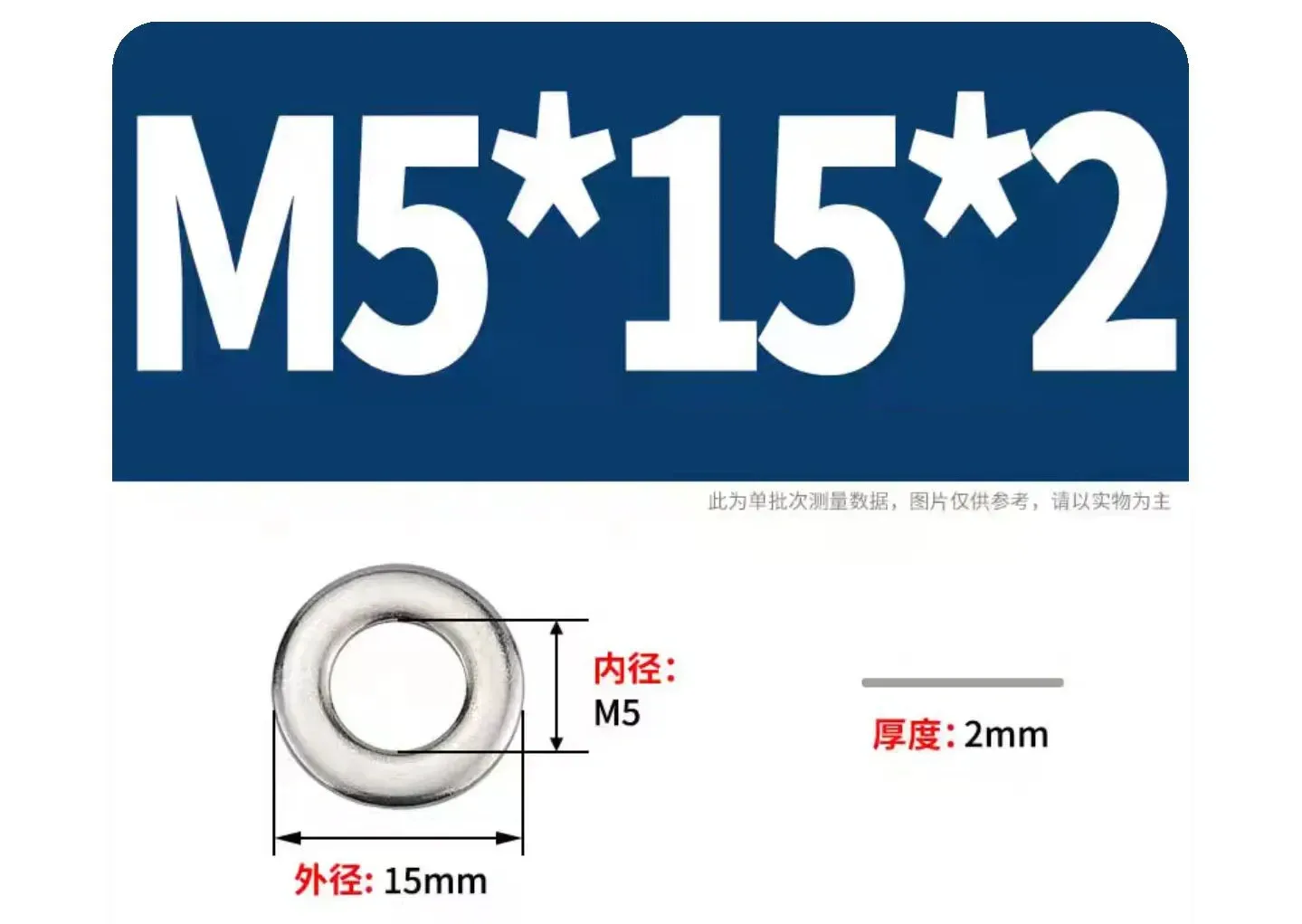

Several M5 Washers

Hardware prepared, let's proceed to the crucial assembly stage!

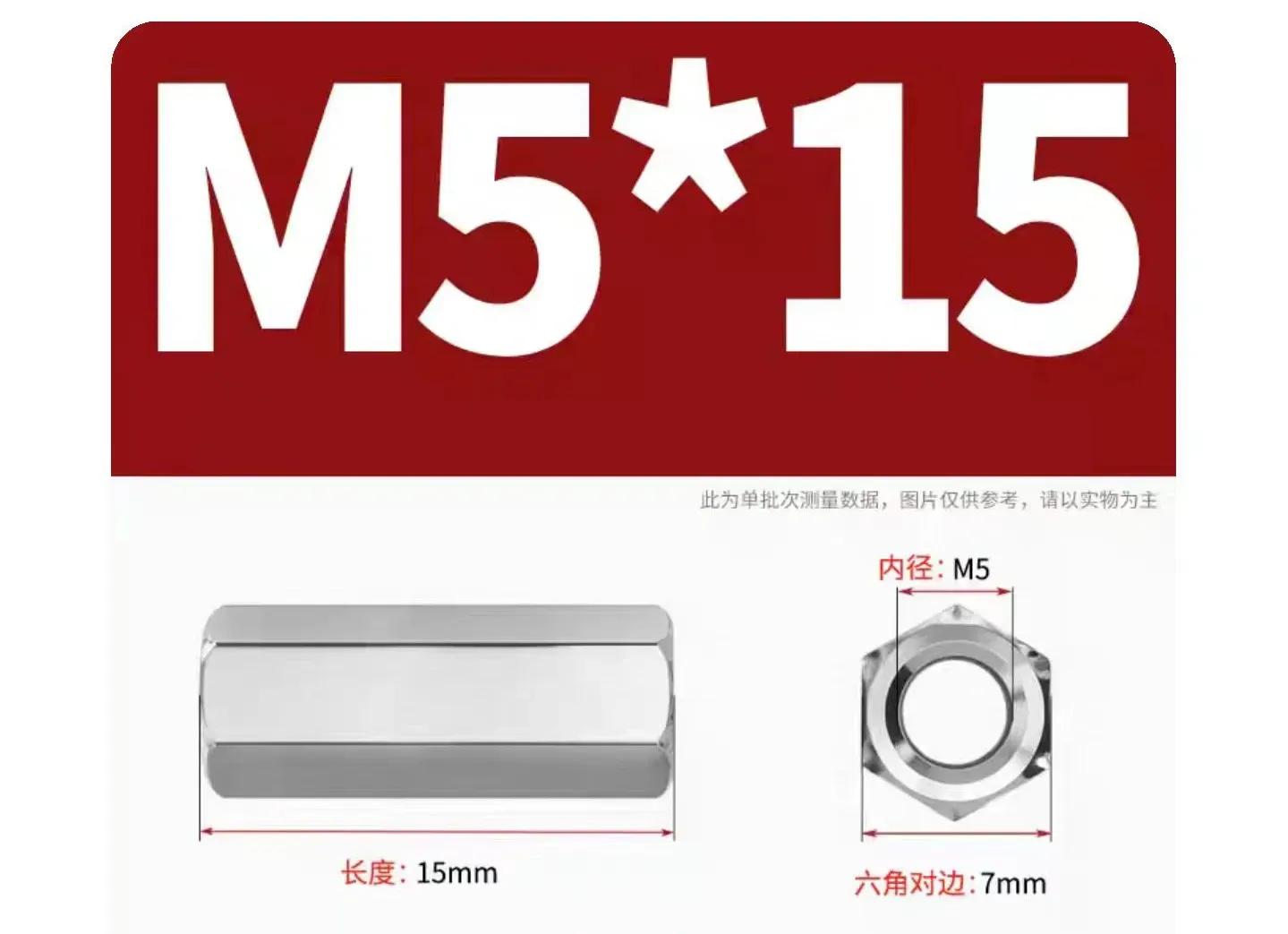

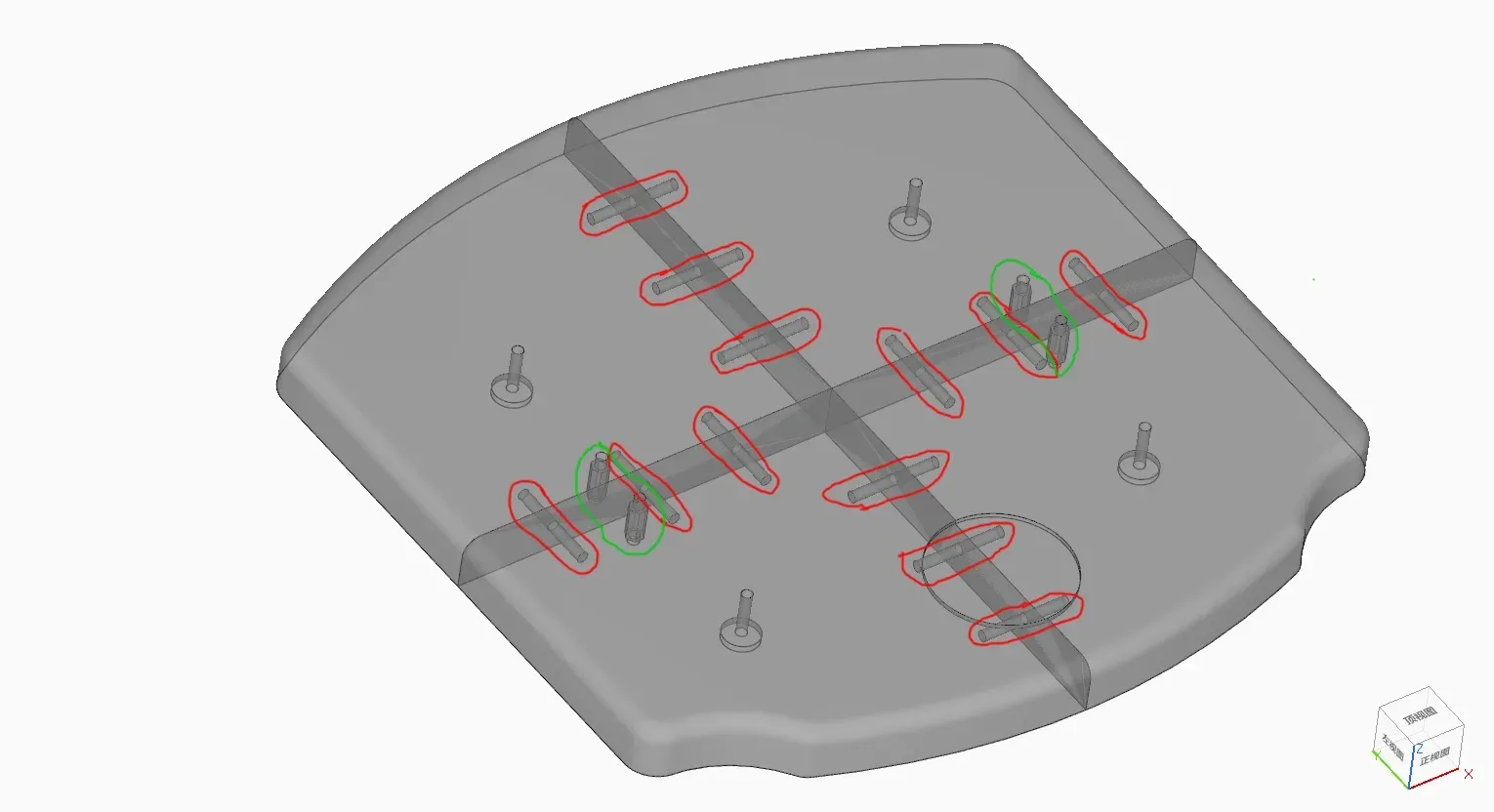

The four base plates will pause during printing to embed 5 x 15mm double-ended nuts (green circle in the image below).

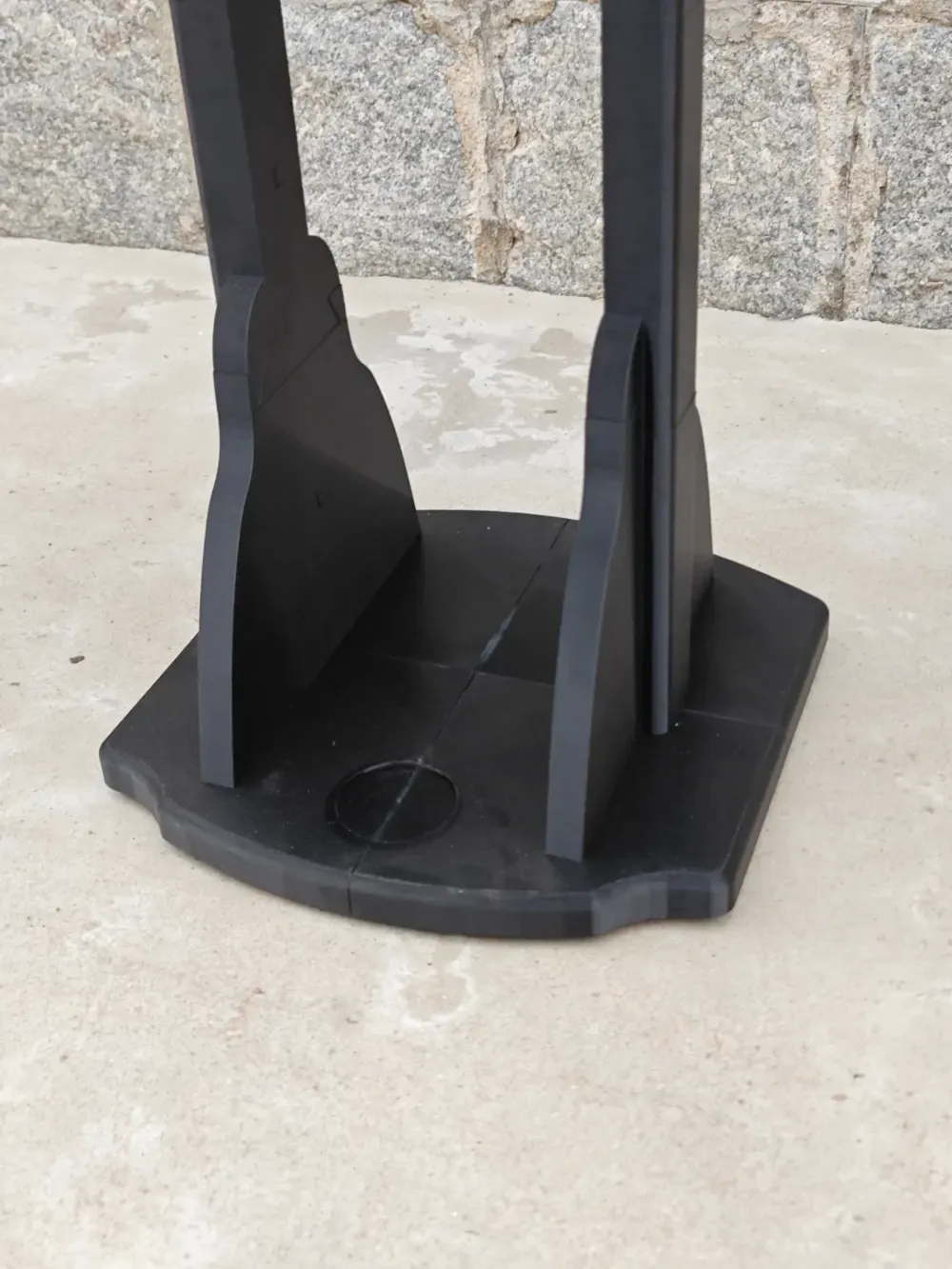

First, connect the four base plates using 12 x 5 x 40mm dowel pins (red circle in the image below), reinforcing with glue if desired.

Then, connect the left and right uprights via their dovetail joints, likewise for the LR uprights.

Next, assemble the base plates and uprights using M5 x 15mm double-ended screws and the four one-meter threaded rods!

(The fifth section of the uprights will also pause to embed nuts)

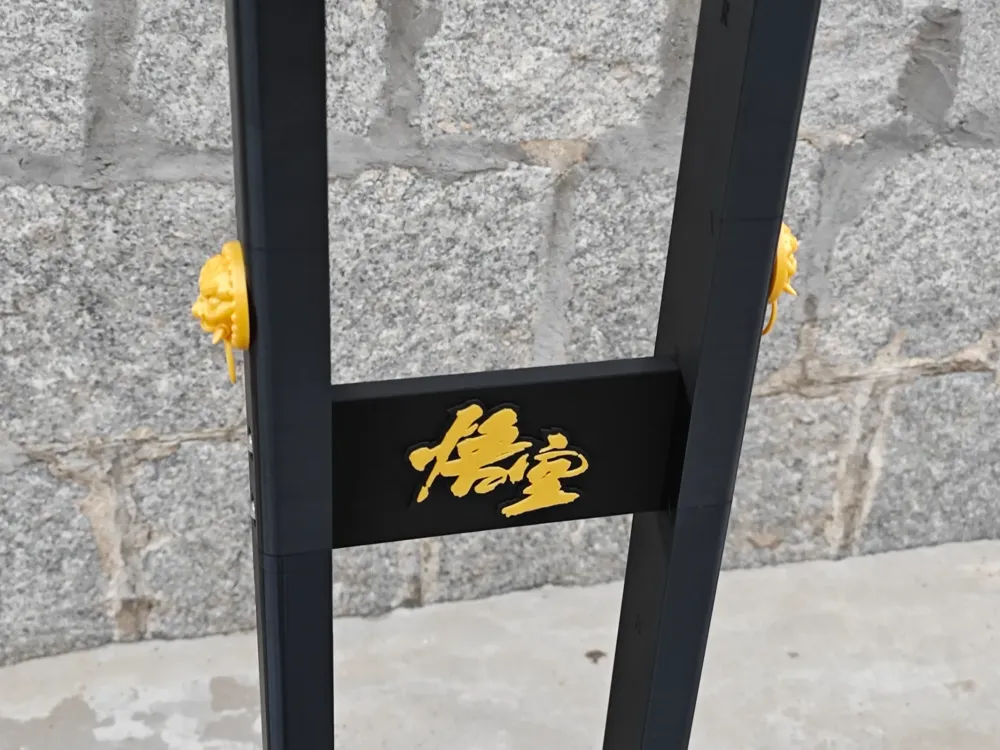

Install the central support to secure the left and right uprights, using 4 x M5 x 55mm screws.

(The central support will also pause twice during printing to embed nuts.)

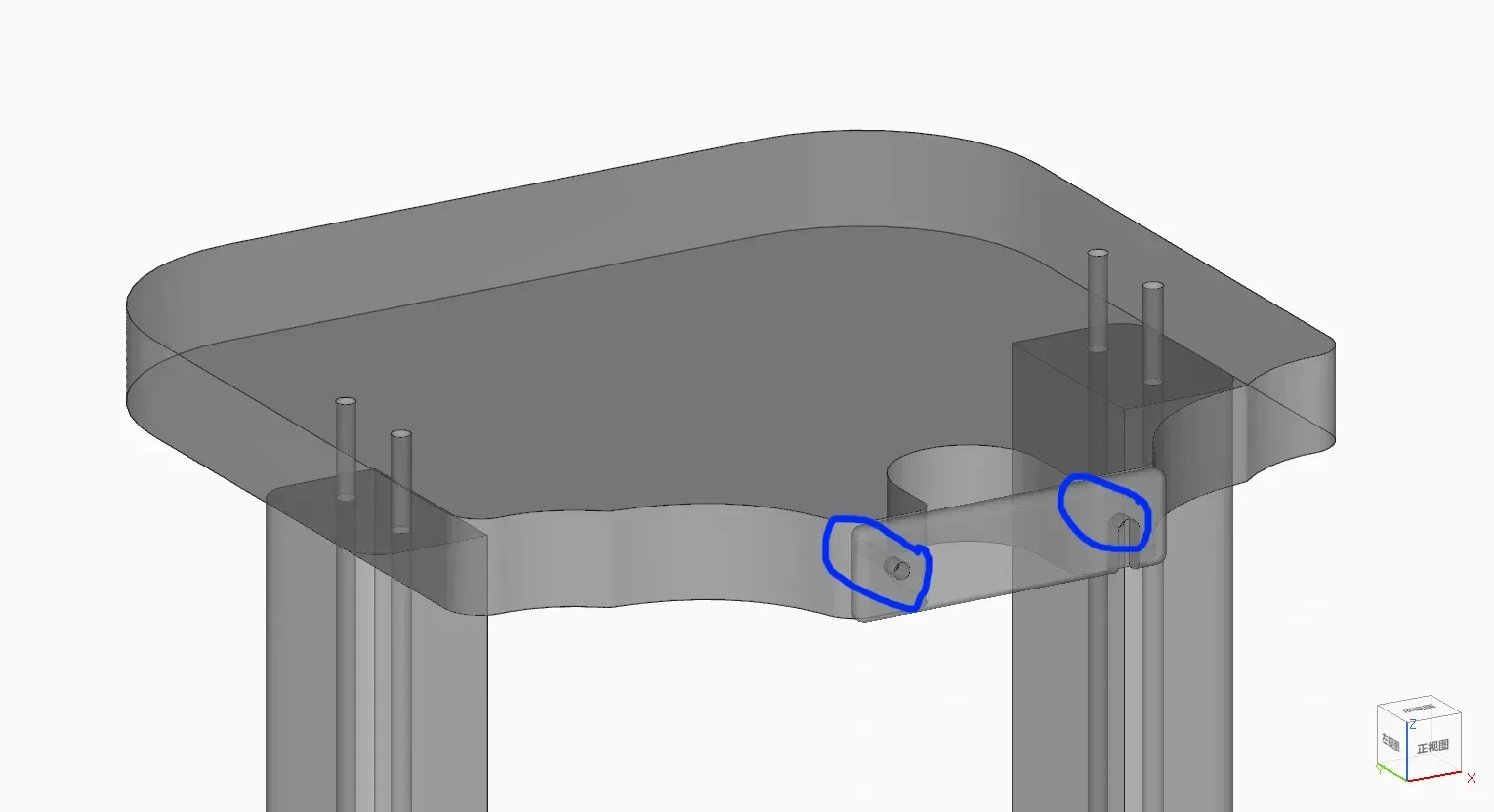

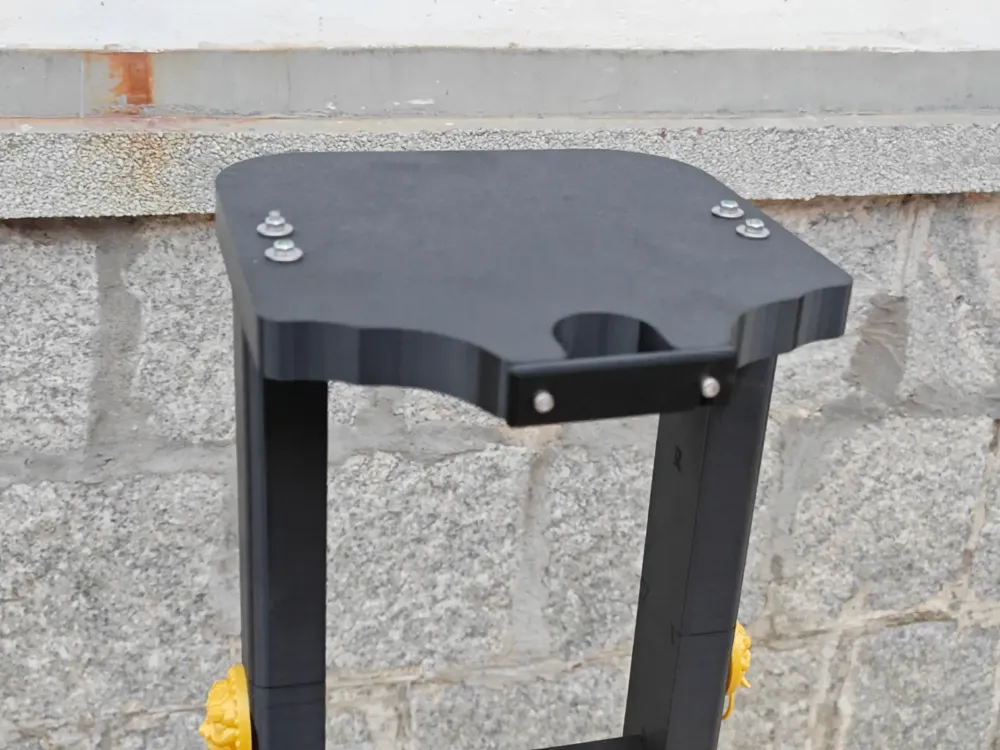

Finally, use two M4 x 15mm screws to secure the top plate stop.

Finally, thread the four one-meter threaded rods through the entire assembly, add washers to both ends, and tighten the nuts. It is recommended to add anti-slip pads under the base plates for added height, preventing the bottom screws from touching the ground.
