Toilet Flange
Print Profile(1)
Description

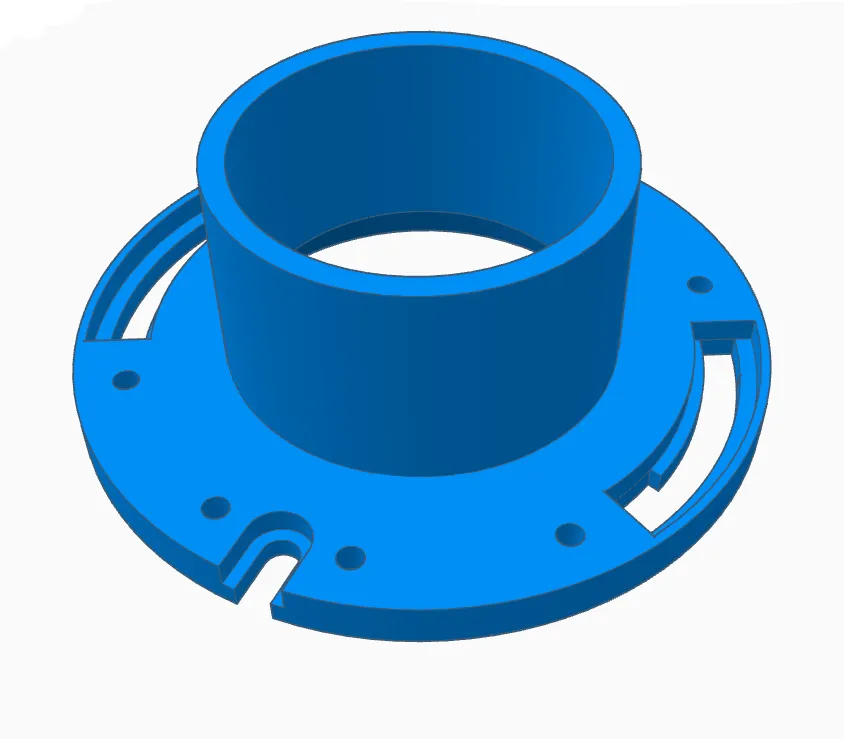

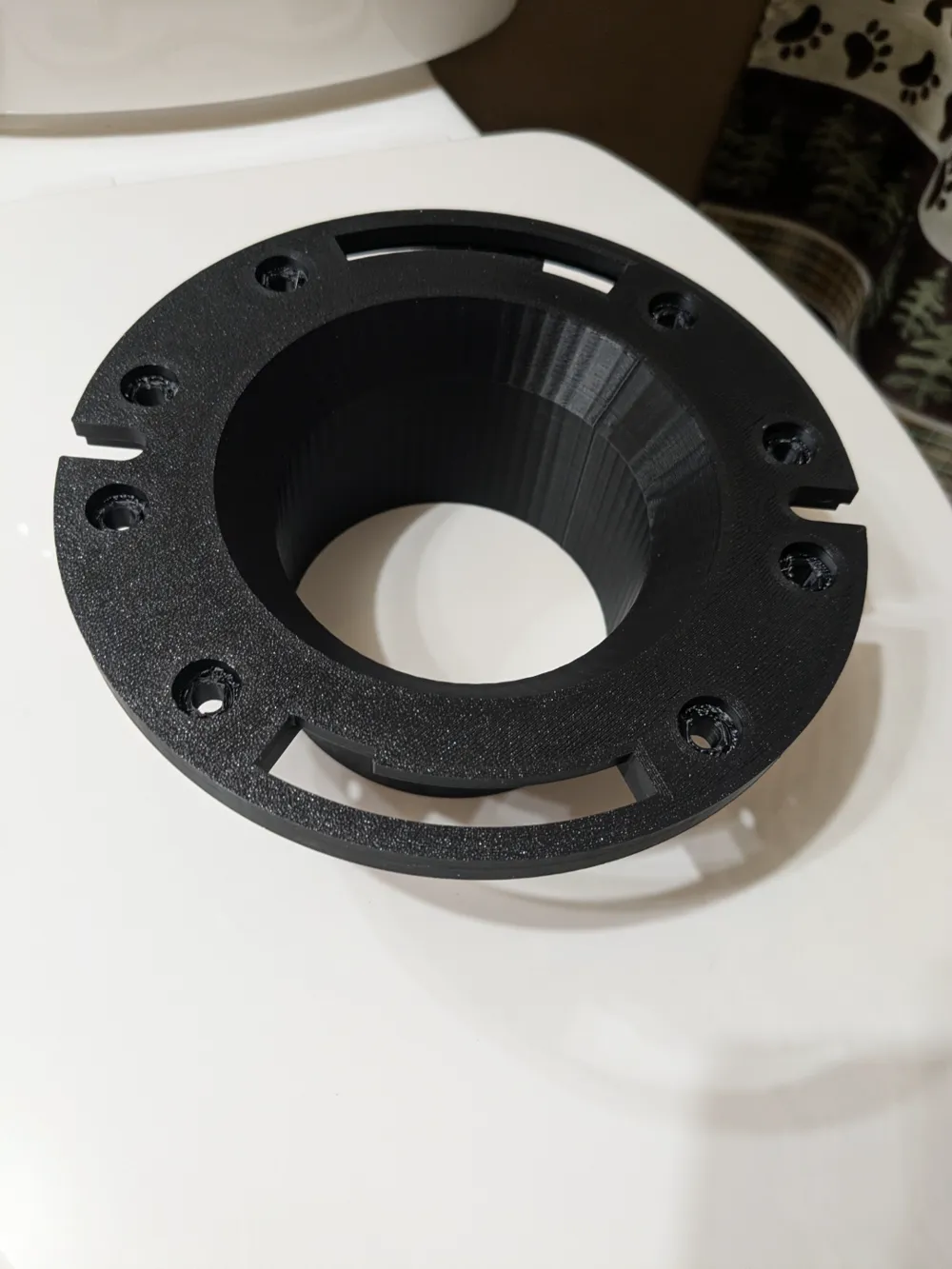

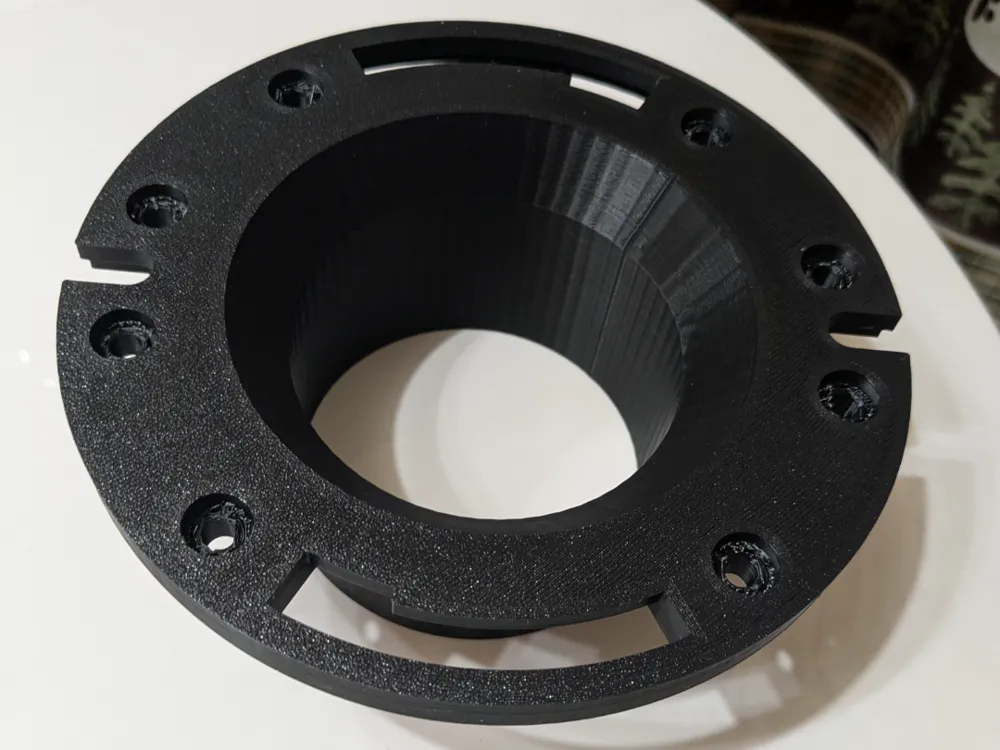

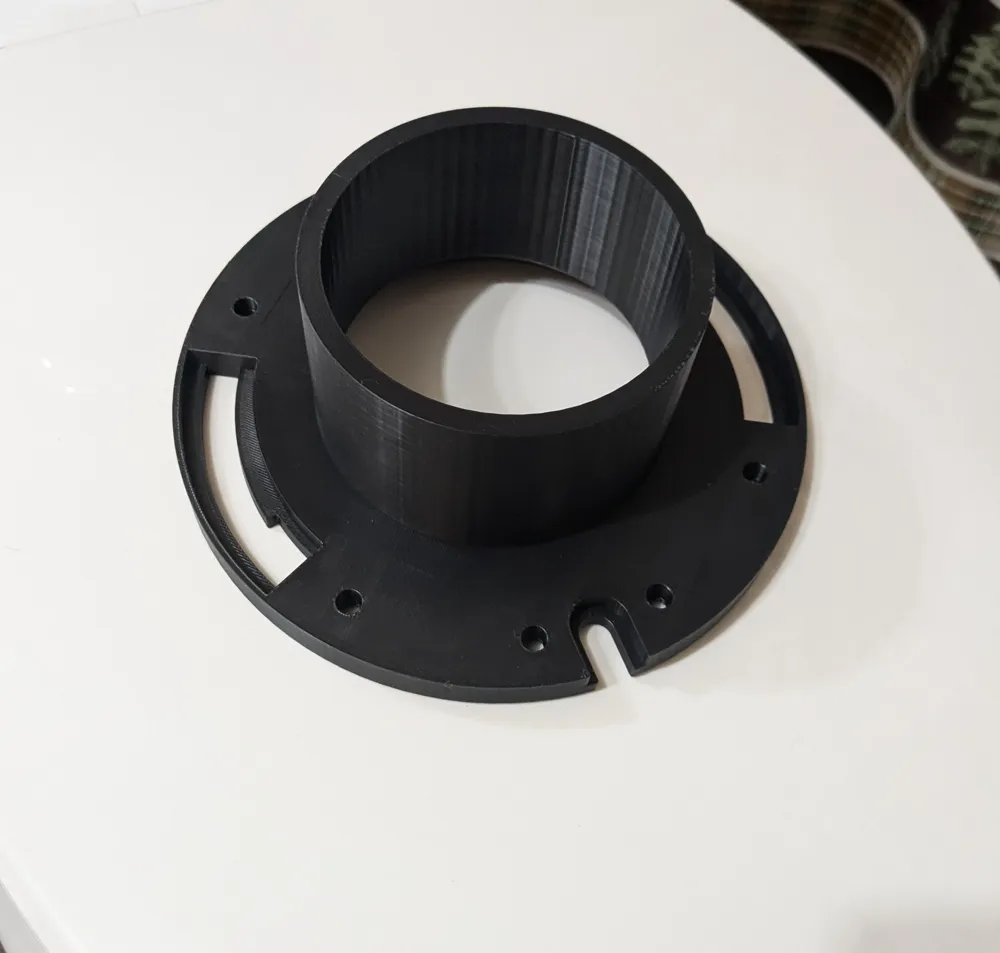

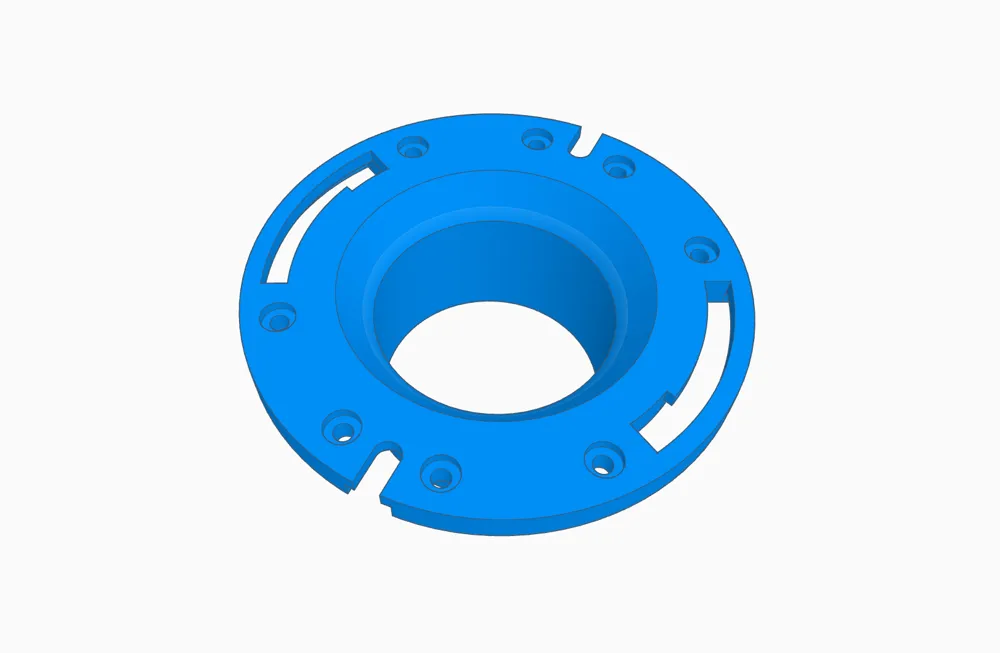

This toilet flange was modeled from the Oatey Fast Set toilet flange. This model fits inside of a 4" and over a 3" PVC pipe. I had to replace a the toilet in one of our bathrooms and our PVC flange was broke. I live in a remote area so I modeled this up to temporarily use until I was able to get a new one. I printed mine in PLA because Its what I had in the AMS but Oatey makes an ABS version so you could easily use that or even ASA. It actually worked really well for me but if you were to print in ABS or ASA then you will want to slightly scale up the model to account for shrinkage. I did add .5" recess holes so you can use other mounting screws. Ours was going into concrete and the concrete anchor screws I had didn't have a tapered head.
The Oatey toilet flange is only about $6-7 but this could at least get you buy like it did me.
