Lorcana Hinged Deck Box - Colored (with magnets)
Print Profile(1)
Bill of Materials
Description
2025/02/13 - !! An updated, supportless version is published with 10x3 and 8x3 magnet options !!
Description

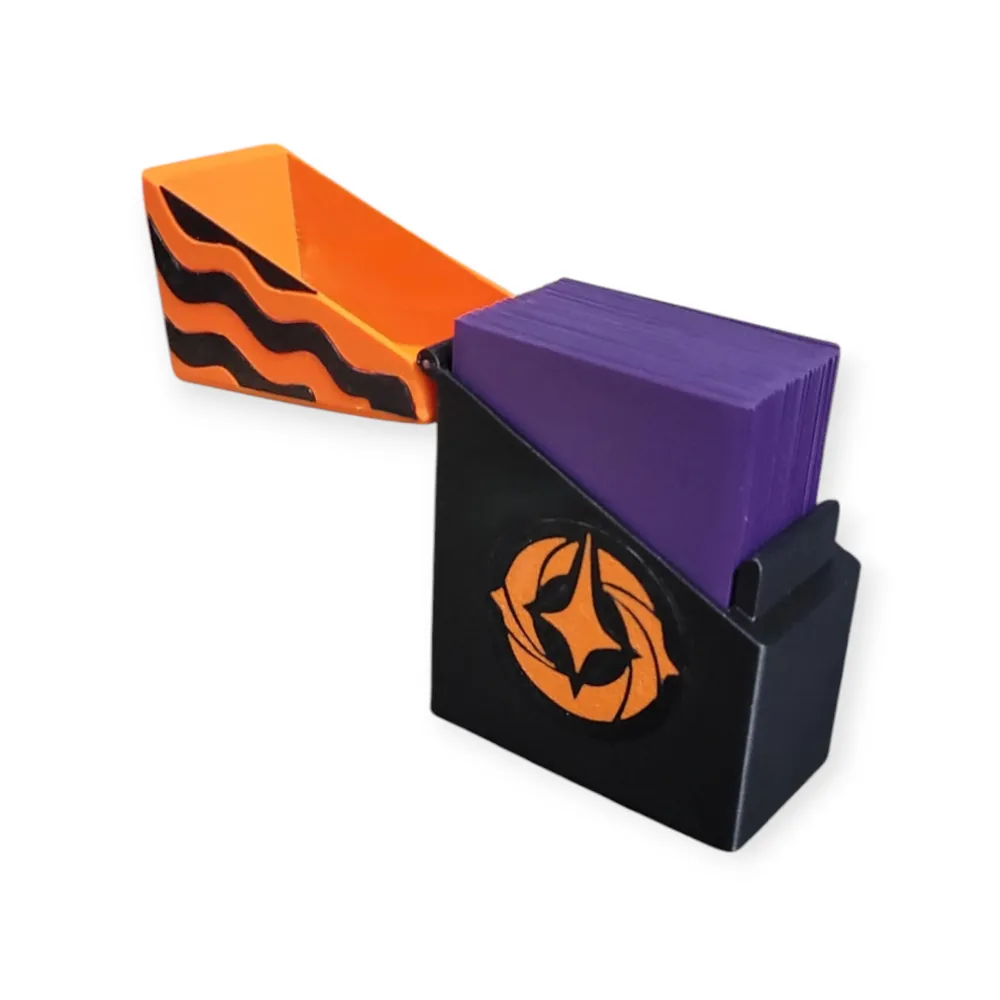

Capacity: Designed to hold up to 60 sleeved cards (with some wiggle room)

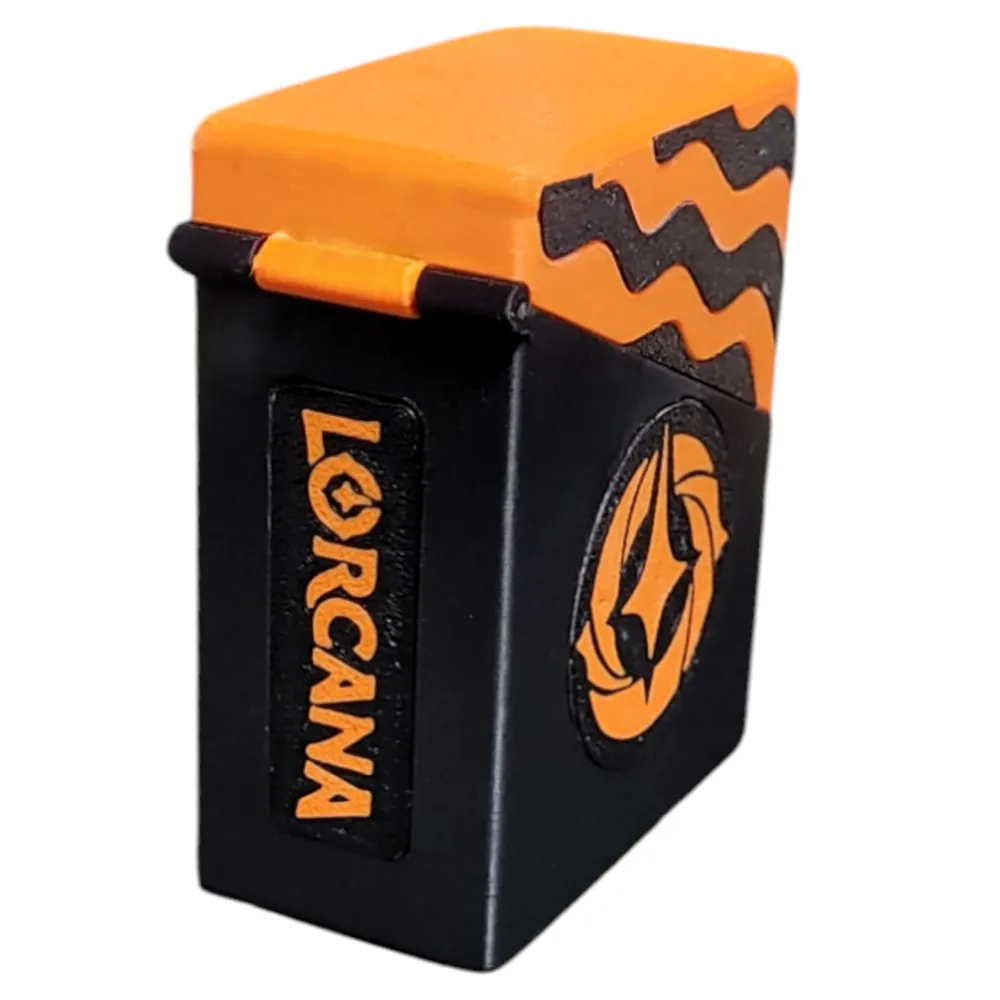

Hinge Lock Mechanism: The hinge can be securely locked by inserting a piece of filament. For a snug, press-fit, ensure the same print profile is used.
Magnet Installation: The design accommodates four 8x3mm round magnets. To insert them during printing:
- Plate 1 → Add a pause at layers #313
- Plate 2 → Add a pause at layers #230
- Insert the magnets, paying attention to their polarities.
- Resume the print.
Surface Patterns: The top and bottom surfaces feature "Archimedean Chords" for visual styling. Feel free to modify this pattern, as it may cause minor gaps in the final print.
For better print quality, and speed in printing, I have split the design elements from the deck box, so when done, you just need to glue them in place!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
