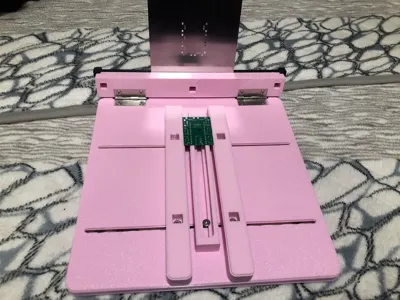

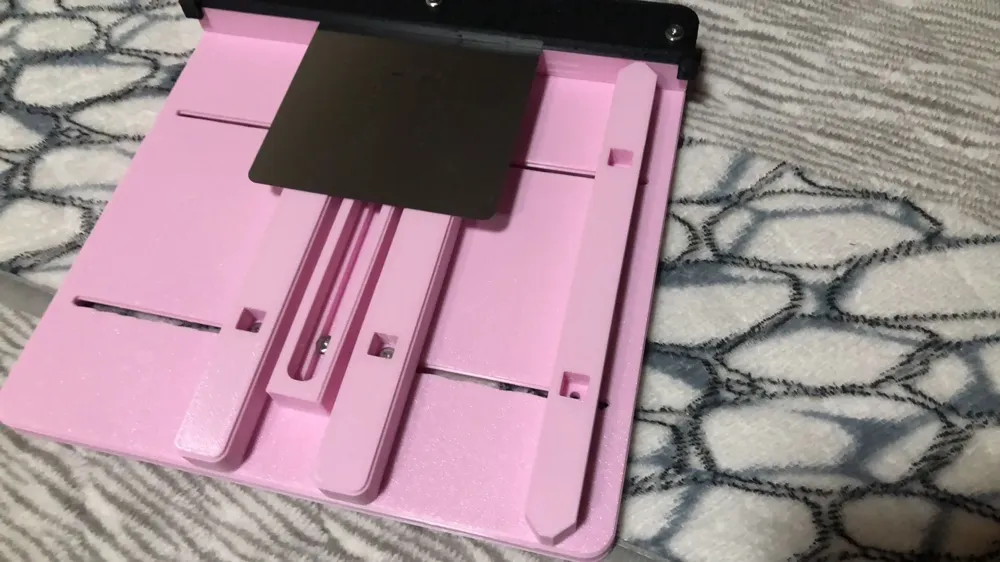

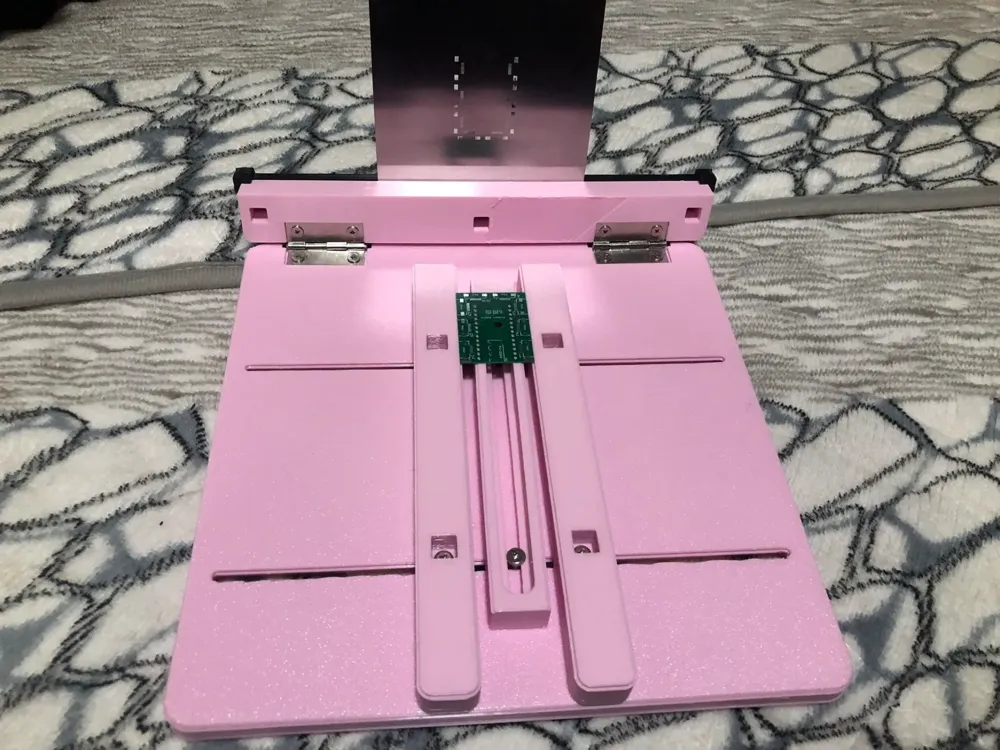

SMT Solder Paste Printing Platform (Suitable for 0.8 Thickness)
Print Profile(1)
Description
A steel mesh was recently fabricated
A printing platform needed to be constructed
Considering future versatility
Therefore, a larger design was prioritized
Existing M3 screws, nuts, and hinges were available
These components were conveniently utilized
My plates are all 0.8 MM thick
If you require a different thickness
Feel free to contact me for modifications

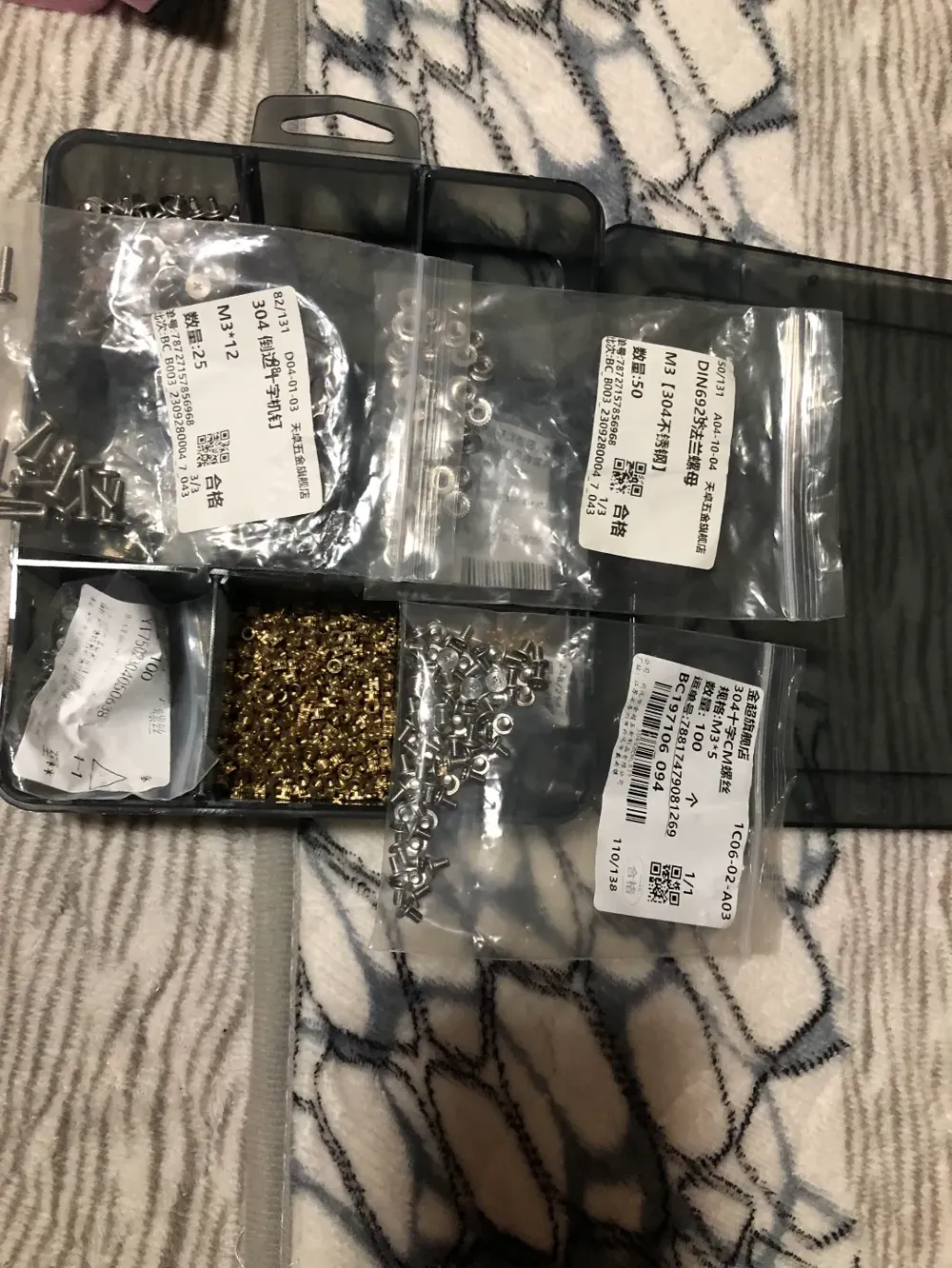

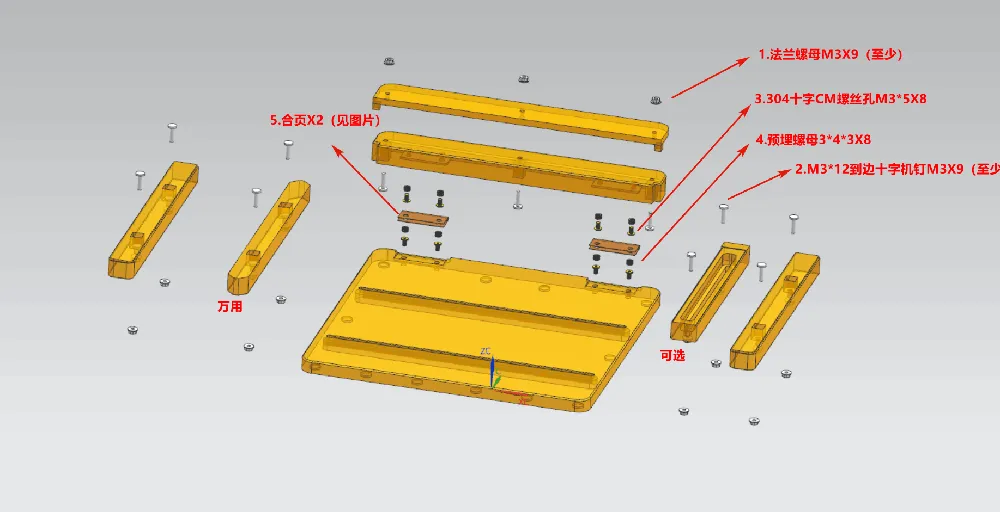

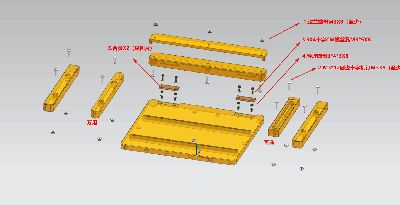

Simplified Bill of Materials:
1.Flange nuts M3X9 (at least)
2.M3*12 countersunk screws M3X9 (at least)
3.304 countersunk screws with M3*5X8 threads
4.Embedded nuts 3*4*3X8

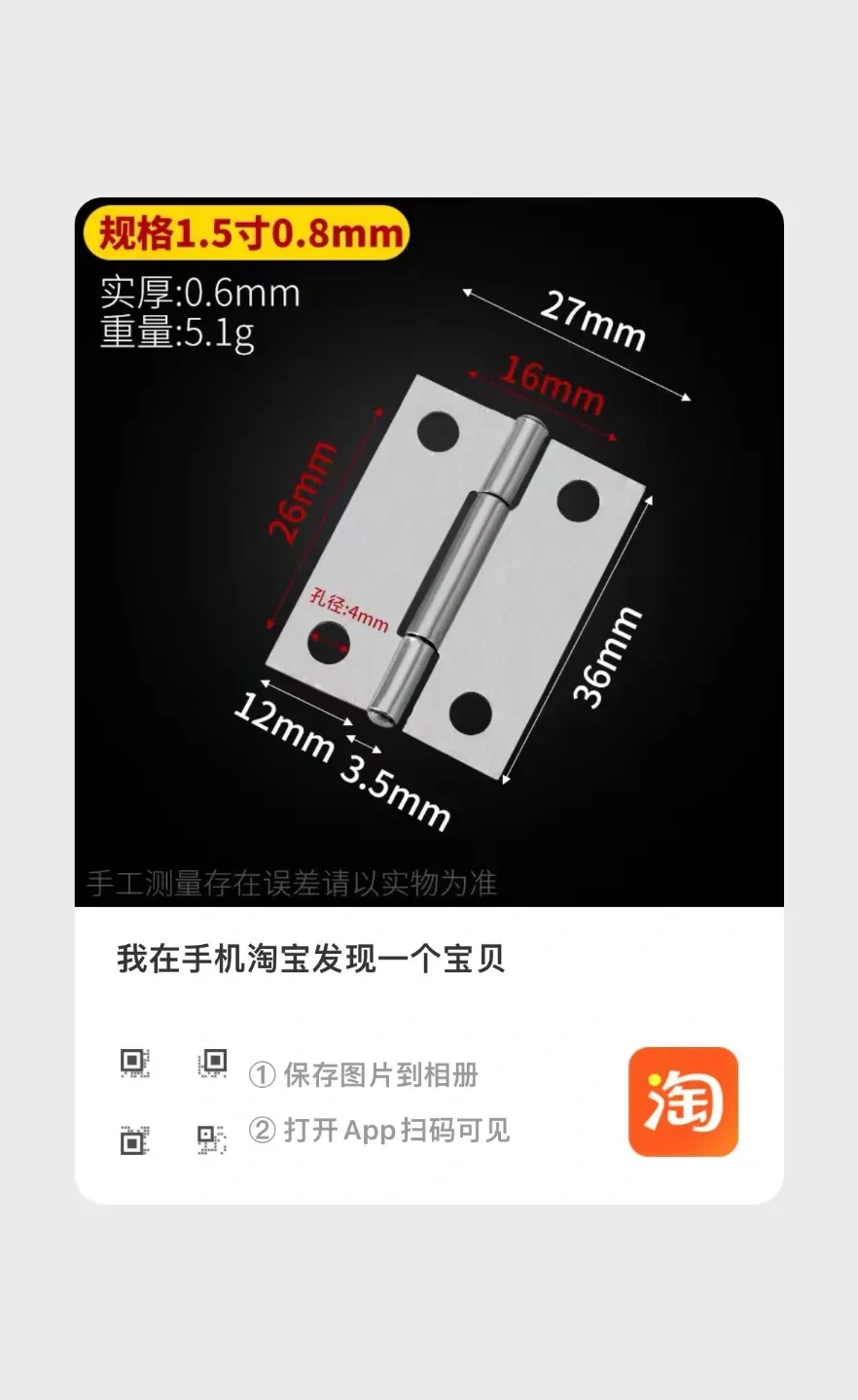

5.Hinges X2
