Simple PTFE tube drybox connector PNP
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 50% infill
Designer
27 min
1 plate
Open in Bambu Studio
Boost
28
79
10
1
68
41
Released
Description
Simple PTFE tube connector in PLA.
IMPORTANT
If you print in PETG, you might want to edit the scale either one of the connector to be a little bit smaller or larger as the thread is optimized for PLA which I only have at the time.
PETG print profile in V2!
https://makerworld.com/en/models/1432518-drybox-ptfe-tube-connector-v2#profileId-1489849
Stuff you need :
10mm hole on the dry box,
8mm-9.5mm gasket (optional).
How to :

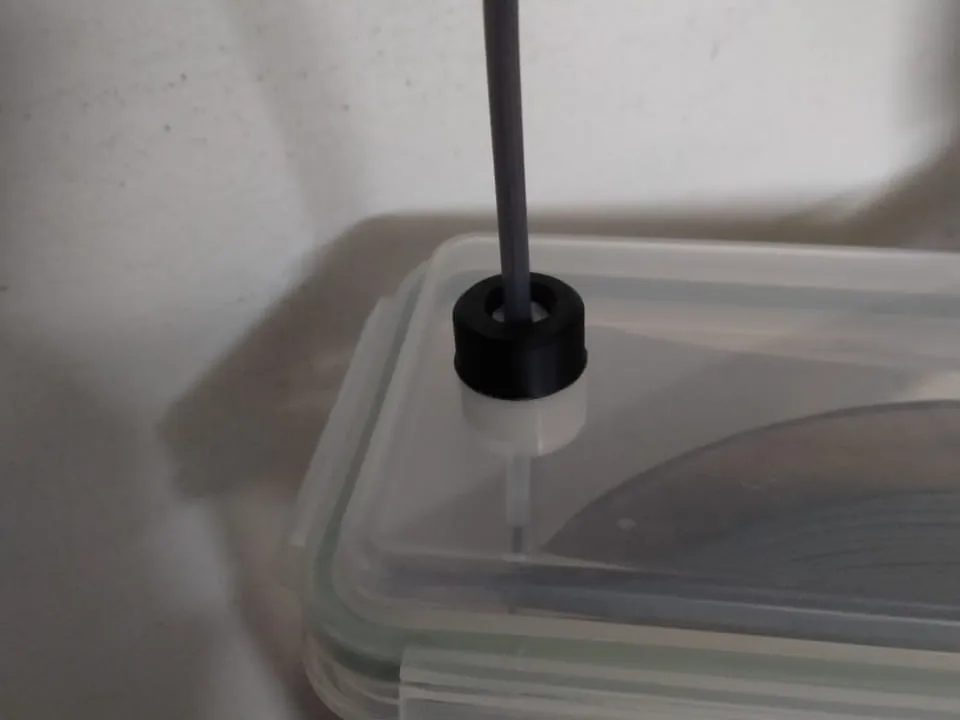

1)Place the threaded (male) part inside the dry box and lock it with another part (female) on the outside.
2)Push in your 4mm PTFE tube. Done!
