Flying Chess Valley

Flying Chess Valley:

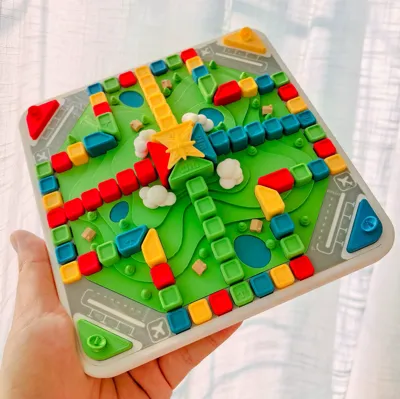

• This scenic valley town transforms the classic board game, Flying Chess, into a captivating setting for four players' aerial showdown.

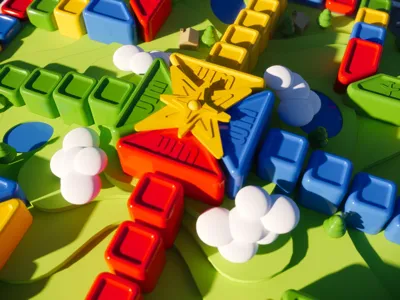

• Four miniature airports, each equipped with an airstrip, are situated at the corners. The game board's topography creates undulating flight paths, with shortcuts located at high points and the summit serving as the finish line.
• Except for the airstrip lines, a filament change will be required (if high-fidelity detail is not critical, a single filament can be used). All other components are sorted by color and print plate; AMS is not required.

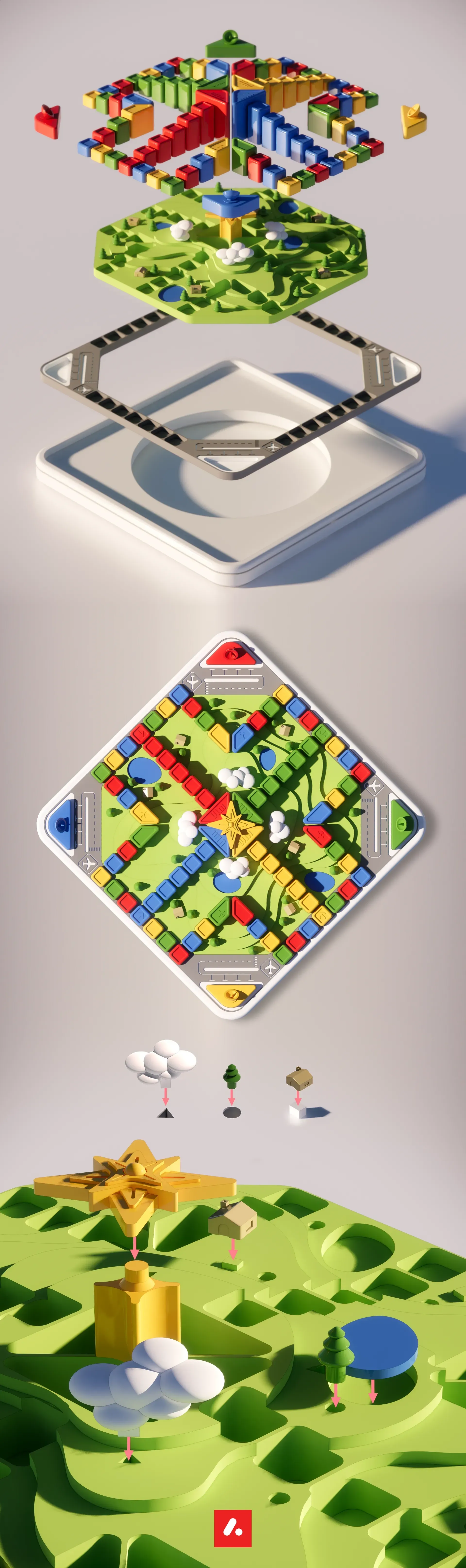

• Board color blocks are customizable. Refer to the assembly guide below for the correct sequence.
• Testing indicates that Bambu Matte filament yields suitable tolerances; inverted components do not detach. If there is excessive looseness, secure with super glue.

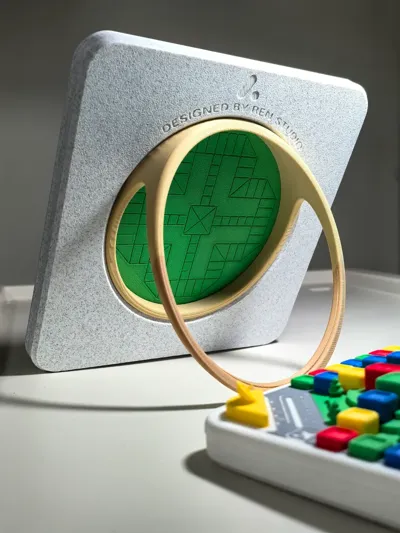

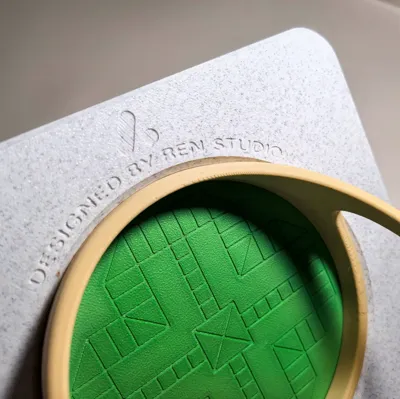

• Plate 10 is an optional stand, enabling display of the board as a framed artwork. The rotating stand allows for adjustable tilt.
• Game rules can be found through online searches.
• This is an exclusive Maker World model. Reproduction, modification, or commercial use is prohibited. Thank you for your support.

• Print Plate Breakdown:

  Plate 1: Base and clouds

  Plate 2: Airport runway base, requiring a filament change (white before pause, grey after; a single filament may suffice if high detail is unnecessary)

  Plate 3: Mountain base

  Plate 4: Cabin

  Plate 5: Blue game board, game pieces, lake

  Plate 6: Red game board, game pieces

  Plate 7: Yellow game board, game pieces, finish star

  Plate 8: Green game board, game pieces, trees (brim added to trees to increase print success rate, thanks for the feedback ♥)

  Plate 9: Dice

  Plate 10: Game board stand

————————————————

Magnetic Kit:

• This kit includes magnetic game board components: game pieces, board squares, and airport borders.
• Approximately 100 4x2 mm circular magnets are required; refer to (Maker's Supply CA001) for specifications.
• Install square magnets by inserting and firmly pressing the cover. Magnets for airport sections and game pieces are installed from the bottom. Ensure all magnets have the same polarity.
• Other components are as per default configuration.

————————————————

Portable Storage Box:

• This game board base functions as both a playing surface and a storage container, replacing the default base.
• Used as a game board base, it allows for compact storage by removing and inverting the game board. (It is recommended to secure the remaining components with adhesive).
• The four corners provide enclosed compartments for game piece storage, preventing loss.

————————————————

Flying Chess Valley XL:

• This version is scaled to 180% of the original size, with sides measuring 31.5 cm.

• The base employs a four-piece assembly with interlocking tabs; the fit is snug, requiring firm pressure. Testing suggests minimal adhesive is required.

  (Some parts might loosen slightly after complete cooling and shrinkage; use super glue if necessary.)

• Print settings support the A1 mini. Except for the airport runway, which requires a filament change, all other parts are sorted by print plate; AMS is not necessary.

————————————————
