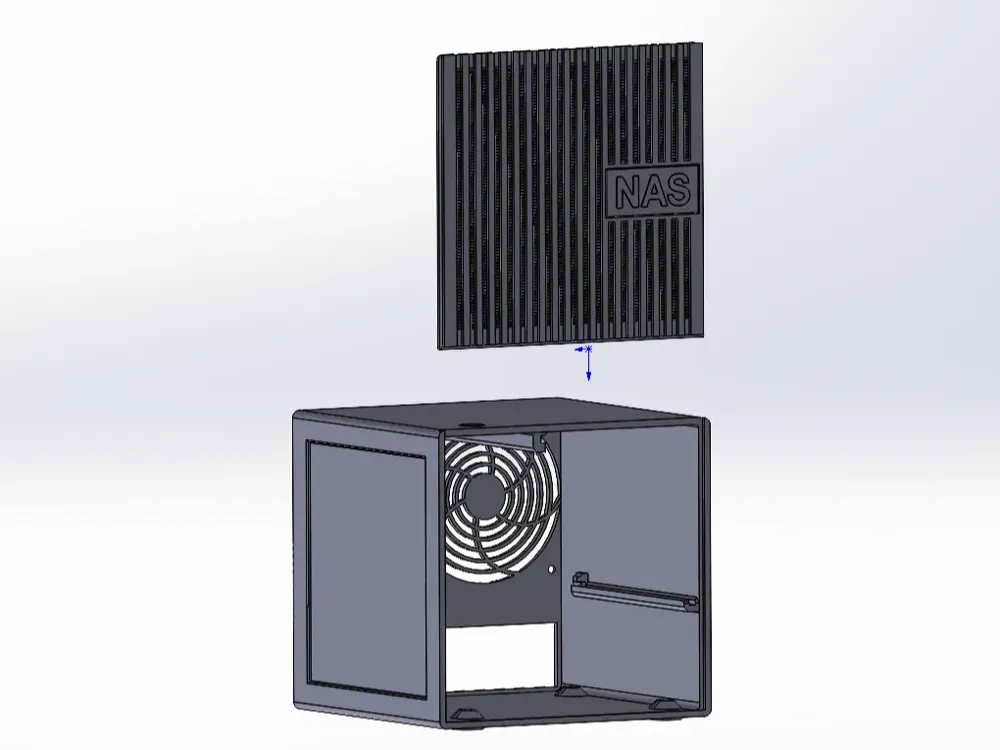

3D Printed Four-Bay NAS Case with 17*19 Motherboard

This NAS enclosure is primarily based on a NAS enclosure upgrade shared by Bilibili UP master: Lao Ding Curry.

It supports 17*17 and 17*19 motherboards. Compared to other small NAS enclosures, this one also supports most commercially available down-blowing CPU coolers.

The build link is as follows: DIY Four-Bay NAS Enclosure 3D Printing_Bilibili_bilibili

Thank you to this UP master for their selfless contribution.

For any screw hole issues, these can be filled and drilled independently in slicing software.

My printer is unfortunately underperforming, suggestions for improvements are welcome, and I will refine the design as time permits.

To avoid wasting filament, consider printing two layers first to compare with your hardware's hole positions. You can also use the slicing software to measure compatibility.

M3-M4 screws are used.

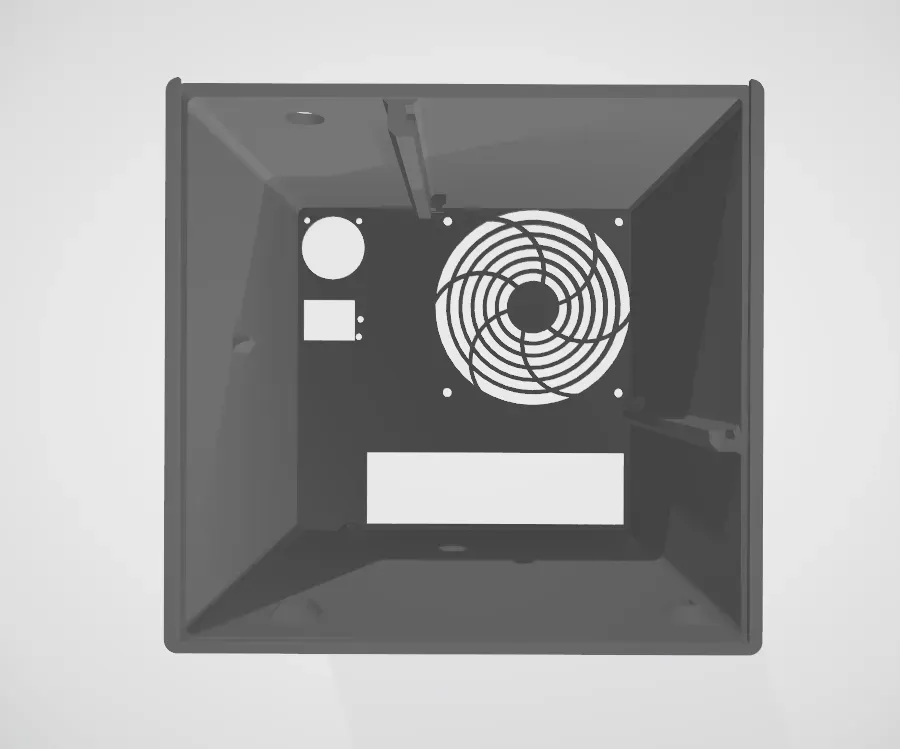

The cooling fan at the rear of the hard drive bay uses a 12*20-12*25MM fan.
The hard drive bay backplate uses a custom-sized backplate.
A FLEX power supply (1U power supply) is used.

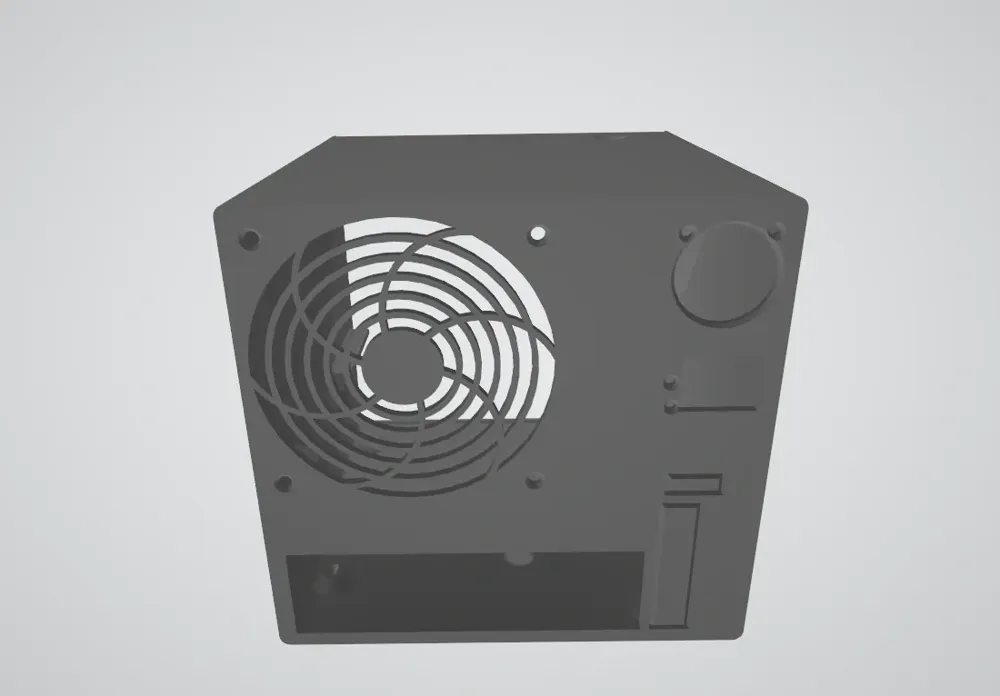

The power switch aperture is 16MM.
This is my first creation, and imperfections may exist, please use it as a reference.
