AMS lite Enclosure Base - A1 mini Version

This version is printable for A1 MINI.

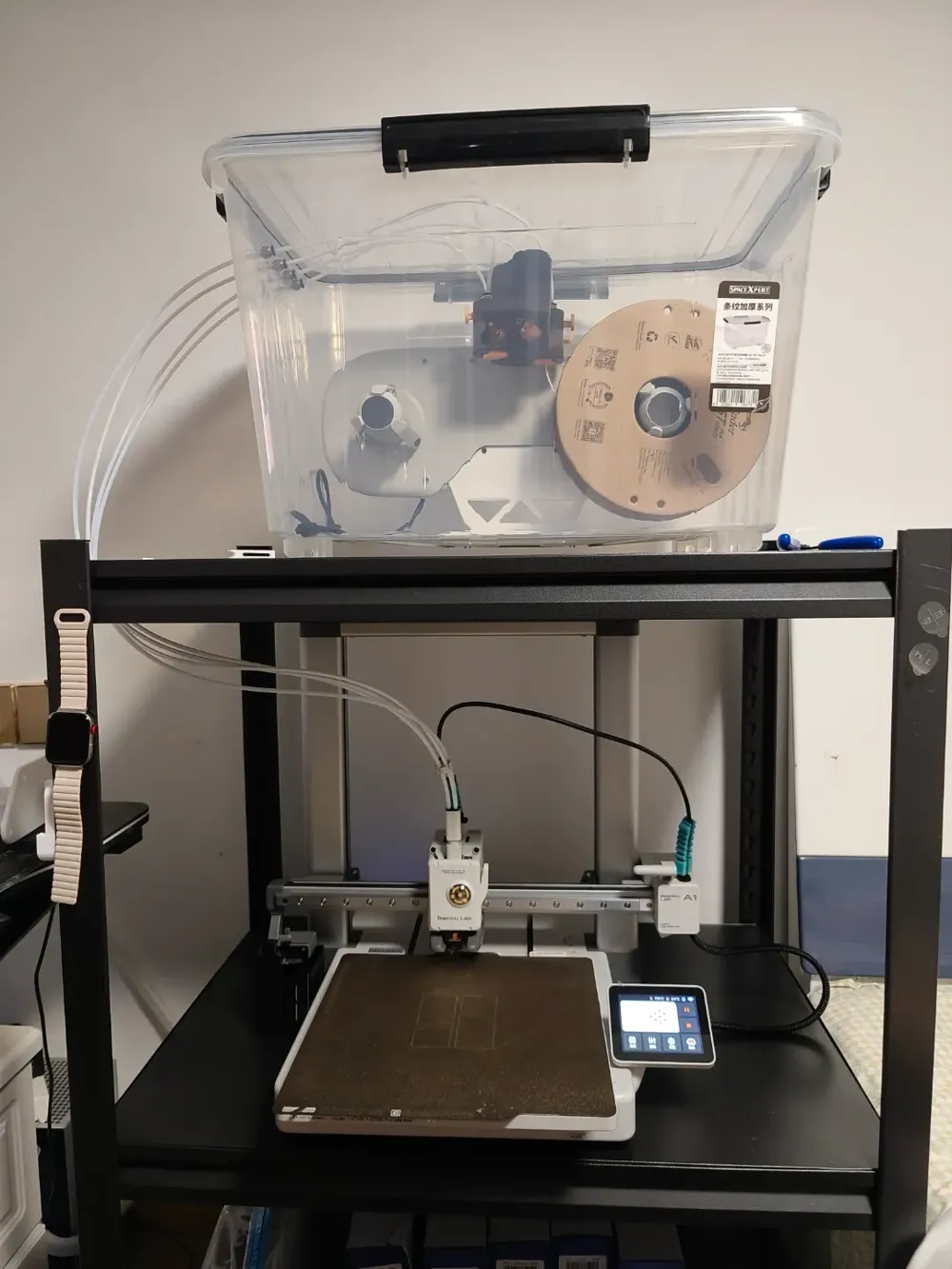

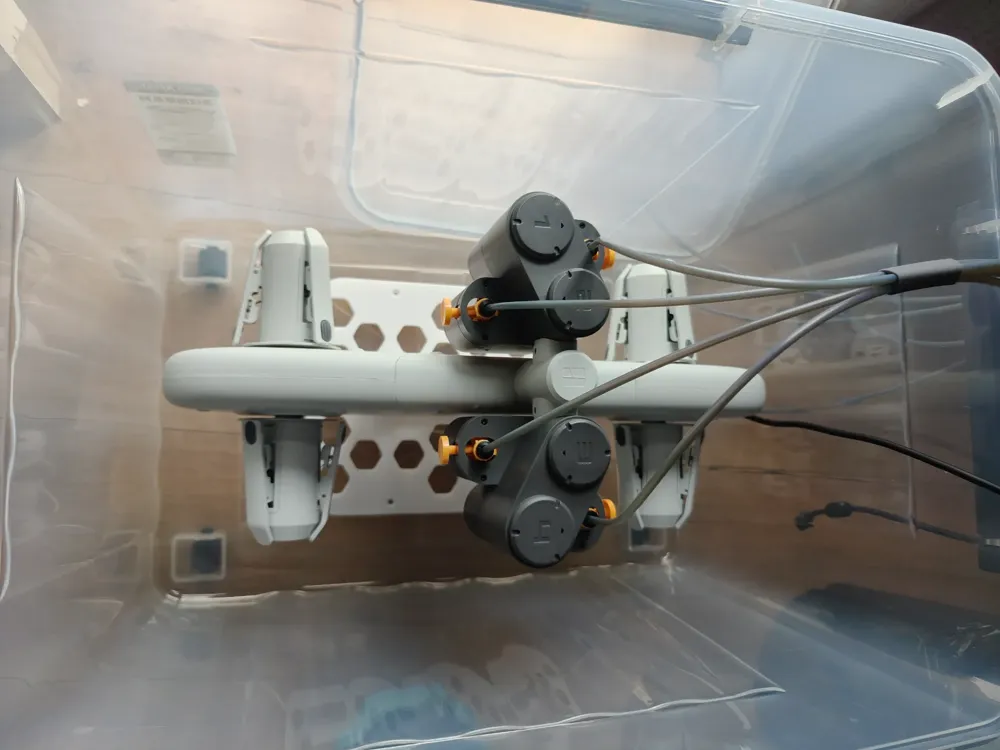

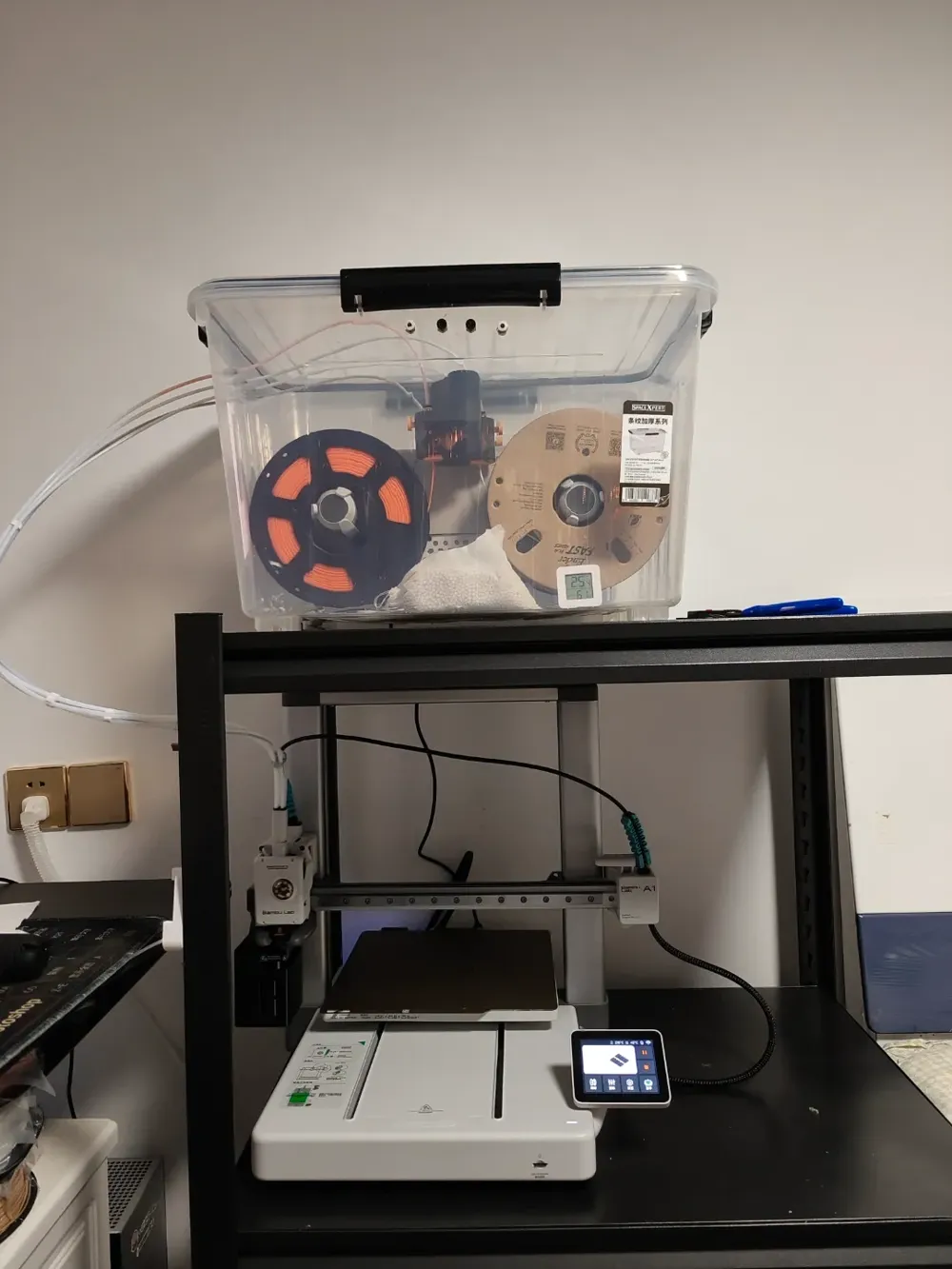

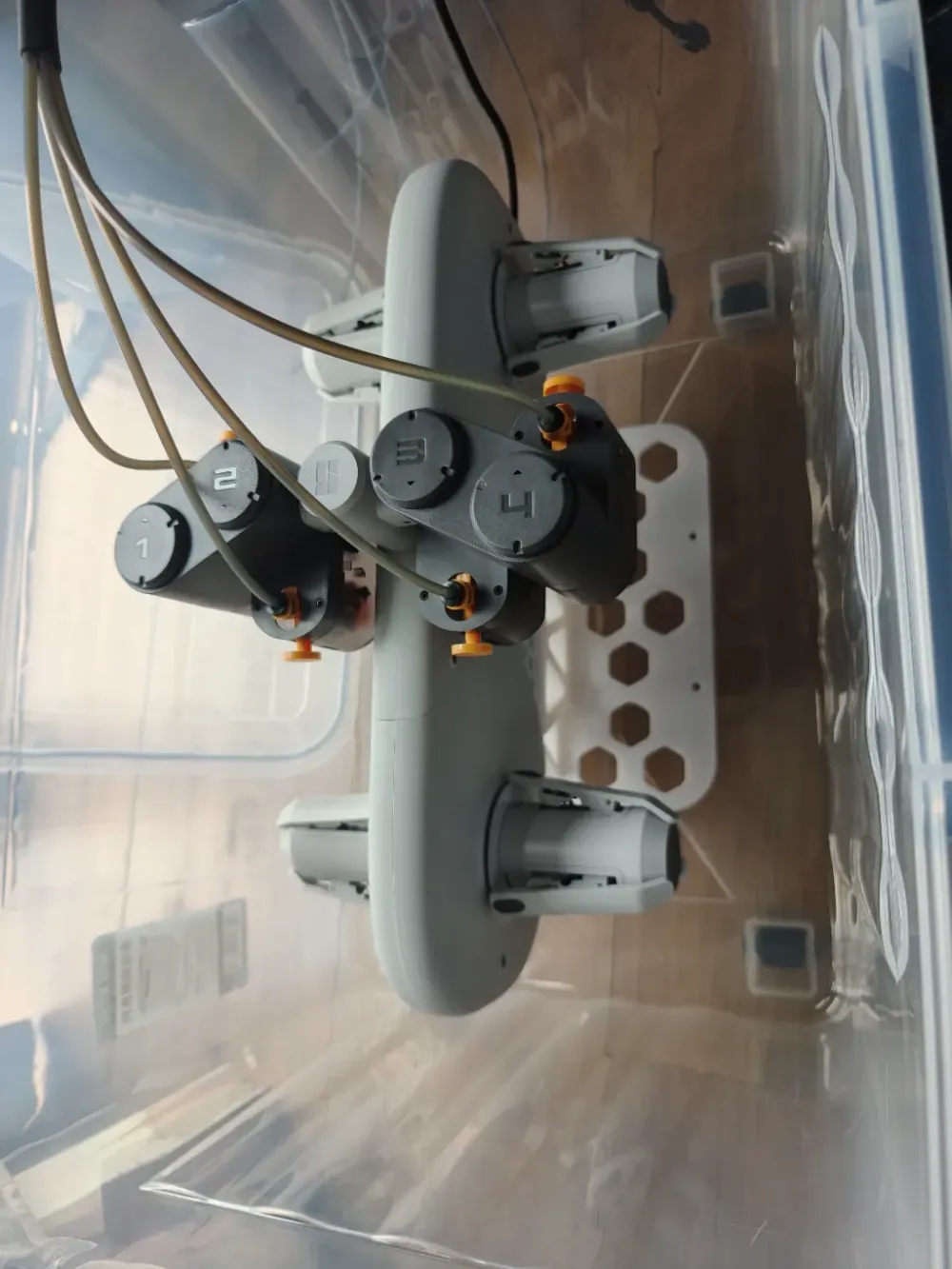

This solution uses a storage box with an internal size of 51.5 * 36.5 * 32 cm with a sealing ring. After molecular sieve testing, the humidity remained at 10%. I think the AMS LITE design is simple enough and has a great industrial design aesthetic, and I don't want to modify it too much. I only modified the base to meet the needs of use. This size storage box is the perfect size. You can choose a storage box larger than this size. The base connects to the AMS LITE and can be used directly with the original hexagonal screws. The base needs to be fixed by locking 4 GB846 ST2.2 * 9.5 self-tapping screws. Just fix the base to the storage box. Note: It is best to assemble the AMS LITE first and then fix the base.

Bill of materials:

1. Storage box with internal size of 51.5*36.5*32cm with sealing ring;

2. 4 PC4-M6 through-hole pneumatic connectors;

3. 5 meters of milky white Teflon tube;

4. 4 GB846 ST2.2 * 9.5 self-tapping screws;

5. 1 M22 * 1.5 waterproof connector;

The material cost is between 40 and 60
