Simple Drawer or Cabinet Handle
IP Report
Print Profile(2)
0.6mm nozzle, 0.3mm layer, 3 walls, 10% infill
Designer
34 min
1 plate
0.6mm nozzle, 0.3mm layer, 3 walls, 10% infill
Designer
6.1 h
2 plates
Open in Bambu Studio
Boost
106
315
12
8
401
183
Released
Bill of Materials
List other parts
- ThreadInsert8mmM4 x 2:
- M4Screw x 2:
Description

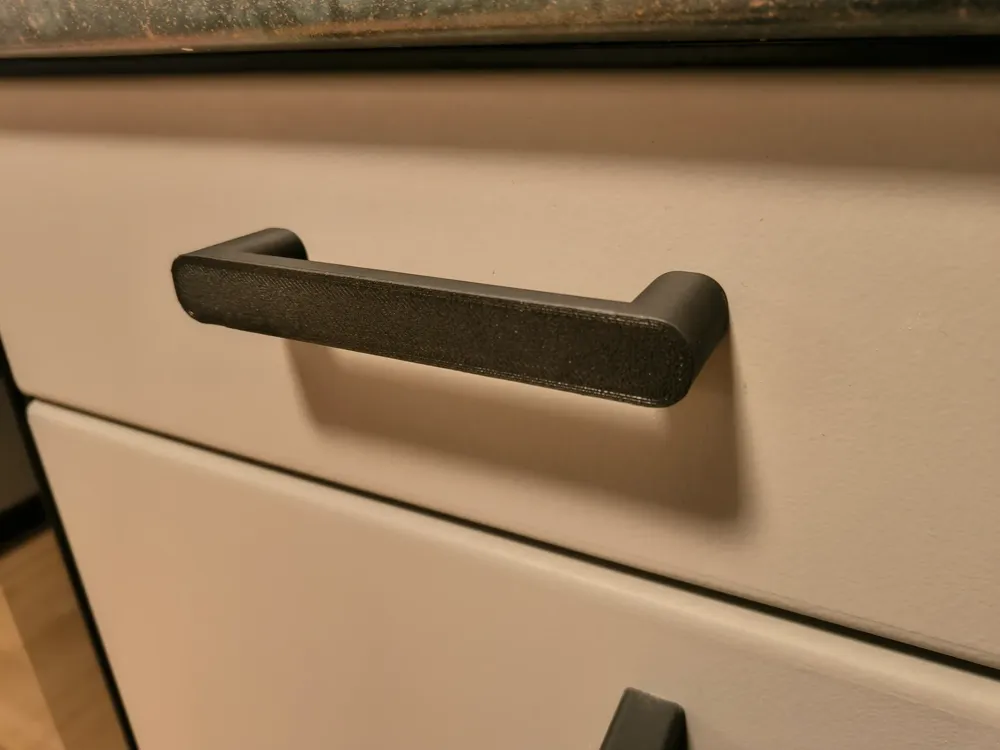

This model is a straightforward and functional handle I designed for my kitchen drawers and cabinets. It's minimalist in design but robust in functionality, making it suitable for various uses. The design is available in two sizes to suit different needs: a standard width of 127.5 mm and a longer version measuring 255 mm. I hope it fits your needs as well!
Features
- Mounting System: The handle is mounted from the back with two M4 screws. For a secure fit, the design includes holes for two M4 thread inserts (8 mm).
- Simple and Versatile Design: Works well for drawers, cabinets, or other similar furniture.

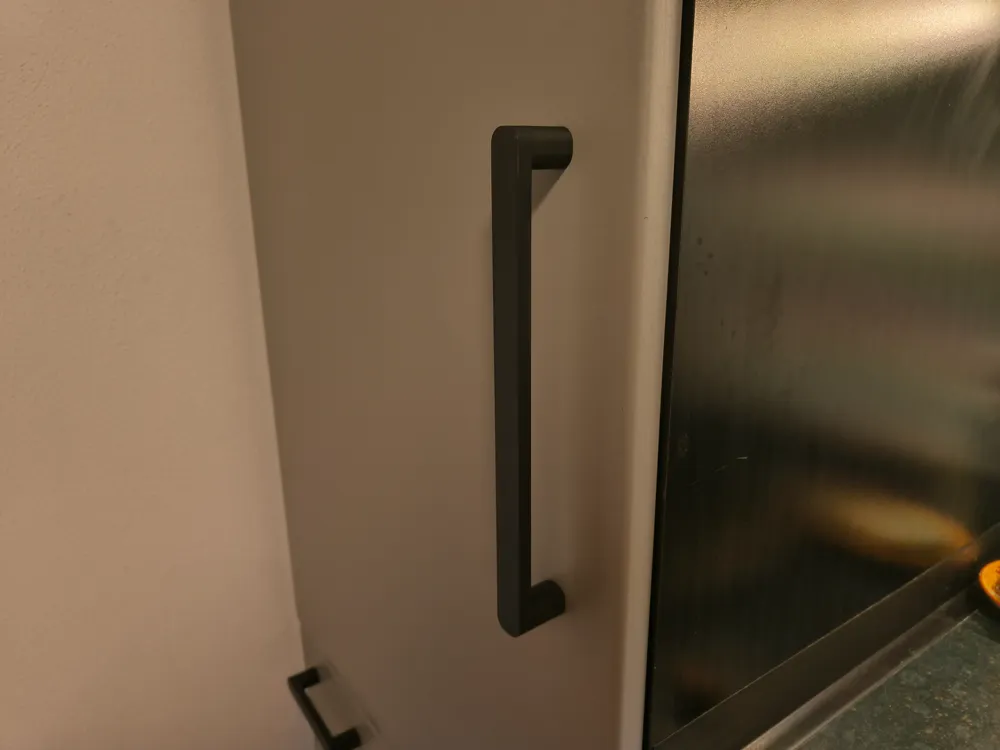

- Multiple Sizes: Choose between the standard 127.5 mm size for most applications or the longer 255 mm size for larger furniture.
- Easy Customization: I’ve included source files to make adjustments or remixes easy.
Included Files
- 3MF File: Pre-configured for BambuLab X1C for seamless printing.
- STL Files: Standard format for general 3D printers.
- SLDPRT File: For SolidWorks users who might want to customize or adapt the design further.
You are welcome to use, modify, or adapt the handle to your needs. This is a hobby project, and I’m thrilled to share it with anyone who finds it useful! 😊
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
