Bambu P1/X1 External Exhaust Duct, Pipe Elbow 60/70/80/100mm
Print Profile(4)
Description
This duct elbow is designed for Bambu X1 and P1 series printers, with an optimized transition for smoother airflow
The fan is not precisely centered in the exhaust port, hence a slightly enlarged inlet on the elbow
The outlet diameter is compatible with 60/70/80/100mm ventilation hoses or aluminum foil tubes
Accessories
Magnets: Eight 10mm diameter, 5mm high cylindrical magnets
Two aluminum foil tubes, two clamps for securing the tubes,
One duct fan Click to Purchase, one check valve Click to Purchase, two Xiaomi Smart Plugs 3, readily searchable on Taobao

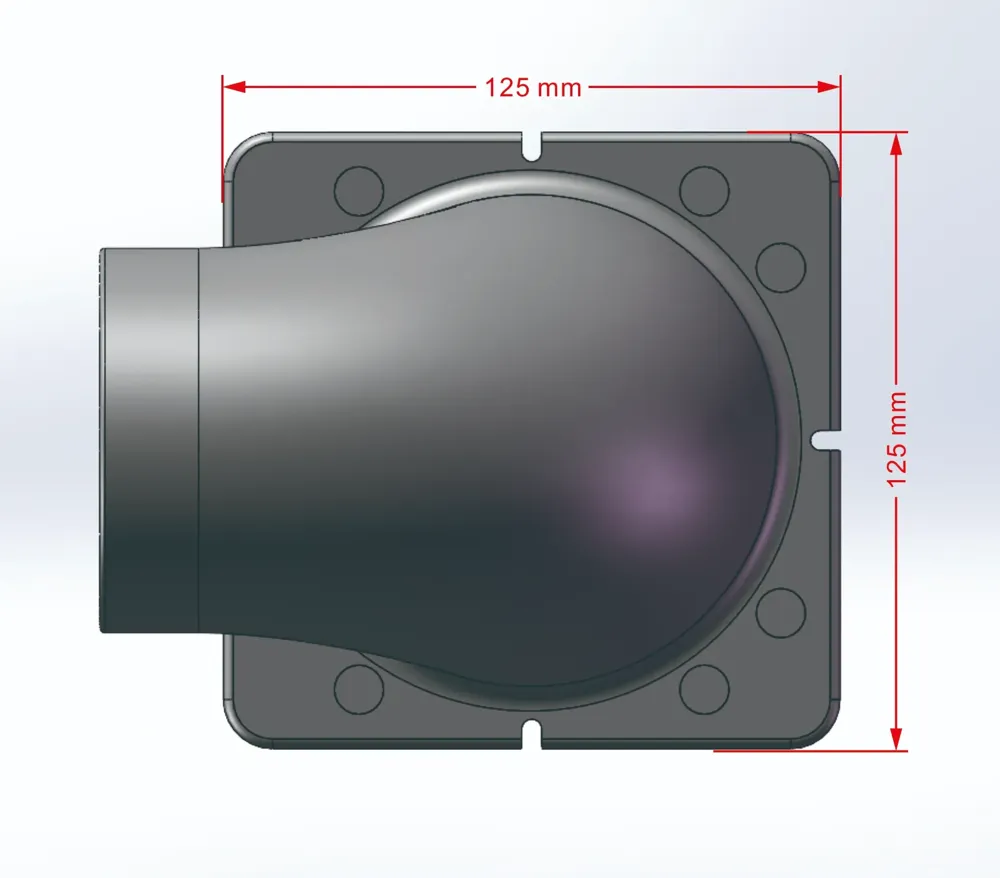

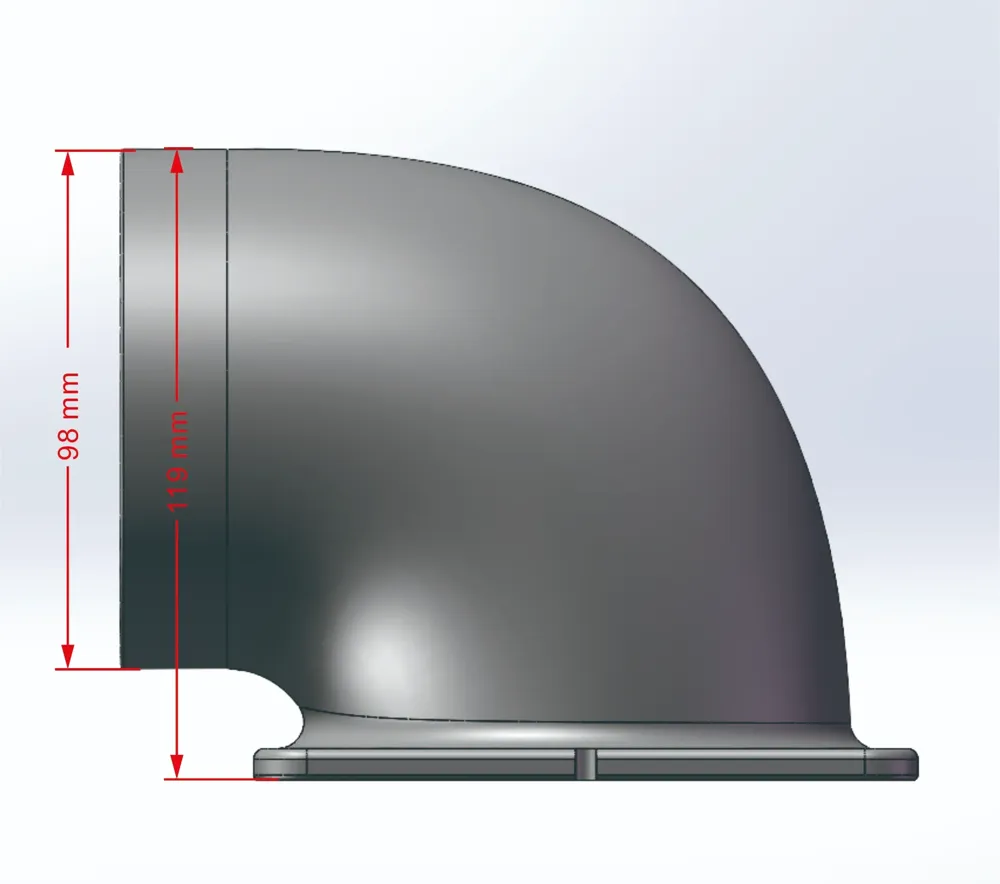

Elbow dimensions depend on your chosen fan and tubing; I used a 3-inch fan, 80mm aluminum foil tubing, and check valve
The image showcases an 80mm elbow, printed using Bambu PETG HF Gray 33101 Click to Purchase

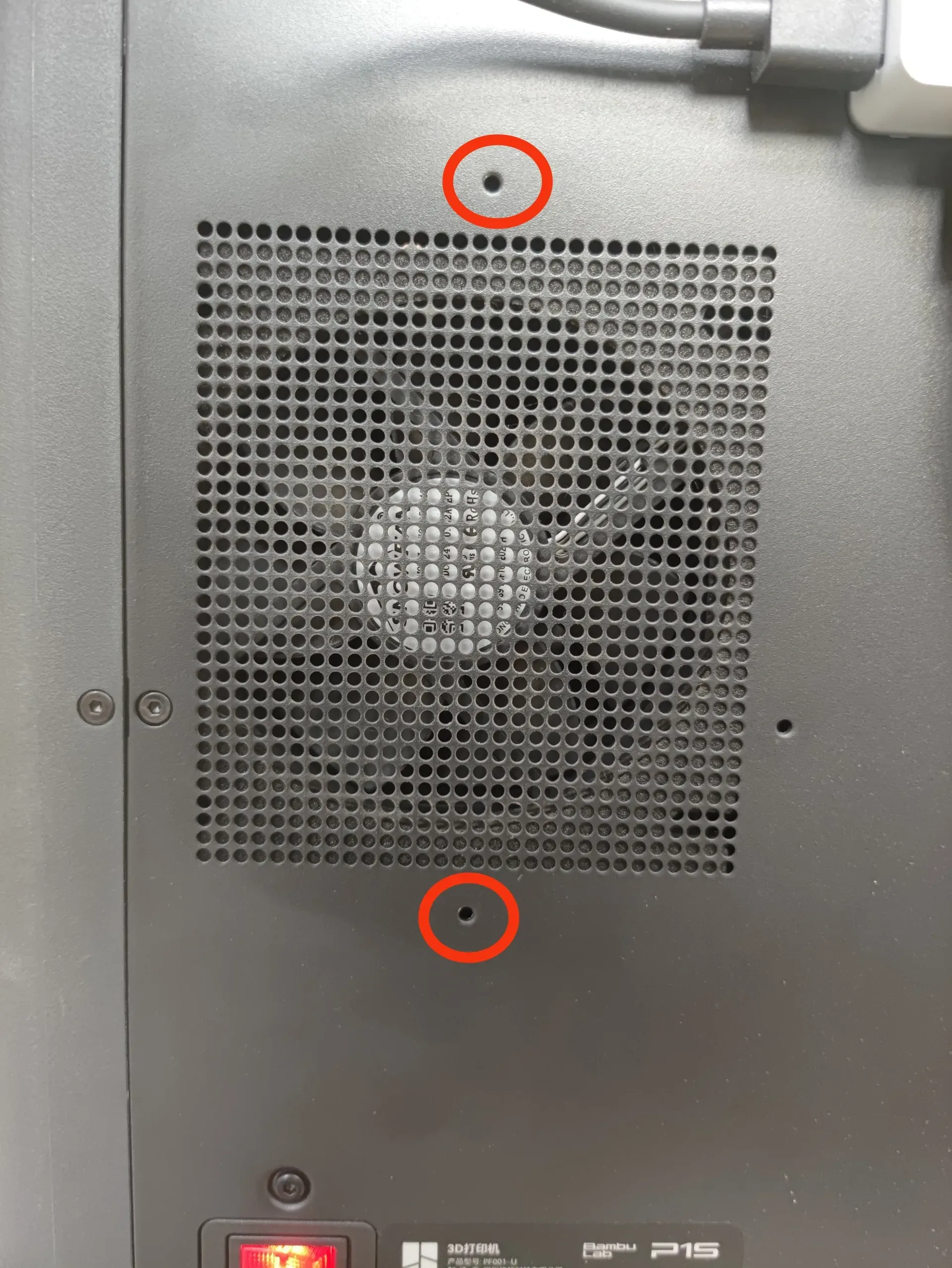

Four notches on the edge align with the printer's exhaust port screw holes for positioning, or alternatively, secure with M3*10 screws
Detailed exhaust control solutions can be found in the Bilibili video
