Xiaomi Temperature and Humidity Meter 2 Bracket V2
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
This design required considerable effort; if you find it useful, please consider offering your support. Thank you

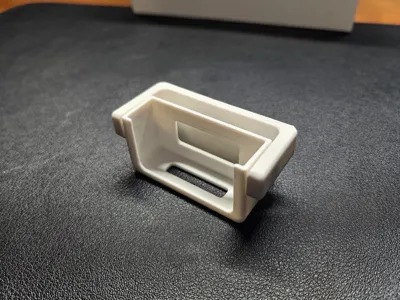

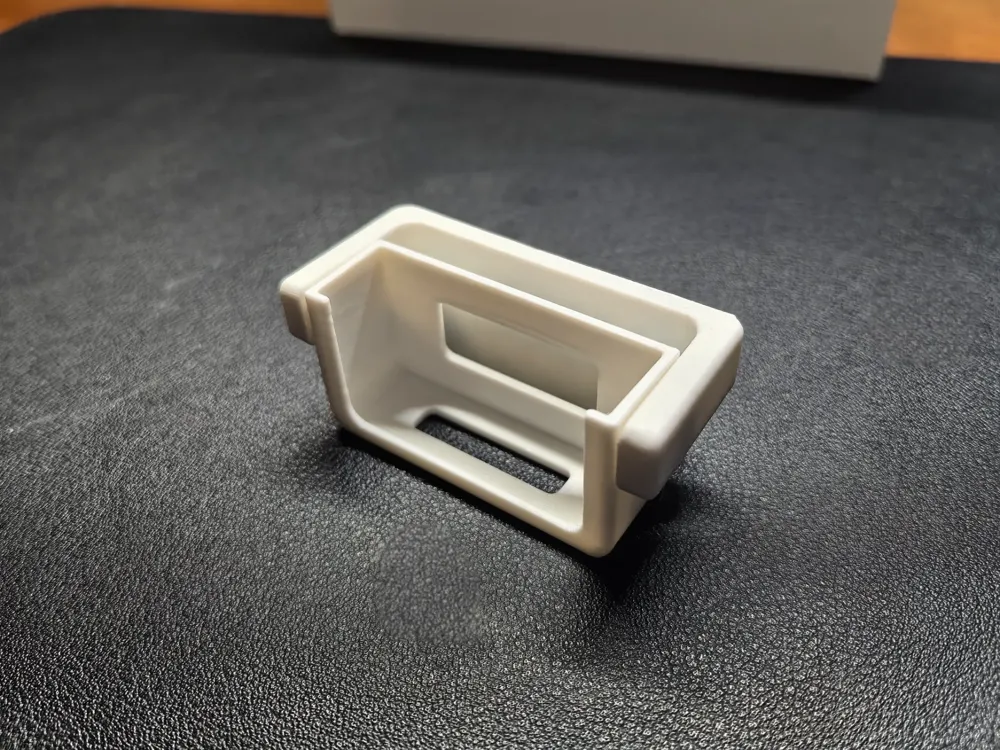

This Xiaomi Mi Home Temperature and Humidity Sensor 2 bracket is adaptable to various settings and allows for multi-angle adjustment. Its practicality is enhanced by the following key features:

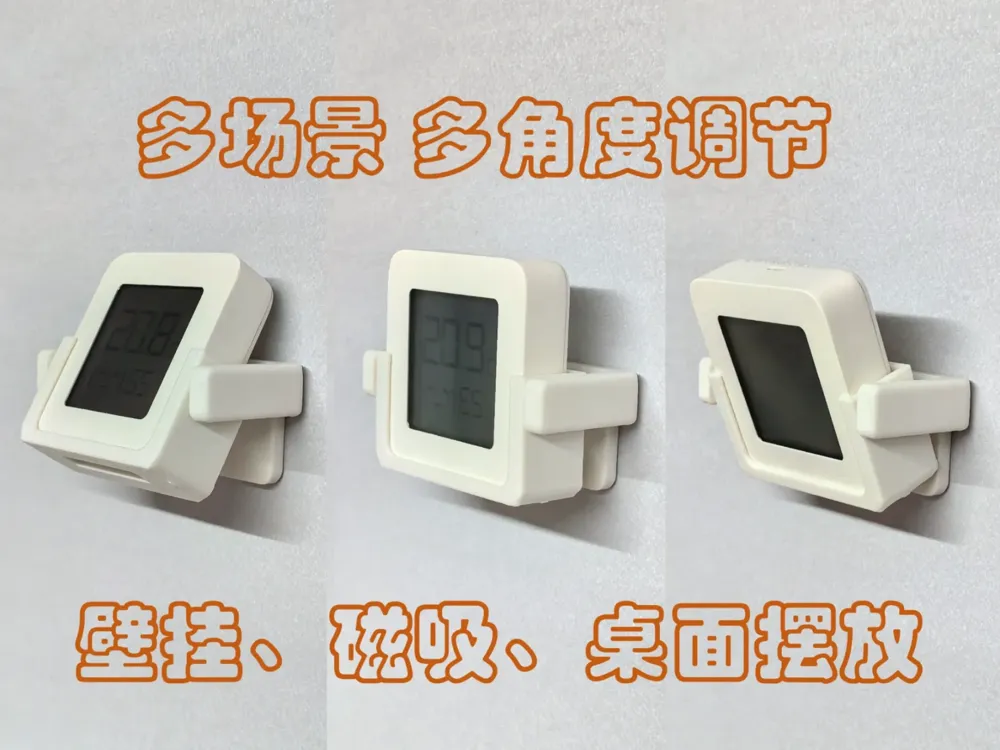

Versatile Mounting Options: 1) Adhesive wall mount; 2) Magnetic wall mount; 3) Desktop placement.
Adjustable Viewing Angles: Allows for significant pitch adjustment to optimize viewing.
Rapid printing, completing in approximately 30 minutes and consuming less than 10g of filament.

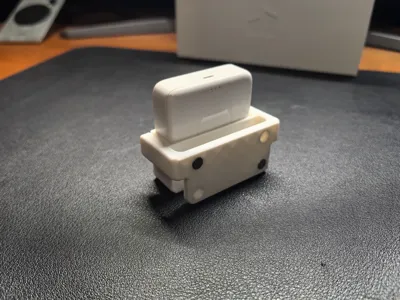

Important Note: Magnetic mounting requires four 5mm diameter x 2mm thick magnets.

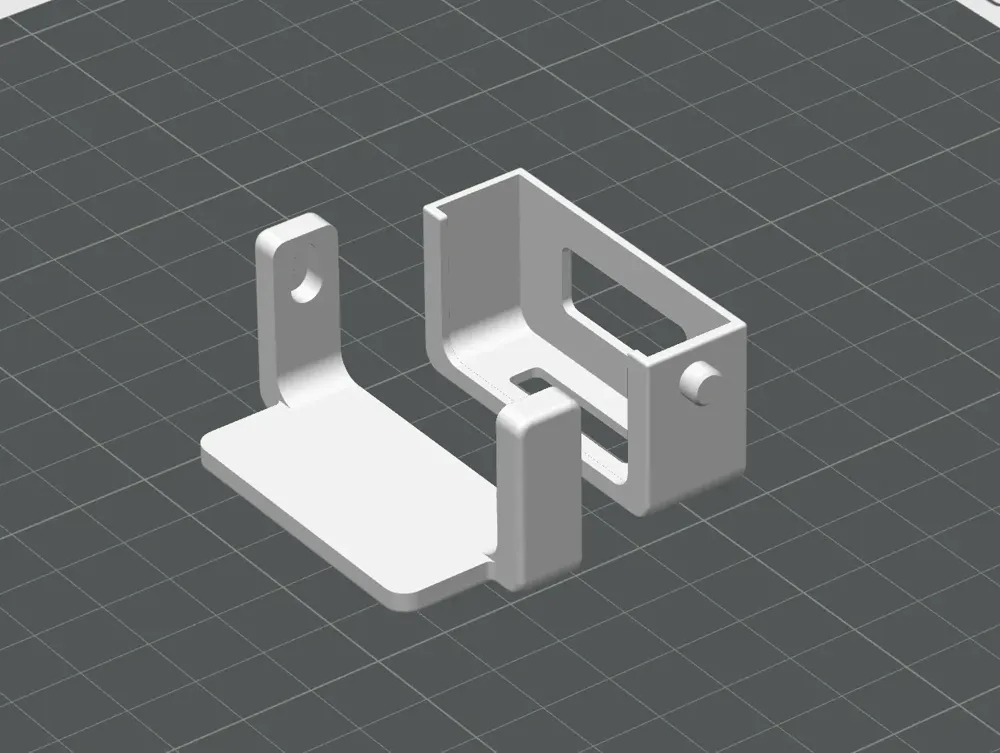

Installation Instructions: Simply insert the protruding shafts on each side of the bracket into the corresponding holes on the base's support ears, then gently squeeze them towards the center. If you encounter significant rotational resistance, try rotating them back and forth several times.
This Xiaomi Mi Home Temperature and Humidity Sensor 2 bracket is suitable for diverse applications and offers adjustable viewing angles, making it highly practical. The specific features are outlined below:
- Multiple Mounting Methods: 1) Adhesive wall mounting; 2) Magnetic wall mounting; 3) Desktop placement.
- Multi-Angle Adjustment: Allows for substantial vertical angle adjustment for enhanced visibility.
- Rapid Printing: Prints in approximately 30 minutes, using less than 10g of filament.
Note: Magnetic attachment requires four 5mm diameter x 2mm thick magnets.
Installation: Simply align the protruding shafts on each side of the bracket with the corresponding holes in the base's support ears, then gently press them together. If significant rotational resistance is encountered, repeat the process several times.

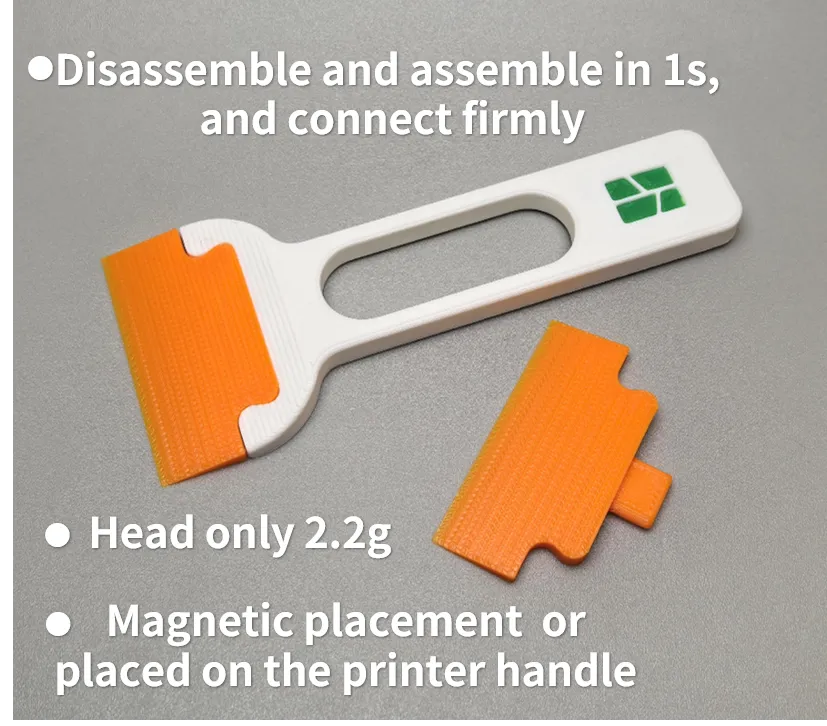

Furthermore, a novel hot bed scraper blade design enables swift blade replacement, enhancing practicality and conserving resources. Experience effortless blade changes. Download it now. Details and download link below:
Hot Bed Scraper—Quick Blade Replacement from Jiayang Maker - MakerWorld
