<p>表贴元器件 (SMD) 收纳盒 v1.2</p><ul><li>新增两个尺寸的模型：w14_t3.5、w16_t3.5 (w是盒子的外部宽度、t是出口处的高度，单位mm)。 </li><li>为每个模型提供了一个增强版本，加强了出口处用于压住薄膜的薄片的厚度，以增加其强度。</li></ul><p>-----------------------<br>SMD Storage Boxes v1.2</p><ul><li>Added two new size options: w14_t3.5, w16_t3.5 (where w is the external width of the box and t is the height at the opening, in mm).</li><li>Provided a reinforced version for each model. The thickness of the thin plate at the opening, which presses against the reel film, has been increased to enhance its strength.<br> </li></ul>

Version 1.2, eight sizes, reinforced outlet structure, 0.2mm layer height, 2 walls, 10% infill


<p>根据用户的反馈，有两项更新：</p><ol><li>在Fusion360中重新以High Refinement参数输出Boxes模型。</li><li>增加内部宽度为16mm，出口宽度为3mm的模型。</li></ol><p>Based on user feedback, there are two updates:</p><ol><li>Re-export the Boxes model in Fusion360 with the setting of High Refinement.</li><li>Add a model with an internal width of 16mm and an opening height of 3mm.</li></ol>

0.2mm layer, 2 walls, 10% infill

boxes


0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<h3>表贴元器件 (SMD) 收纳盒 v1.2</h3><p><span style="color: #E14747">感谢各位朋友的反馈！</span>推荐打印最新版本的配置文件。</p><h4>更新说明：</h4><ul><li>新增两个尺寸的模型：w14_t3.5、w16_t3.5 (w是盒子的外部宽度、t是出口处的高度，单位mm)。 </li><li>为每个模型提供了一个增强版本，加强了出口处用于压住薄膜的薄片的厚度，以增加其强度。</li></ul><p>祝打印快乐！</p><h3><br>SMD Storage Boxes v1.2</h3><p><span style="color: #E14747">Thank you for your feedback, everyone!</span><br>It is highly recommended to print the latest version (v1.2) of the this design.</p><h4>Update Notes:</h4><ul><li>Added two new size options: w14_t3.5, w16_t3.5 (where w is the external width of the box and t is the height at the opening, in mm).</li><li>Provided a reinforced version for each model. The thickness of the thin plate at the opening, which presses against the reel film, has been increased to enhance its strength.</li></ul><p>Happy printing!<br> </p><h3>===============================</h3><h3>表贴元器件 (SMD) 收纳盒</h3><p>这系列收纳盒是参考Thingiverse上多款SMD收纳盒，以及自己工作空间的实际情况而设计的。</p><ul><li>可以通过磁铁吸附横向叠加。预留了4个用于安装磁铁 (d5.0mmx3.0mm) 的孔，但实际上我发现在对角线上安装2枚磁铁就可以提供足够的吸引力。</li><li>也可以通过导轨有序地排列起来，你可以在Bambu Studio里自由地调整导轨模型的长度，适配你的需要。</li><li>为盒子提供了4个尺寸选项：<ul><li>w是盒子的外部宽度 (10mm, 14mm)，内部宽度是 8.8mm和 12.8mm</li><li>t是出口处的高度 (1.5mm, 2.0mm 和 3.0mm)</li></ul></li></ul><p>如需要打印盒子的标签，请参考模板文件SMD Tape Tag Template.docx。</p><p>百度网盘链接：<a target="_blank" rel="noopener noreferrer ugc" href="https://pan.baidu.com/s/1NsucoVs-ns13ya_HW_iV8w?pwd=07si">https://pan.baidu.com/s/1NsucoVs-ns13ya_HW_iV8w?pwd=07si</a> ，提取码：07si</p><p>&nbsp;</p><p>如果你有额外的尺寸需求，欢迎在下面留言。</p><p>&nbsp;</p><p>祝打印快乐！</p><p>&nbsp;</p><h3>SMD Storage Boxes</h3><p>This series of SMD (Surface Mount Device) storage boxes is designed based on several designes from Thingiverse and my actual workspace requirements.</p><ul><li>Boxes can be stacked horizontally using magnets. There are 4 holes reserved for magnets (d5.0mmx3.0mm), though I found that installing 2 magnets diagonally provides sufficient magnetic force.</li><li>They can also be arranged orderly using rails. You can freely adjust the length of the rail model in Bambu Studio to fit your needs.</li><li>The boxes come with 4 size options:<ul><li>w is the external width of the box (10mm, 14mm), with internal widths of 8.8mm and 12.8mm</li><li>t is the height at the opening end (1.5mm, 2.0mm, and 3.0mm)</li></ul></li></ul><p>If you need additional size options, please feel free to leave a comment below.</p><p>&nbsp;</p><p>Happy printing!</p><p>&nbsp;</p>

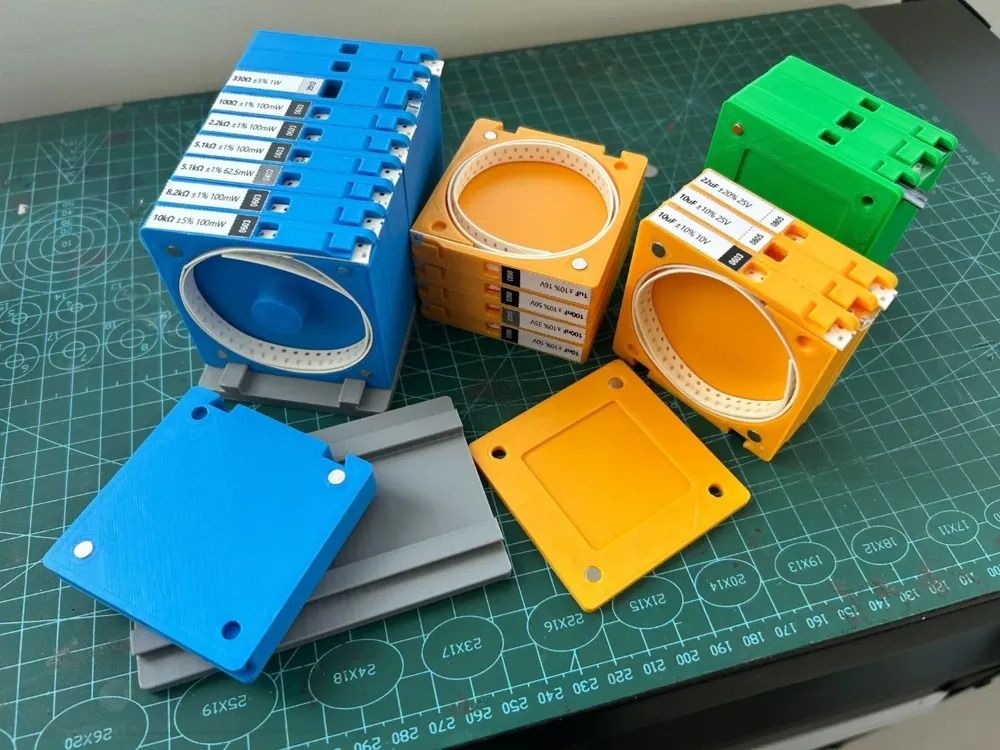

<h3>Surface Mount Device (SMD) Storage Boxes v1.2</h3><p><span style="color: #E14747">Thank you for your valuable feedback!</span> We recommend printing the latest configuration file.</p><h4>Update Notes:</h4><ul><li>Two additional sizes have been introduced: w14_t3.5 and w16_t3.5 (where 'w' represents the external width and 't' denotes the opening height, measured in millimeters).</li><li>Each model now includes a reinforced variant.  The thickness of the retaining lip at the opening has been increased to enhance durability.</li></ul><p>Happy printing!</p><h3>===============================</h3><h3>Surface Mount Device (SMD) Storage Boxes</h3><p>This series of storage boxes draws inspiration from various SMD storage box designs on Thingiverse, tailored to the practical requirements of my workspace.</p><ul><li>Horizontal stacking is facilitated by magnets.  Four magnet recesses (5.0mm diameter x 3.0mm height) are provided, although I discovered that two diagonally positioned magnets offer sufficient holding power.</li><li>Alternatively, these boxes can be neatly arranged using guide rails. You can conveniently adjust the rail model's length within Bambu Studio to meet your specific needs.</li><li>Four size options are available:<ul><li>The external width ('w') of the boxes comes in 10mm and 14mm, resulting in internal widths of 8.8mm and 12.8mm, respectively.</li><li>The opening height ('t') is offered in 1.5mm, 2.0mm, and 3.0mm.</li></ul></li></ul><p>For printing box labels, please consult the template file, "SMD Tape Tag Template.docx".</p><p>Baidu Netdisk link: <a target="_blank" rel="noopener noreferrer ugc" href="https://pan.baidu.com/s/1NsucoVs-ns13ya_HW_iV8w?pwd=07si">https://pan.baidu.com/s/1NsucoVs-ns13ya_HW_iV8w?pwd=07si</a>  Extraction code: 07si</p><p>Should you require additional dimensions, please do not hesitate to leave a comment below.</p><p>Happy printing!</p>

Print Profile(3)

Description

Surface Mount Device (SMD) Storage Boxes v1.2

Update Notes:

===============================

Surface Mount Device (SMD) Storage Boxes
