Desk Lamp - Cozy Christmas Edition

This design is compatible with the Bambu Lab LED Lamp Kit 001 and the Bambu Lab LED Flame Tea Light Candle Set.

Only one set is needed, so pick your favorite. I have linked each product in the Bill of Materials below.

Each piece is printed individually to ensure the easiest print and assembly as possible.

Printing Tips:

• To achieve the same look as the product photography, use the included 3mf files
  • In this file, each design is it's own object
    • The Fuzzy Skin setting is then applied to only the main cylinder and not the individual designs to give the contrasting look. This is not repeatable with the raw STL file.
• Change wall loops to "3"
  • This is to ensure there is no infill in the lamp shade and provides the best overall quality
• Reduce infill to 10% and changed to Cross Hatch

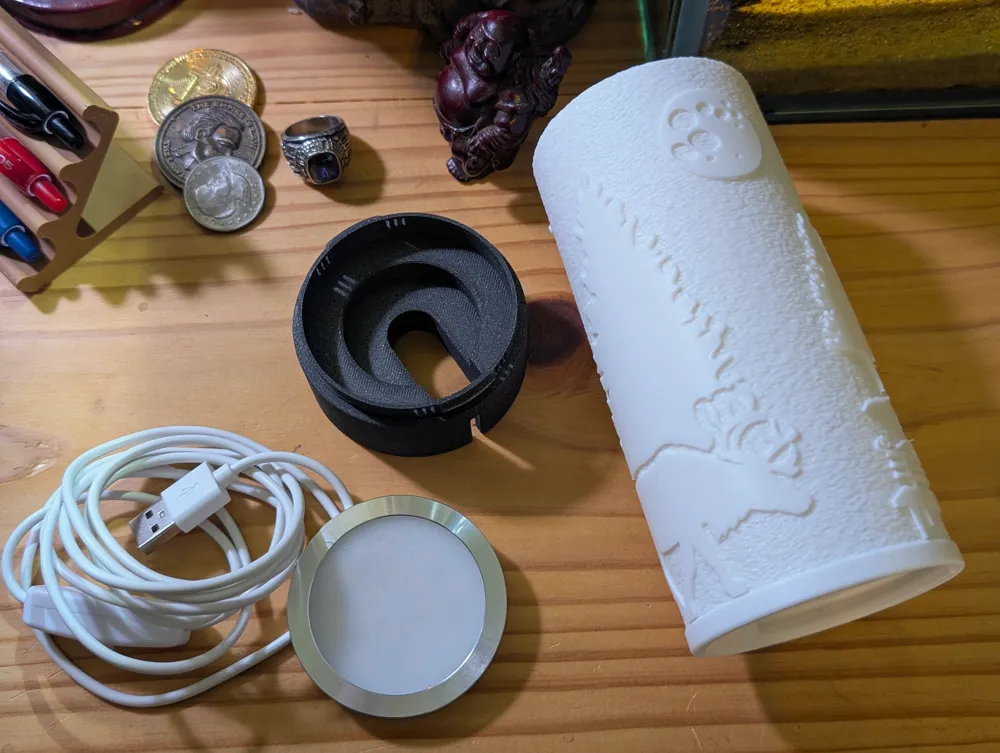

Assembly Overview:

1. Print one Winter Shade and one Base.
   1. The Base has recesses for bot he LED Lamp Kit and a Flame Tea Light Candle
   2. The diameter for the recess for the LED Lamp Kit is 60mm
   3. The diameter for the recess for the Tea Light Candles is 37.5mm
2. Place the LED Lamp or Flame Tea Light Candle in the hole in the Base
   1. If using the LED Lamp, there is a channel on the back of the Base to route the cable out
3. Align the channels on the inside of the lamp shade with the two tabs on the Base and twist to lock
   1. You will hear an audible click when the lamp shade is fully seated in place
   2. To remove the lamp shade, simply perform this step in reverse
