Hikvision inclined base (40°) for newer wider cams

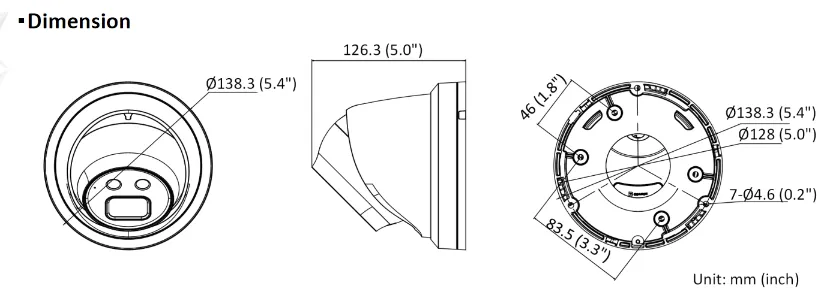

This is a inclined base for a newer Hikvision cameras with a 138.3mm diameter base, for example DS-2CD2387G2, DS-2CD2346G2 etc. The base is tilted 40° for use under a sloping roof.

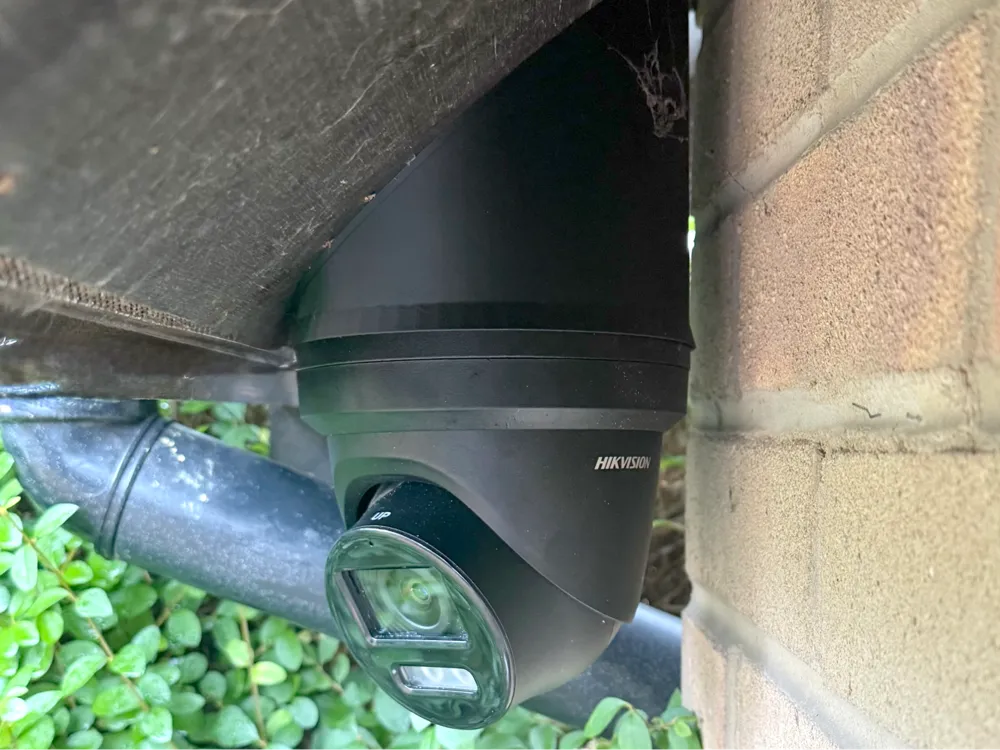

The model was created at the request of a Makerworld user who printed it on A1 and sent a photo. He used a model with a 0.3mm clearance - marked 138.6mm - the diameter of the model base and the printout reportedly fits perfectly.

Just in case, I've added 2 small cutouts of the model to test the clearance - there are models with 2 clearances - 0,3mm and 0,4mm. I've also added a model that fits on the Bambulab A1 mini pad.

I would print it from PETG or ASA (when exposed to sunlight). Polish Spectrum “ASA 275” is a great material that prints just as easily as PETG - https://spectrumfilaments.com/en/

If you need bases for older models, check out mine here: https://makerworld.com/en/models/125323
