Bambu Lab Refill Box Spool & Full Size Spool
Print Profile(4)
Description
UPDATE: Added AMS 2 Pro Adapter to refill spools.

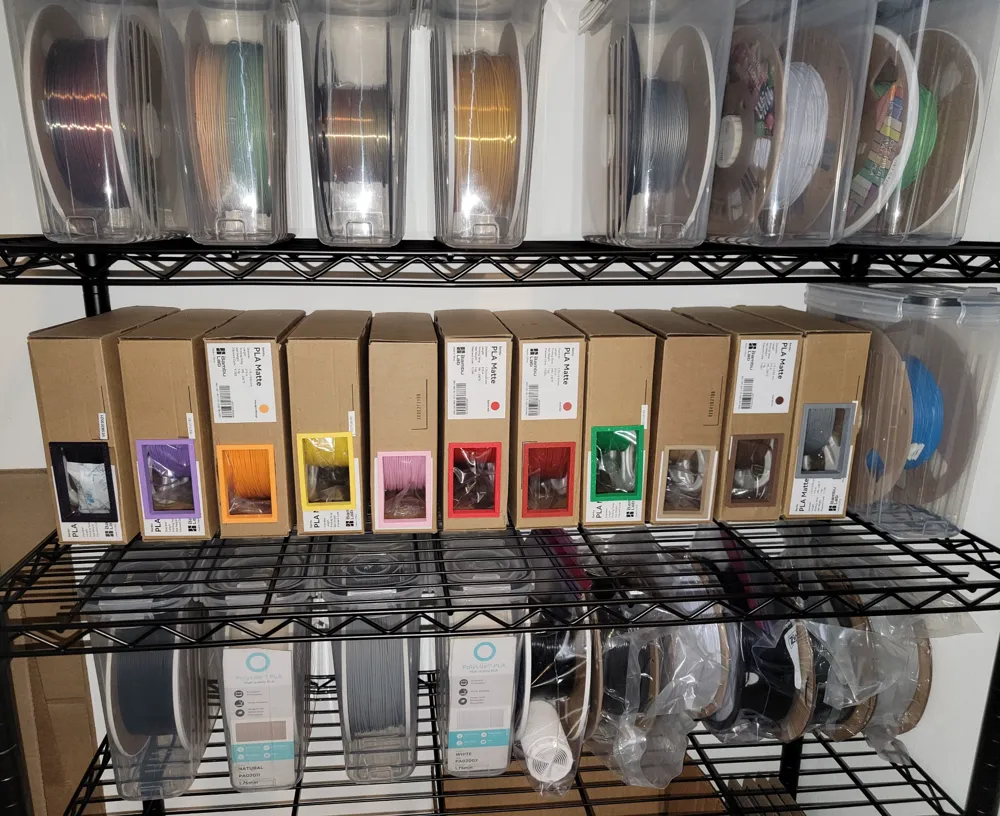

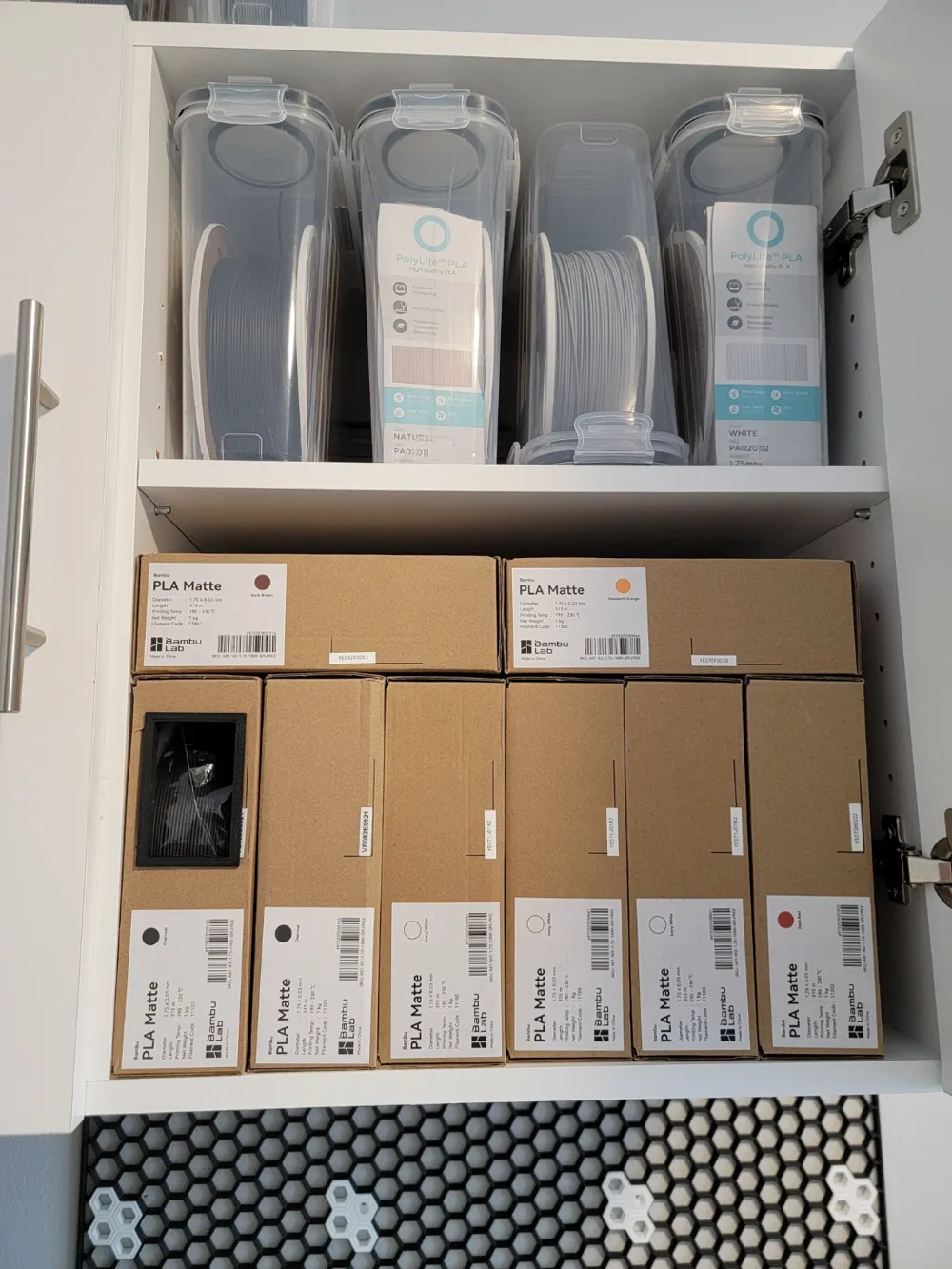

Are you a filament hoarder or simply running out of space to store it all? I know I am. Cereal containers are great, but they take up too much space. Well, I made the perfect solution to store your precious filament and use less space doing so! In my cabinet, I doubled the amount of filament I can store per shelf!

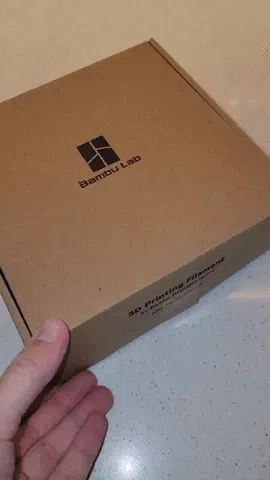

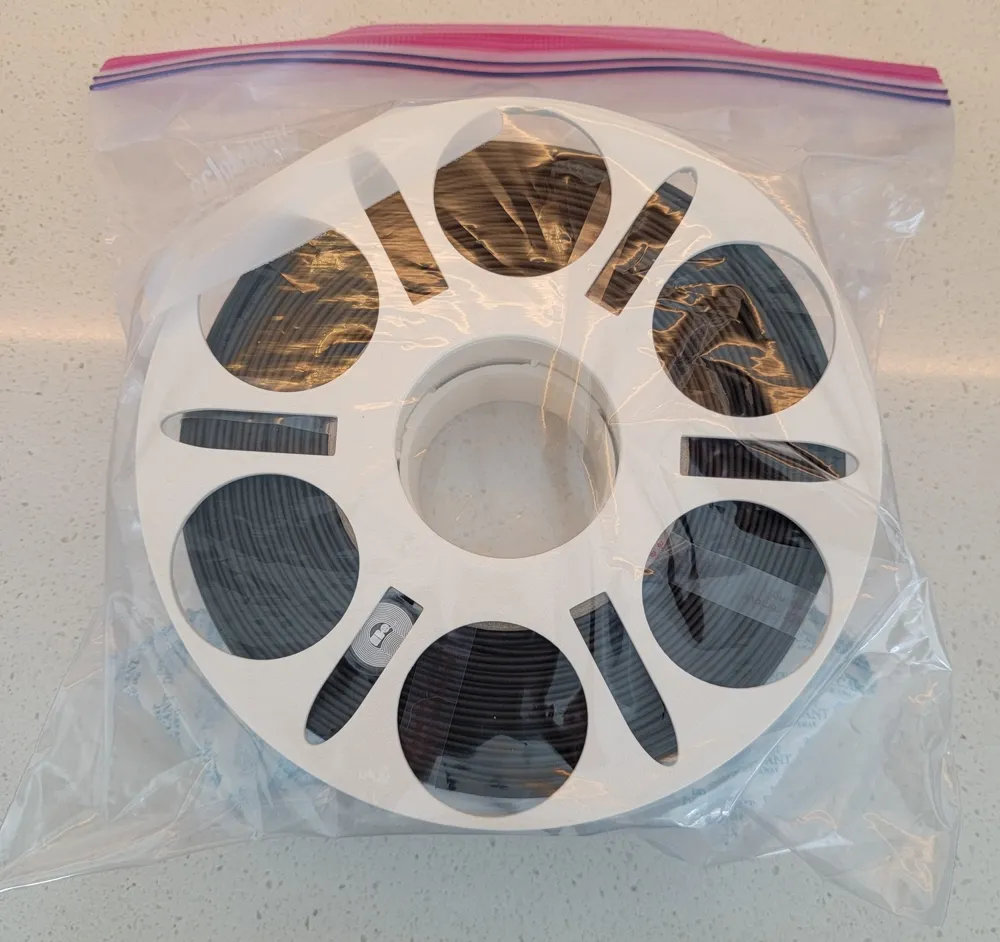

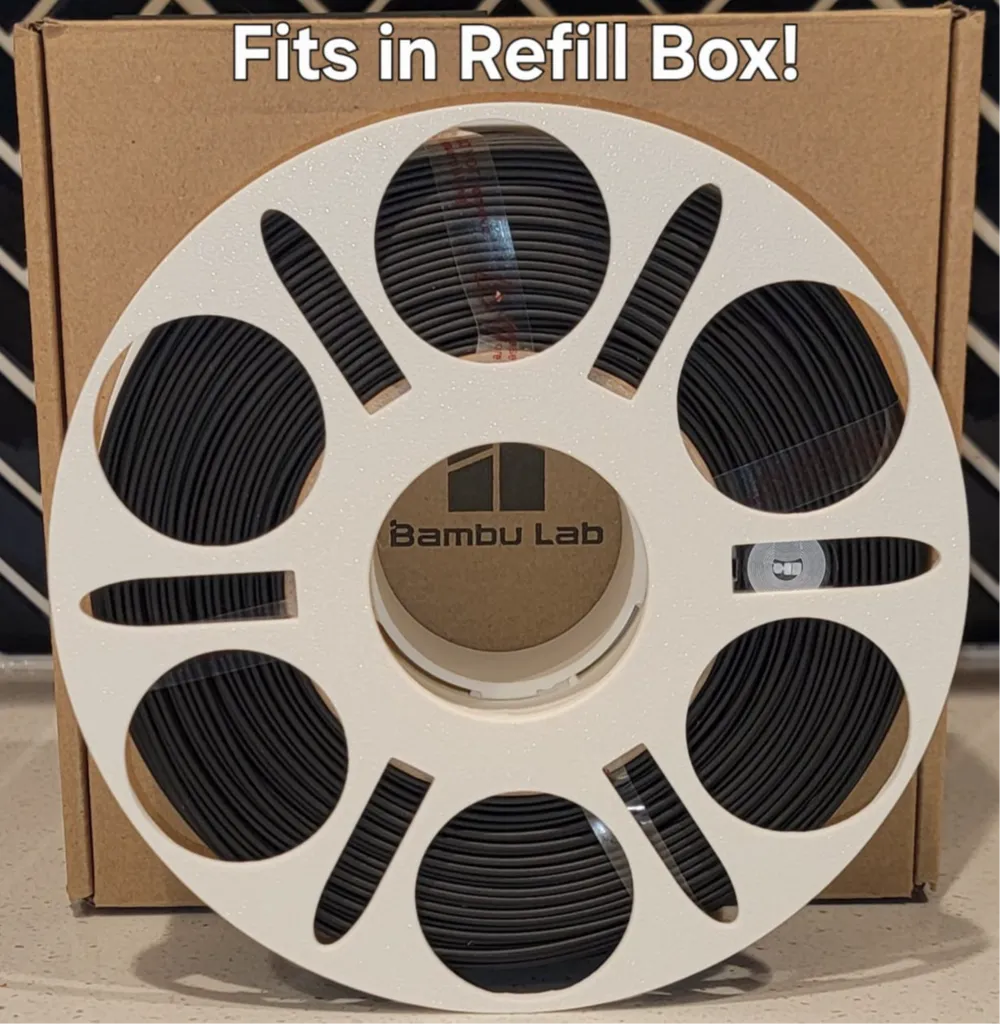

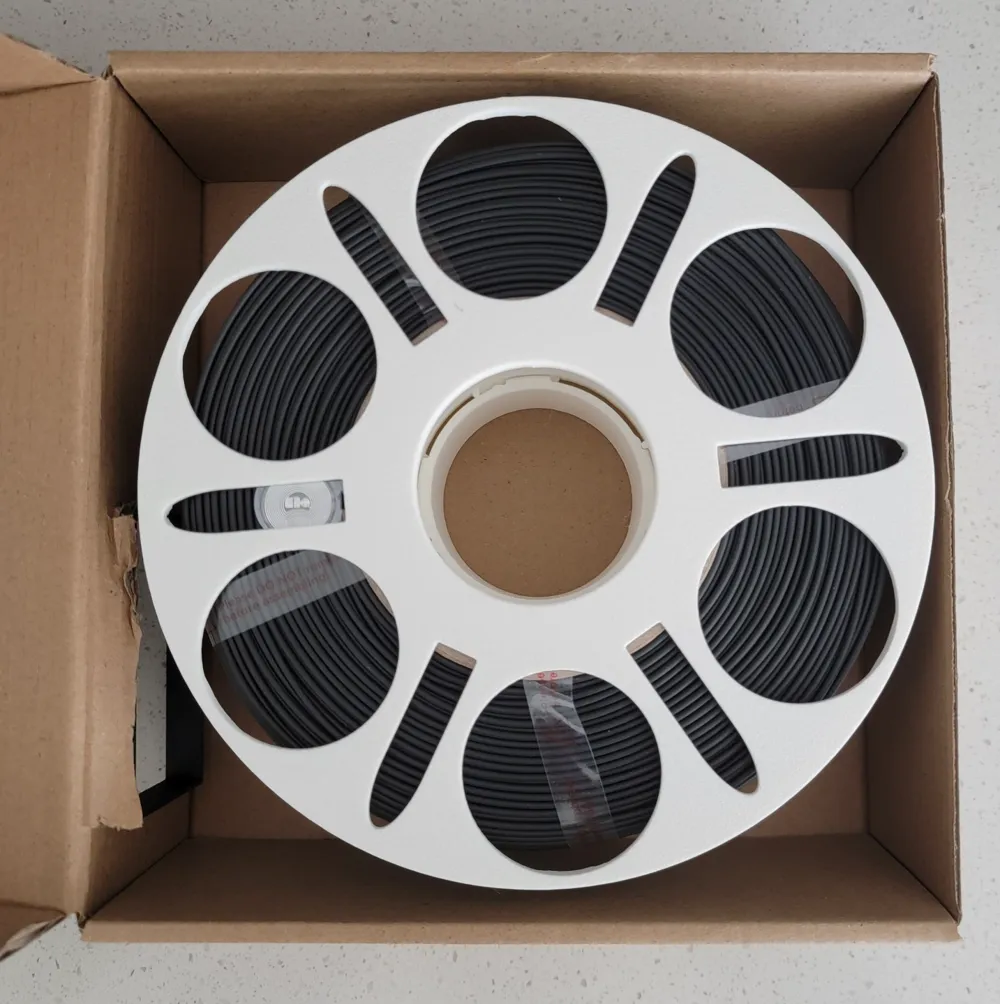

Bambu Refill Boxes store very well, but the current spool designs simply don't fit. This spool is designed to fit inside the original refill box that Bambu filament comes in. I recommend using Gallon Ziplock bags and silica gel to keep the filament dry.
Features:

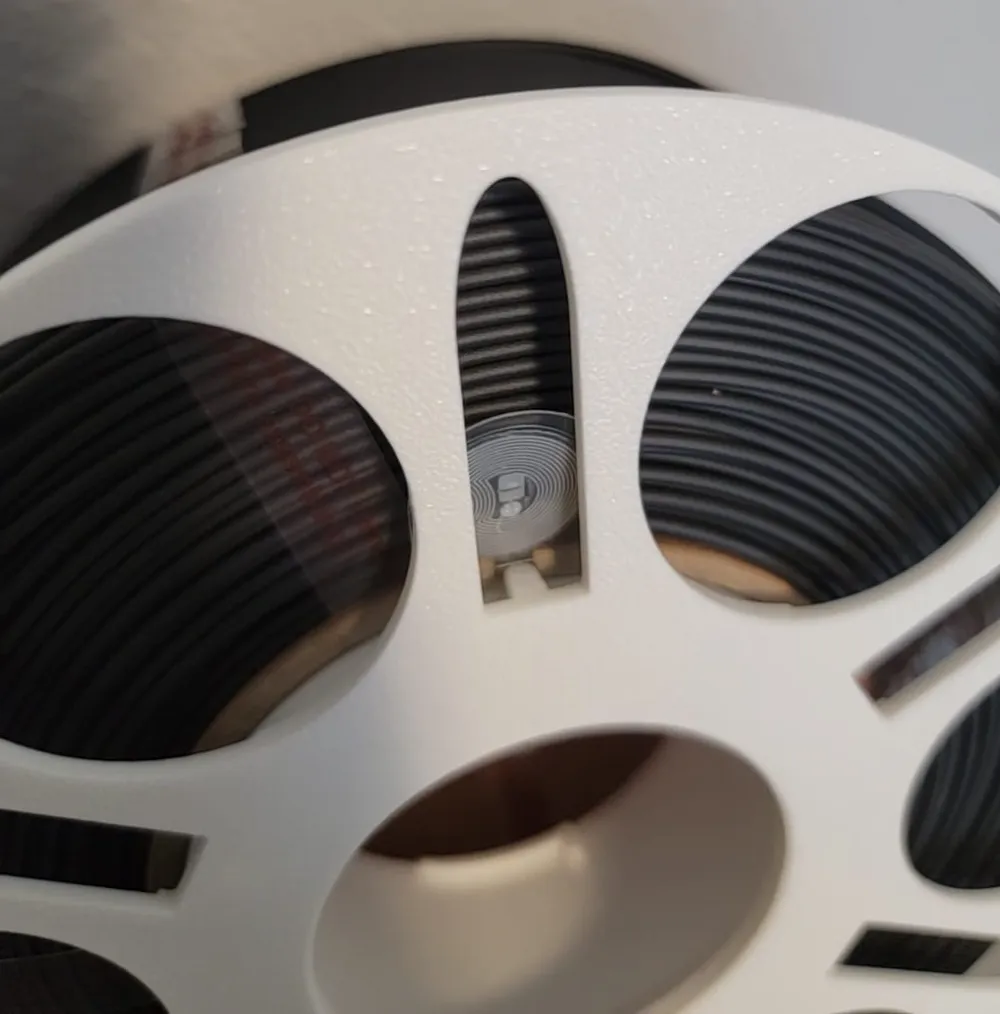

Easily see the tab to help line up the filament with the spool.

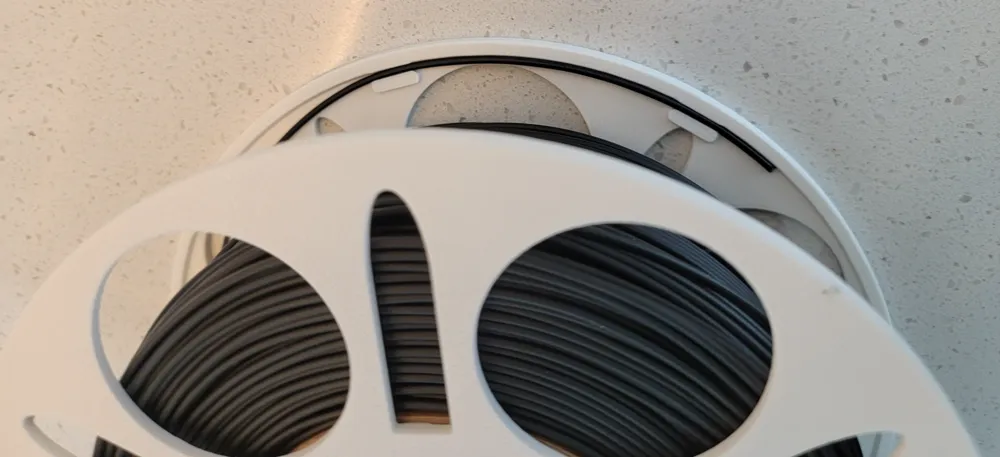

Built in filament clips. No need for extra clips.

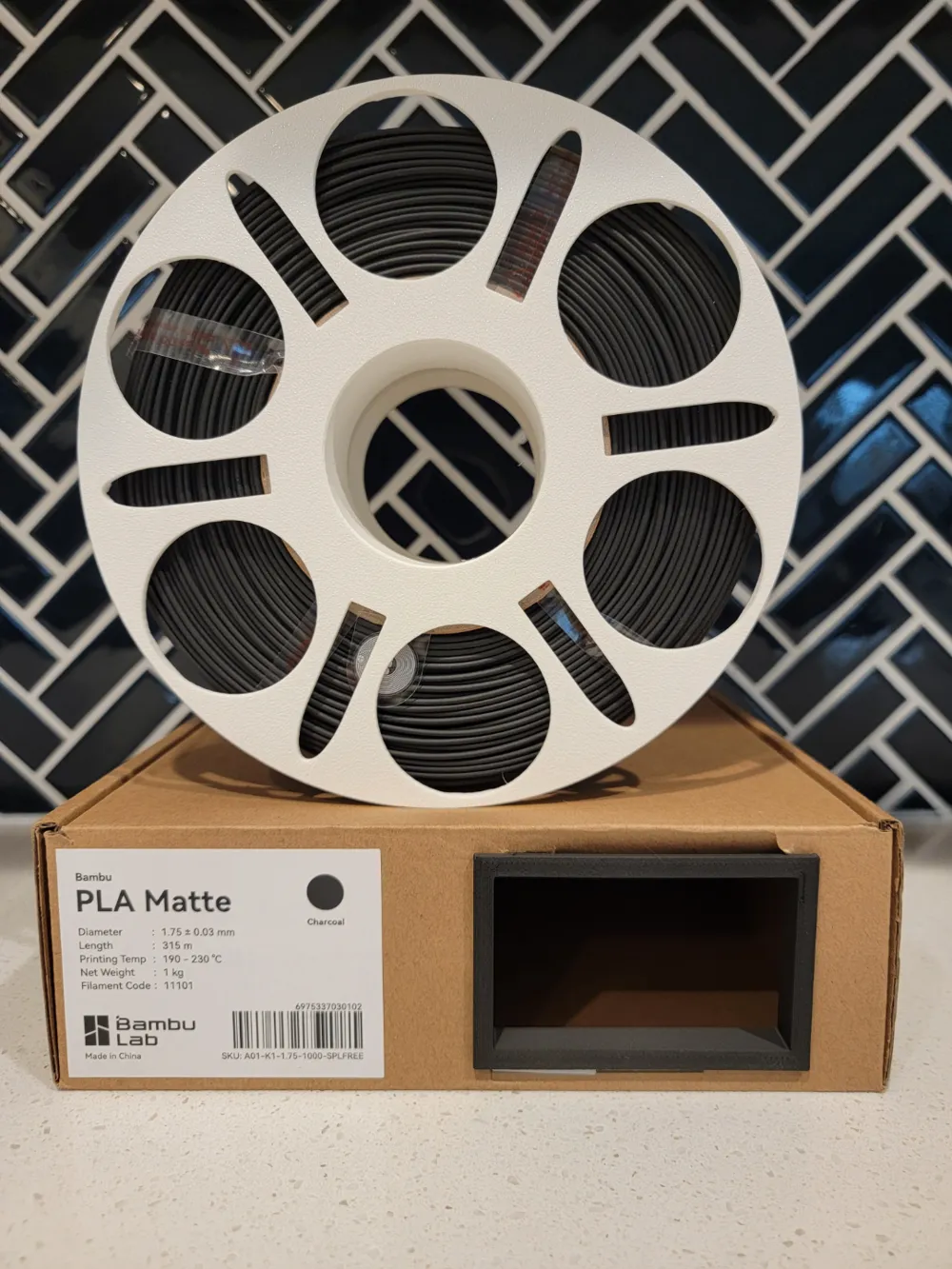

Refill Box Window acts as both a window to see your remaining filament but also the actual print color as well.
Under 160g of filament per spool!

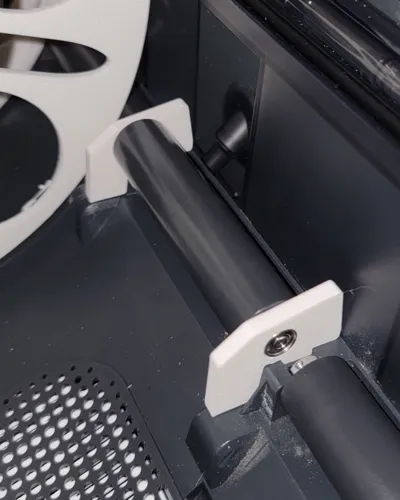

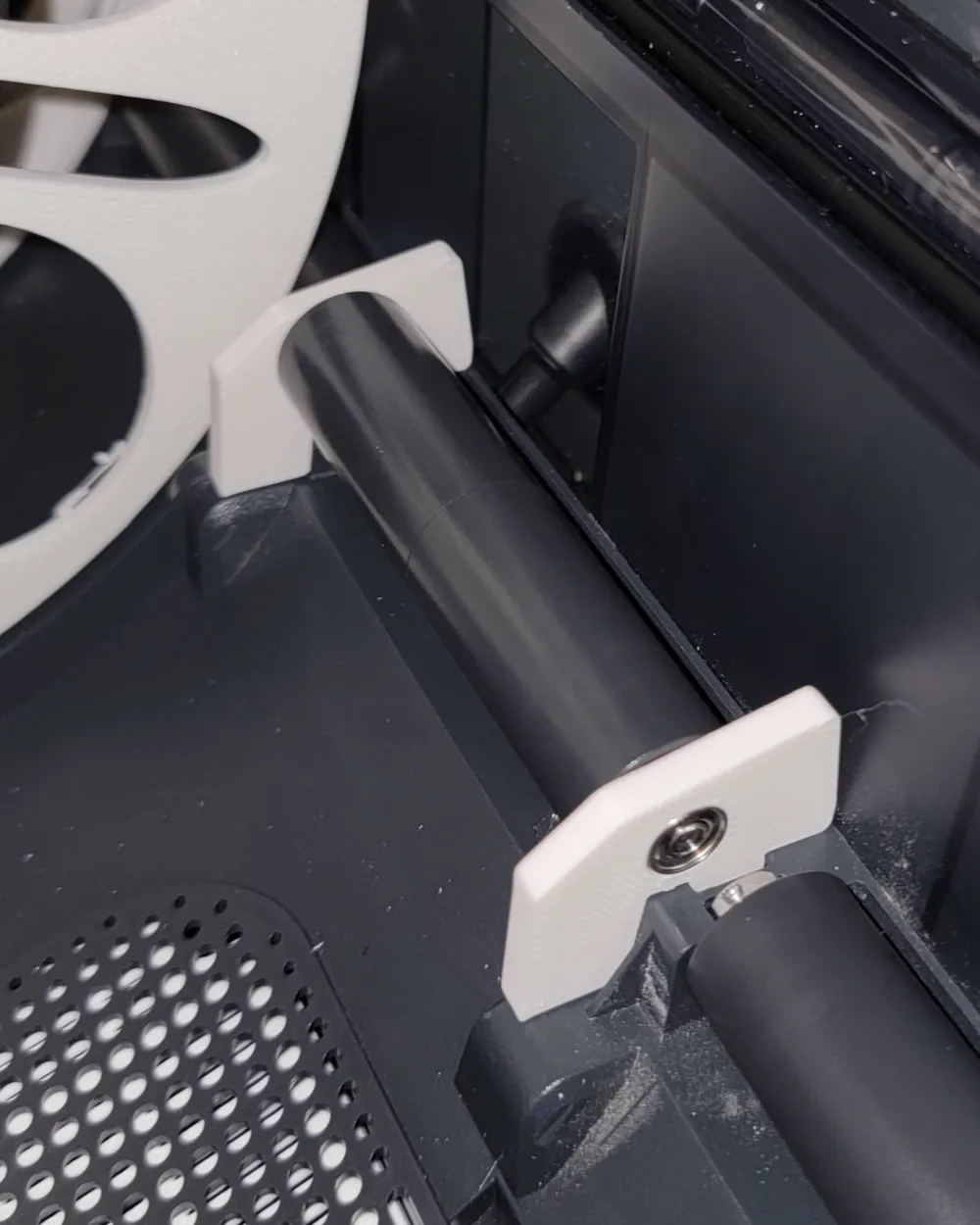

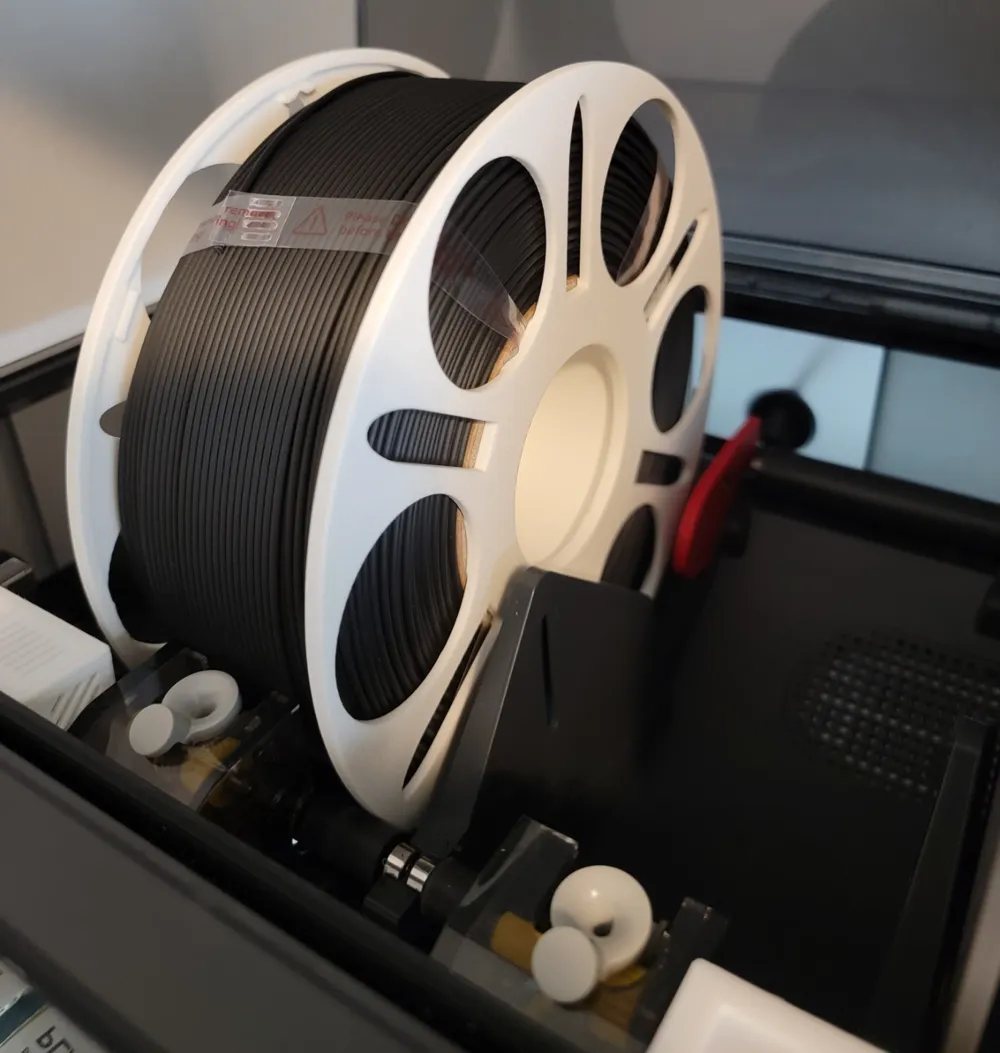

AMS Instructions: (No Extra Parts Needed. Roller Bracket Required to allow Refill Spools to work in AMS.)

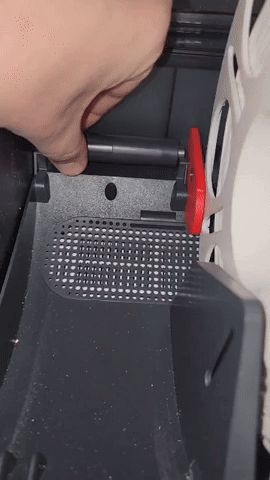

Remove current AMS Roller by lifting straight up.

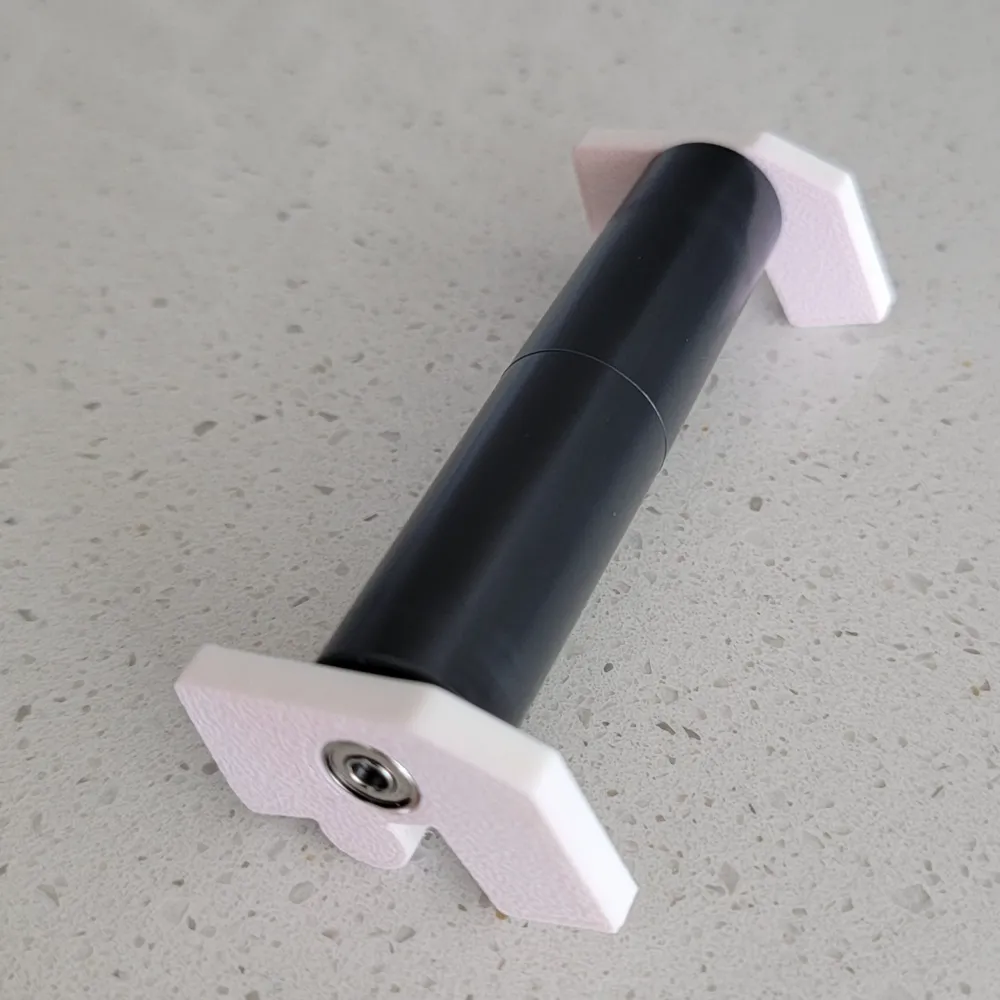

Attach the 2 Roller Relocation Brackets to the side of the roller.
Place the Relocation Brackets back in the original roller location.

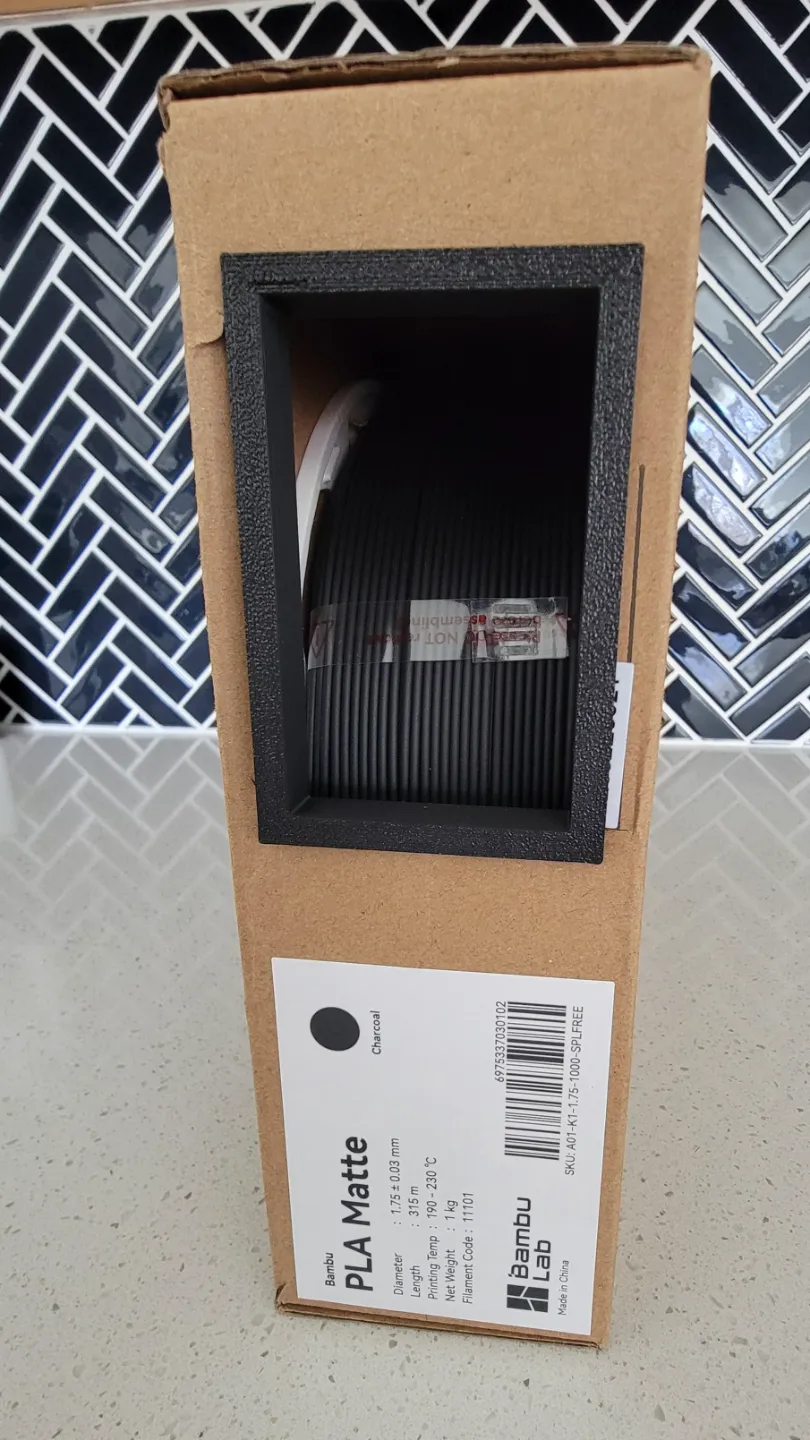

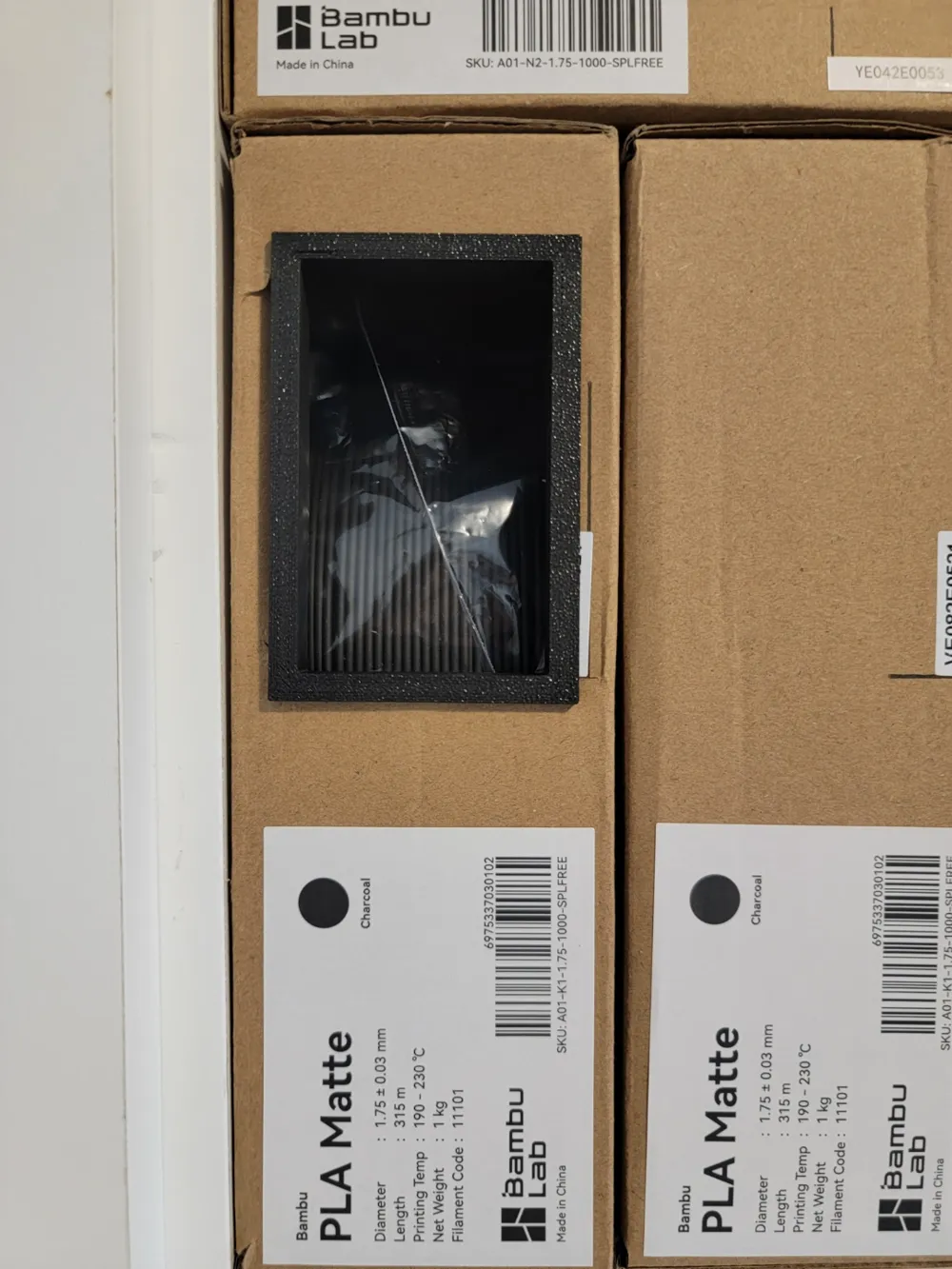

Box Insert Instructions:
Trace the OUTSIDE of the print on the box with a pen/pencil (do not trace the inside, it will not fit right)
Cut out the hole cutting on the inside of the lines you drew
Insert into box
Silica Spool Container Add-On:
Highly recommend the [Community Project] Silica Spool Dry Box as it sits flush inside the spool and refill box.
https://makerworld.com/en/models/139694#profileId-186789
