A case for the arduino uno grbl cnc shield v3.

  • 60x60 fan
  • ventilation holes

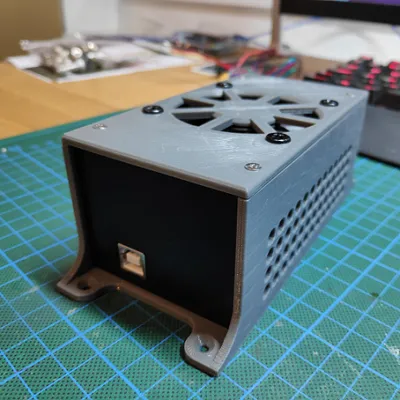

  • USB cut out

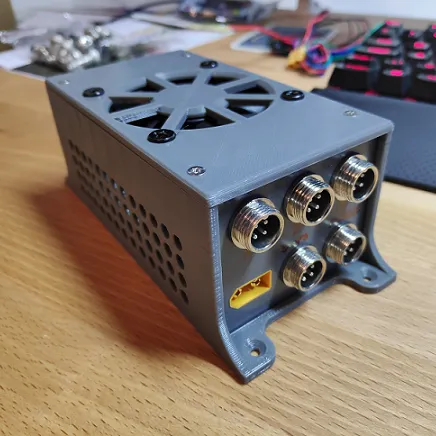

  • 5x GX12 ports (12mm)
  • 1x XT60 port
  • 4 mount points
  • Screws needed
    • Lid: M2.5 (length: 5-10mm)
    • Fan: M4 (length: 5-8mm)
