[2040] Profile End Face Side Hole IF Adjustment Hole Positioning Jig Specialized Version
Print Profile(1)
Description
All my works do not support any form of unauthorized third-party sales. I have communicated with MakerWorld officials and will reserve the right to legal recourse.

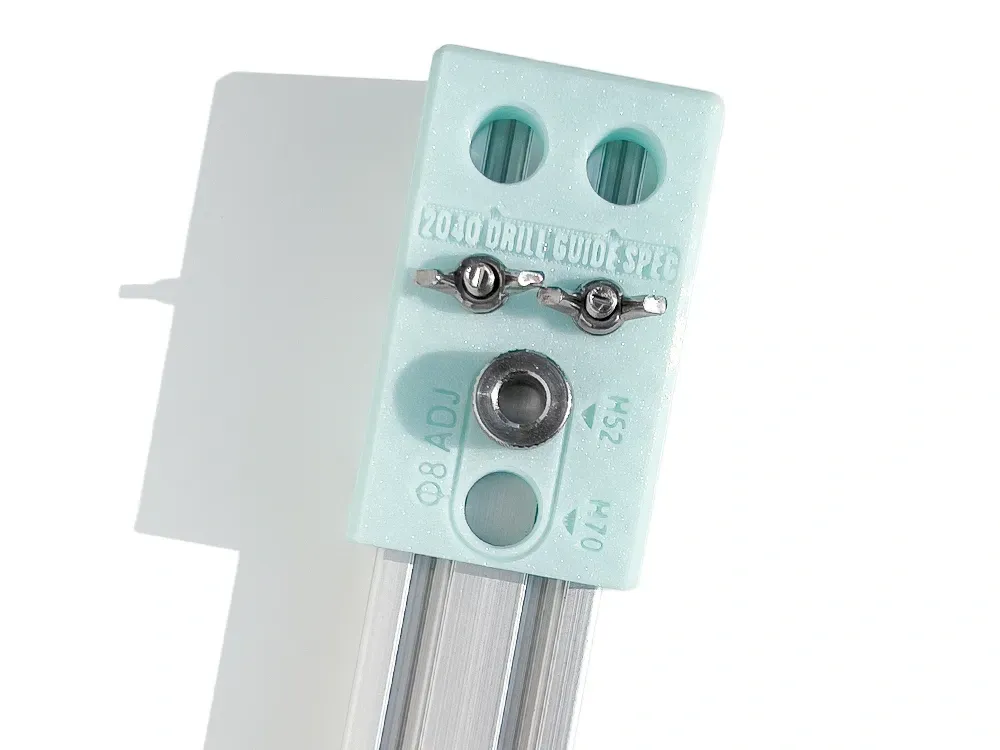

A variant of the end face side hole opening tool for 2040 profiles, primarily adding support for the height adjustment hole of the IF adjustment foot.
This jig allows for more precise assistance in opening adjustment holes 52mm and 70mm from the end face. An 8mm diameter is recommended.
Hardware used includes:
- Knurled threaded bushing, thread specification M14x1.5, inner diameter selected as needed, adjustment hole recommends 8mm inner diameter.
- M6 T-slot screw, approximately 25mm in length, M6 washer, M6 wing nut
