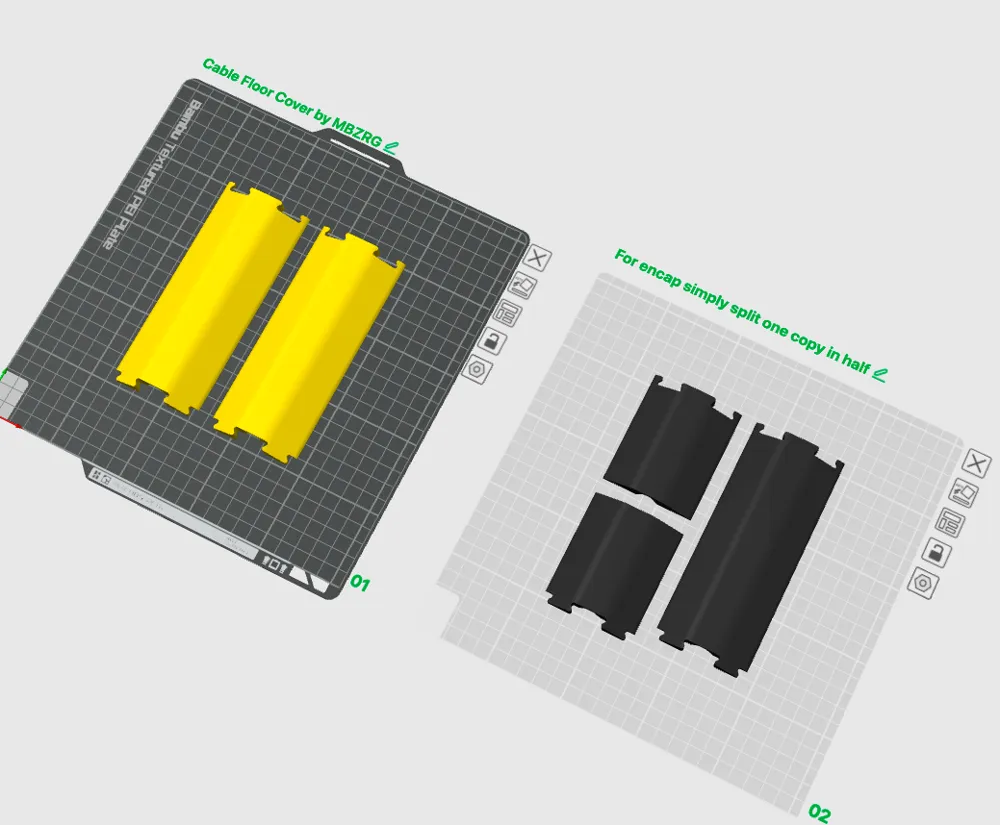

Cable Floor Cover by MBZRG


For encap simply split one copy in half


Screenshot 2025-01-01 at 7.34.10 PM.png

This is the print profile using the file with better tolerance of 0.1mm vs the original which just had 0.03mm6 walls,  7 top shell layers, 2 Plates, one for the yellow parts and one for the black parts with one if them split in two to generate end-caps. Enjoy.

0.1mm TOLERANCE STL -  0.2mm layer, 6 walls, 5% infill

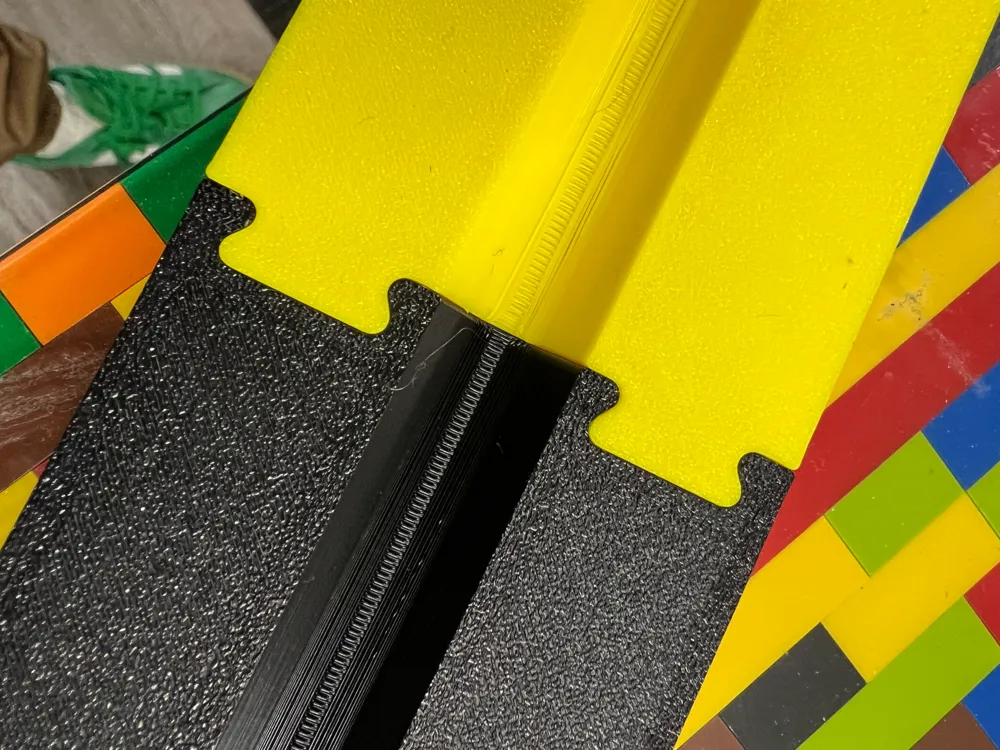

I chose PETG to print this but there is no reason you can&#39;t use PLA  The tolerance of the attachement tab are very satisfying and once snapped in place they do not move.  No support needed,  Can be printed in draft but the finish is better in 0.2, the 6 wall seem extreme but ensure a nice top finish of the slanted sides. To generate end-caps simple split the model in X by 90deg and save both parts so you get an end cap for either end.

0.03mm TOLERANCE STL, 0.2mm layer, 6 walls, 5% infill

Cable Floor Cover by MBZRG 0.5mm tolerence gap

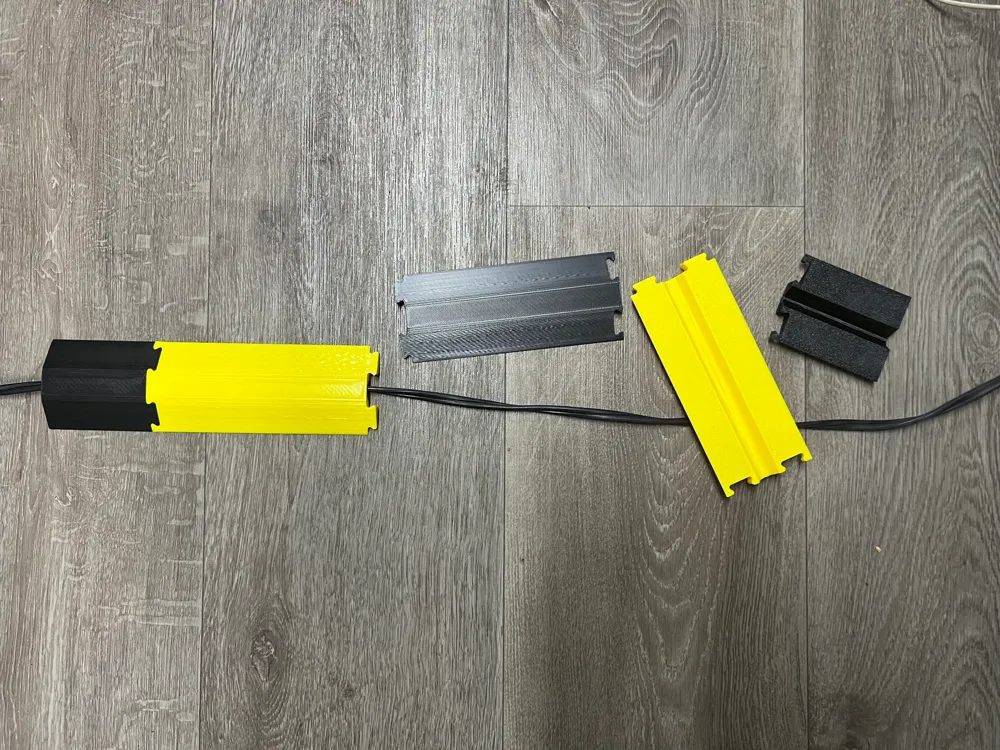

End Cap is simply one part cut in half

Screenshot 2025-08-24 at 1.51.03 PM.png

Screenshot 2025-08-24 at 1.43.19 PM.png

This is the print profile for the 0.5mm tolerance between the parts allowing for easier install and removal.  Uploaded as per popular demand. Printed in PETG.

0.5mm TOLERANCE STL 0.2mm layer, 6 walls, 5% infill, PETG

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

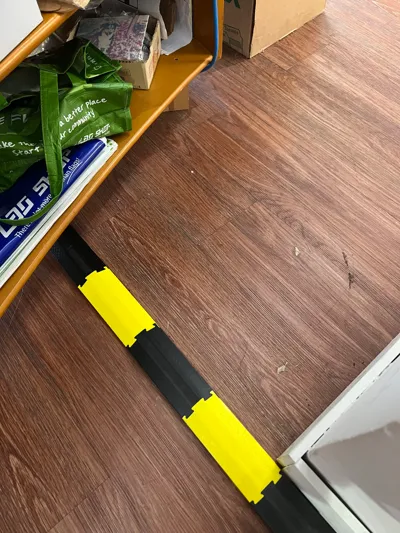

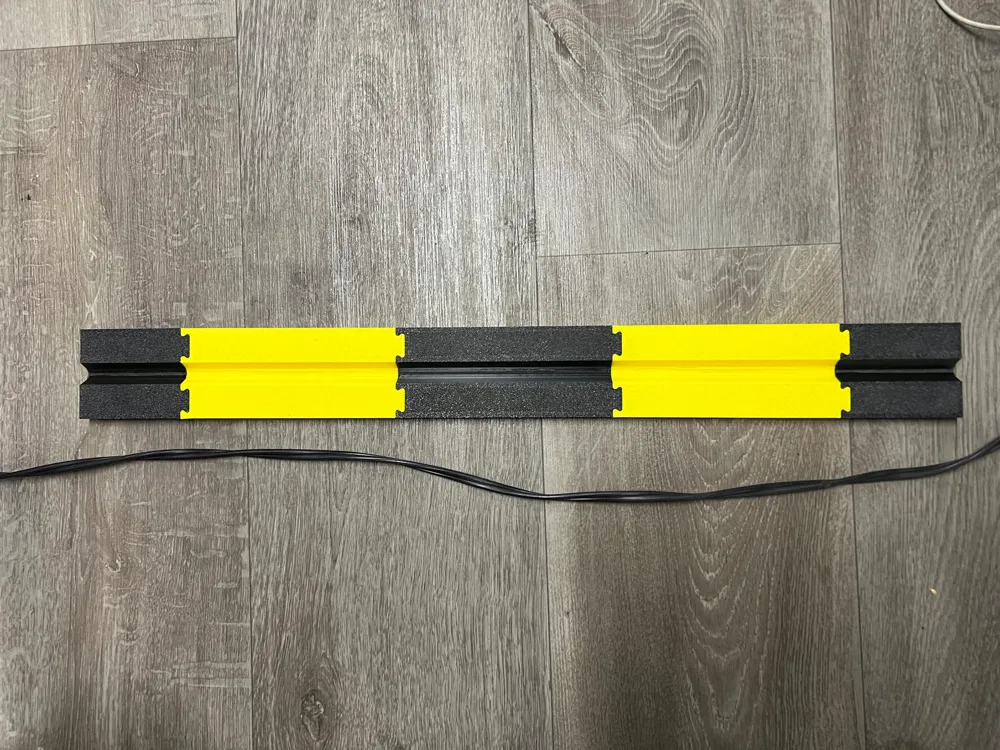

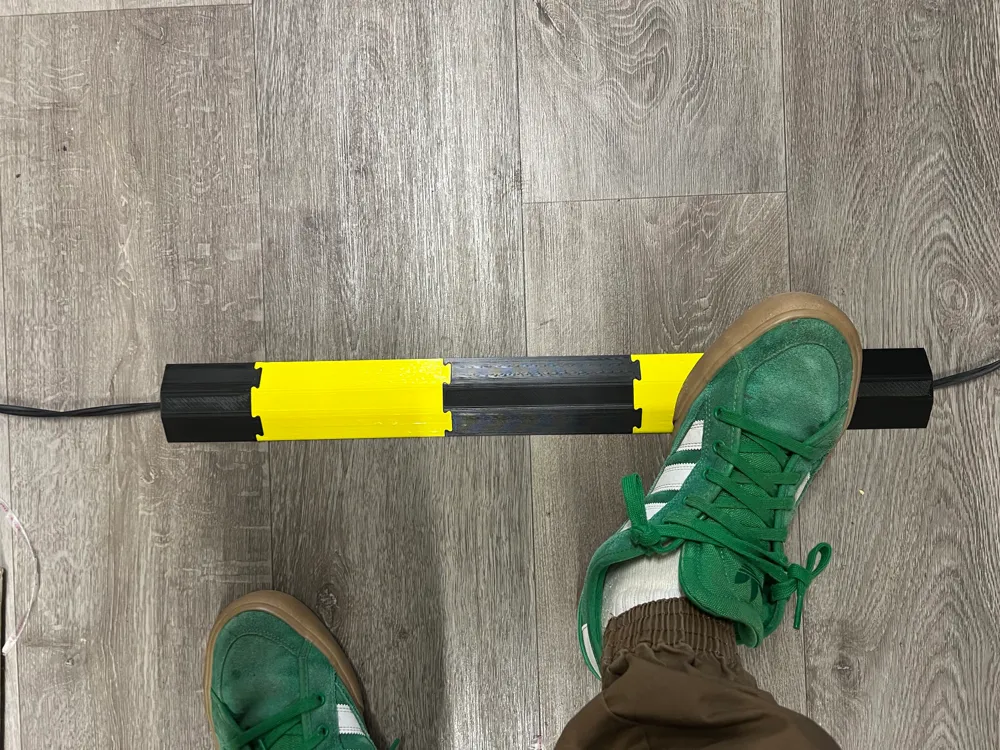

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Thanks for the Boost, your support if much appreciated</boostcontent></boostme>I had some rubber amazon cable floor cover and after 3 month of stepping on them they were shredded. So i decided to design my own and i&#39;m so happy with the result I wanted to share this with you all. If you have an electric extension cable or network cable that has to cross your pathway, this expandable solution is for you. Simply hold the assembly in place with carpet tape or double sided tape or 3M command strip or similar method. These can be printed on the A1 mini as well as each section is 150mm and you just need to print as many as you need to protect your cables. I used PETG but there is no reason this would not work with PLA
