FF04-LP Cable Management Model File [Made in Guye, China]

This model file is for the cable management device in my Bilibili video "【Exquisite Cable Management】Immersive Installation of FF04-LP", inspired by the cable management approach shared by another computer assembly expert on Bilibili, 【Tangshan Lianqiang】, and improved upon with my understanding through multiple installation tests and revisions. Compared to the original shared version, this is significantly different. Specific improvements include:

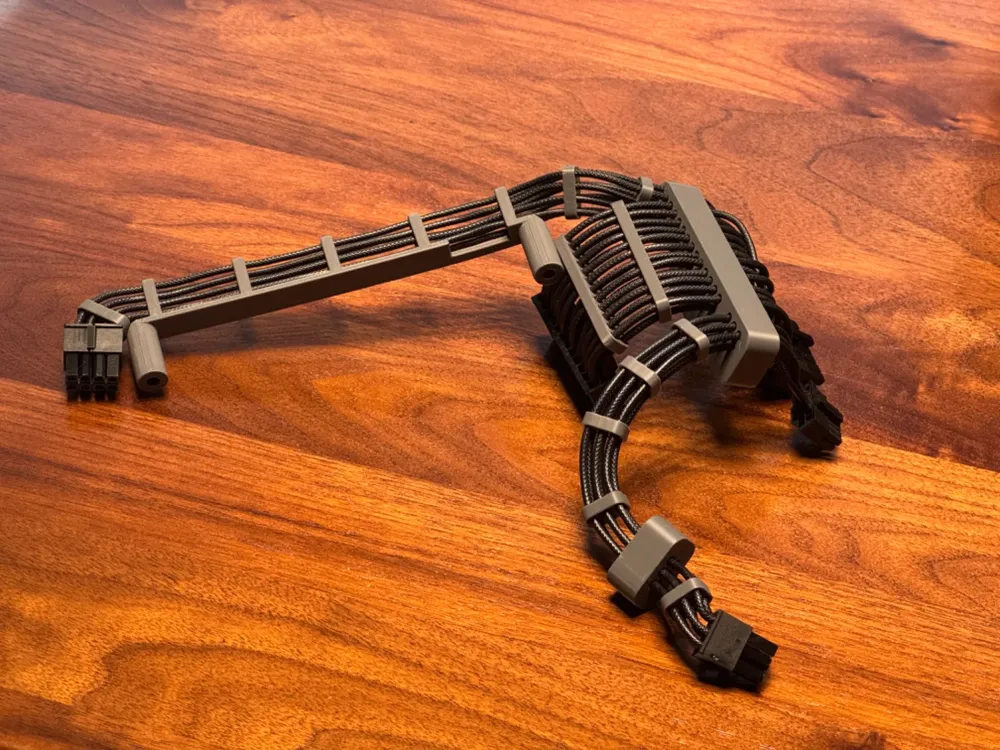

① The original design's CPU power support beam connection is vertical, while this model uses a horizontal structure. This design facilitates better airflow across the CPU for optimal cooling, minimizing airflow blockage.

② The horizontal beam of this model's CPU power support includes a cutout for wide memory heatspreaders. This enhances compatibility with more models of custom wide heatspreaders, such as the hollow CNC memory heatspreaders by XiKii Chang, effectively preventing interference between the heatspreader and the cable manager.

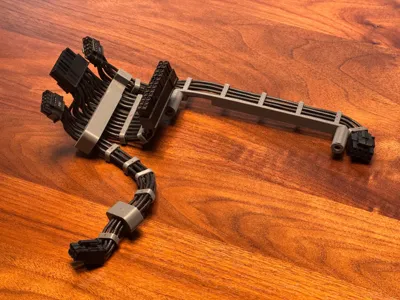

③ A cutout accommodating the dimensions of the front panel I/O connectors is incorporated into the cable-fixing block, cleverly concealed under the 24-pin motherboard power connector to maintain aesthetics. This allows for easier passage of power button jumpers and front panel I/O cables after the power supply is installed, reducing installation difficulty.

Note: This solution is only compatible with the FF04-LP and the standard Yi Heng 7660B (manufactured by YouYiGai) power supply. Moreover, this solution is applicable mainly to most AMD motherboards. It is known to perfectly support ASUS B450i/B550i/B650i/X470i/X570i/X670i/X870i models. Other models require verification. Use with caution.
