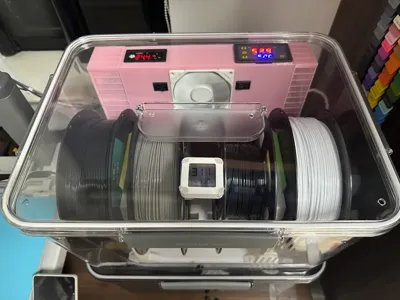

AMS lite enclosure with drying (Three Green alternative)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
32.4 h
4 plates
Open in Bambu Studio
Boost
28
78
4
2
48
1
Released
Description
Content has been automatically translated.
Components List:
| AMSlite Enclosure | ||
| Material | Quantity | Price |

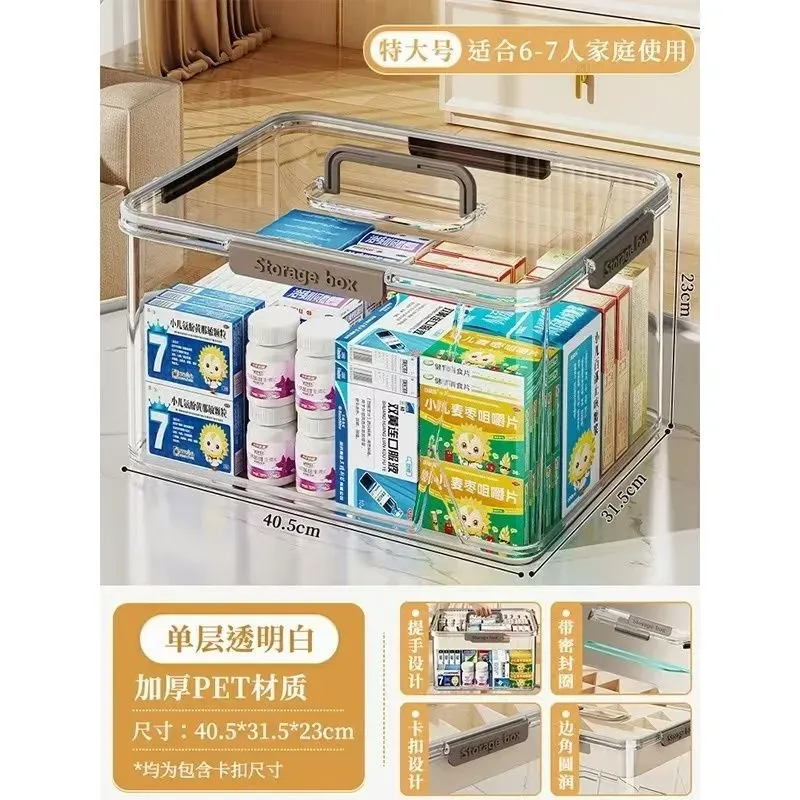

| Desiccant Storage Box | 1 | 36.86 |
| Silica Gel Desiccant | 500G | 6.84 |
| PC4-M6 Pneumatic Straight Through Connector | 4 | 4.08 |
| PTFE Tubing 2.5 inner diameter, 4 outer diameter | 4m | 4 |
| Total | - | 51.78 |
| Drying Kit | ||
| W3230 Temperature Control Module | 1 | 7.18 |
| M10*1.5 Gland Nut | 1 | 3.86 |
| 3-Core Power Cord | 2m | 2.64 |
| Several Terminal Blocks (Soldering and heat shrink tubing required for those with sufficient skills) | 2p | 1 |
| PWM Fan Speed Controller | 1 | 21.44 |
| 12V Mini DC Power Supply | 1 | 7.31 |
| 220v 250w Ceramic PTC Heating Element with Thermal Protection | 1 | 18.9 |
| 9015 Fan (Josber 3000 RPM recommended) | 1 | 18.9 |

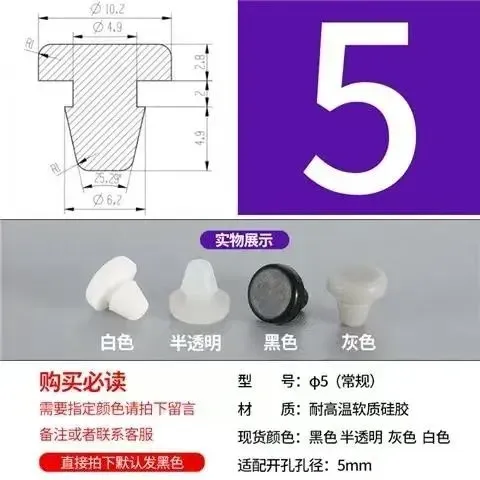

| Silicone Plugs | 10 | 1.5 |

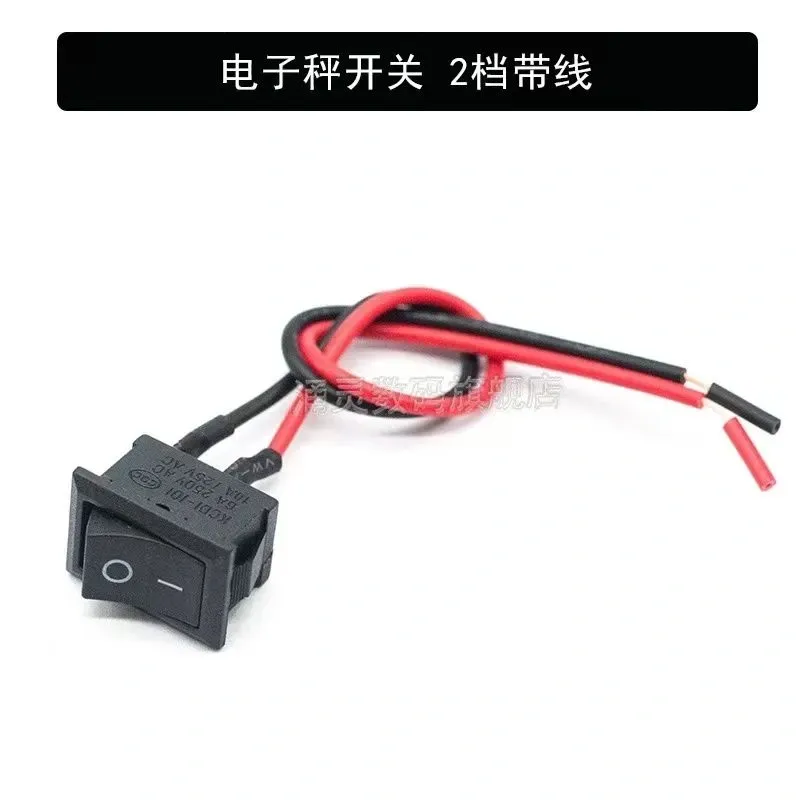

| 2-Position Switch | 2 | 3.3 |
| Total | - | 86.03 |
Simplified Wiring Diagram (For Reference)
